Plan 666008RAF
Spacious Contemporary House Plan
Heated S.F.
3,543
Beds
4
Baths
3
Stories
2
Cars
2
Photos
Floor Plan

Plan 666008RAF

Main Level
slide image 0
2nd Floor
slide image 1

Plan 666008RAF

1-800-854-7852

1-262-521-4596

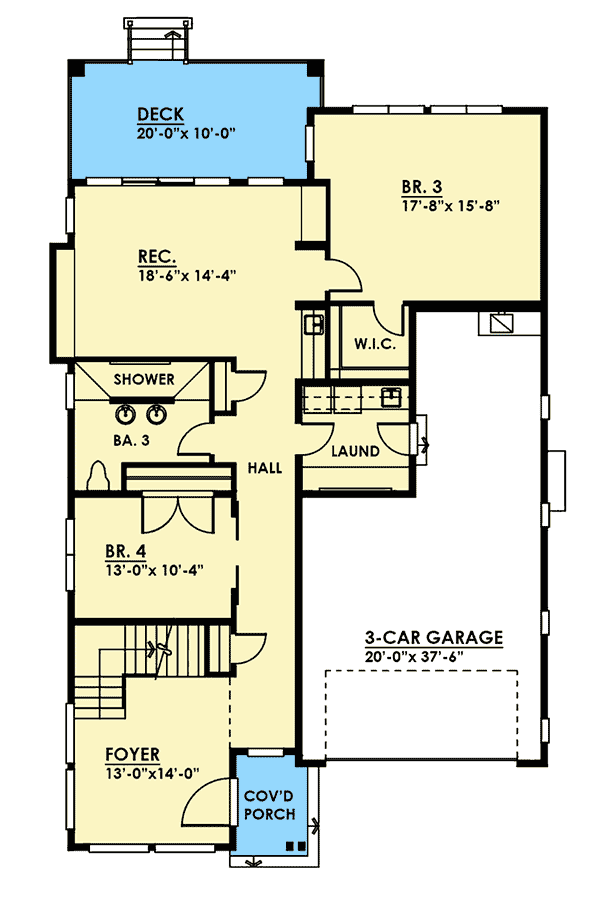

Main Level
floor plan image Main Level

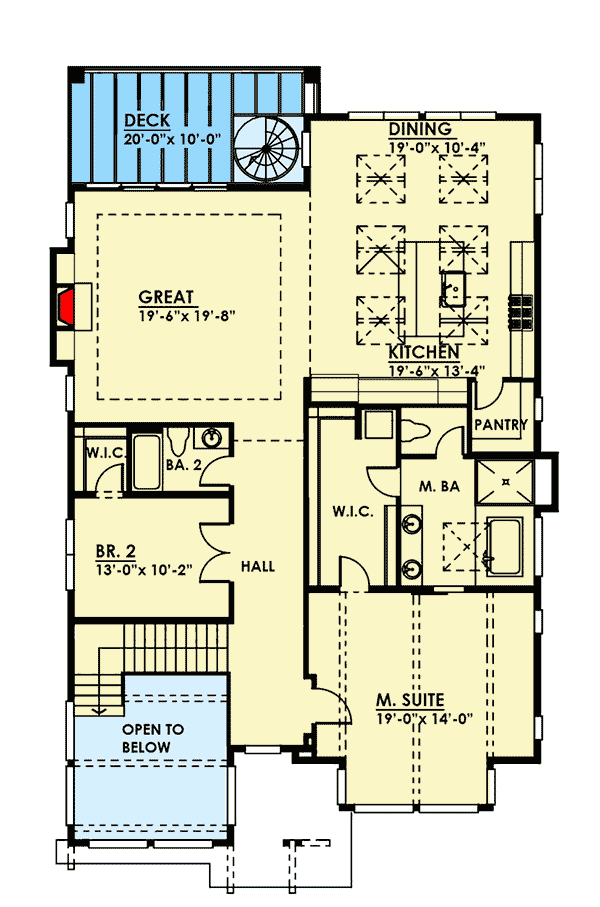

2nd Floor
floor plan image 2nd Floor
Plan Details

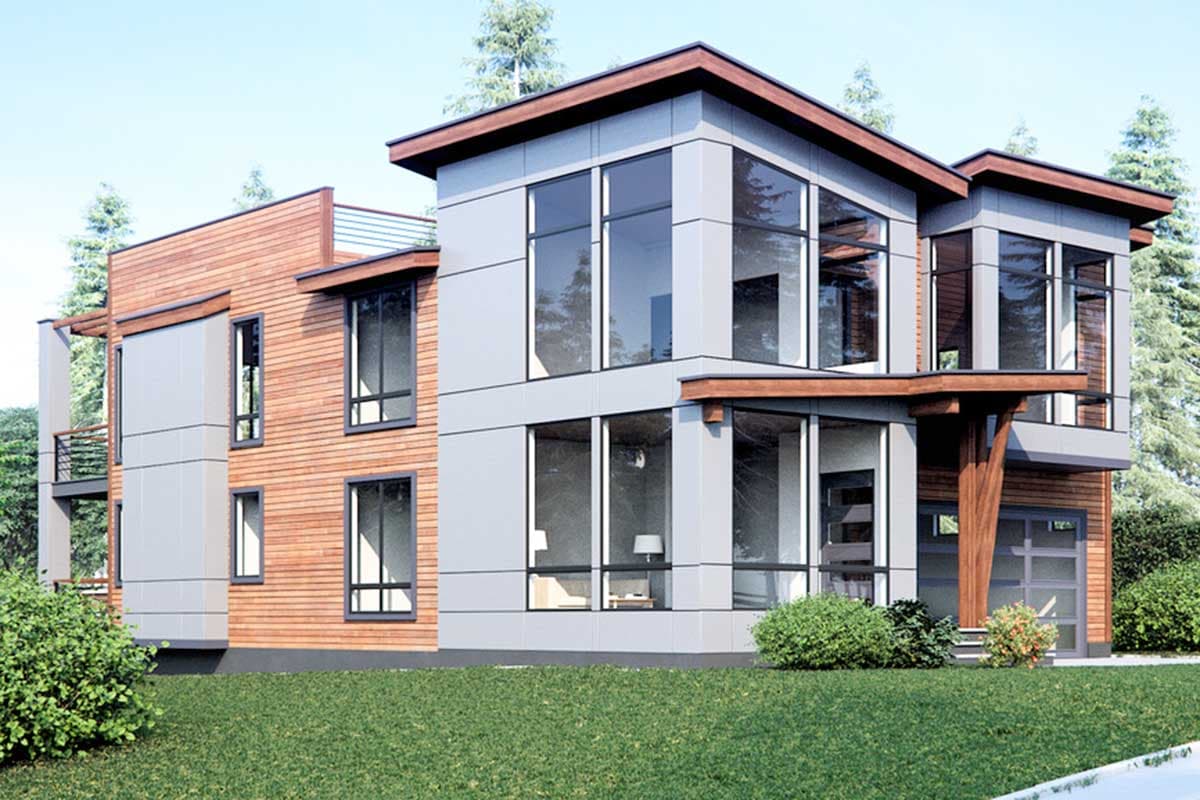

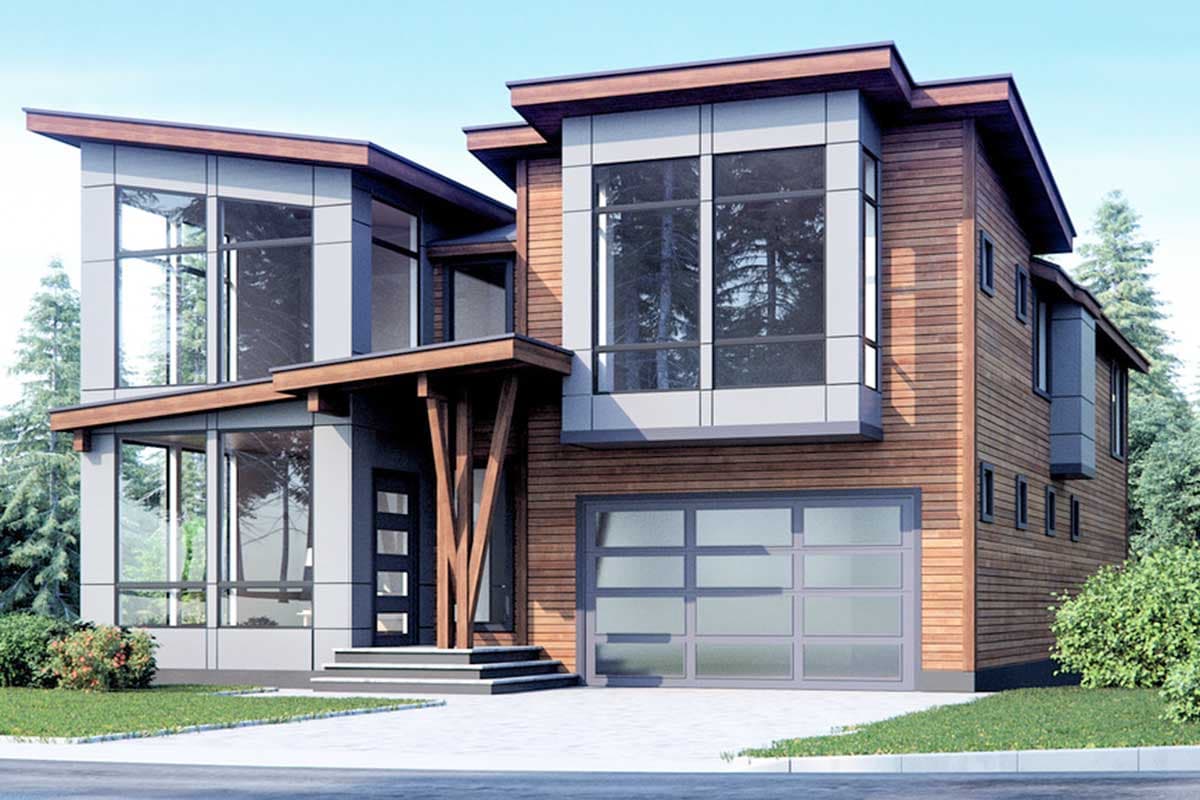

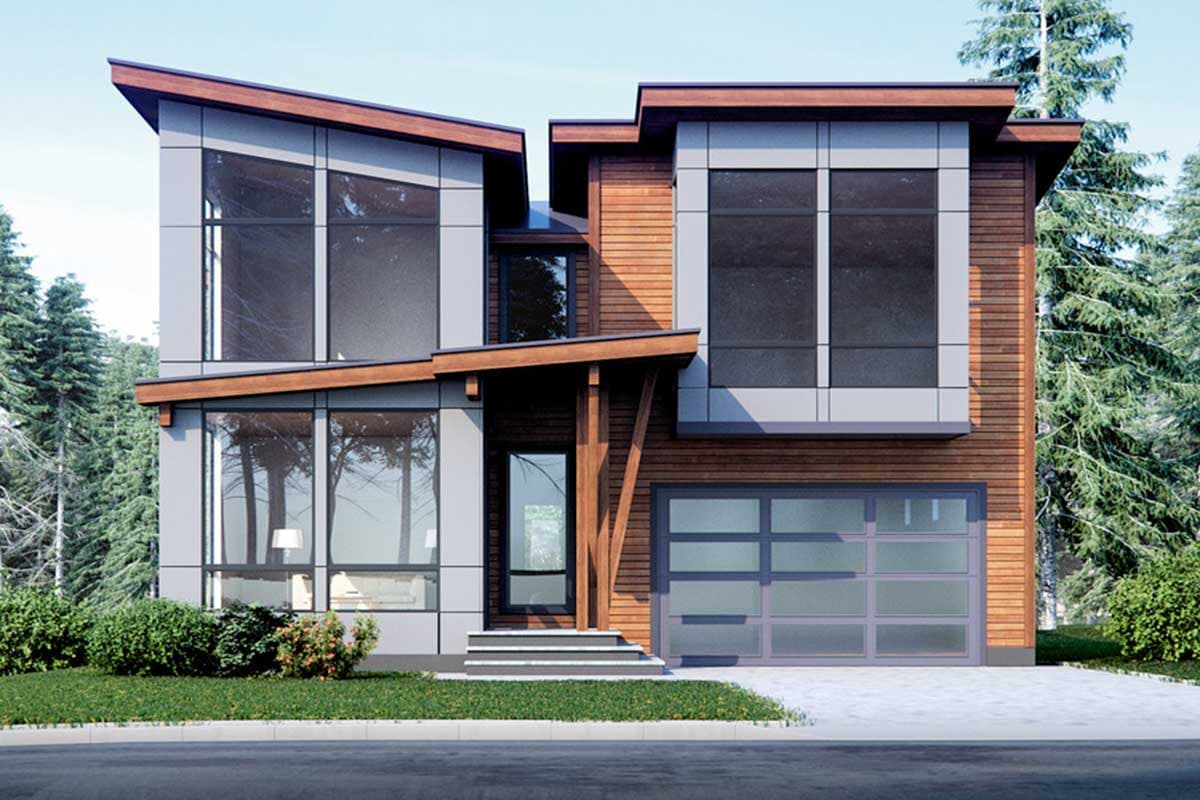

  • Slanted and flat roof lines give this Contemporary house plan its unique look.
  • The flexible floor plan comes with two bedrooms downstairs and two upstairs.
  • Enter the home from the garage or the large foyer that showcases the staircase going up.
  • Sliding glass doors in the huge rec room take you out to the lower deck.

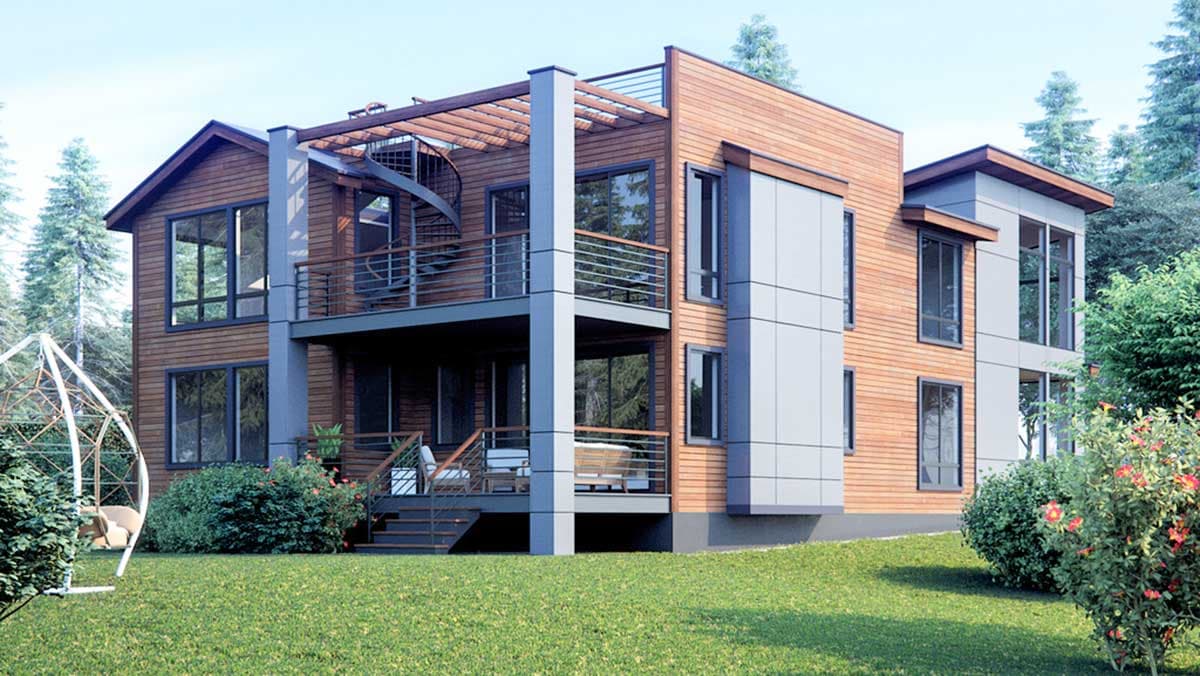

  • Directly above it, a second deck comes with a spiral staircase to the roof top.
  • The open living space on this level is enormous, with the living, cooking and eating areas all combined together.
  • The gorgeous master suite has a beamed ceiling and a giant walk-in closet.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 666008RAF Comes to Life in Washington

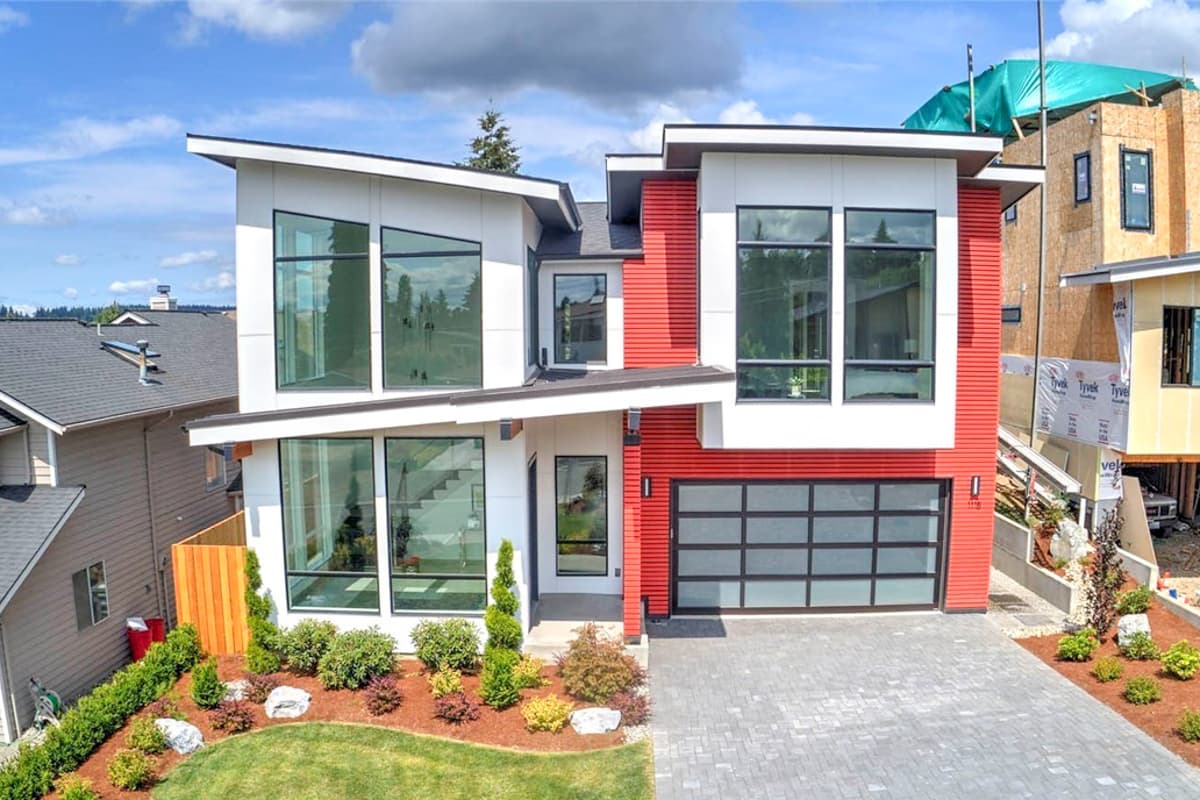

House Plan 666008RAF Comes to Life in Washington

23

Photos

What's Included
  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,543 sq. ft.

1st Floor

1,555 sq. ft.

2nd Floor

1,988 sq. ft.

Porch, Front

50 sq. ft.

Deck

410 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

66' 0"

Garage

Type

Attached

Area

603 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Butler Walk-in Pantry

Game/Rec Room

Laundry - Main Level

Master Suite - 2nd Floor
