Plan 666178RAF

Spacious Contemporary Northwest House Plan with Home Office and Guest Suite

Heated S.F.

5,594

Beds

4 - 5

Baths

6.5

Stories

2

Cars

3

Floor Plan

Main Level

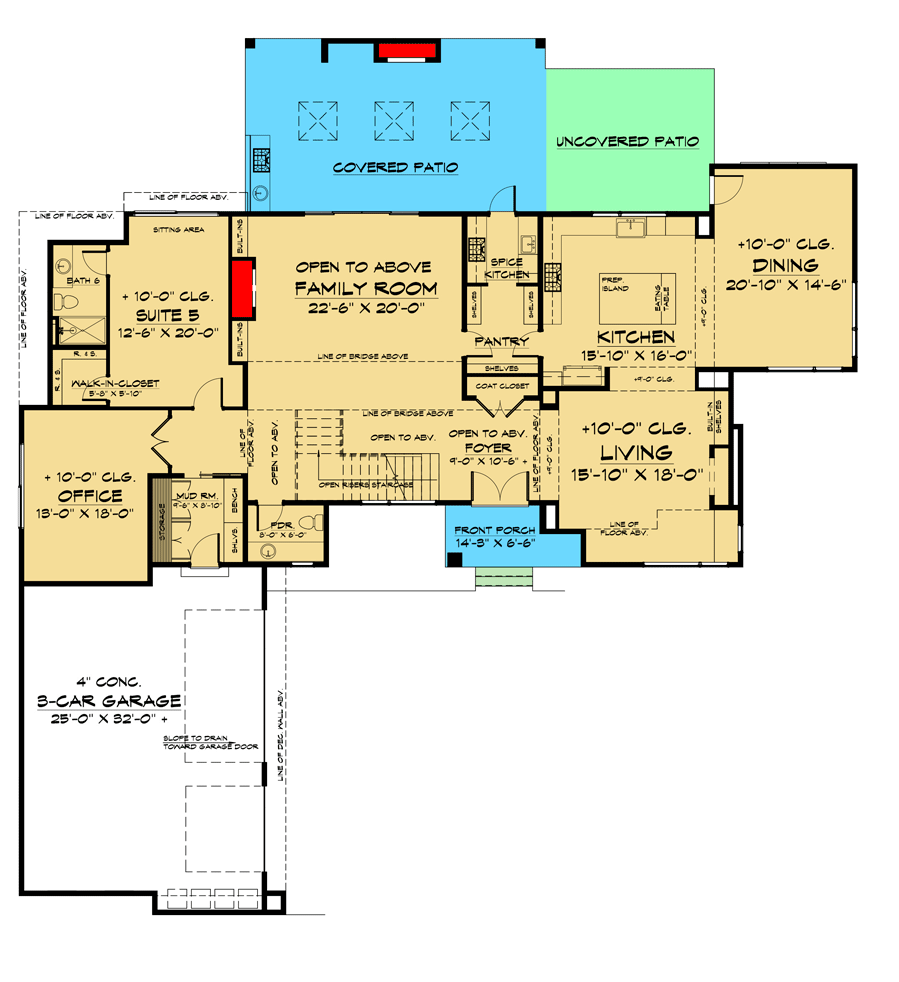

floor plan image Main Level

2nd Floor

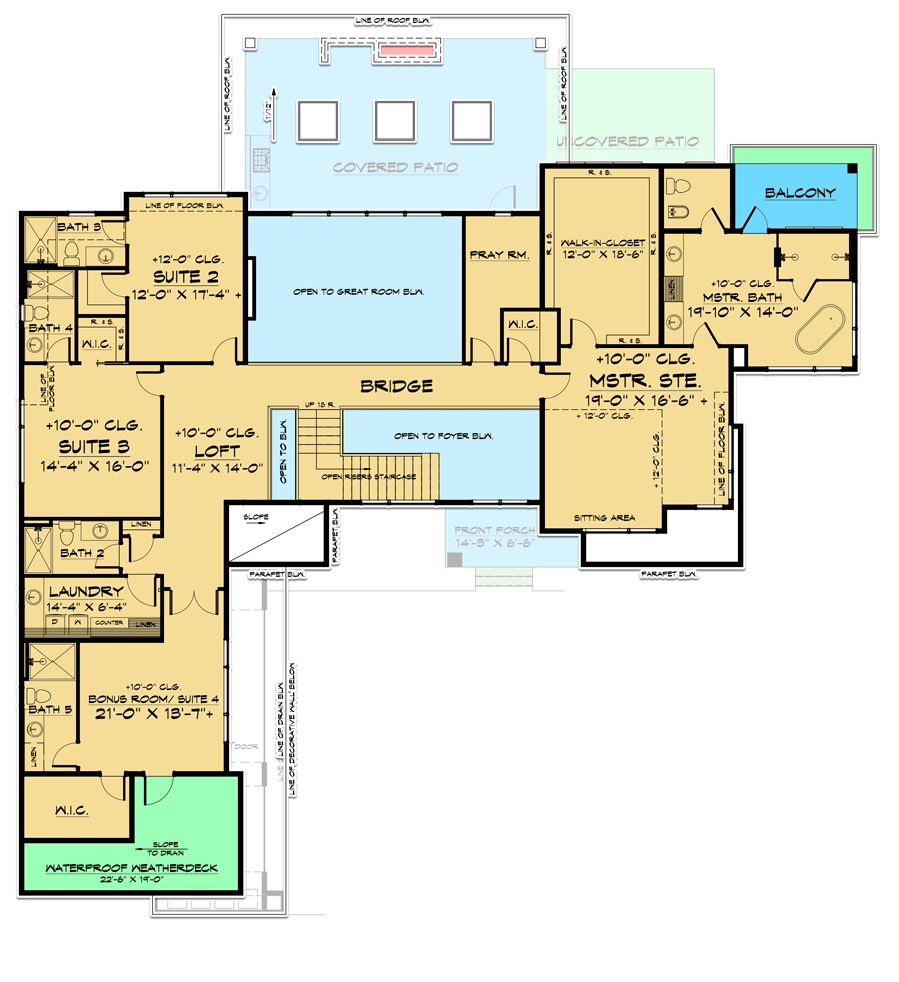

floor plan image 2nd Floor

Plan Details

This spacious Contemporary Northwest house plan features 5 bedrooms, multiple living areas, a home office, and a large back patio.
Tall ceilings above the foyer and family room expand the spaces vertically, while the neighboring kitchen, dining room, and living room enjoy 10' ceilings.
The kitchen's prep island provides plenty of workspace and the adjacent pantry includes a spice kitchen with a second range, sink, and access to the patio.
A guest suite on the main level resides next door to the office, and a mudroom with ample storage leads to the 3-car garage.
Upstairs, a bridge-style hallway guides you to the secluded master suite with a sizable closet and deluxe ensuite with a bidet and private balcony. Three additional suites are nestled around the laundry room, each with their own full bath.

What's Included

Cover Sheet with plan info
General Notes - Note: codes will not include local state adopted amendments
Fully dimensions and detailed floor plans

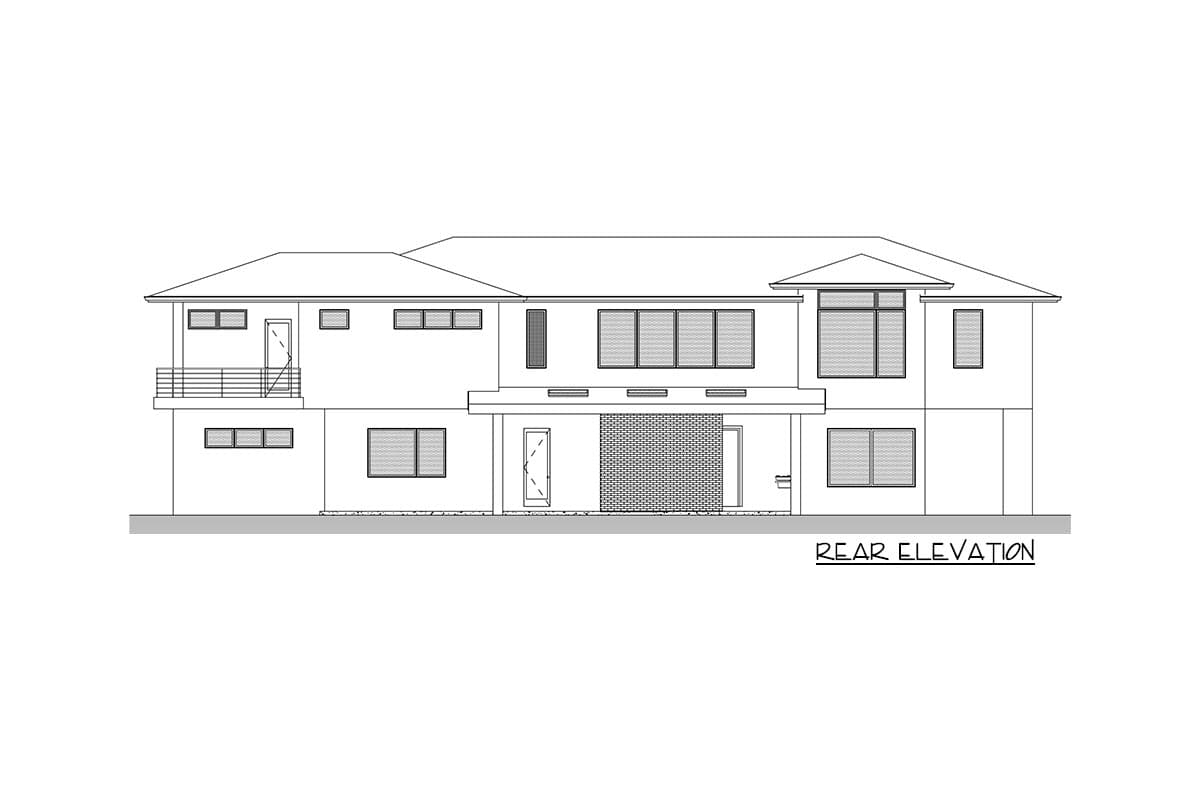

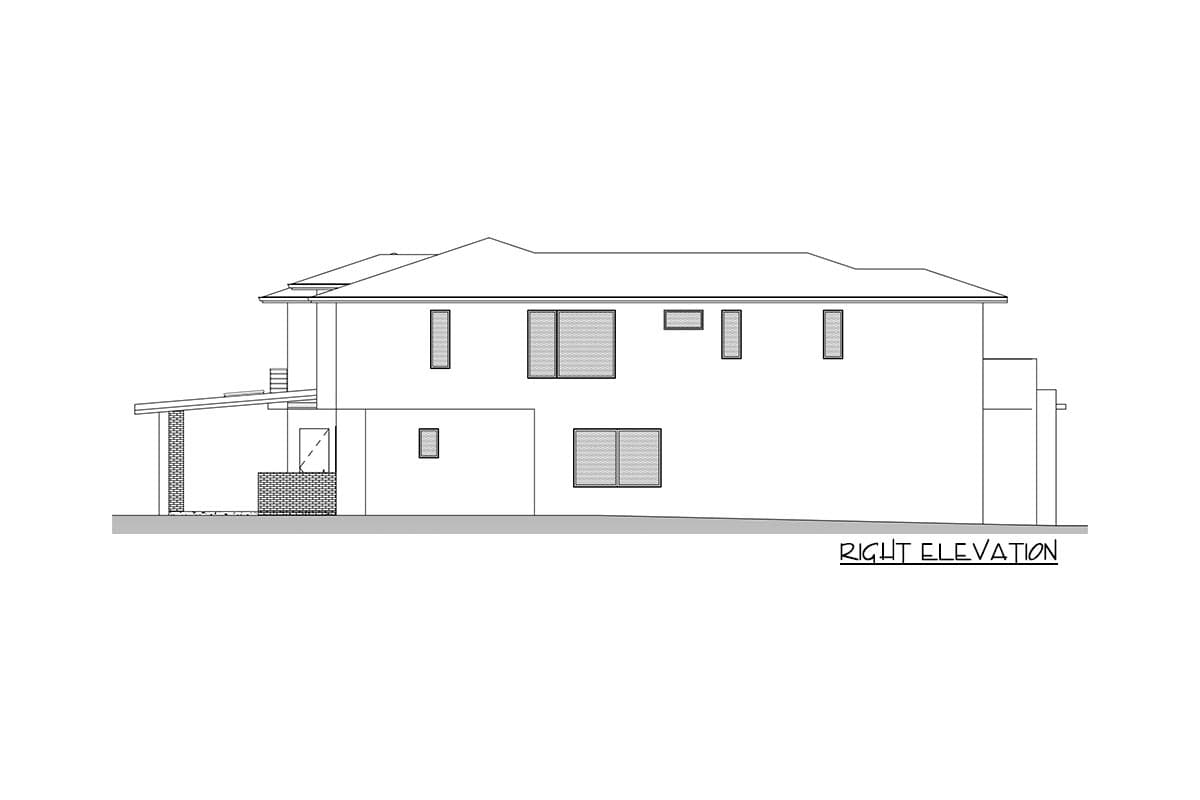

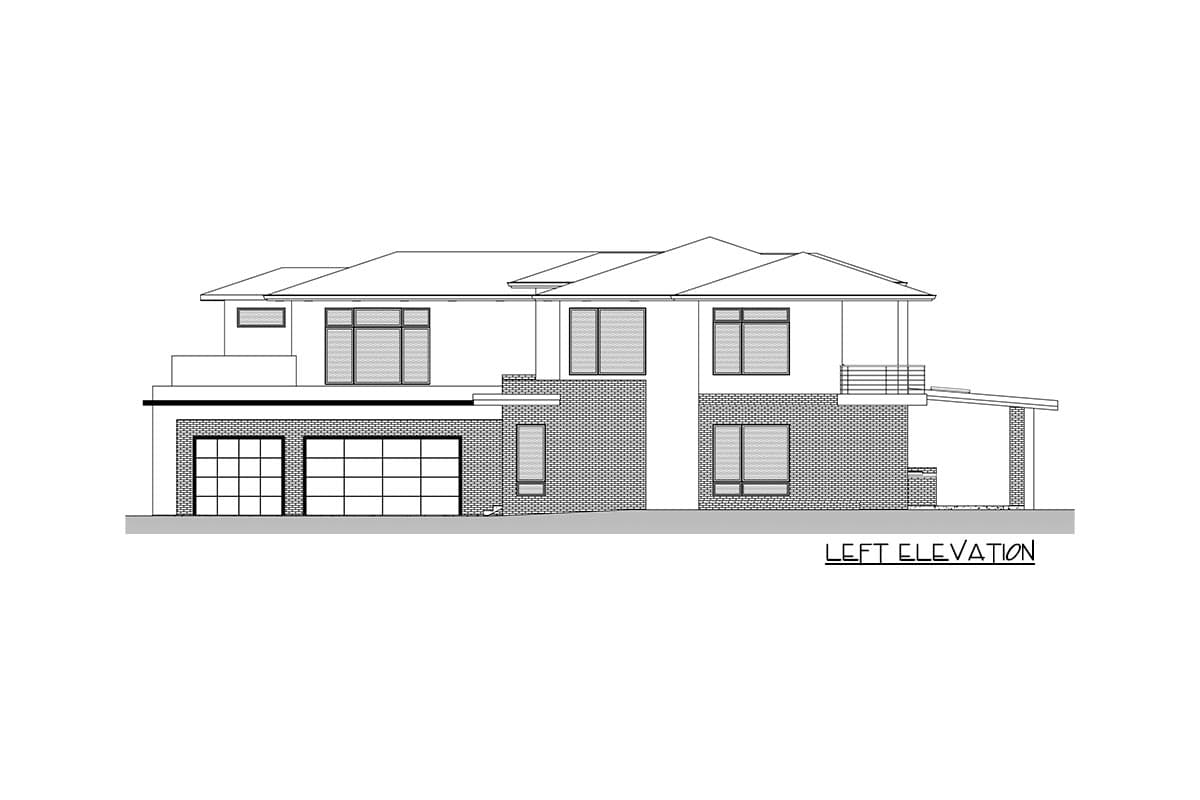

Elevations
Building Cross Section
Roof Plan
Details
Window Schedule
Original Structural plan FOR REFERENCE ONLY

What's Not Included

Architectural or Engineering Stamp - handled locally when required
Site plans - handled locally - handled locally when required
Mechanical Drawings - handled locally when required
Plumbing Drawings - handled locally when required
Electrical Drawings - handled locally when required
Energy Calculations - handled locally when required
Foundation and Framing plans - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

5,594 sq. ft.

1st Floor

2,866 sq. ft.

2nd Floor

2,728 sq. ft.

Porch, Front

82 sq. ft.

Deck

225 sq. ft.

Balcony / Veranda

133 sq. ft.

Covered Patio

831 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

6

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

88' 0"

Depth

92' 0"

Max Ridge Height

28' 11"

Garage

Type

Attached

Area

893 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10'

First Floor

10'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor

Master Suite - Sitting Area

Two Story Great Room

Square Footage Breakdown

Total Heated Area

5,594 sq. ft.

1st Floor

2,866 sq. ft.

2nd Floor

2,728 sq. ft.

Porch, Front

82 sq. ft.

Deck

225 sq. ft.

Balcony / Veranda

133 sq. ft.

Covered Patio

831 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

6

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

88' 0"

Depth

92' 0"

Max Ridge Height

28' 11"

Garage

Type

Attached

Area

893 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10'

First Floor

10'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor

Master Suite - Sitting Area

Two Story Great Room
