Plan 54055LK

Spacious Craftsman House Plan with 3 Beds, Home Office, and Large Porch

Name: Plan 54055LK: Spacious Craftsman House Plan with 3 Beds, Home Office, and Large Porch
Brand: Architectural Designs
SKU: 54055LK
Price: 1535.31 USD
Availability: InStock

Heated S.F.

2,828

Beds

Baths

3.5

Stories

Cars

Floor Plan

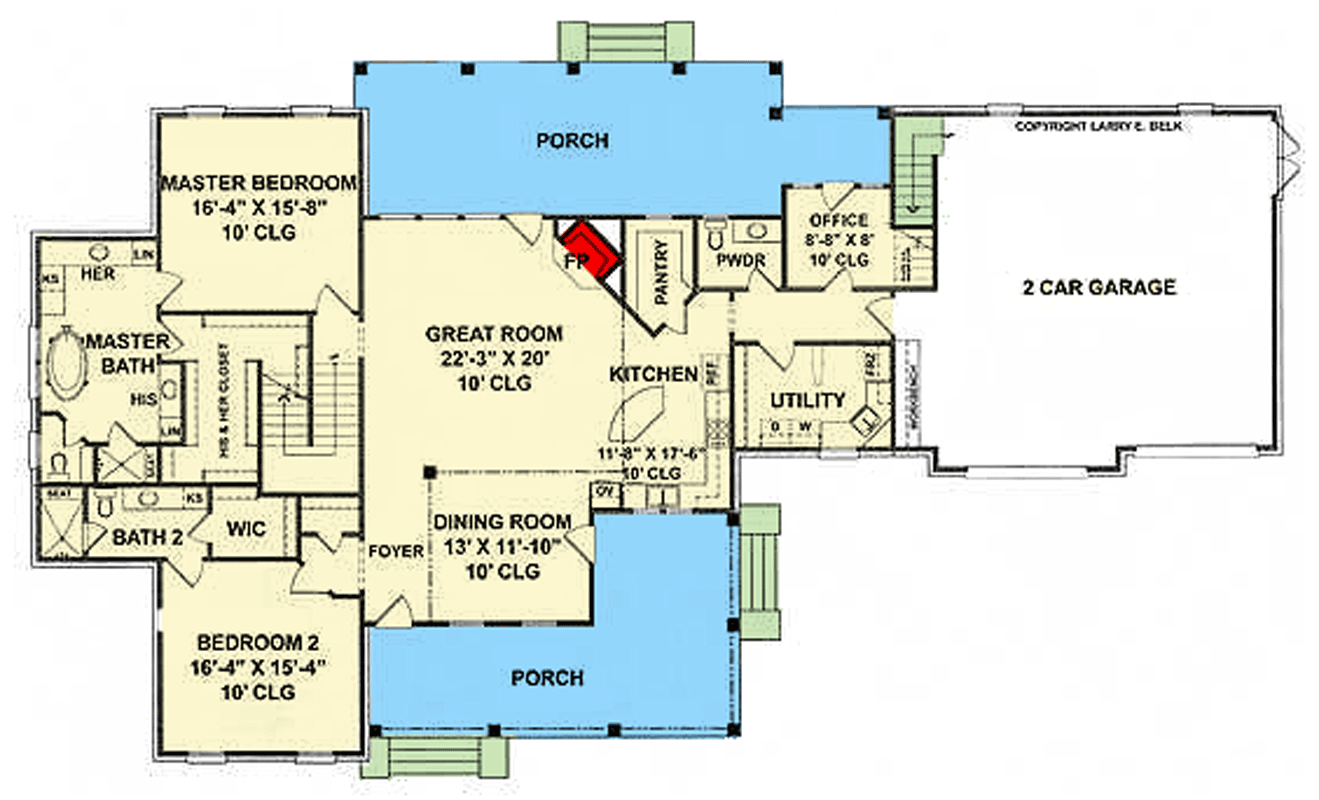

Main Level

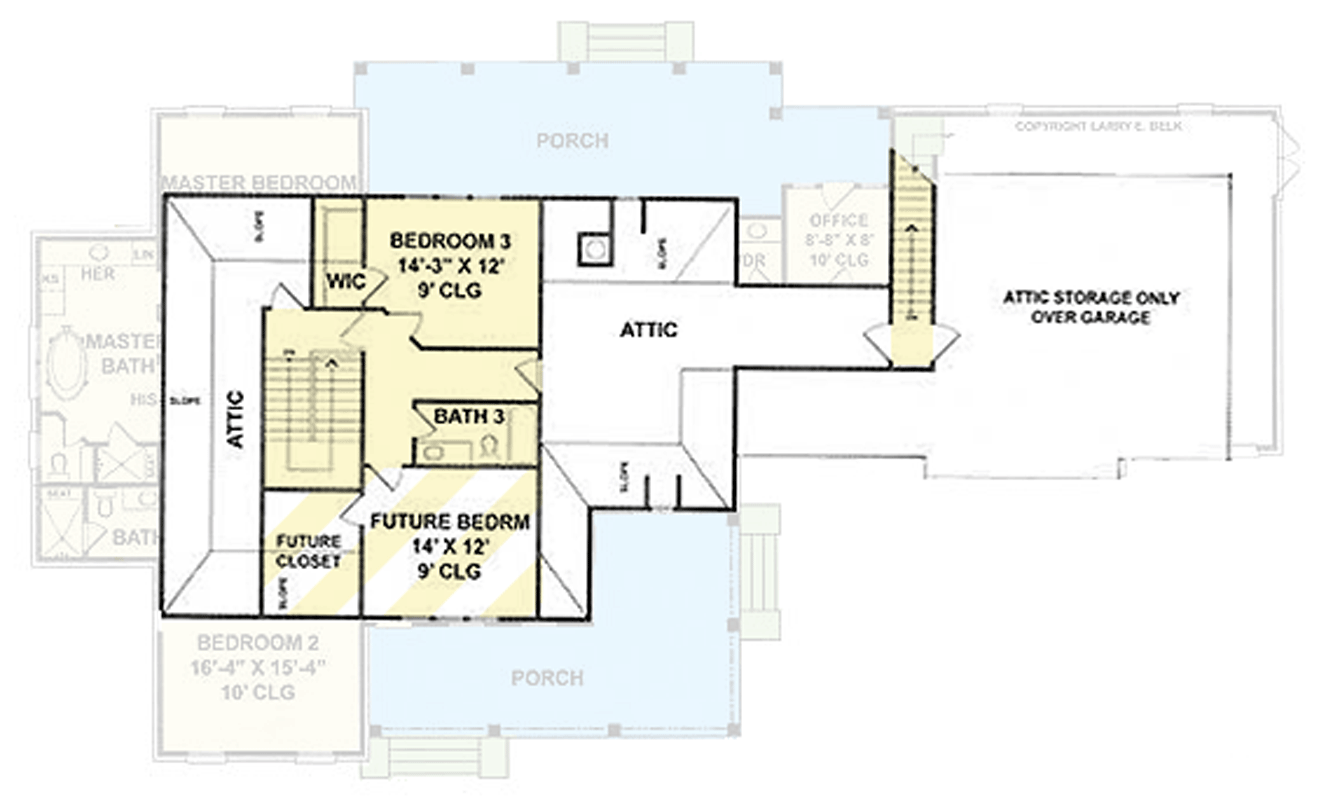

2nd Floor

Plan Details

Spanning 2,828 finished sq ft, this 3-bedroom, 3.5-bath Craftsman and Traditional style house plan features an attached 2-car garage with 920 sq ft.
Step onto the inviting covered front porch and into a thoughtfully designed layout, featuring a dedicated home office and convenient main-level laundry.
The main living area boasts a two-story great room, flowing seamlessly into a formal dining space and a kitchen equipped with a walk-in pantry, ideal for daily life and gatherings.
Designed for comfort, the master suite is privately located on the main floor, offering a secluded retreat, while the secondary bedrooms are split for optimal privacy.
A versatile 274 sq ft bonus room on the second floor provides flexible space, perfect for a media room, gym, or hobby area.
Enjoy abundant outdoor living with 873 sq ft of combined porch space, perfect for morning coffee or evening relaxation.

What's Included

FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.

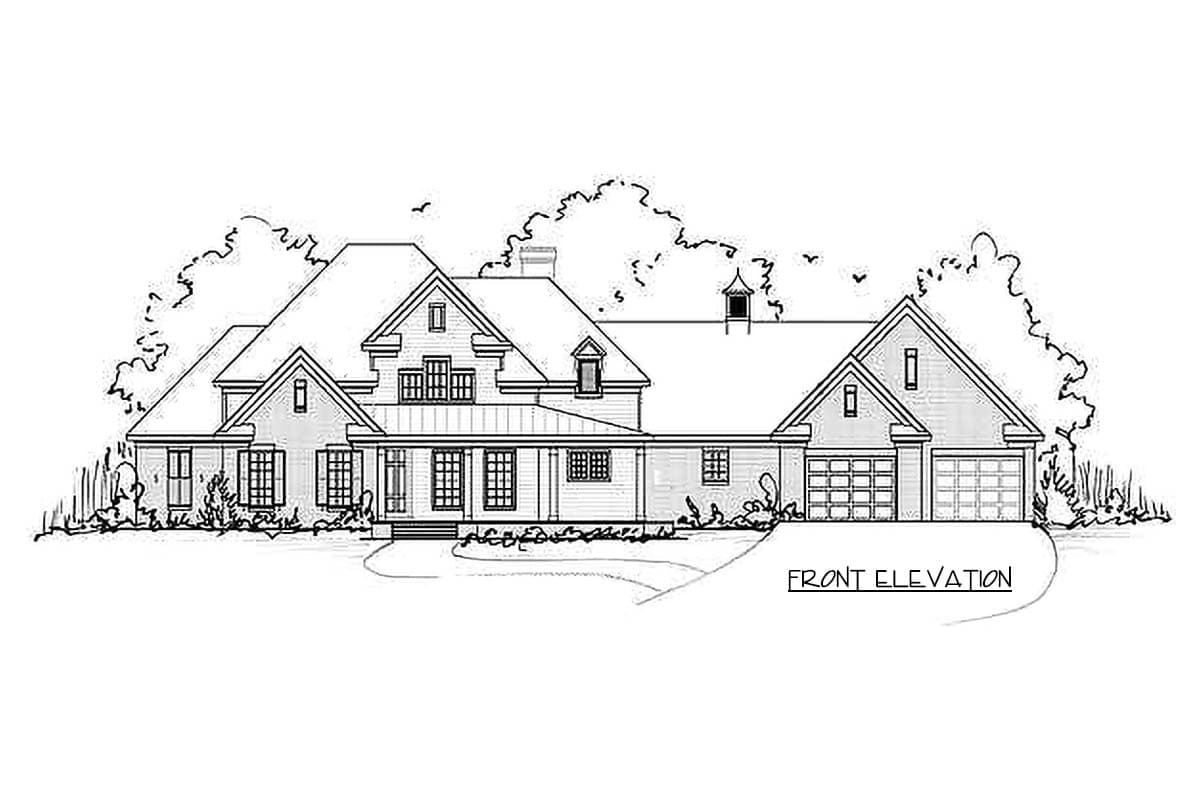

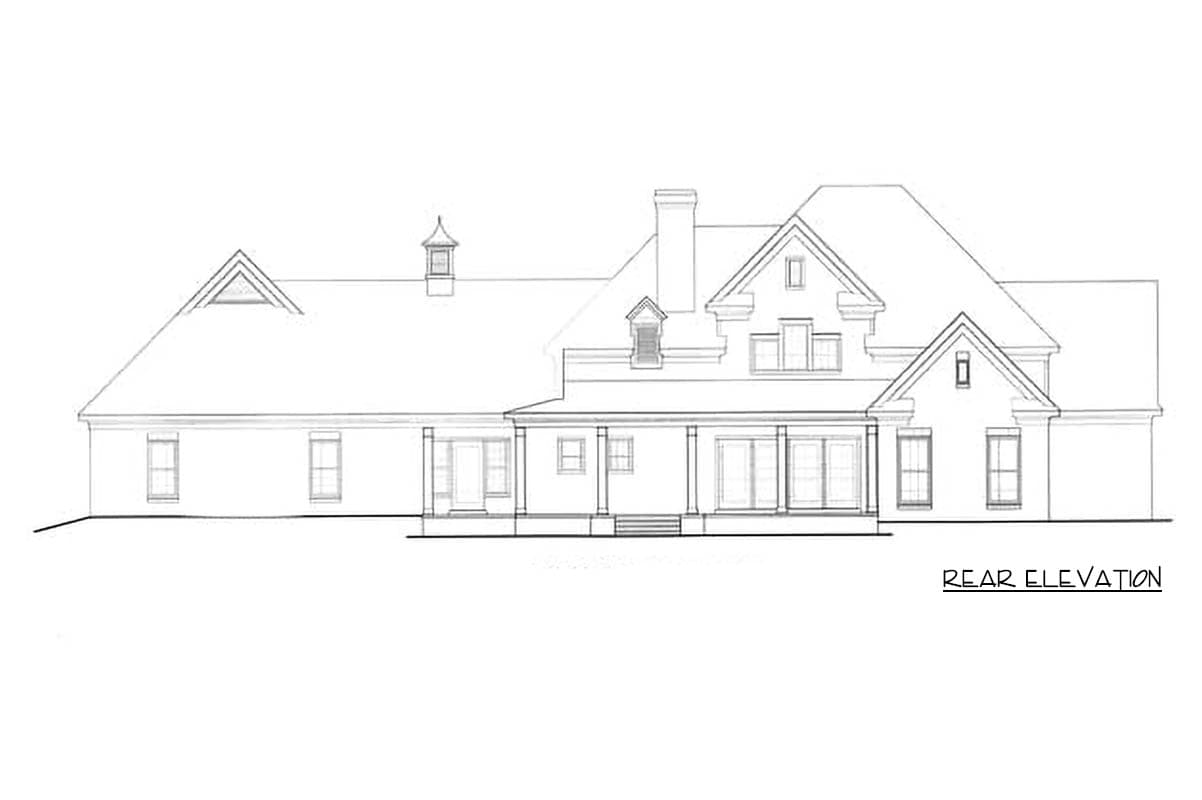

ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
