Plan 6983AM

Spacious Craftsman Style Duplex Home Plan

Heated S.F.

3,865

Units

Width

Depth

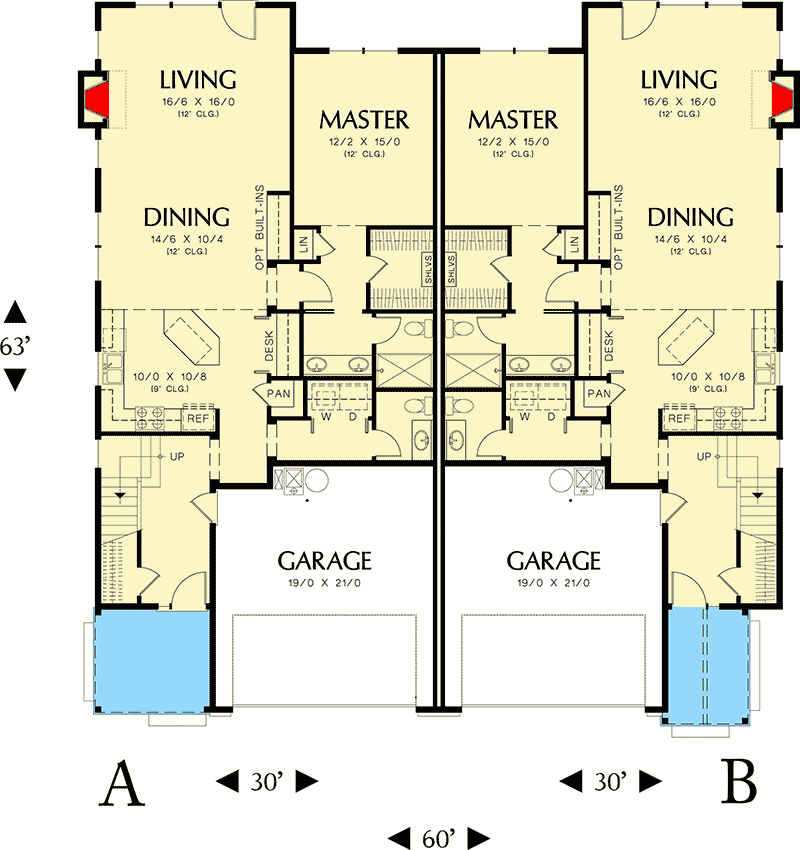

Floor Plan

Main Level

2nd Floor

Plan Details

Pairs of peaked gables. Decorative brackets. Board-and-batten siding paired with wood shingles. These Craftsman embellishments make this multifamily duplex house plan feel as personalized as a single-family home.
The floor plan calls attention to its open kitchen, dining room, and living room lay out; an arrangement that's attractive to contemporary homeowners because of its convenience. The foyer easily provides space to hang coats and remove shoes thanks to a staircase entrance that's opposite the front door. Many other amenities such as a walk-in pantry in the kitchen, a built-in desk and media center, a main-floor laundry room, and a kitchen island, are wish-list favorites.
While the main-level floor plans are the same, varied upper-level plans give builders and developers the opportunity to market the plan according to the life stages and demographics of their buyers. One upper-level plan features an arrangement ideal for a family: two secondary bedrooms have private vanities and share a bath and a toilet area. In the second plan, the upper level offers a second master suite, complete with dual-sink vanity and walk-in closet as well as a large office area with built-ins. This layout works for singles who may share the space, work-at-home professionals, and couples caring for live-in relatives.
Related Plan: Remove the storage area stair with house plan 6984AM.

Unit A

1,919Sq. Ft.

1314 Sq. Ft.

1st Floor

605 Sq. Ft.

2nd Floor

3Beds

2Full Baths

1Half Bath

2Vehicle

Attached

414 Sq. Ft.

30'width

63'depth

30'height

Unit B

1,919Sq. Ft.

1314 Sq. Ft.

1st Floor

632 Sq. Ft.

2nd Floor

2Beds

2Full Baths

1Half Bath

2Vehicle

Attached

414 Sq. Ft.

30'width

62'depth

30'height

What's Included

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
IMPORTANT NOTE: Sections and elevations depict the standard foundation only.
Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
