Name: Plan 69274AM: Spacious Hillside Craftsman Home Plan
SKU: 69274AM
Price: 2937.0 USD
Availability: InStock

Plan 69274AM

Spacious Hillside Craftsman Home Plan

Heated S.F.

5,949

Beds

Baths

4.5+

Stories

Cars

Floor Plan

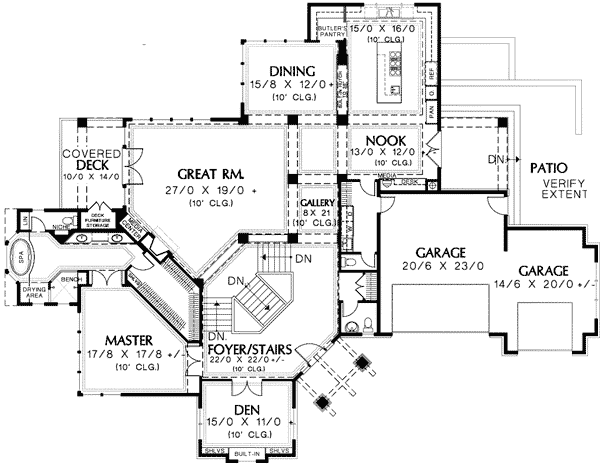

Main Level

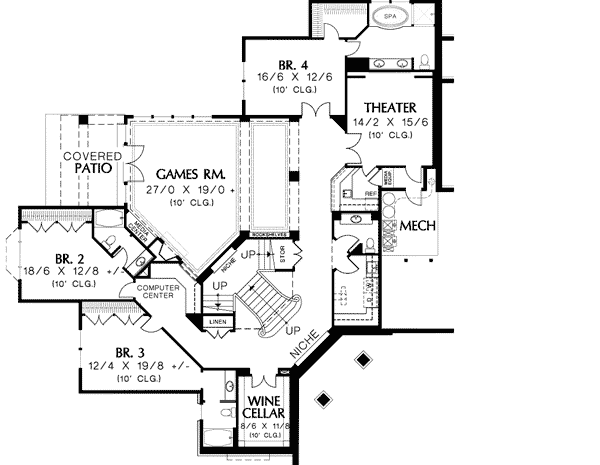

Lower Level

Plan Details

Hillside designs offer the best solutions to sites that have slopes. This hillside Craftsman is not only spacious and accommodating, but is a visual treat. The angled main entry is impressive without ostentation and opens to a main level that is rife with livability.
The foyer contains a grand staircase with double entry to the lower level. To the right is a gallery opening to the great room, which has double doors to a covered deck with outdoor storage. The fireplace sits alongside the media center. Nearby are the formal dining room, a butler's pantry, an island kitchen and a nook with patio access. The master suite and den are accessed from the left side of the foyer. Look for a well-appointed bath in the master suite and built-ins in the dens. A laundry and half-bath complete the main level.
The lower level offers three additional bedrooms - each with private bath. A games room on this level has a fireplace and media center, plus double doors to a covered patio. There is also a wine cellar, a computer center, a wet bar, a home theater and a laundry room.

What's Included

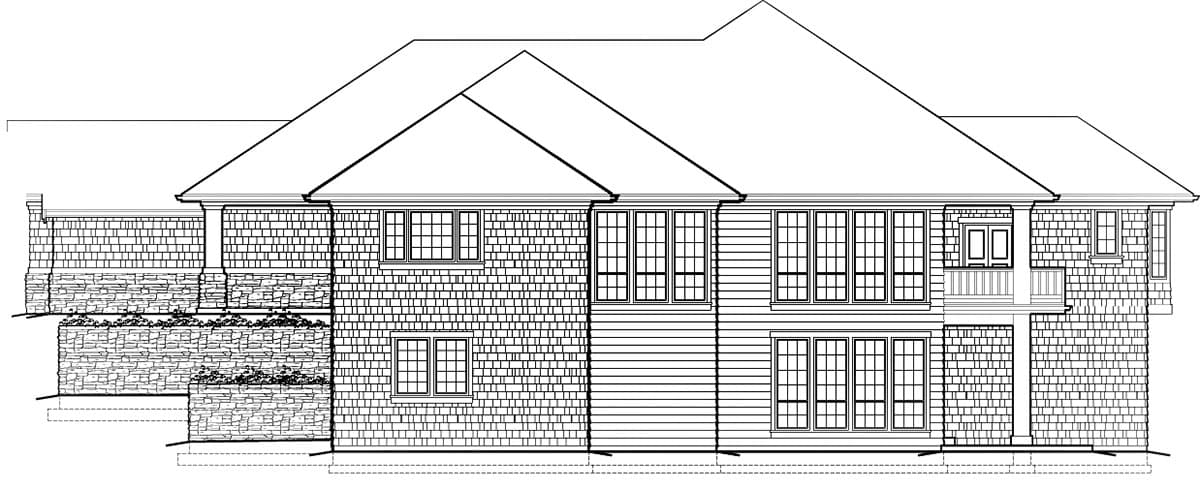

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
IMPORTANT NOTE: Sections and elevations depict the standard foundation only.
Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
