Plan 24019BG
Spacious Mediterranean Home Plan
Heated S.F.
2,944
Beds
3
Baths
2.5+
Stories
1
Cars
3
Photos
Floor Plan

Plan 24019BG

Main Level
slide image 0

Plan 24019BG

1-800-854-7852

1-262-521-4596

Main Level

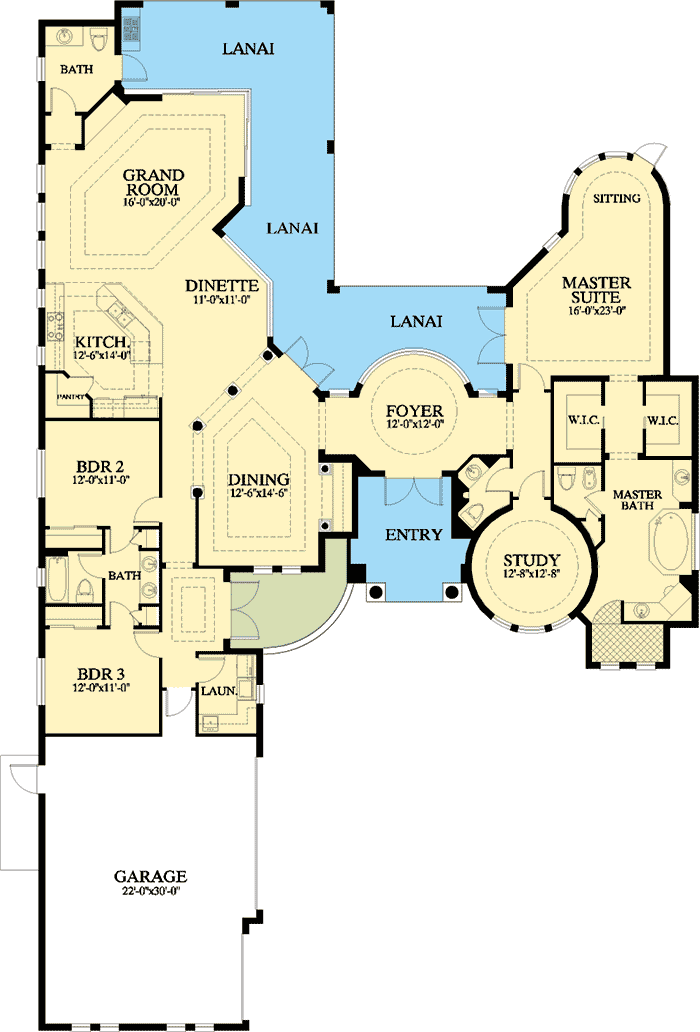

floor plan image Main Level
Plan Details
  • A unique floor plan adds plenty of interest to this spacious Mediterranean home plan.
  • The circular study is brightened by three windows that face front. The foyer is also circular in shape and both rooms have tray ceilings.
  • Columns separate the formal dining room from the informal dinette and kitchen area.
  • The huge lanai is accessed by double doors, or sliding glass doors all across the back of the home.
  • The very special master suite is quite large with a bayed sitting area and an elegant tray ceiling.
  • Luxuriate in the deluxe master bath with its big soaking tub and walk-in shower.
  • The remaining two family bedrooms are on the opposite side of the home for privacy and quiet.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

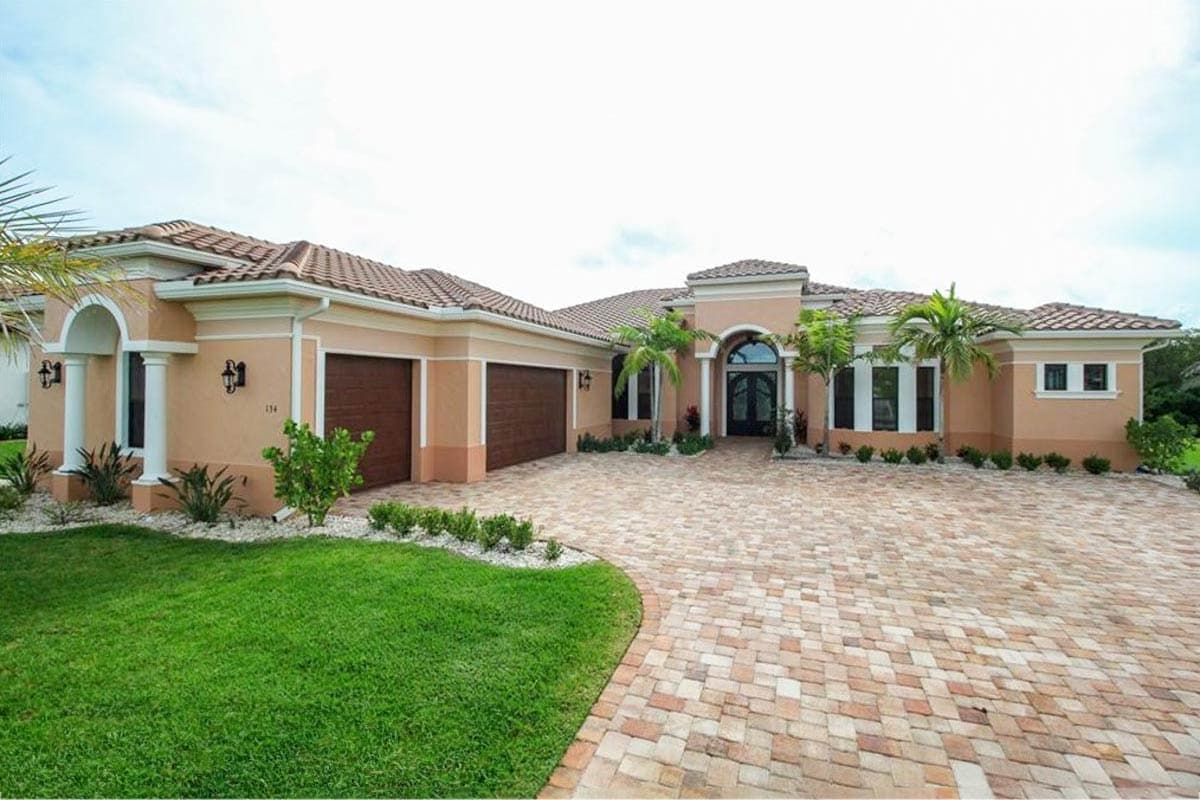

build gallery item - House Plan 24019BG comes to life in Florida

House Plan 24019BG comes to life in Florida

69

Photos

What's Included
  • Cover page showing front elevation, contents and notes
  • Fully dimensioned floor plans including ceiling heights
  • Roof plan
  • All four exterior elevations
  • Typical cross section
  • Suggested electrical schematic
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
  • Roof truss design - to be created by the truss manufacturer in accordance with local code requirements
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,944 sq. ft.

1st Floor

2,944 sq. ft.

Lanai

851 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

70' 0"

Depth

108' 6"

Max Ridge Height

23' 5"

Garage

Type

Attached

Area

660 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida

Mediterranean

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Plan Collections

Luxury

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,944 sq. ft.

1st Floor

2,944 sq. ft.

Lanai

851 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

70' 0"

Depth

108' 6"

Max Ridge Height

23' 5"

Garage

Type

Attached

Area

660 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida

Mediterranean

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Plan Collections

Luxury

Photo Gallery
