Plan 48245FM

Spacious One Level Home Plan

Heated S.F.

3,128

Beds

3

Baths

3.5+

Stories

1

Cars

1

Floor Plan

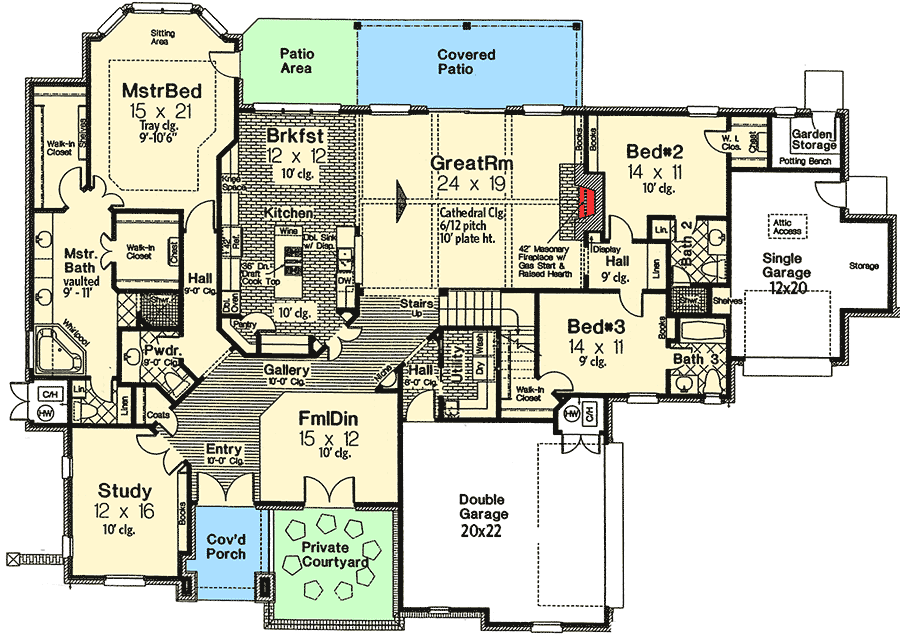

Main Level

floor plan image Main Level

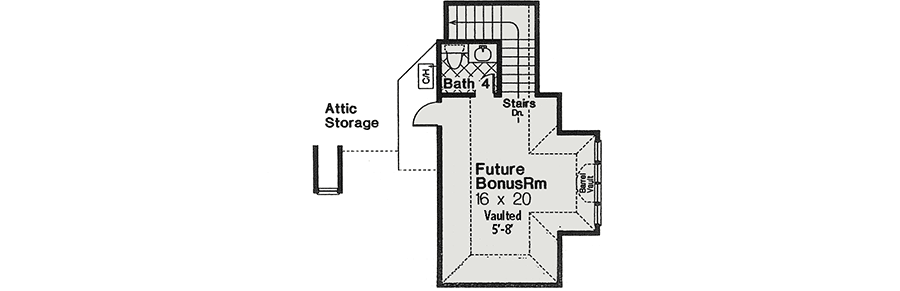

2nd Floor

floor plan image 2nd Floor

Plan Details

A private courtyard off the dining room greets you as you enter this spacious one level home with a charming French Country exterior.
Beams trim the cathedral ceiling in the great room with a wonderful fireplace as the focal point.
Two bedrooms, each with their own bath and walk-in closet, are generously-sized.
The gourmet kitchen opens to the breakfast nook with a triple window to let in lots of light.
Split bedrooms place the large master suite off by itself with a bayed sitting area and french door access to the rear covered patio.
Should you need more space, a bonus room with a powder room on the second floor could be a playroom or another bedroom.

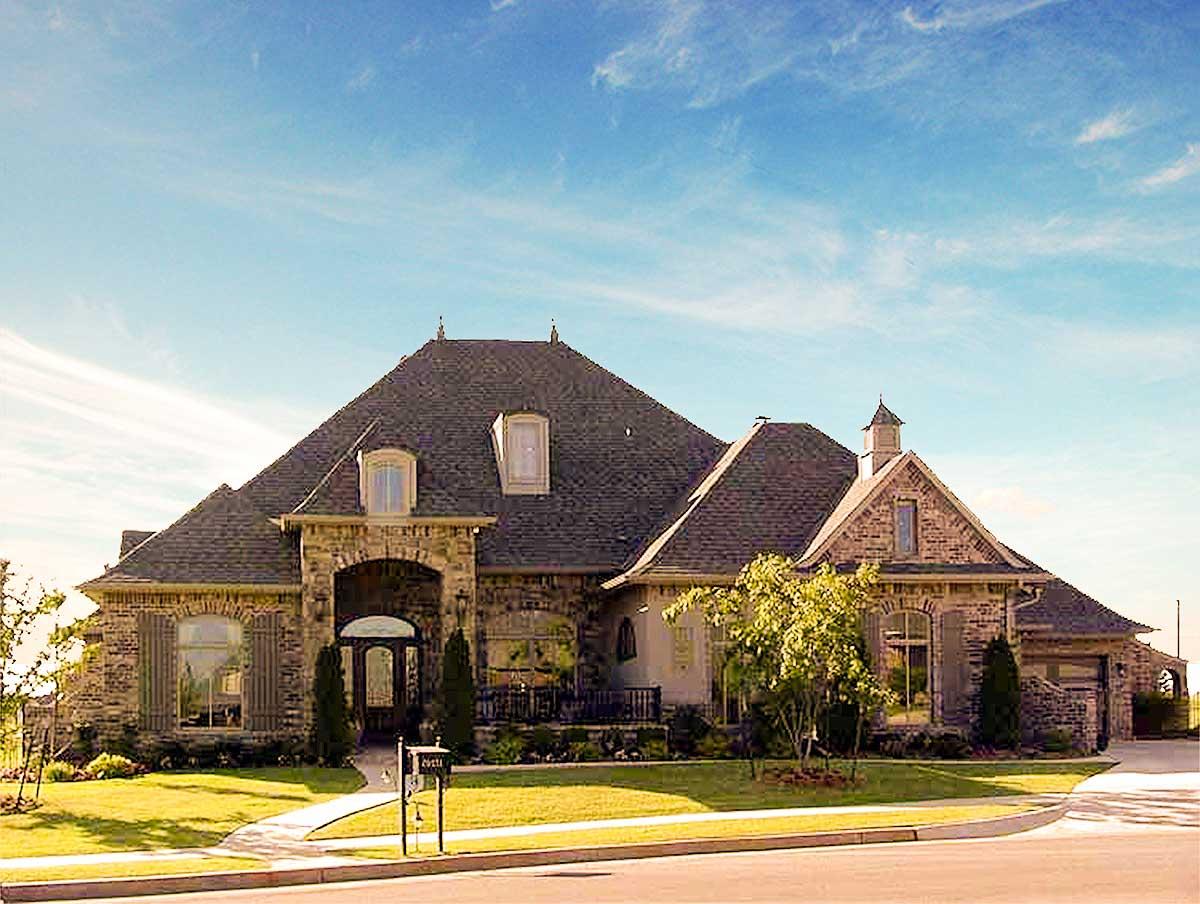

Related Plan: For a smaller version, see house plan 48346FM.

What's Included

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation

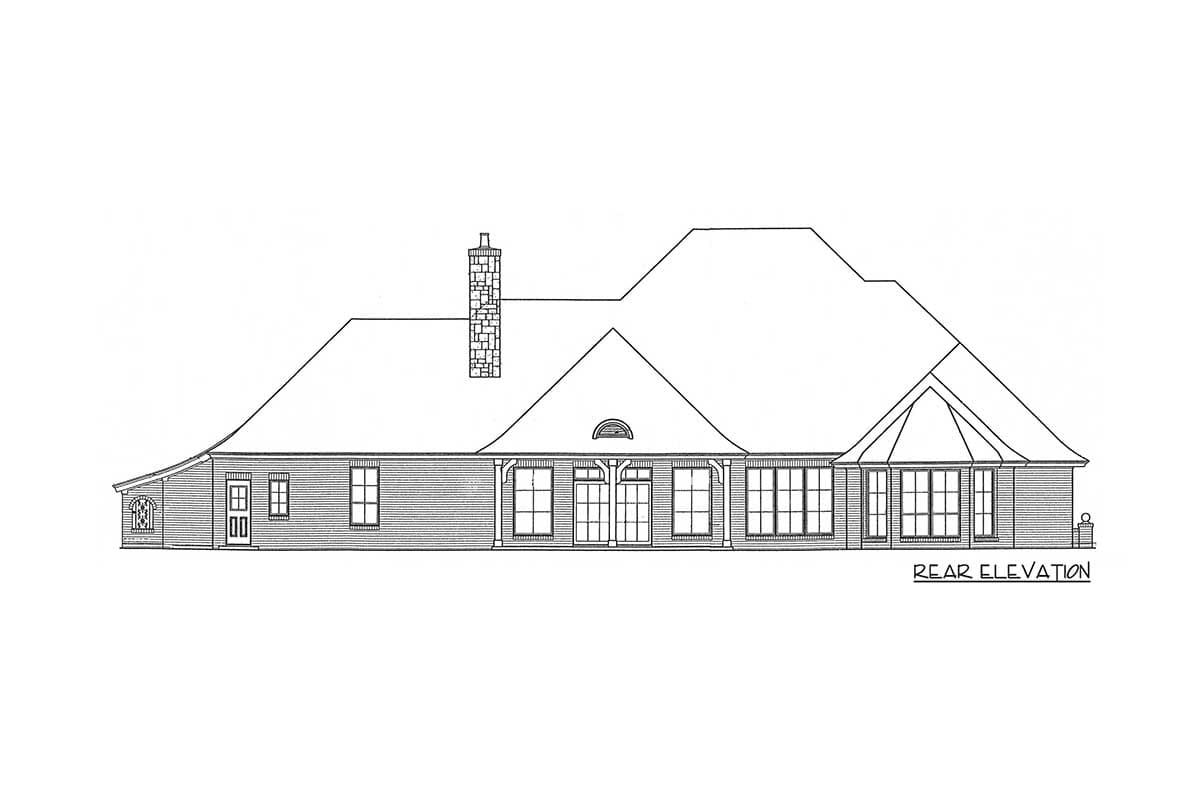

Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,128 sq. ft.

1st Floor

3,128 sq. ft.

Bonus

349 sq. ft.

Porch, Combined

214 sq. ft.

Entry

80 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

91' 11"

Depth

65' 7"

Max Ridge Height

33' 0"

Garage

Type

Attached

Area

774 sq. ft.

Count

1 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Great Room

Cathedral

0' 0''

Entry

10' 0''

Dining Room

10' 0''

Kitchen

10' 0''

Breakfast Room

10' 0''

Study

10' 0''

Master Bedroom

Tray

10' 0''

Bedroom 2

10' 0''

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Plan Collections
