Plan 24348TW

Spacious Rooms

Heated S.F.

4,138

Beds

4

Baths

3.5+

Stories

2

Cars

3

Floor Plan

Main Level

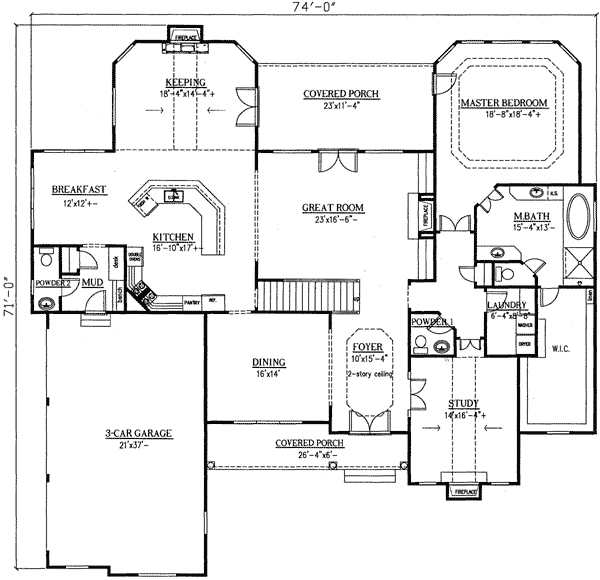

floor plan image Main Level

Second Floor

floor plan image Second Floor

Plan Details

Every room in this stunning design is spacious and welcoming, allowing you to live and entertain in style.
An elegant foyer with two-story tray ceiling greets your guests upon entering the home.
Double doors lead to the vaulted study on the right while the formal dining room on the left will hold all your guests comfortably.

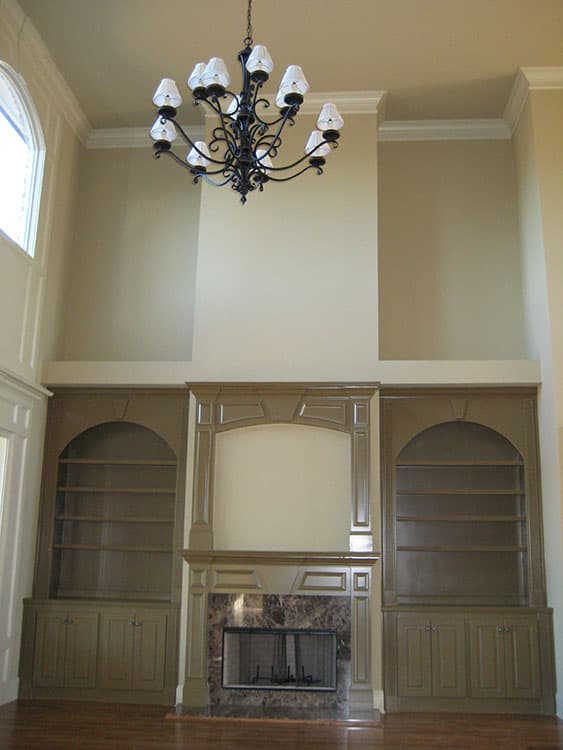

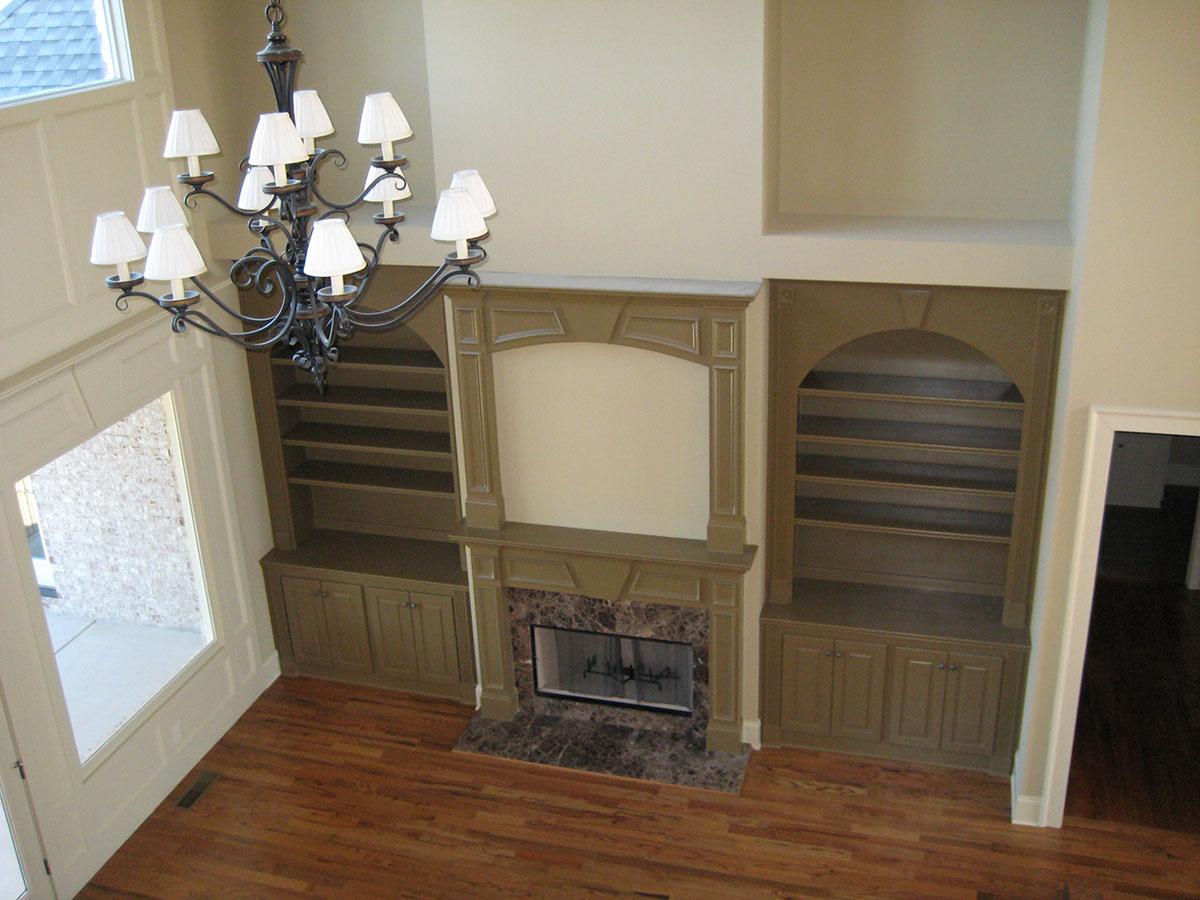

With a fireplace flanked by built-ins and French doors leading to the covered porch, the two-story great room makes a dramatic impression.
No worries about anyone bumping into each other in the spacious kitchen that opens to the breakfast nook made for informal dining.
A vaulted keeping room is right in view with another fireplace as the focal point.
Much in demand, the master suite lies on the first floor to save steps, with a walk-in closet that is room-sized.
Each of the three bedrooms on the second floor sports a tray ceiling and has a walk-in closet.
Loft space overlooks the great room below.
NOTE: The crawlspace version comes with the same elevations as the basement version.

What's Included

Four elevations (front, rear, right & left) with finish details
Fully dimensioned floor plans which include window and door sizes
Foundation plan with footing details
Roof plan with cornice details
General framing details
Floor joists layout
Electrical layout

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

4,138 sq. ft.

1st Floor

2,982 sq. ft.

2nd Floor

1,156 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Crawl, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

74' 0"

Depth

71' 0"

Max Ridge Height

38' 0"

Garage

Type

Attached

Area

708 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Special Features

Jack & Jill Bath

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Premium Collection

Square Footage Breakdown

Total Heated Area

4,138 sq. ft.

1st Floor

2,982 sq. ft.

2nd Floor

1,156 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Crawl, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

74' 0"

Depth

71' 0"

Max Ridge Height

38' 0"

Garage

Type

Attached

Area

708 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Special Features

Jack & Jill Bath

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Premium Collection
