Plan 5103MM
Spacious Three Bedroom Duplex
Heated S.F.
2,728
Units
2
Width
Depth

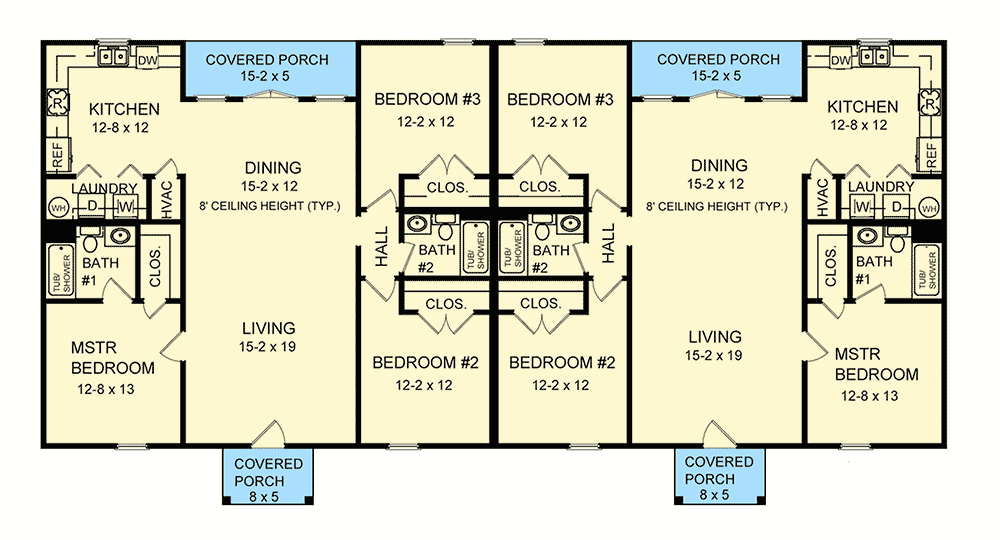

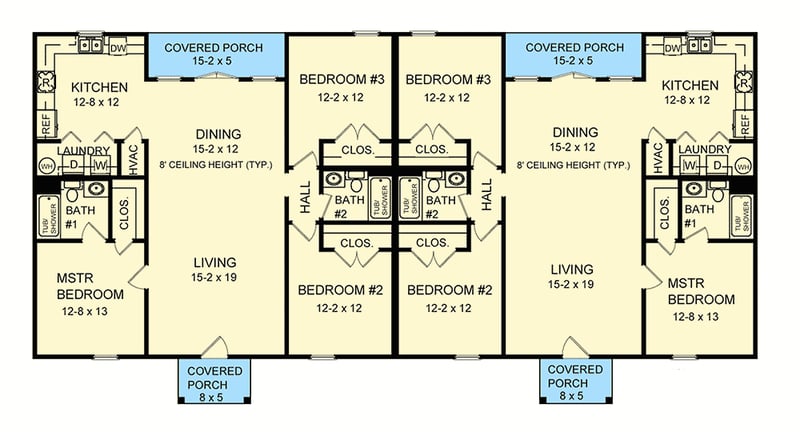

Floor Plan

Plan 5103MM

Main Level
slide image 0

Plan 5103MM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This spacious three-bedroom duplex is full of great features, including a split open floor plan layout, large bedrooms and closets. Each unit gives you 1,364 square feet of living space, 3 beds and 2 baths.
  • Expansive living and dining room areas for those family and friend get-togethers.
  • Covered porches on both front and rear of house plan.
  • Great value in a very easy-to-construct package.
  • Related Plans: Downsize with house plans 51176MM (701 sq. ft./unit) 5183MM (825 sq. ft./unit), 51200MM (898 sq. ft./unit), 5150MM (990 sq. ft./unit) and 51114MM (1,170 sq. ft./unit).
Unit A
1,364Sq. Ft.
1364 Sq. Ft.
1st Floor
3Beds
2Full Baths
None
40'width
41'depth
21'height
Unit B
1,364Sq. Ft.
1364 Sq. Ft.
1st Floor
3Beds
2Full Baths
None
40'width
41'depth
21'height
What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

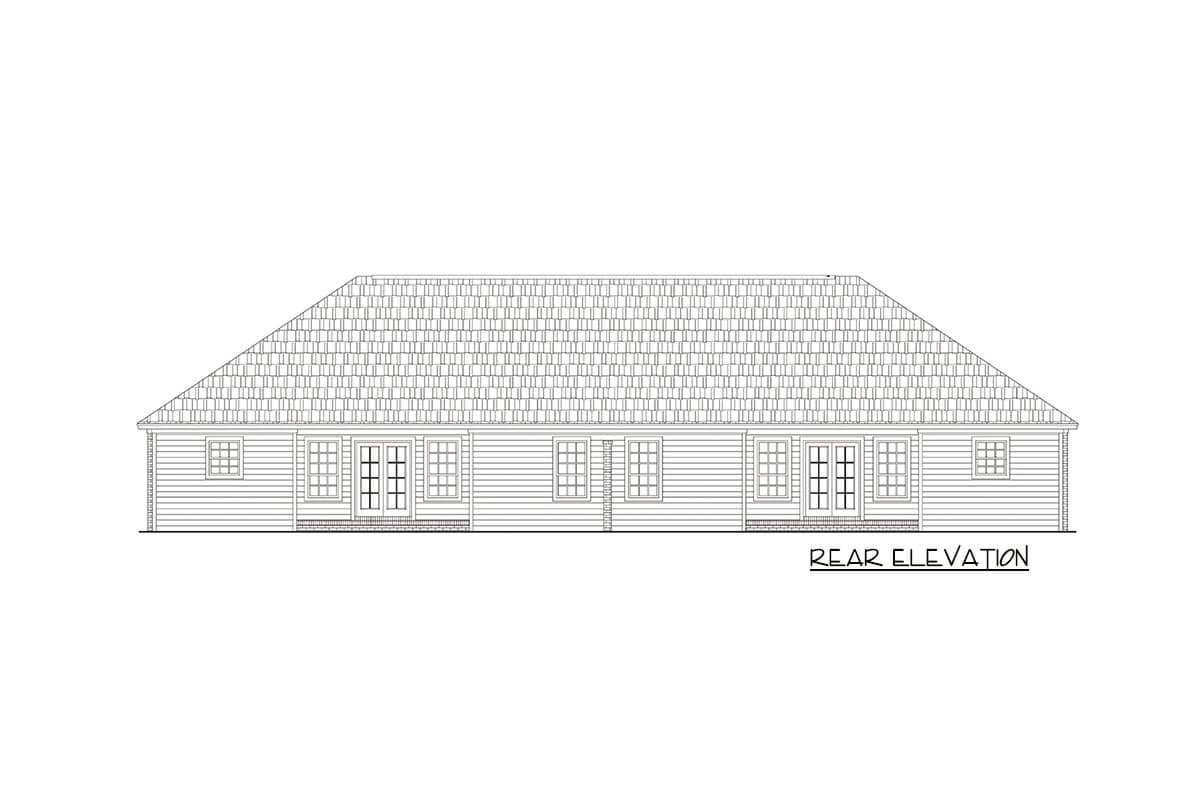

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,728 sq. ft.

1st Floor

2,728 sq. ft.

Porch, Rear

76 sq. ft.

Entry

40 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

82' 0"

Depth

40' 0"

Max Ridge Height

21' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Plan Collections

USDA Approved

Square Footage Breakdown

Total Heated Area

2,728 sq. ft.

1st Floor

2,728 sq. ft.

Porch, Rear

76 sq. ft.

Entry

40 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

82' 0"

Depth

40' 0"

Max Ridge Height

21' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Plan Collections

USDA Approved
