Plan 740013LAH
Spacious Traditional House Plan with Two Master Suites and Two Laundry Rooms - 6353 Sq Ft
Heated S.F.
6,353
Beds
5
Baths
5.5
Stories
2
Cars
3
Floor Plan

Plan 740013LAH

Main Level
slide image 0
2nd Floor
slide image 1

Plan 740013LAH

1-800-854-7852

1-262-521-4596

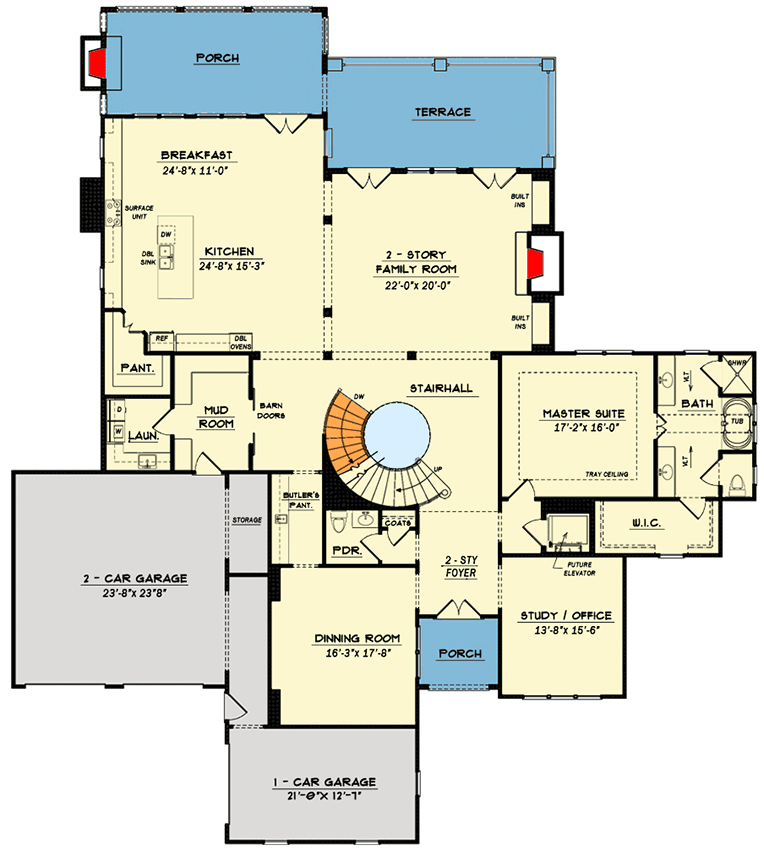

Main Level
floor plan image Main Level

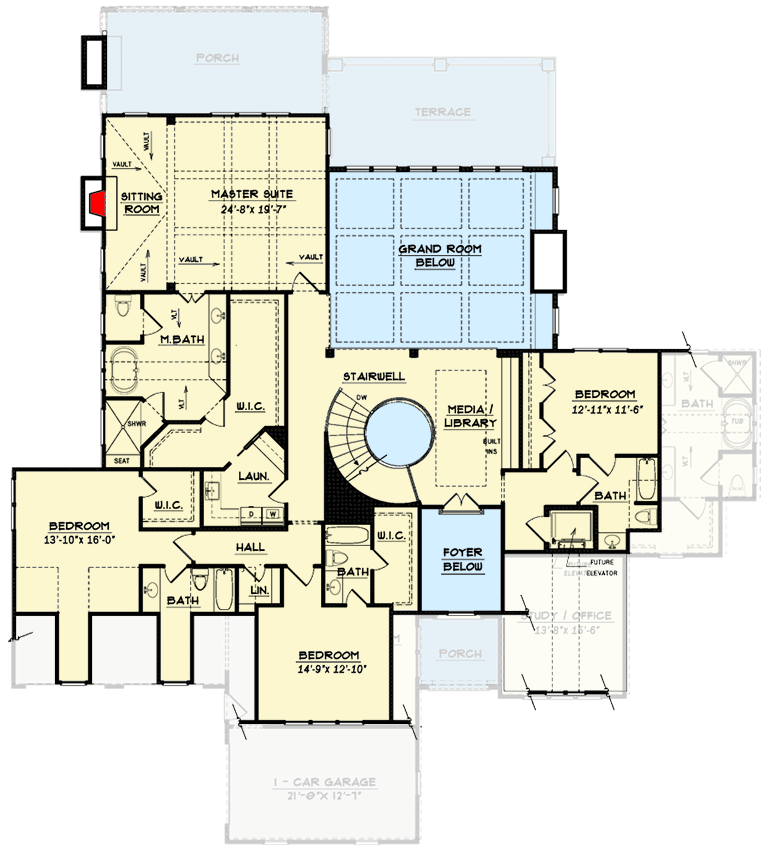

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This traditional house plan boasts arched accents and 6,353 square feet of luxurious living space.
  • Four columns define the two-story family room, enhanced by a coffered ceiling, fireplace framed by built-ins, and french doors that lead to the back terrace.
  • The gourmet kitchen offers enough space for multiple cooks, while filled with natural lighting, and includes a large walk-in pantry. A butler's pantry provides additional storage when entertaining, and a shortcut to the dining room.
  • The first-floor master suite is perfect for guests or future convenience. Take the elegant curved staircase or elevator to discover the remaining bedrooms upstairs.
  • Additional amenities include: a study / home office, dedicated storage space in the garage, large mudroom, and master closet with access to the upstairs laundry room.
What's Included
  • Cover Sheet with General Notes
  • Foundation Plan
  • Detailed Floor Plans
  • Roof Plan

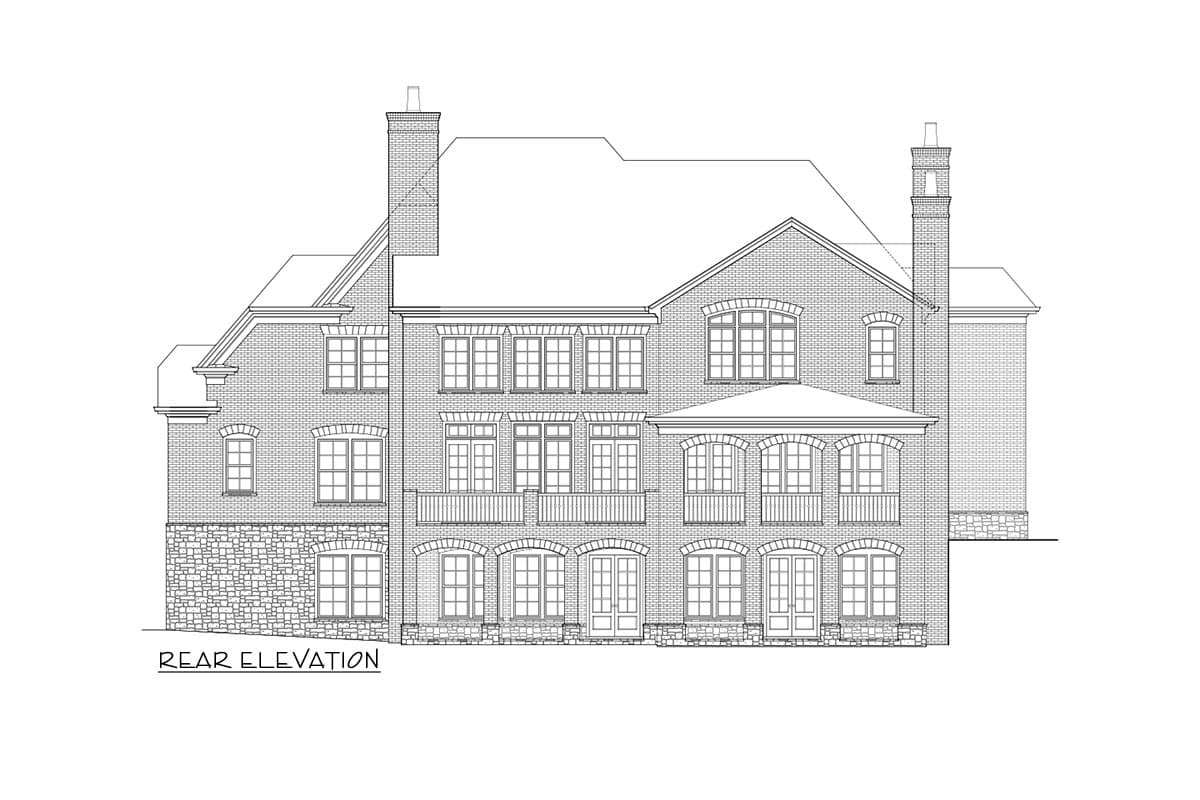

  • Elevations - all four sides
  • Wall and Stair Sections and Misc. Details
  • Electrical Plans
What's Not Included
Document
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
  • Materials list - MAY be available as a purchasable option under the "Options" tab
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

6,353 sq. ft.

1st Floor

3,279 sq. ft.

2nd Floor

3,074 sq. ft.

Basement Unfinished

3,279 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

83' 4"

Depth

93' 4"

Max Ridge Height

30' 6"

Garage

Type

Attached

Area

826 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Family Room

20' 4''

Foyer

20' 4''

Master Bath

10' 0''

Laundry Room

10' 0''

Master Bedroom

10' 0''

Kitchen

10' 0''

Dining Room

10' 0''

Bedroom 2

9' 0''

Bedroom 3

9' 0''

Guest Room

9' 0''

Master Bedroom 2

Vaulted

0' 0''

Master Bath 2

Vaulted

0' 0''

Master Bedroom 2 WIC

0' 0''

Roof Details

Primary Pitch

7.5 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Breakfast Nook

Butler Walk-in Pantry

Elevator

Flex Room

Formal Dining

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Laundry - Upstairs

Library/Study

Master Suite - 1st Floor

Master Suite - 2nd Floor

Mudroom

Outdoor Fireplace

Two Master Suites

Two Story Great Room

Plan Collections

Luxury
