Plan 42032MJ

Spanish Influences

Heated S.F.

3,375

Beds

4

Baths

4

Stories

2

Cars

3

Floor Plan

Main Level

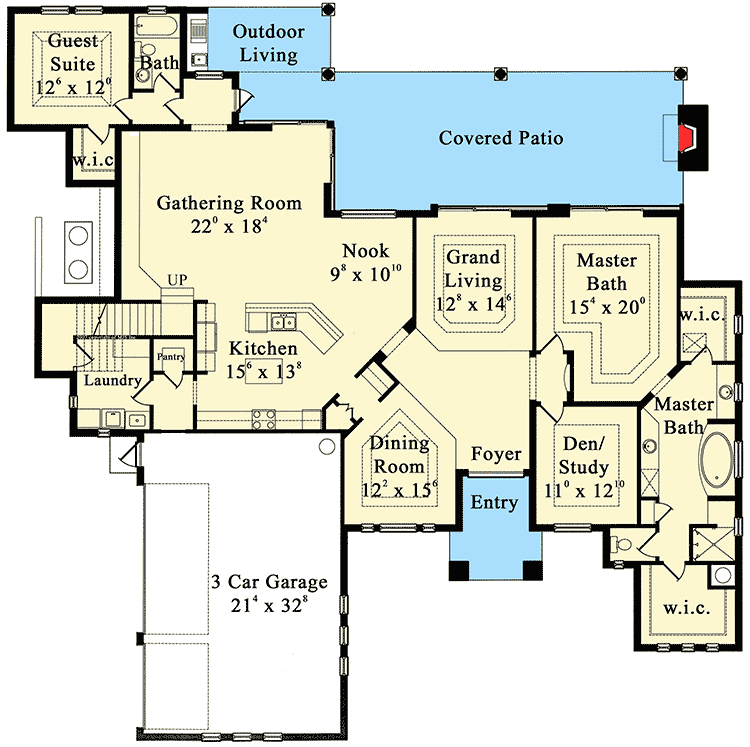

floor plan image Main Level

2nd Floor

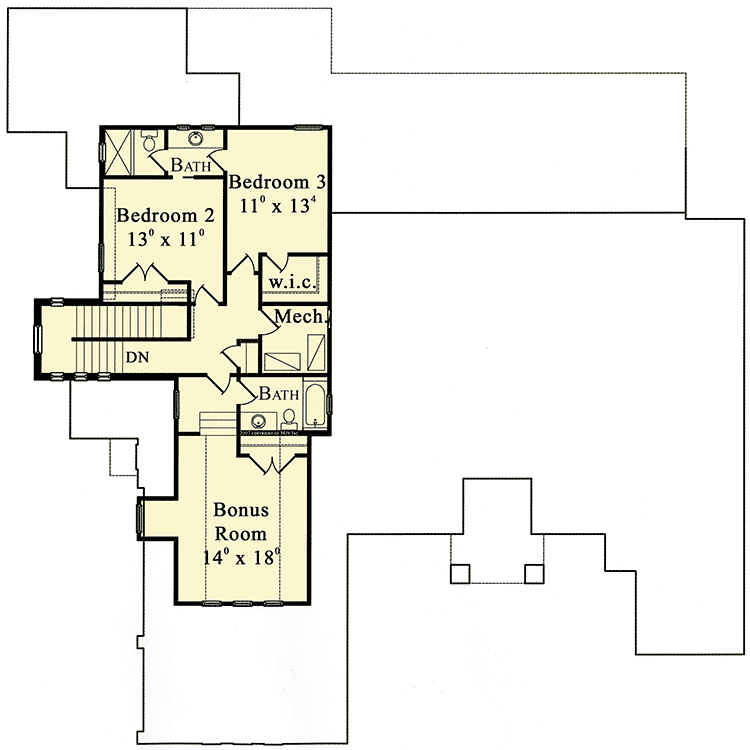

floor plan image 2nd Floor

Plan Details

Graceful arches and a handsome tile roof adorn this Mediterranean house plan that has Spanish influences.
The formal dining room is open to the foyer so the views stretch beyond the 14' width.
In back, the gathering room, kitchen and nook all blend together into one large space.
A quiet master suite is set in the back of the home away from street noise.
The rest of the bedrooms are all up on the second floor with each one having a walk-in closet and private bathroom
FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.

What's Included

Cover Sheet
Floor Plans
Slab Foundation Plan (plumbing layout)
Elevations
Sections
Stair Sections if applicable
Electrical Layout
Basic Details Sheet

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,375 sq. ft.

1st Floor

2,810 sq. ft.

2nd Floor

565 sq. ft.

Bonus

400 sq. ft.

Entry

152 sq. ft.

Covered Patio

760 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

79' 4"

Depth

79' 8"

Max Ridge Height

28' 7"

Garage

Type

Attached

Area

748 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

12'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Square Footage Breakdown

Total Heated Area

3,375 sq. ft.

1st Floor

2,810 sq. ft.

2nd Floor

565 sq. ft.

Bonus

400 sq. ft.

Entry

152 sq. ft.

Covered Patio

760 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

79' 4"

Depth

79' 8"

Max Ridge Height

28' 7"

Garage

Type

Attached

Area

748 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

12'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections
