Plan 42830MJ
Spanish-Style House Plan with Two Kitchen Islands and Outdoor Fireplace - 4446 Sq Ft
Heated S.F.
4,446
Beds
5
Baths
4.5
Stories
2
Cars
2
Floor Plan

Plan 42830MJ

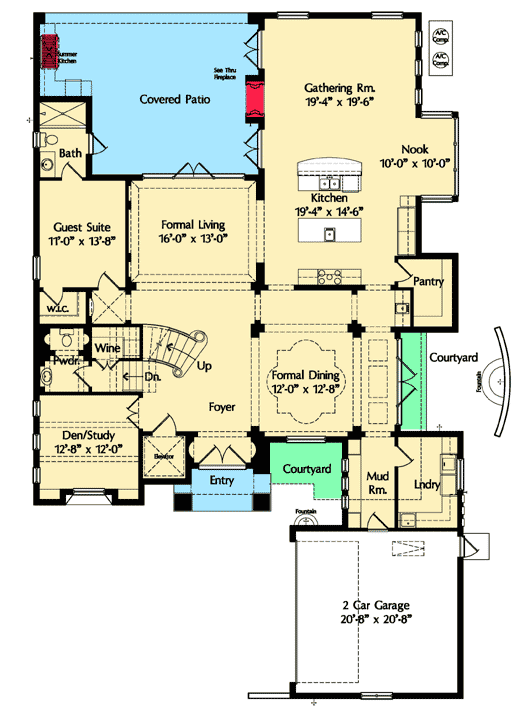

Main Level
slide image 0

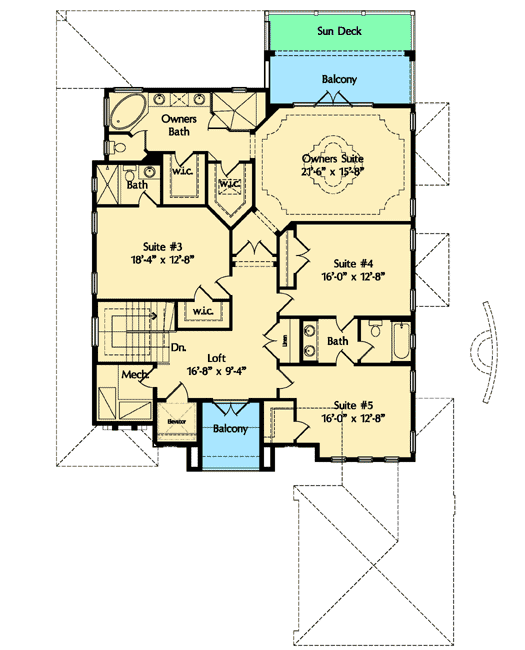

2nd Floor
slide image 1

Plan 42830MJ

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This elegant Spanish style home plan is filled with luxurious touches such as a wine cellar, residential elevator and an L-shaped outdoor kitchen on the rear covered porch.
  • The home is a wonderful blend of both formal and informal spaces.
  • Special ceiling treatments top the formal rooms and the dining room faces two outdoor courtyards for delightful views.
  • A two-sided fireplace in the gathering room is shared by the outdoor living area.
  • All four bedrooms on the upper floor are spacious but the master suite tops them all with its private balcony and sun deck.
  • The loft area has its own balcony that faces the front of the home.
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.
What's Included
  • Cover Sheet
  • Floor Plans
  • Slab Foundation Plan (plumbing layout)
  • Elevations
  • Sections
  • Stair Sections if applicable
  • Electrical Layout
  • Basic Details Sheet
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us
