Plan 785014KPH
Spectacular 6-Bed House Plan with Walk-Out Basement
Heated S.F.
5,684
Beds
4 - 6
Baths
4.5
Stories
2
Cars
2
Floor Plan

Plan 785014KPH

Main Level
slide image 0
Second Level
slide image 1
Lower Level
slide image 2

Plan 785014KPH

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Second Level
floor plan image Second Level
Lower Level
floor plan image Lower Level
Plan Details
  • This spectacular, spacious home plan offers six bedrooms and expansive decks, which allows you to enjoy outdoor living. A side-entry garage and angled entryway adds depth to the front elevation.

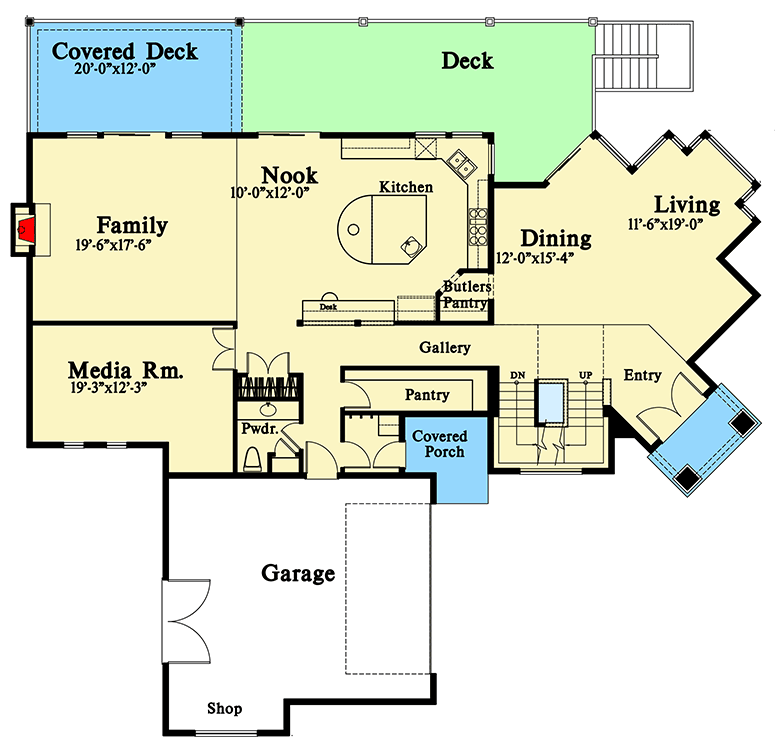

  • Just off the foyer, the living room opens to the dining room and provides sliding doors that lead to the back deck. A large kitchen with U-shaped counters and a centered island offers ample workspace. A butler's pantry provides a passageway between the kitchen and dining room.
  • A separate media room on the main level provides a quiet space, and a covered deck off the family room extends the living space outdoors.

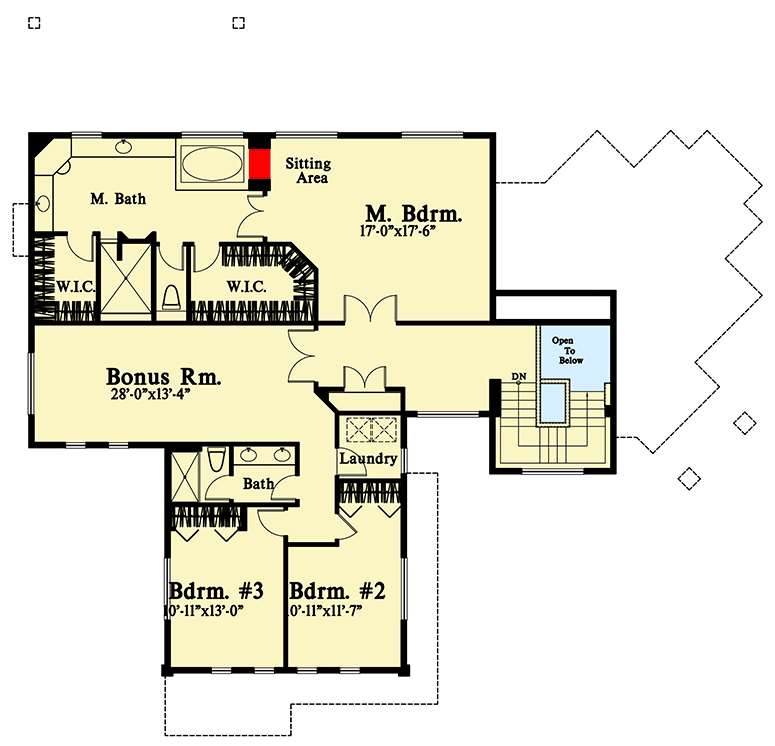

  • Upstairs, retreat to your master bedroom which boasts a sitting area and a double-sided fireplace to be enjoyed by both the bedroom and bathroom. The 5-fixture bathroom provides an oversized shower and dual closets.
  • A bonus room serves as a buffer between the master and two additional bedrooms that share a 4-fixture bathroom. The second-level, laundry room adds convenience.

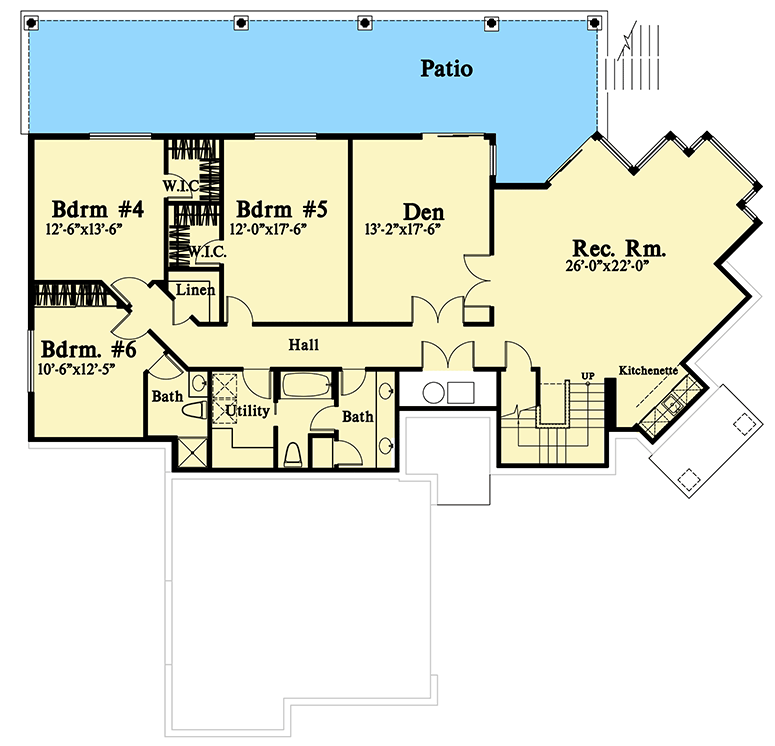

  • A large recreation room with a kitchenette resides on the lower level, along with a den and three additional bedrooms. A second laundry room on the lower level simplifies the chore.
What's Included
  • Cover Sheet
  • Code Notes
  • Foundation and Lower Floor
  • Main Floor Framing
  • Main Floor
  • Second Level Framing
  • Second Level

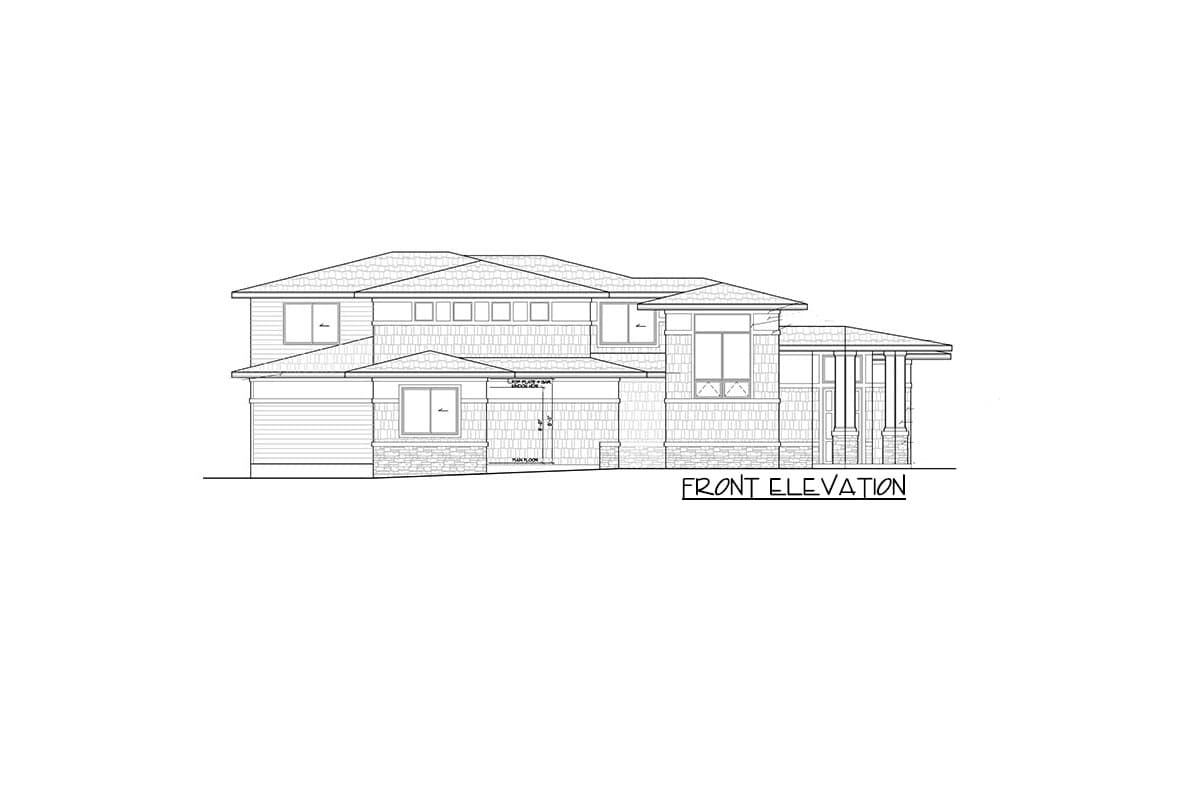

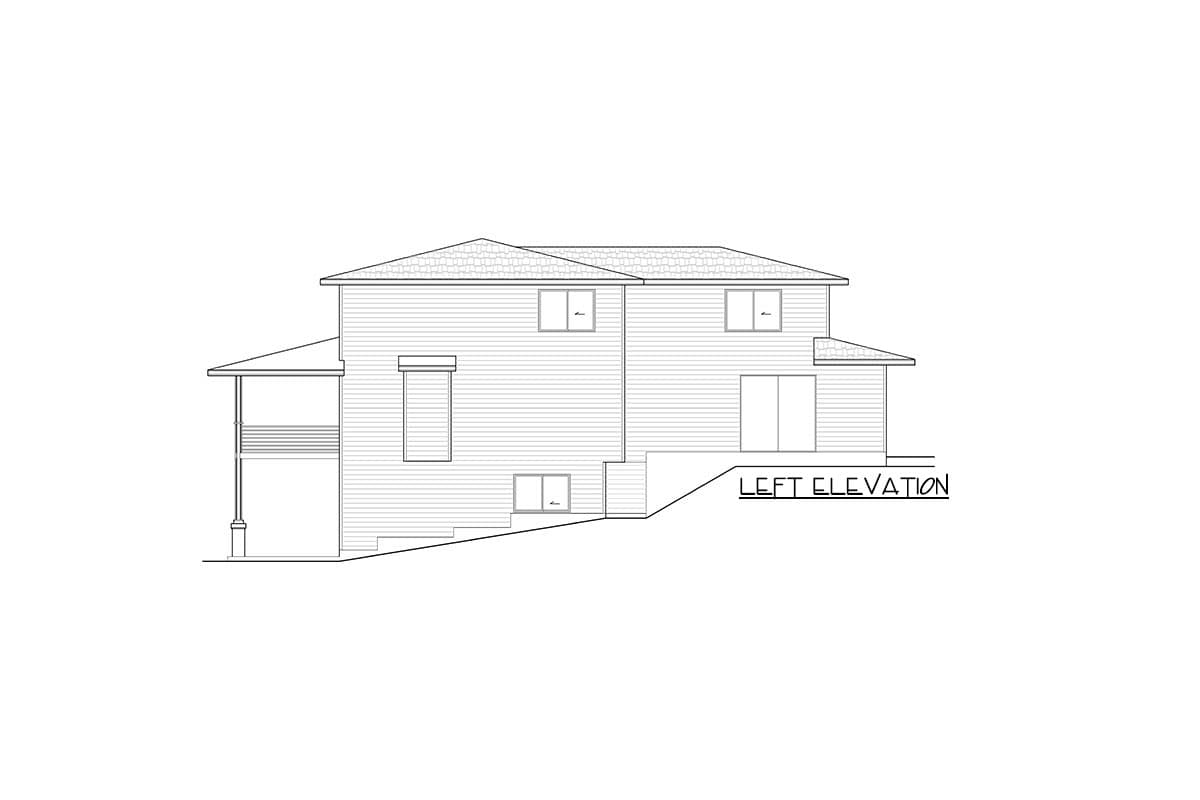

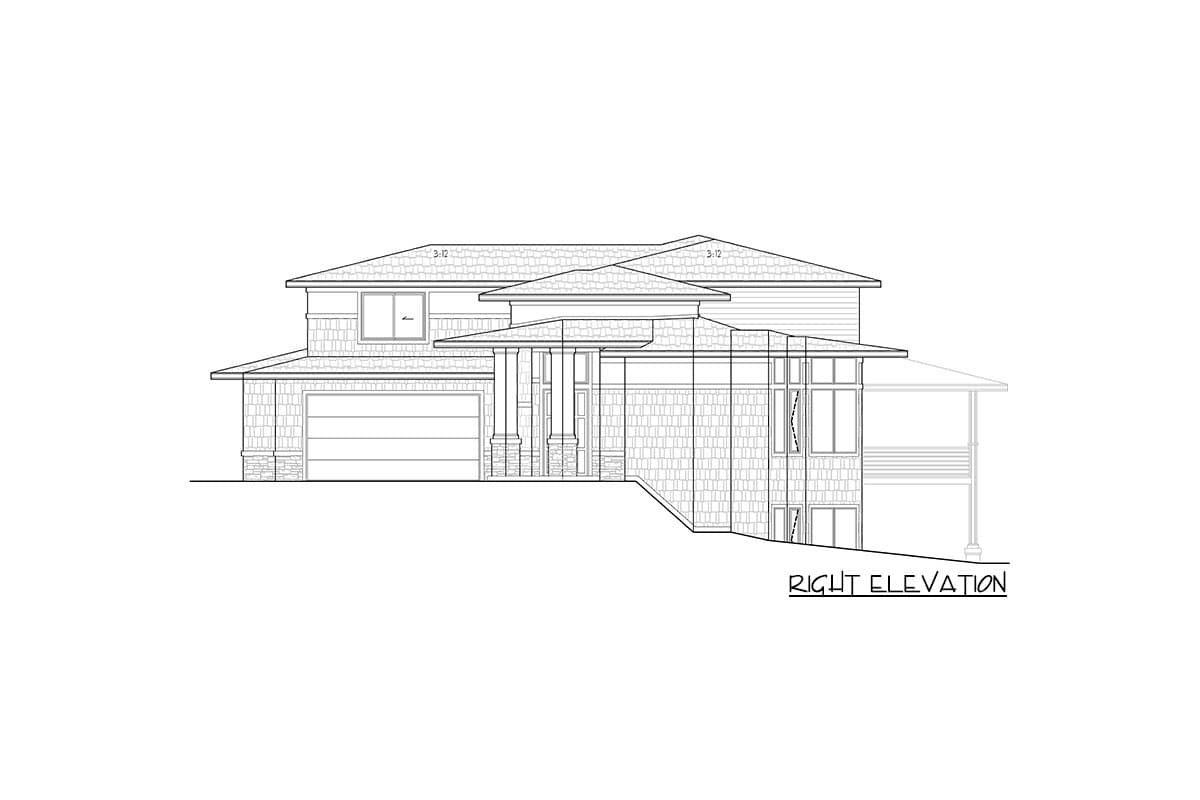

  • Elevations and Budling Section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Plumbing & Electrical plans
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Renderings, photography, or marketing imagery
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

5,684 sq. ft.

Lower Level

1,928 sq. ft.

1st Floor

1,925 sq. ft.

2nd Floor

1,831 sq. ft.

Deck & Porch

665 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

70' 0"

Depth

57' 6"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

599 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

10'

First Floor

9' 1"

Second Floor

8' 1"

Roof Details

Primary Pitch

3 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

Northwest

Special Features

Bonus Room

Butler Walk-in Pantry

Den

Laundry Access from Master Suite

Laundry - Upstairs

Master Suite - 2nd Floor

Master Suite - Sitting Area

Media Room

Mudroom

Plan Collections
