Plan 36289TX
Spectacular Guest or In-Law Quarters
Heated S.F.
2,495
Beds
2
Baths
3
Stories
2
Cars
3
Floor Plan

Plan 36289TX

Main Level
slide image 0
2nd Floor
slide image 1

Plan 36289TX

1-800-854-7852

1-262-521-4596

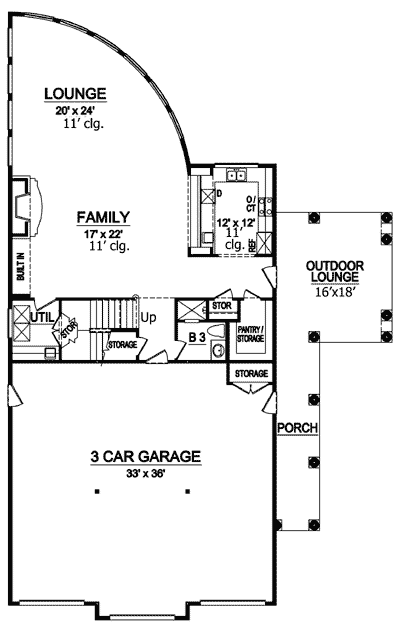

Main Level
floor plan image Main Level

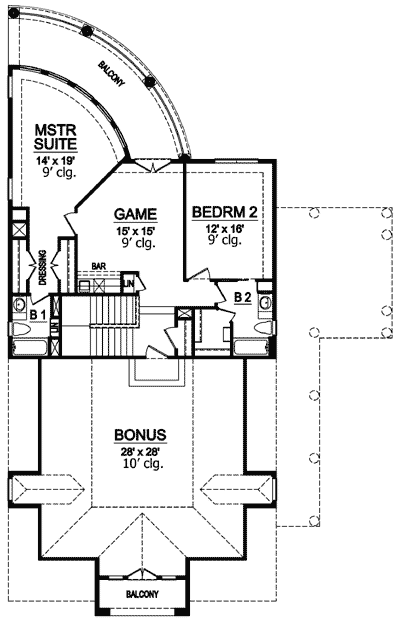

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This unique garage apartment would make the perfect in-law set-up with its own kitchen and wall of windows in the lounge area.
  • There is even a separate laundry room and outdoor patio.
  • The second floor boasts two bedrooms, one of which is a large master suite, a game room with wet bar and a massive bonus area with dormers.
  • The whole second floor has access to a balcony that follows the curve of the lounge below.
  • Related Plan: See house plan 36288TX to view the home that goes with this carriage house plan.
What's Included
  • Cover sheet
  • Foundation Plan - schematic only
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,495 sq. ft.

1st Floor

1,155 sq. ft.

2nd Floor

1,340 sq. ft.

Basement Unfinished

800 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

53' 0"

Depth

84' 0"

Max Ridge Height

32' 0"

Garage

Type

Attached

Area

1285 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

11'

Second Floor

9'

Architectural Style

European

Florida

Mediterranean

Special Features

Bonus Room

Game/Rec Room

Laundry - Main Level

Master Suite - 2nd Floor

Wet Bar
