Plan 15666GE
Spectacular Kitchen
Heated S.F.
4,145
Beds
4
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 15666GE

Main Level
slide image 0
2nd Floor
slide image 1
Basement
slide image 2

Plan 15666GE

1-800-854-7852

1-262-521-4596

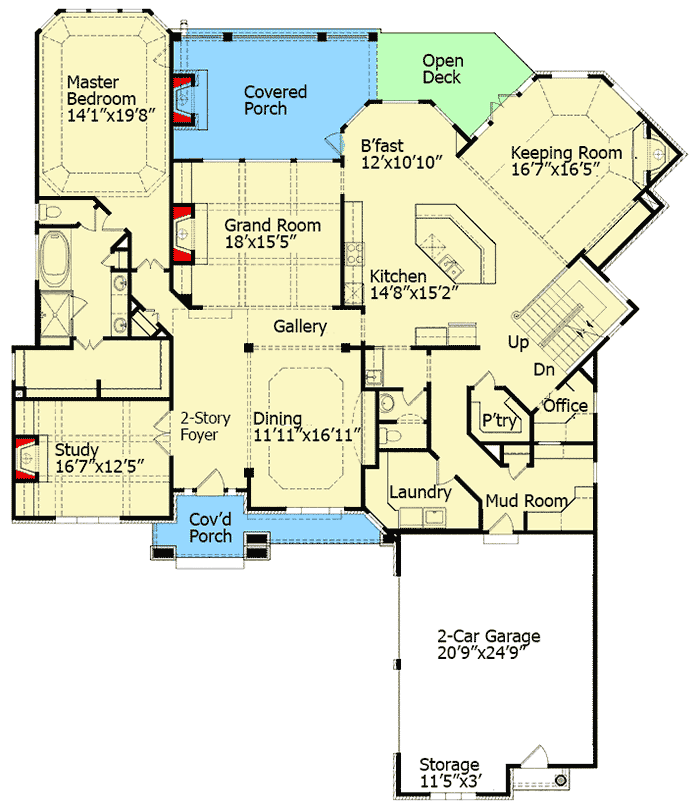

Main Level
floor plan image Main Level

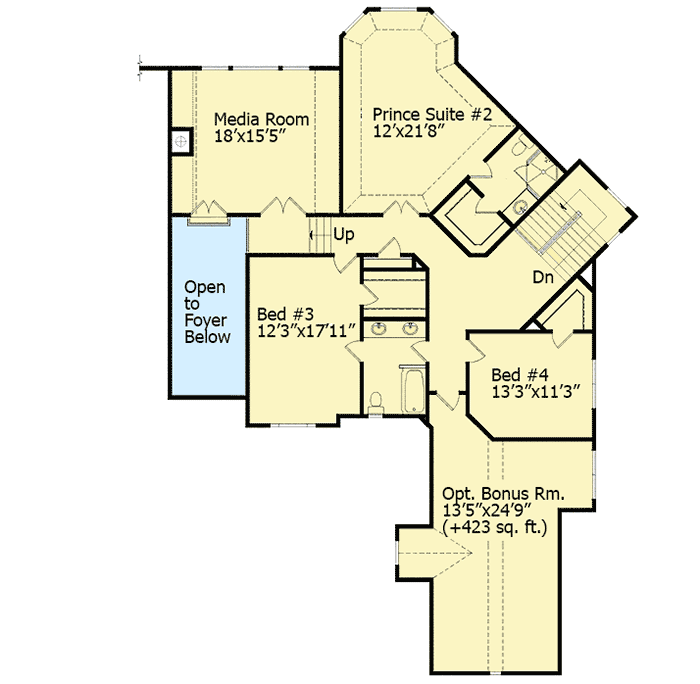

2nd Floor
floor plan image 2nd Floor

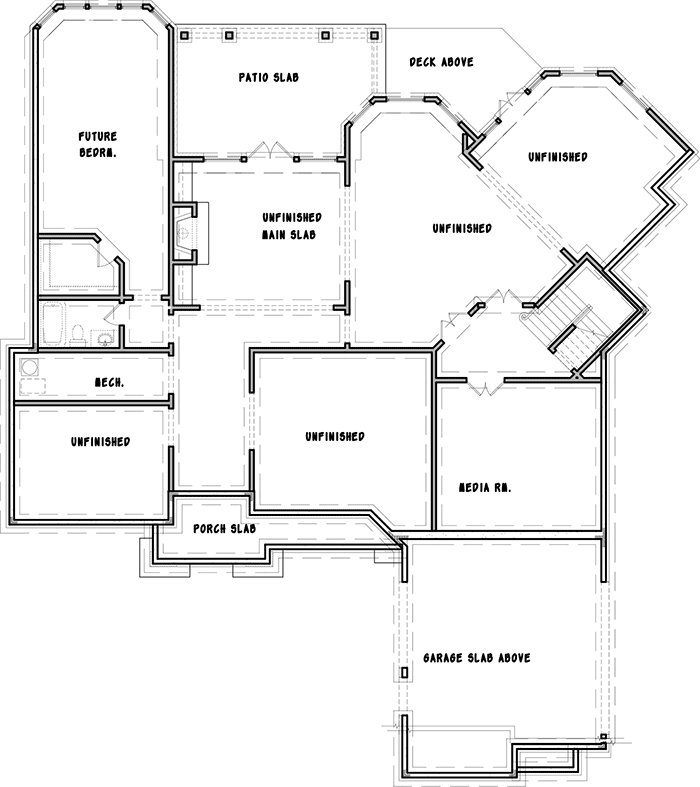

Basement
floor plan image Basement
Plan Details
  • The heart of this family home will be in the spectacular kitchen that boasts a huge island with views of the keeping room, breakfast nook and deck beyond.
  • A walk-in pantry lies close by tucked away by the small office area that is perfect for your computer and recipe collections.
  • Coffered ceilings in the grand room and study complement the tray ceiling in the dining room and two-story foyer.
  • The first floor master bedroom is an oasis of calm with its spa bath and optional door to the covered porch with fireplace.
  • Each of the upstairs bedrooms is spacious with the princess suite enjoying its own bath and a bayed sitting area.
  • Double doors lead to the media room with an interior balcony door overlooking the foyer below.
What's Included

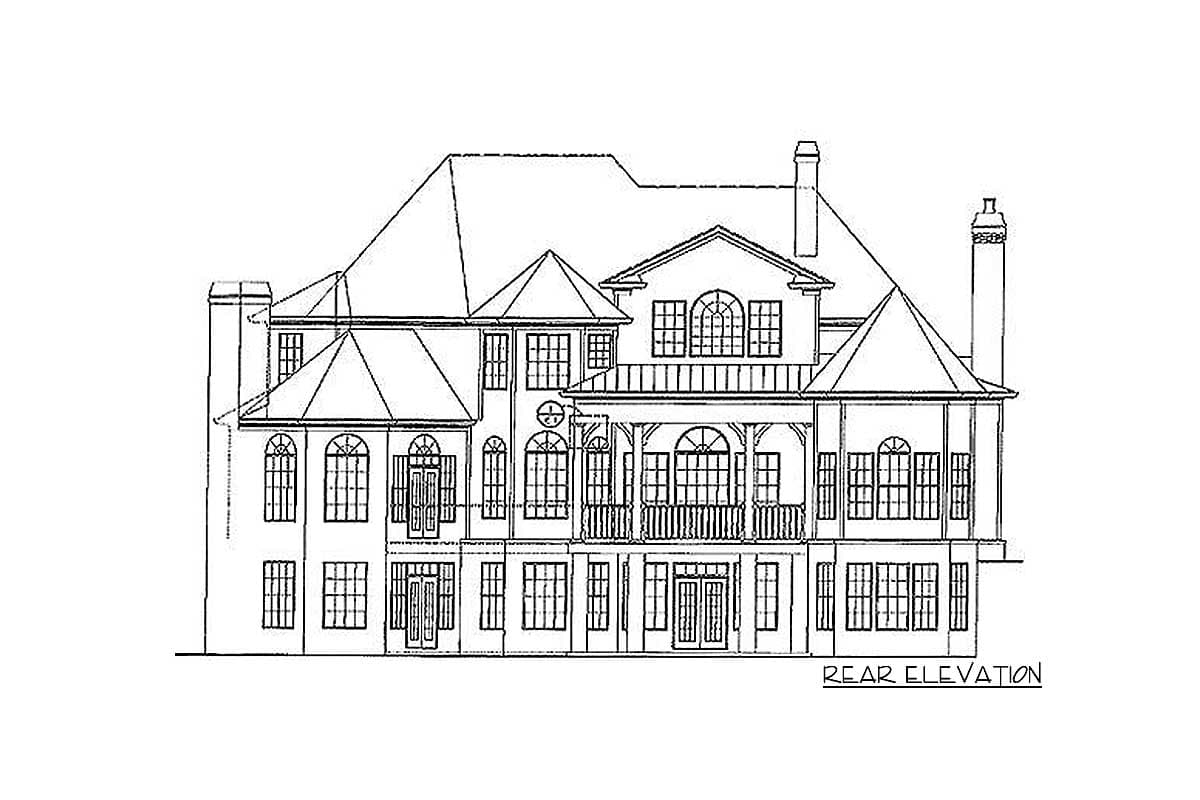

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

4,145 sq. ft.

1st Floor

2,879 sq. ft.

2nd Floor

1,266 sq. ft.

Bonus

423 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

72' 8"

Depth

85' 0"

Max Ridge Height

35' 5"

Garage

Type

Attached

Area

569 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

9'

Architectural Style

Craftsman

European

Traditional

Special Features

Bonus Room

Breakfast Nook

Butler Walk-in Pantry

Home Office

Keeping Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Media Room

Plan Collections

Home Office

Luxury

Photo Gallery

Square Footage Breakdown

Total Heated Area

4,145 sq. ft.

1st Floor

2,879 sq. ft.

2nd Floor

1,266 sq. ft.

Bonus

423 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

72' 8"

Depth

85' 0"

Max Ridge Height

35' 5"

Garage

Type

Attached

Area

569 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

9'

Architectural Style

Craftsman

European

Traditional

Special Features

Bonus Room

Breakfast Nook

Butler Walk-in Pantry

Home Office

Keeping Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Media Room

Plan Collections

Home Office

Luxury

Photo Gallery
