Plan 29835RL

Spectacular Master Suite

Heated S.F.

3,920

Beds

5 - 6

Baths

4.5 - 5.5

Stories

2

Cars

3

Floor Plan

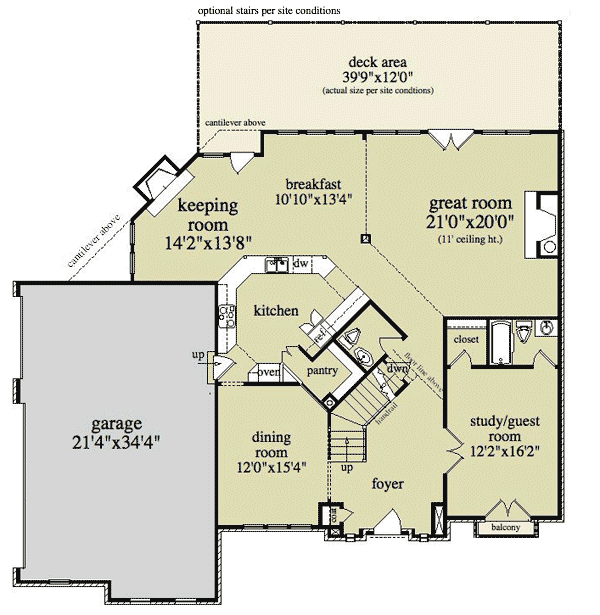

Main Level

floor plan image Main Level

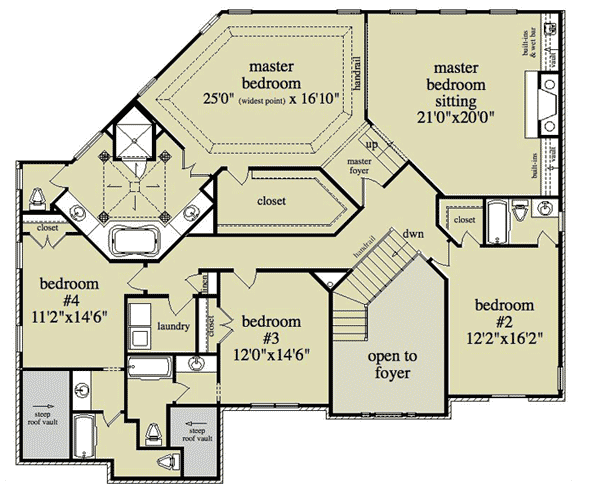

2nd Floor

floor plan image 2nd Floor

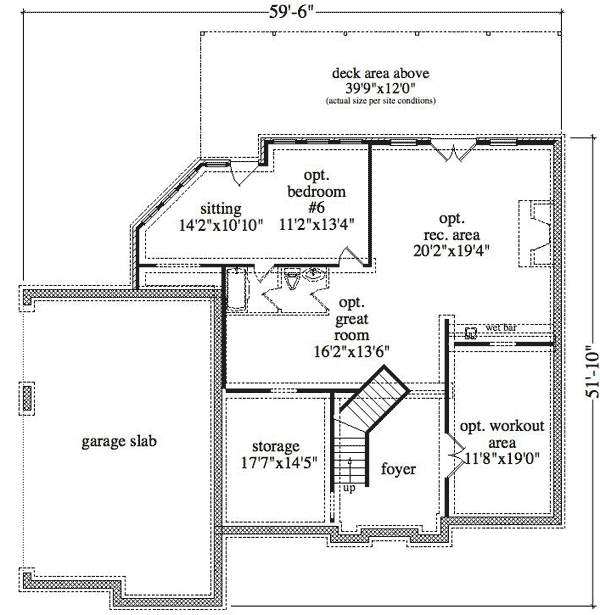

Unfinished Basement

floor plan image Unfinished Basement

Plan Details

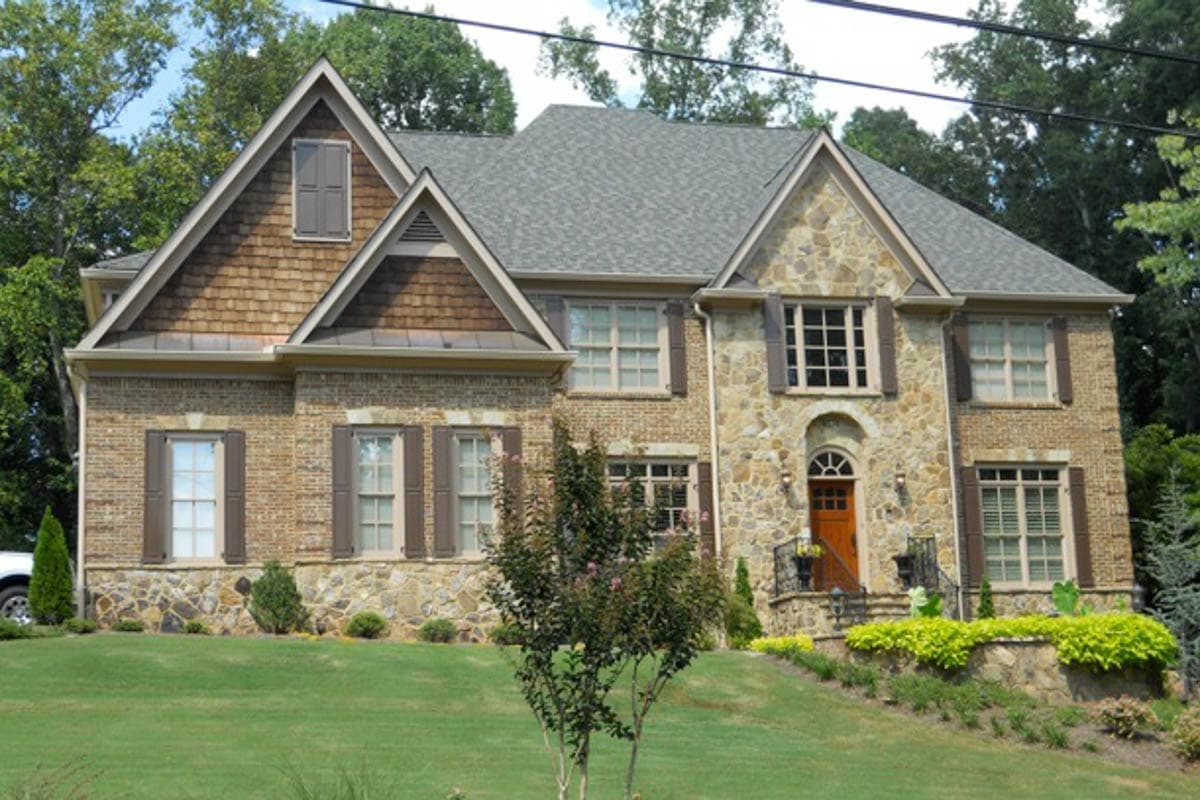

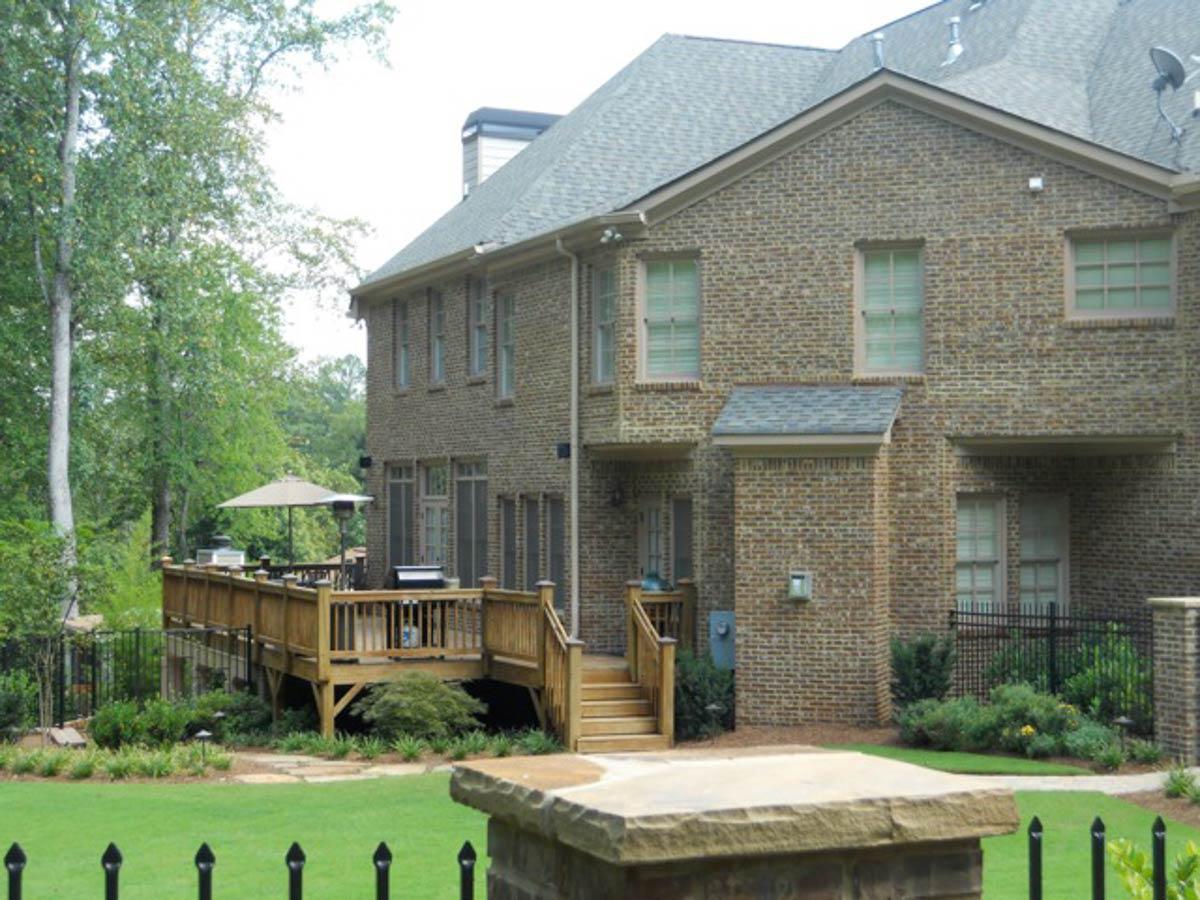

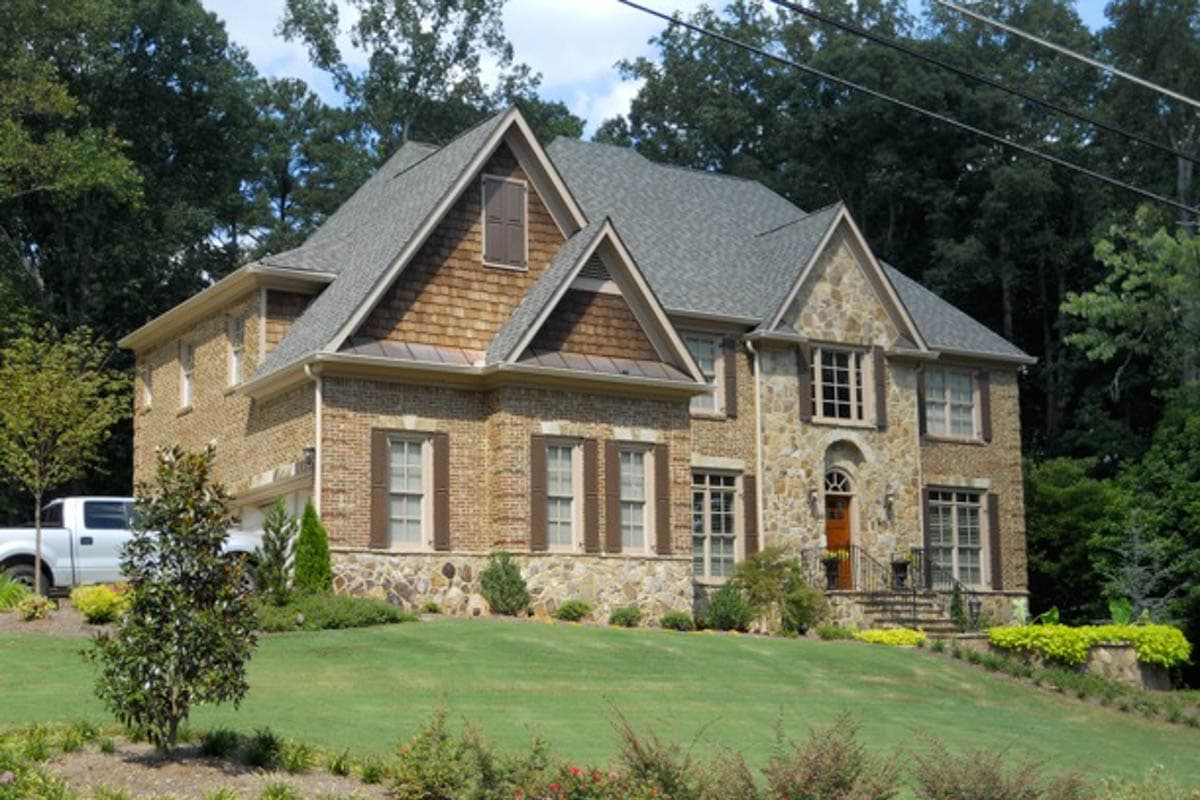

This stately two-story European home is wrapped with brick and steep roof pitches.

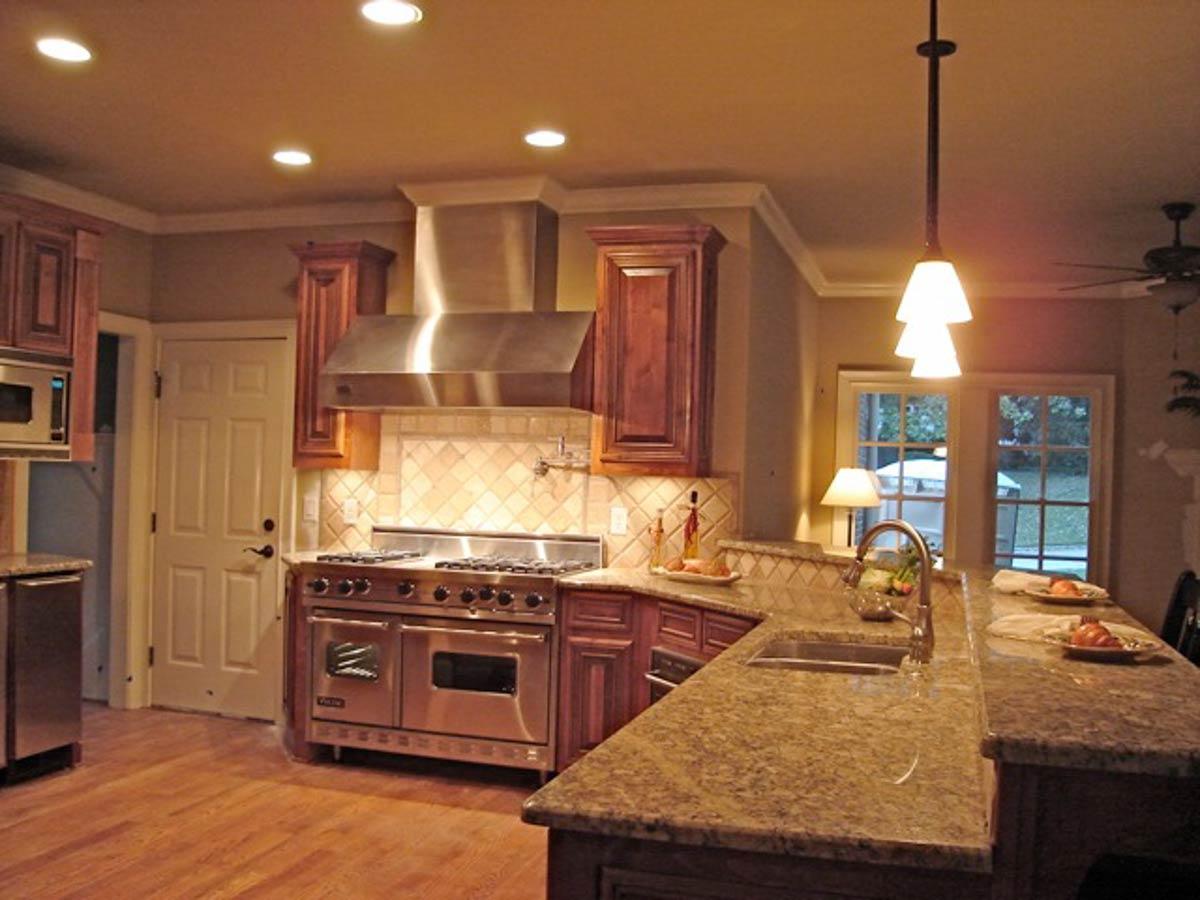

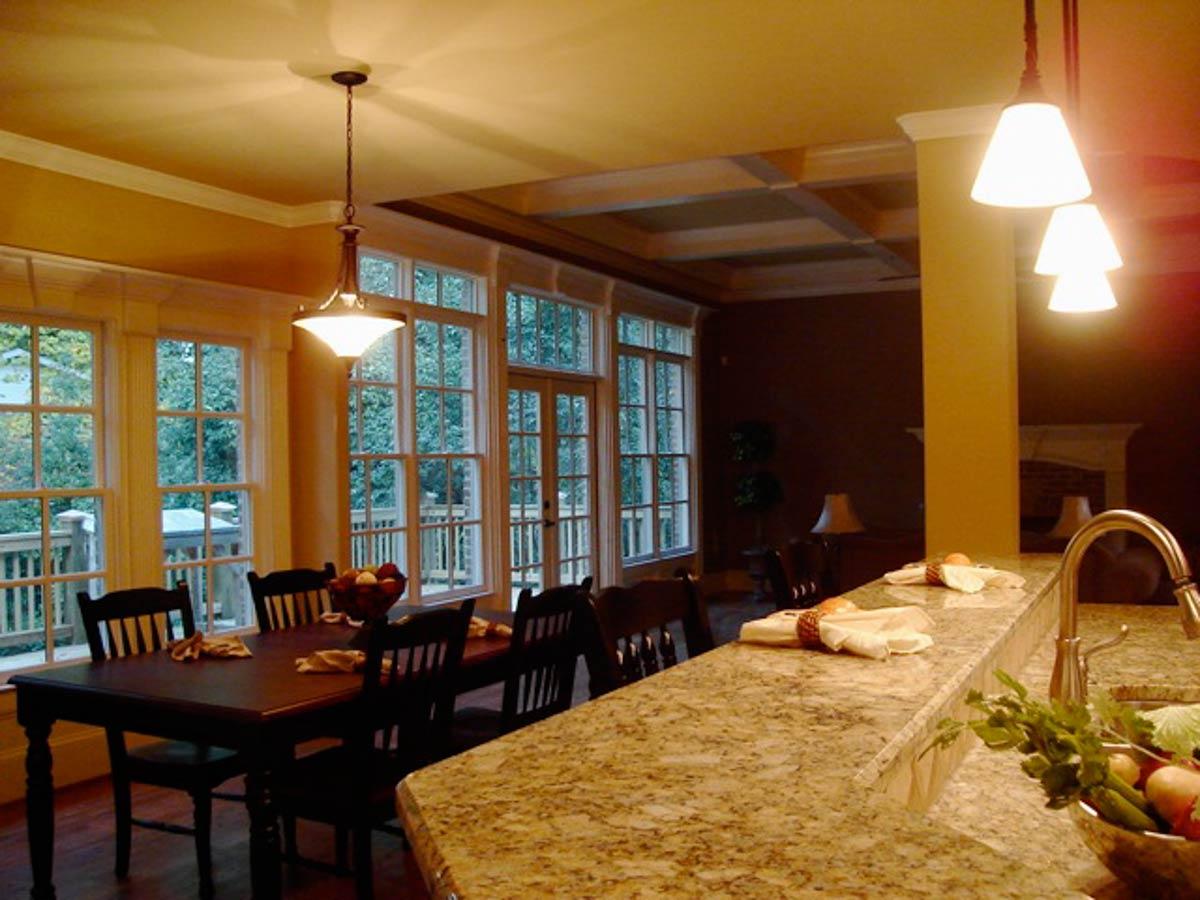

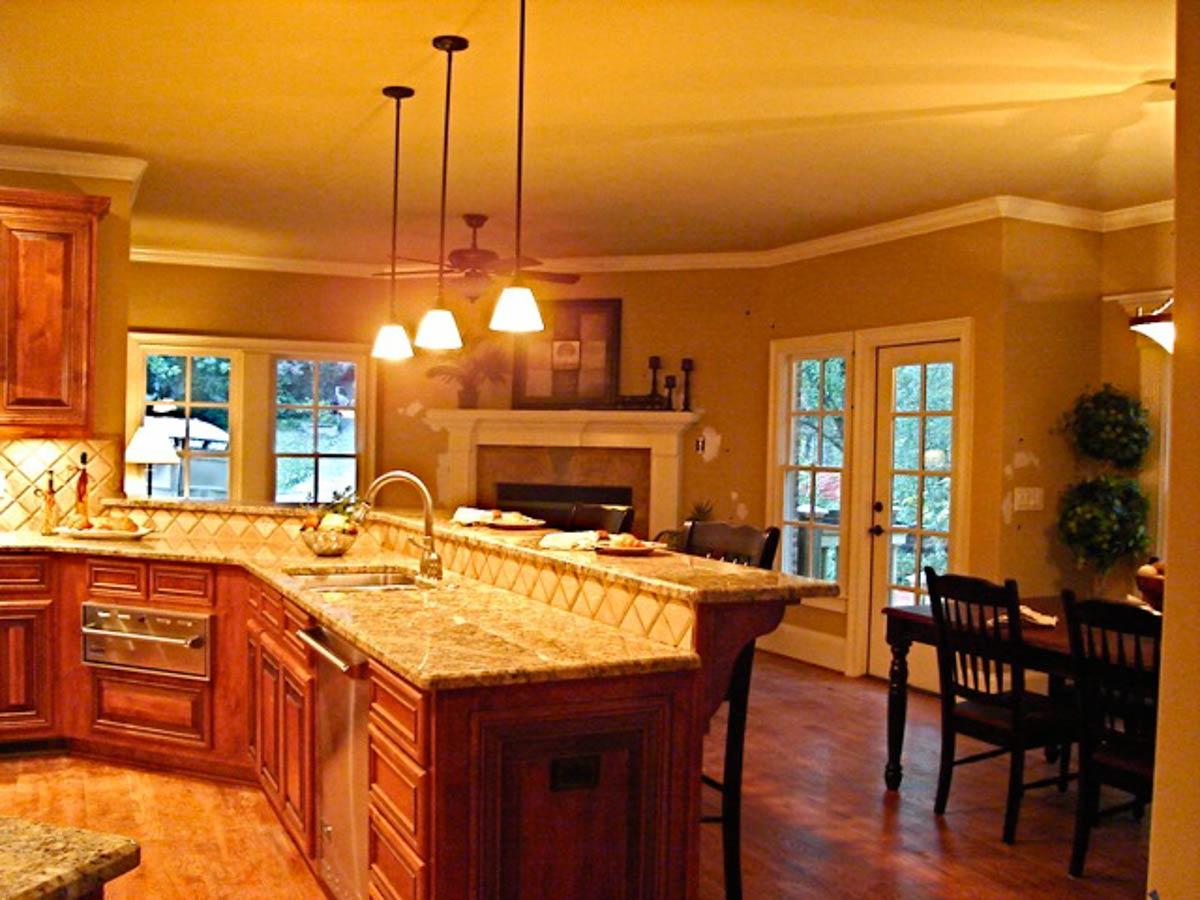

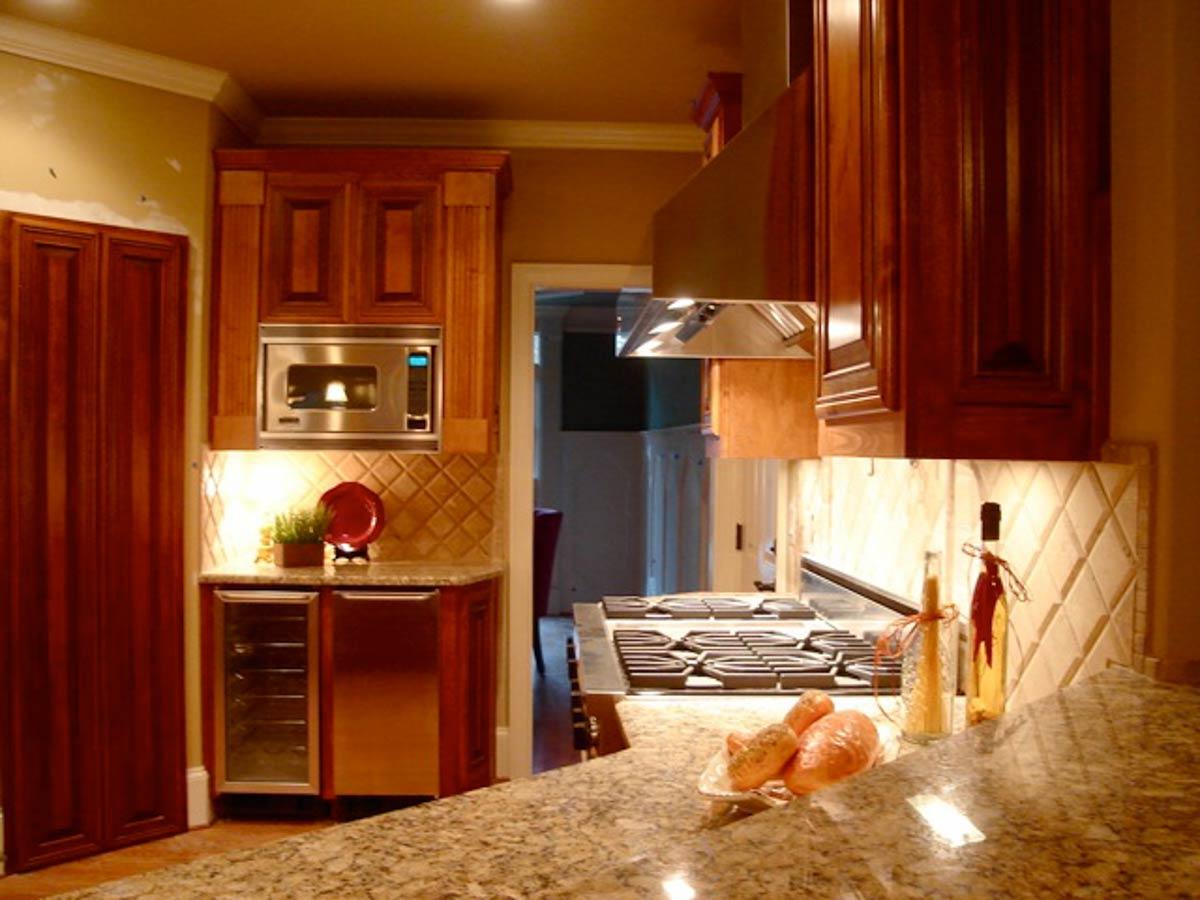

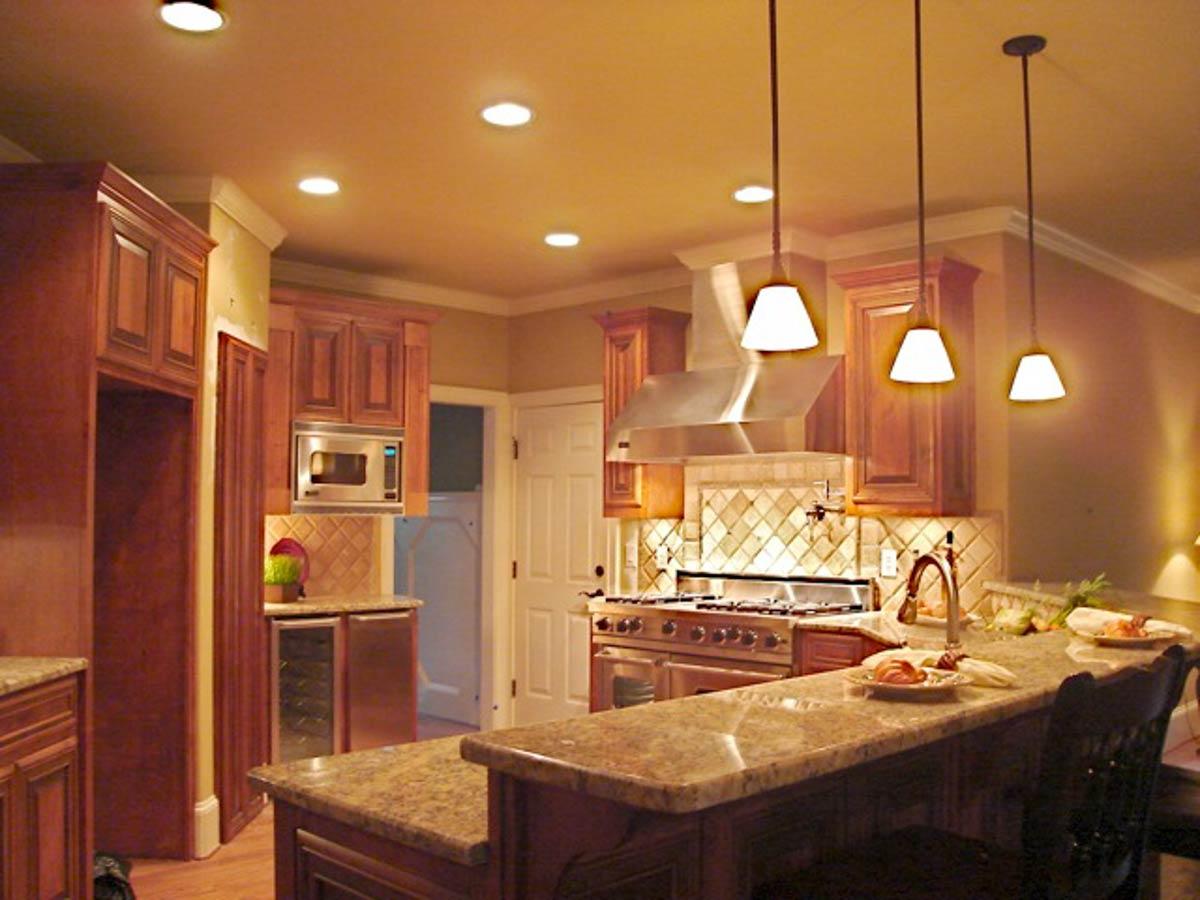

The main level has a guest room with full bath and a wonderful open floor plan that unites the large great room with the kitchen, keeping room and breakfast area.
Fireplaces at each end add warmth and visual appeal.
Upstairs, the large master suite is spectacular with a generous raised sitting room, fireplace and built-ins including a wet bar.

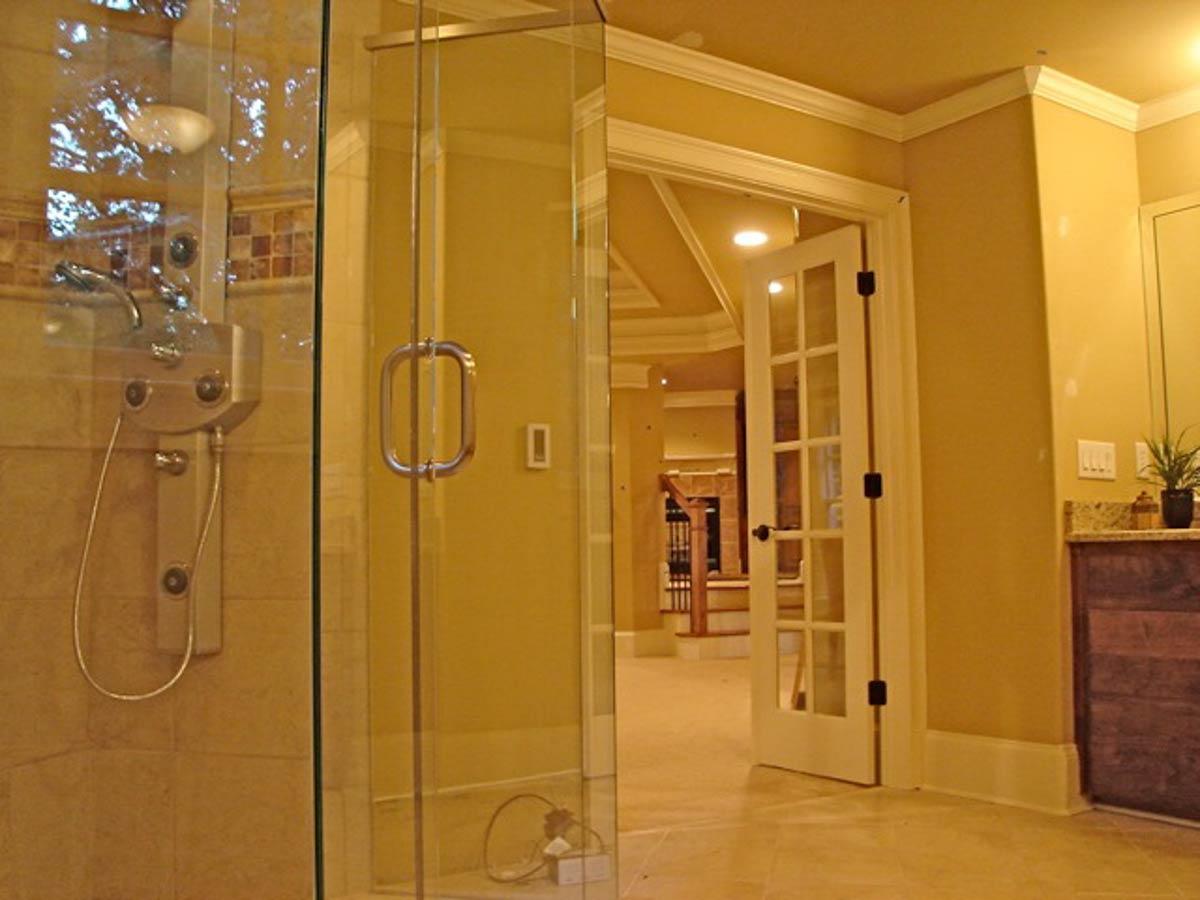

The master bath has a separate tub and shower, dual vanities and a vaulted ceiling.
Additionally, you will find 3 bedrooms, a jack and jill bath and a laundry room
The unfinished basement is just over 1400 sq.ft. and could provide a future rec area, great room, workout area and a 6th bedroom.

What's Included

All 4 elevations (front, rear, left, right)
2D Roof overview
3D Roof overview
Main Level Layout
Basement Level Layout
Cross-Section (Typical Wall, Stairs (if applicable))
Typical Details

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,920 sq. ft.

1st Floor

1,729 sq. ft.

2nd Floor

2,191 sq. ft.

Basement Unfinished

1,460 sq. ft.

Beds/Baths

Bedrooms

5 or 6

Full bathrooms

4 or 5

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

59' 6"

Depth

51' 10"

Max Ridge Height

34' 0"

Garage

Type

Attached

Area

717 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Sitting Area

Plan Collections

Premium Collection
