Plan 31007D
Splendid Hill Country Design
Heated S.F.
2,405
Beds
3
Baths
2.5
Stories
1-2
Cars
3
Floor Plan

Plan 31007D

Main Level
slide image 0
Bonus
slide image 1

Plan 31007D

1-800-854-7852

1-262-521-4596

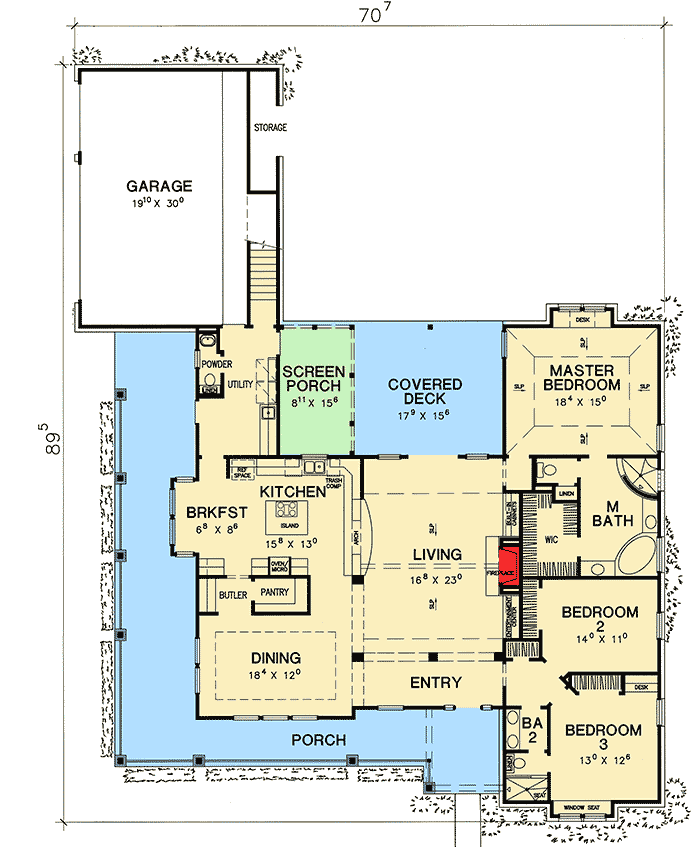

Main Level
floor plan image Main Level
Bonus
floor plan image Bonus
Plan Details

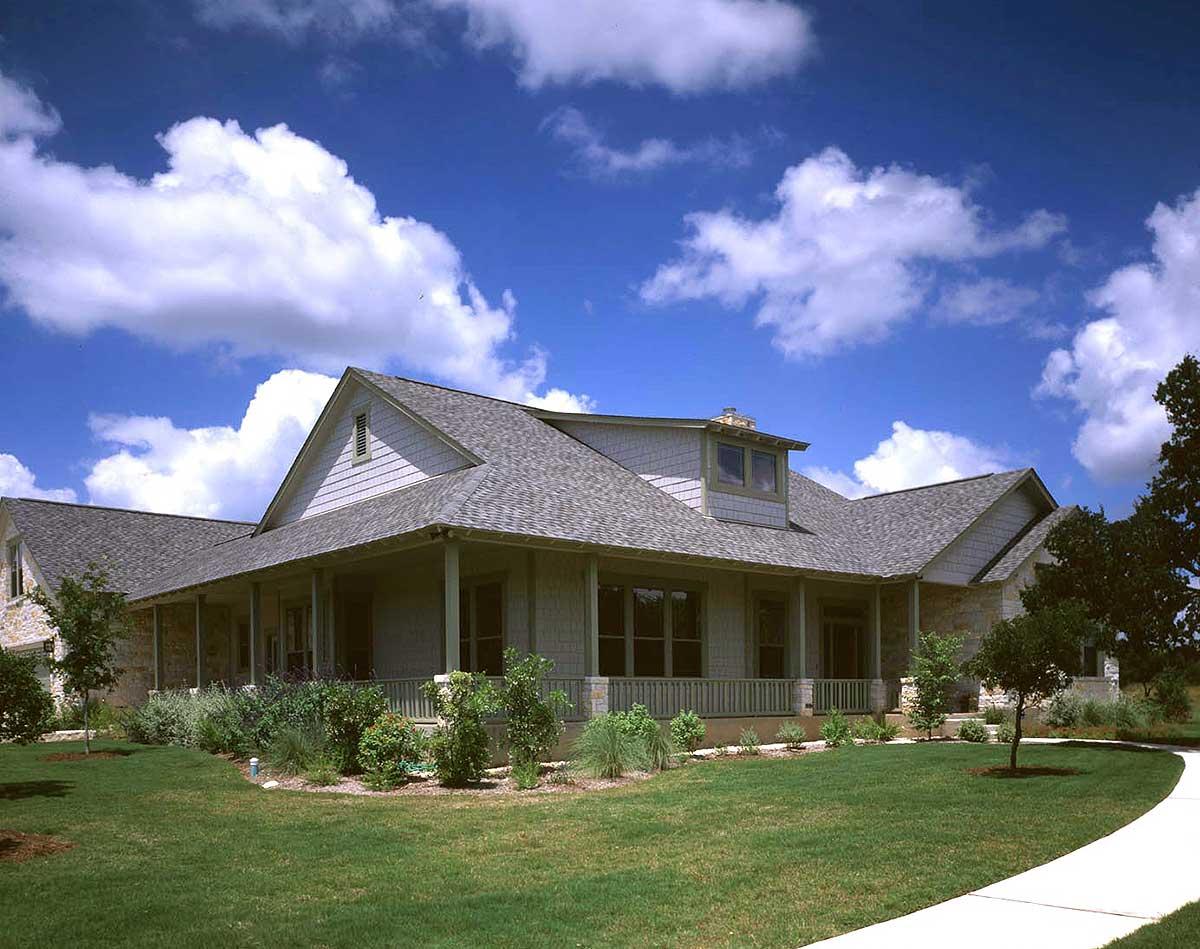

  • Ideal for a corner lot with its side-entry garage, this appealing house plan incorporates hill country and farmhouse elements.
  • Interior columns define the living and dining rooms. A handy pass-through with eating bar connects the kitchen to the living room, and a handy butler's pantry lies between the kitchen and the dining room.
  • The bedrooms are stacked along one side. The master suite features a built-in desk in a box-bay window, a garden tub flanked by vanities and a glass-block window in the shower.
  • Placed next to the covered deck, the screened porch offers outdoor dining possibilities. The wrap-around porch provides additional outdoor living space.
  • The bonus room over the garage is great for expansion.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas.  If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.
What's Included

  • Foundation plan
  • Fully dimensioned floor plan
  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,405 sq. ft.

1st Floor

2,405 sq. ft.

Bonus

375 sq. ft.

Porch, Front

732 sq. ft.

Covered Patio

421 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

70' 7"

Depth

89' 5"

Max Ridge Height

26' 6"

Garage

Type

Attached

Area

711 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

12'

Second Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Country

Farmhouse

Hill Country

Traditional

Special Features

Bedrooms - Clustered

Bonus Room

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Wrap Around Porch
