Plan 56452SM
Split Bed Modern Farmhouse Plan with Shed Dormer - 1814 Sq Ft
Heated S.F.
1,814
Beds
3
Baths
2.5
Stories
1
Cars
2
Photos
Floor Plan

Plan 56452SM

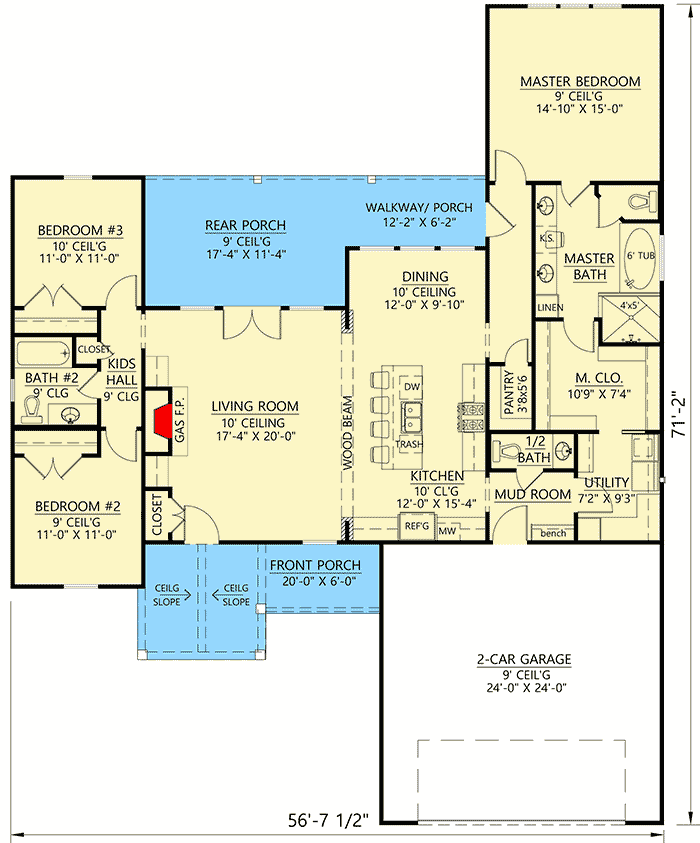

Main Level
slide image 0

Plan 56452SM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • A timber-supported covered entry and shed dormer add to the curb appeal of this 3-bed modern farmhouse plan.
  • Inside, the living room holds center stage. It is open to the kitchen - and visually separated from it - by a wood beam. French doors on the back wall take you to your roomy rear porch.
  • A very functional island in the kitchen gives you work space plus seating for up to four. A deep walk-in pantry is conveniently located steps away.
  • The master suite is located in the back-right corner of the home giving you great privacy. A thoughtful bathroom design gives you direct access to the laundry through the walk-in closet.
  • Across the home, two bedrooms share a bath.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - Farmhouse Plan 56452SM Comes to Life in Florida

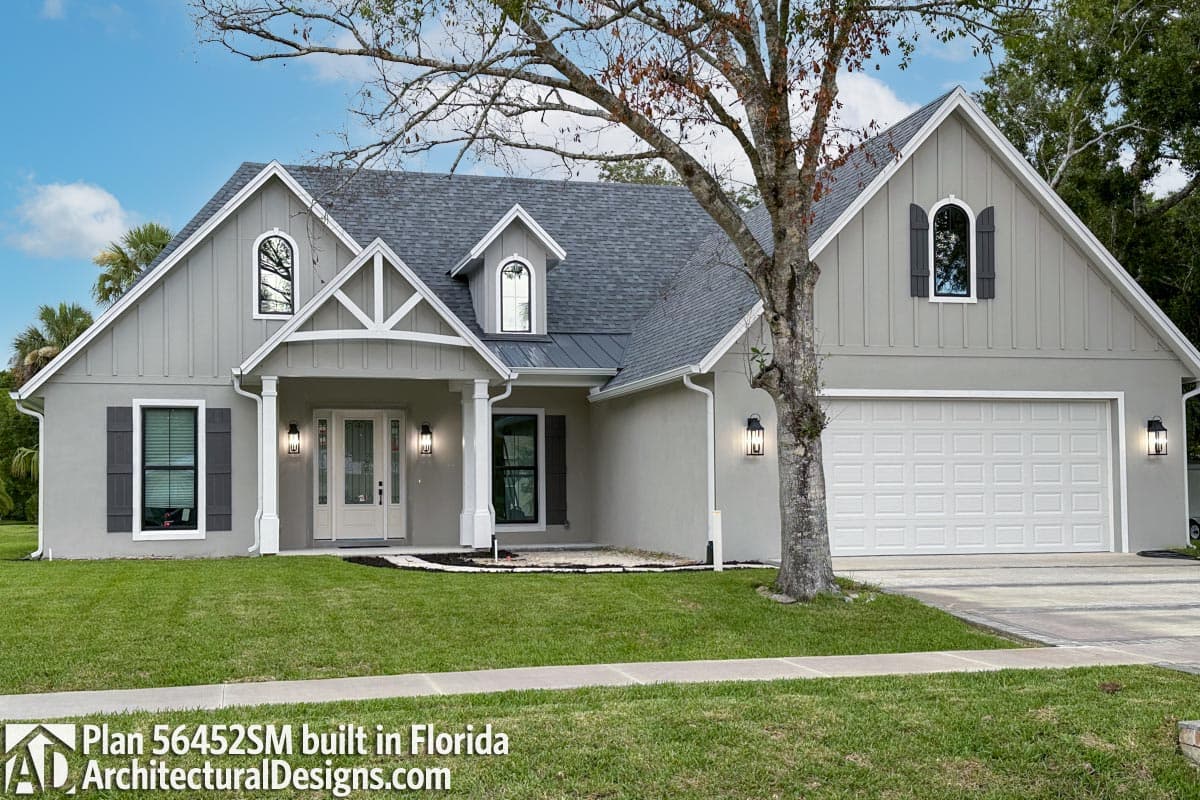

Farmhouse Plan 56452SM Comes to Life in Florida

18

Photos

build gallery item - Modern Farmhouse Plan 56452SM Comes to Life in Oklahoma

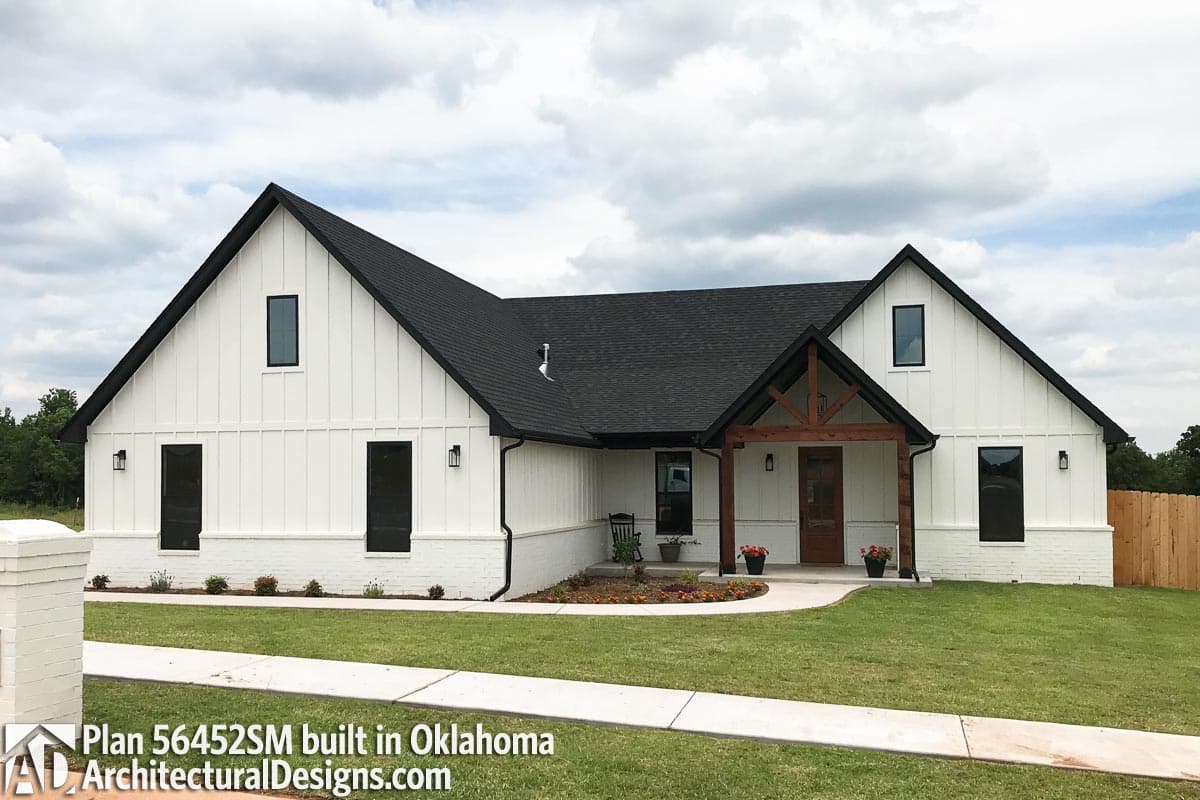

Modern Farmhouse Plan 56452SM Comes to Life in Oklahoma

10

Photos

What's Included
  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.

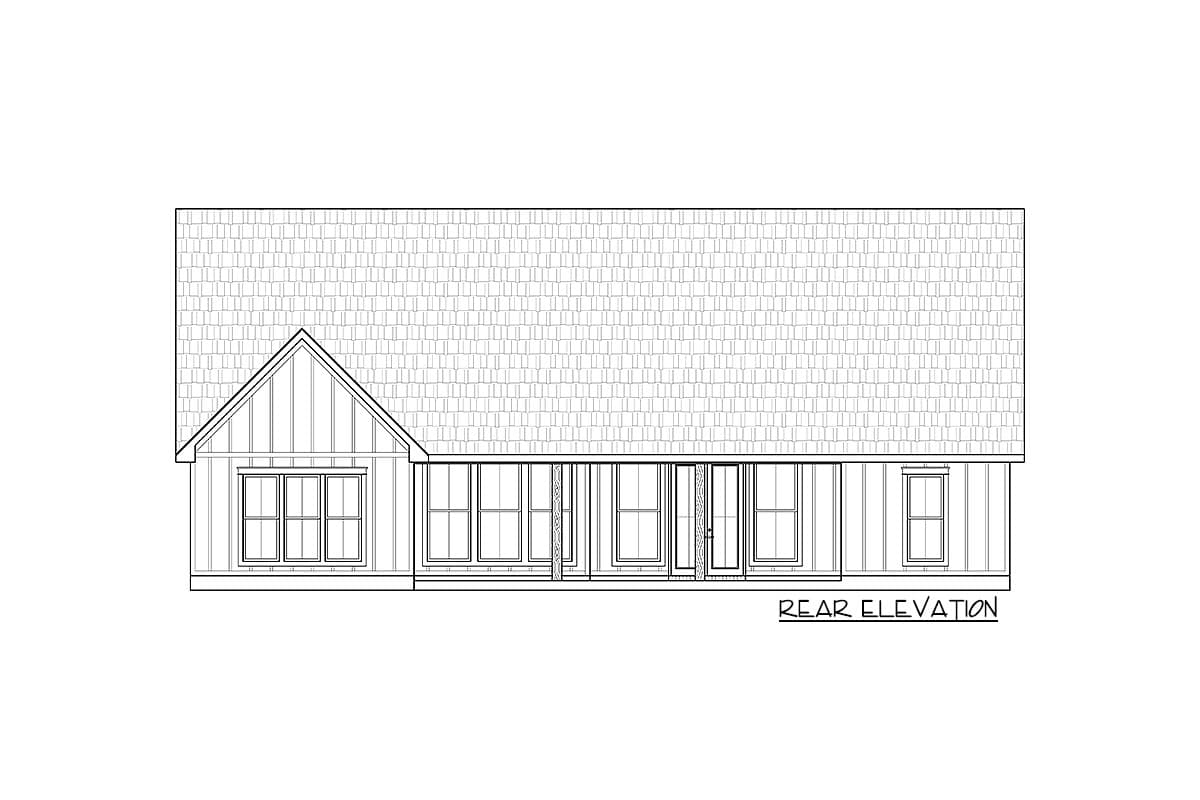

  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,814 sq. ft.

1st Floor

1,814 sq. ft.

Porch, Front

168 sq. ft.

Porch, Rear

271 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

56' 8"

Depth

71' 2"

Max Ridge Height

25' 5"

Garage

Type

Attached

Area

600 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Craftsman

Farmhouse

Modern Farmhouse

New American

Southern

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
