Name: Plan 86151BW: Split Bedroom Coastal Contemporary House Plan with Home Study - 3202 Sq Ft
SKU: 86151BW
Price: 2304.0 USD
Availability: InStock

Plan 86151BW

Split Bedroom Coastal Contemporary House Plan with Home Study - 3202 Sq Ft

Heated S.F.

3,202

Beds

Baths

Stories

Cars

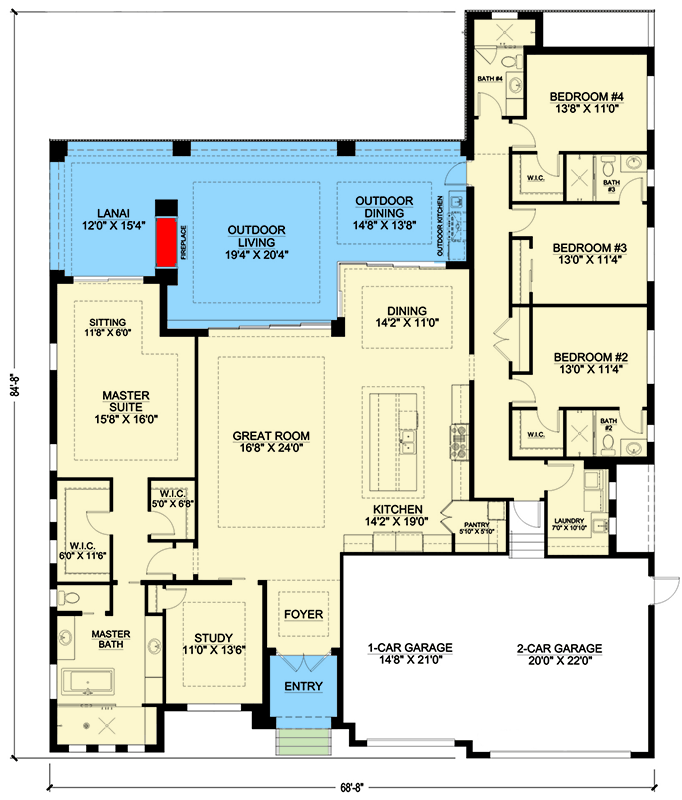

Floor Plan

Main Level

Plan Details

This split bedroom coastal contemporary house plan gives you 4 beds, 4 baths and 3,202 square feet of heated living space and a 822 square foot 3-car garage.
Coffered ceilings in all the public rooms and the master bedroom give the home a dimensionality and a dynamic feel.
A barn door closes off the study which gives you a great work-from-home space.
Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
We can modify any house plan you see on our site. Learn more about modifications.

What's Included

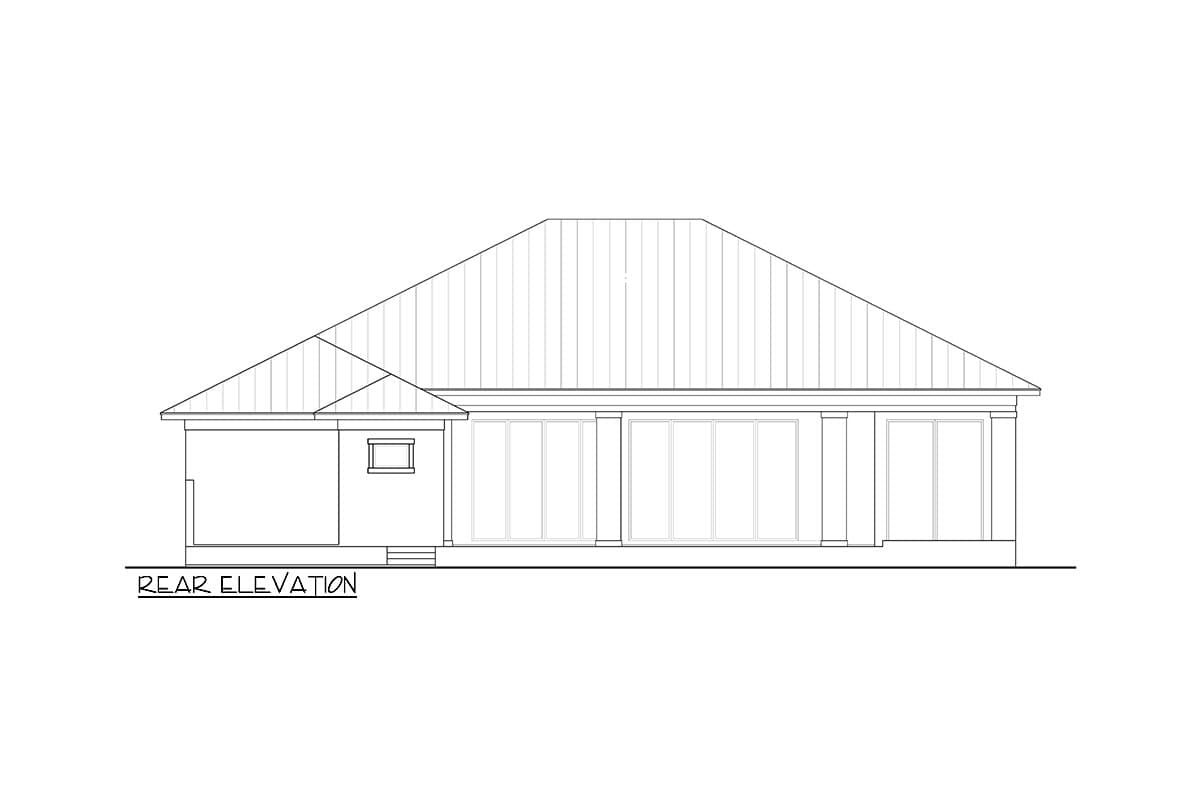

Elevations - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Size

Electrical Layouts

Building Section Markers
Electrical Outlets, Fixtures and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Plan - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

Floor Joist Size and Spacing
Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
