Plan 57143HA
Split Bedroom Country Ranch Home Plan
Heated S.F.
2,322
Beds
4
Baths
3
Stories
1
Cars
3
Floor Plan

Plan 57143HA

Main Level
slide image 0
Basement Option
slide image 1

Plan 57143HA

1-800-854-7852

1-262-521-4596

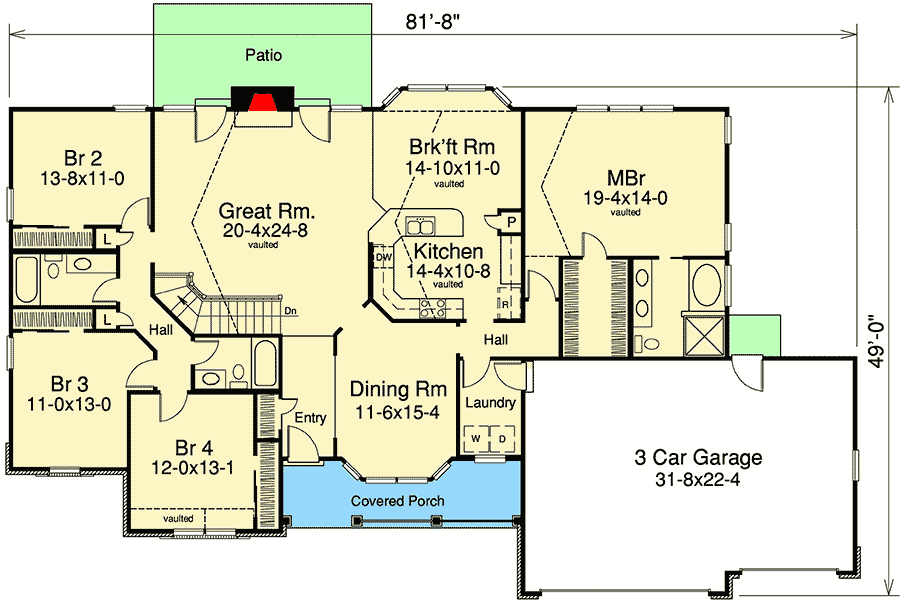

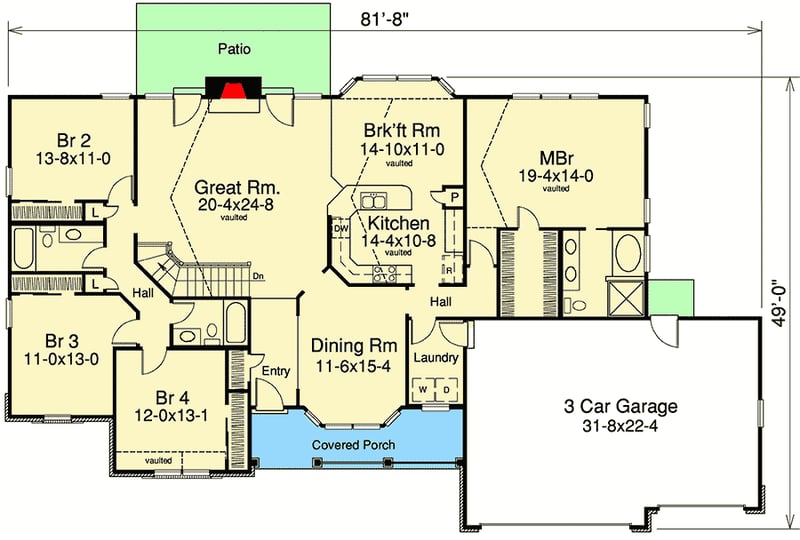

Main Level
floor plan image Main Level

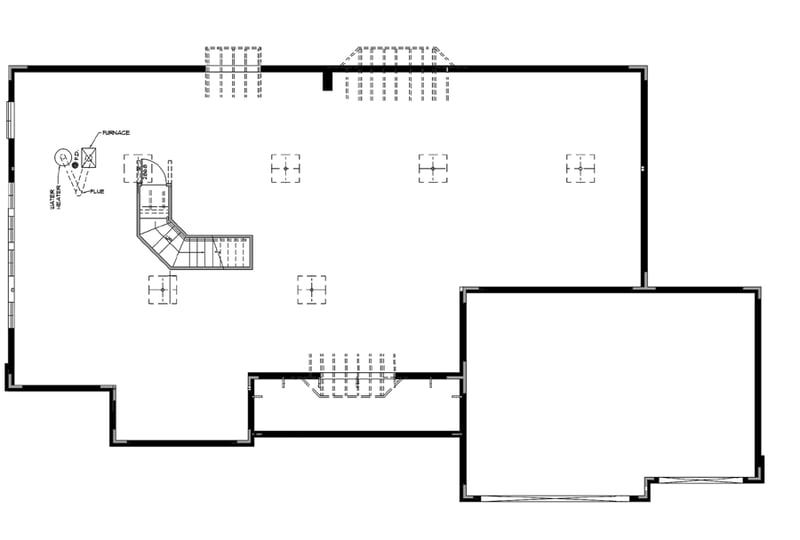

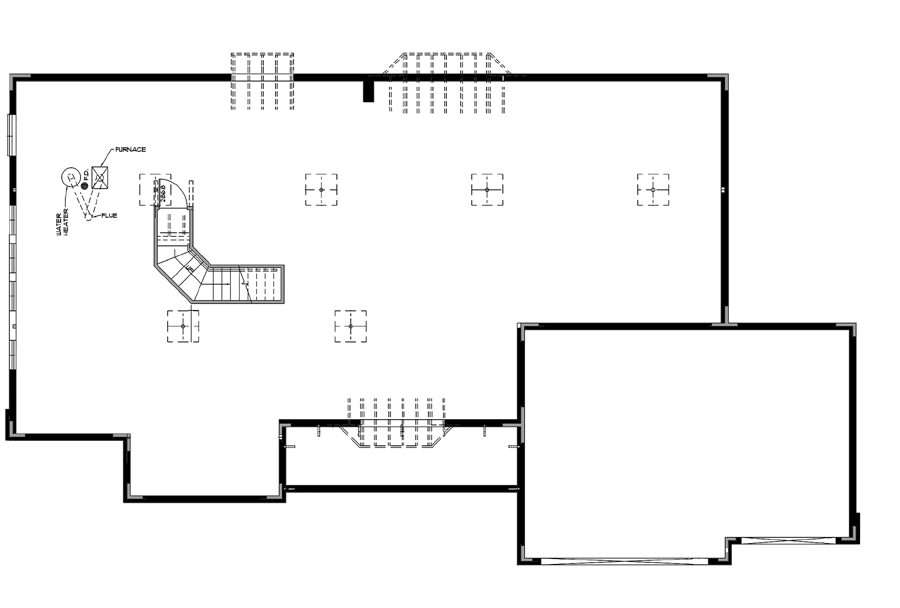

Basement Option
floor plan image Basement Option
Plan Details
  • Cedar shake siding, French style shutters and a multi-gable roof line add warmth and character to the exterior.
  • The enormous great room offers a vaulted ceiling and fireplace flanked by patio doors.
  • A vaulted kitchen and breakfast room enjoy a large bay window and state-of-the-art design.
  • The vaulted master bedroom includes a large walk-in closet, luxury bath and five windows to embrace the sun.
What's Included
  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

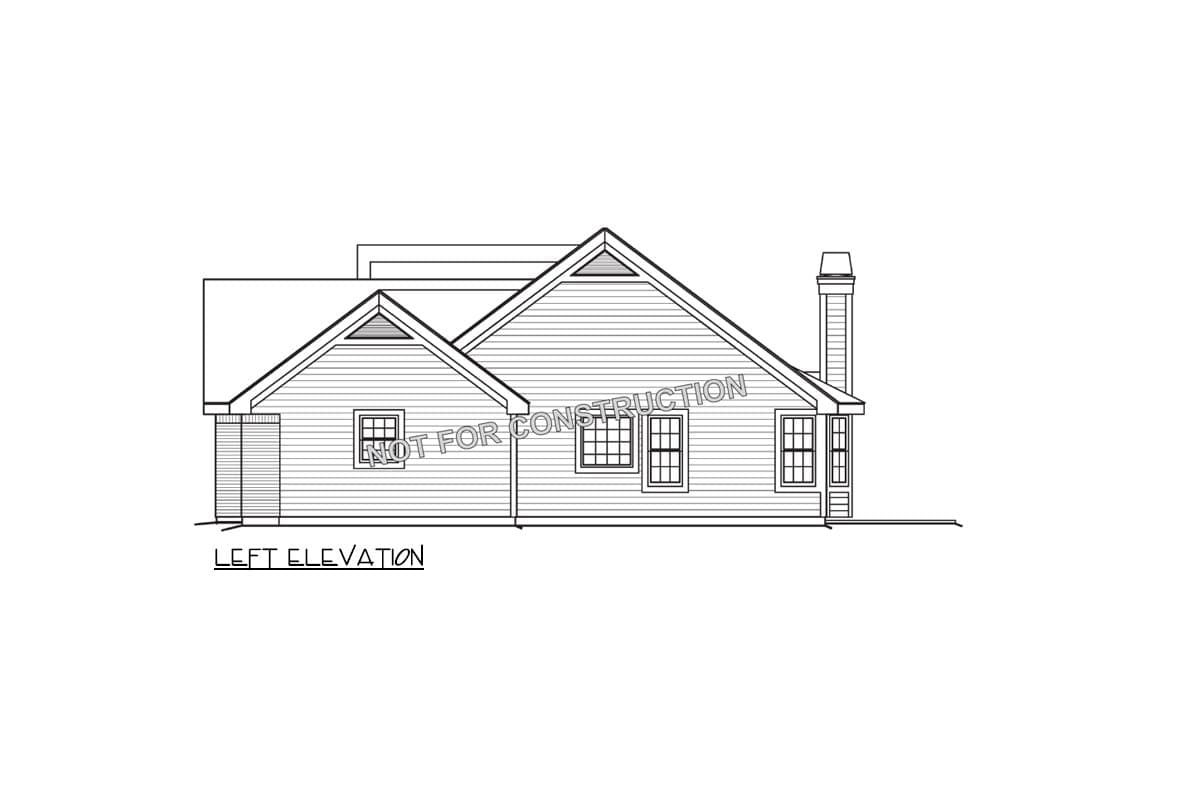

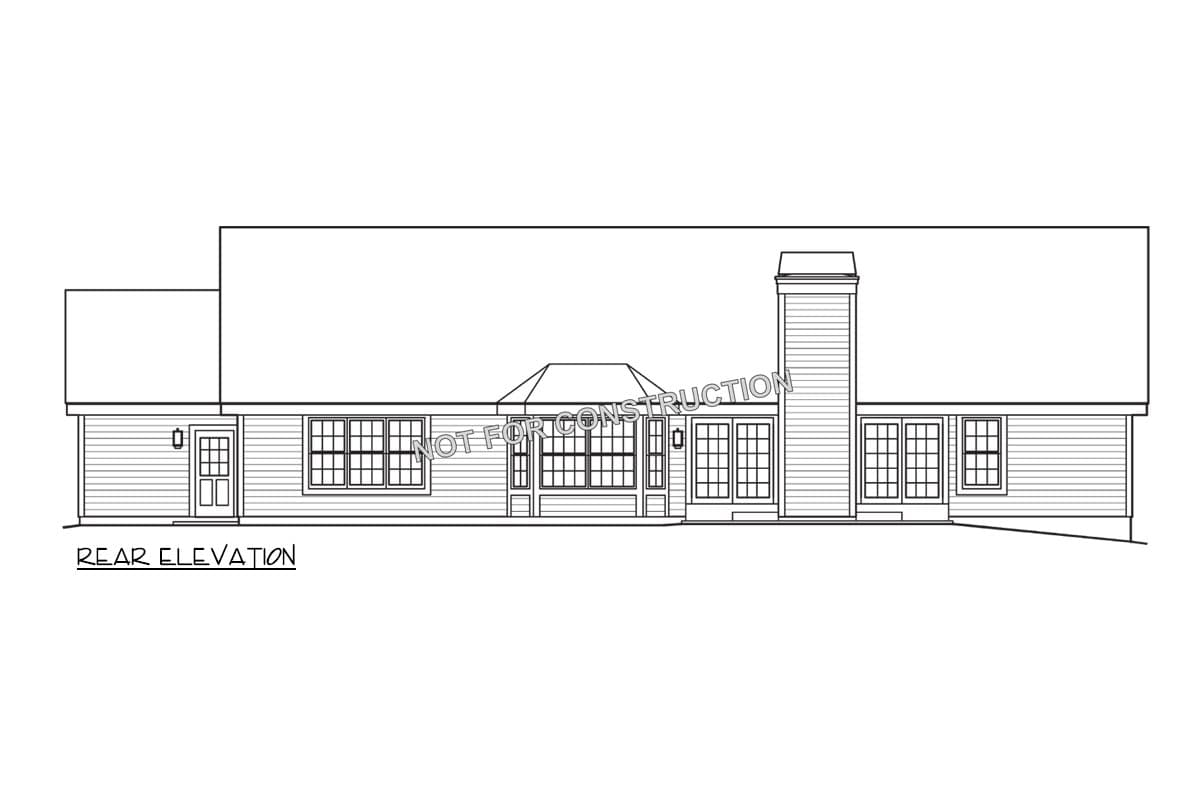

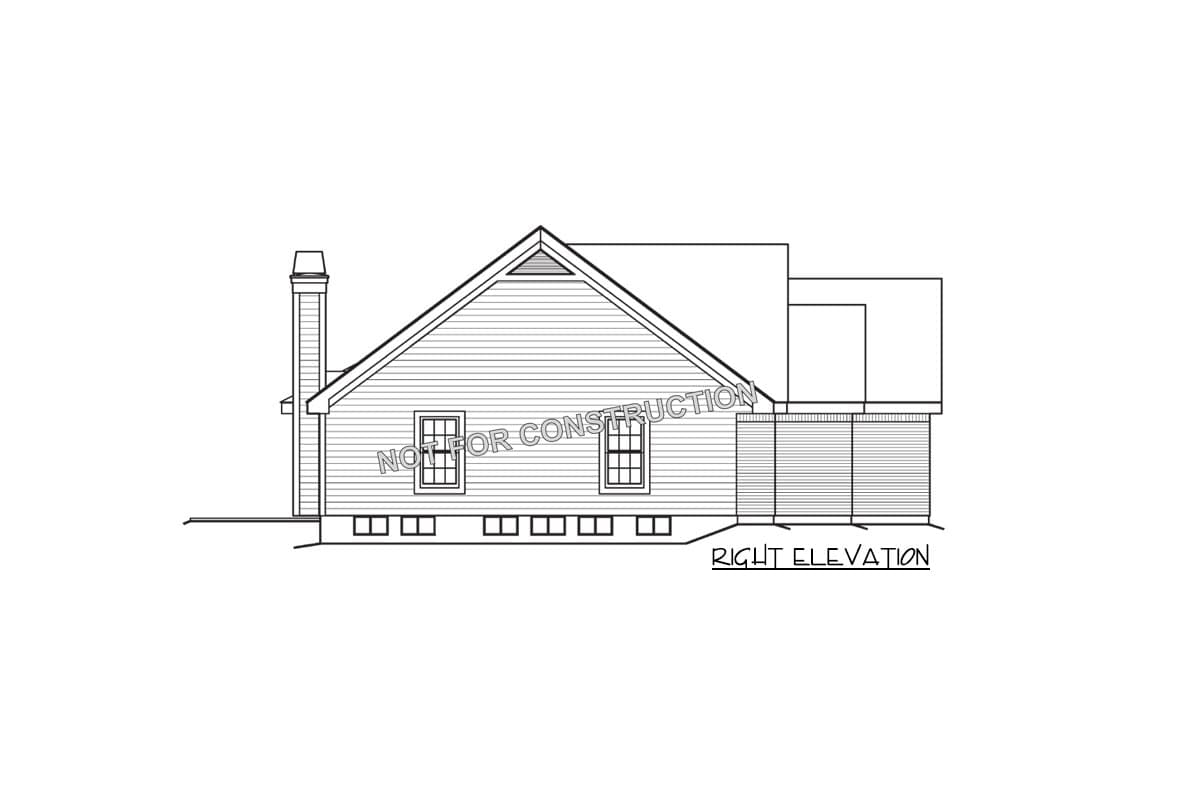

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,322 sq. ft.

1st Floor

2,322 sq. ft.

Basement Unfinished

2,300 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

82' 4"

Depth

49' 4"

Max Ridge Height

22' 6"

Garage

Type

Attached

Area

685 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Country

Traditional

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Square Footage Breakdown

Total Heated Area

2,322 sq. ft.

1st Floor

2,322 sq. ft.

Basement Unfinished

2,300 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

82' 4"

Depth

49' 4"

Max Ridge Height

22' 6"

Garage

Type

Attached

Area

685 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Country

Traditional

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Mudroom

Two Story Great Room
