Plan 69651AM
Split Bedroom Craftsman House Plan
Heated S.F.
1,953
Beds
3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 69651AM

Main Level
slide image 0
Basement Stair Location
slide image 1
Unfinished Basement Level
slide image 2

Plan 69651AM

1-800-854-7852

1-262-521-4596

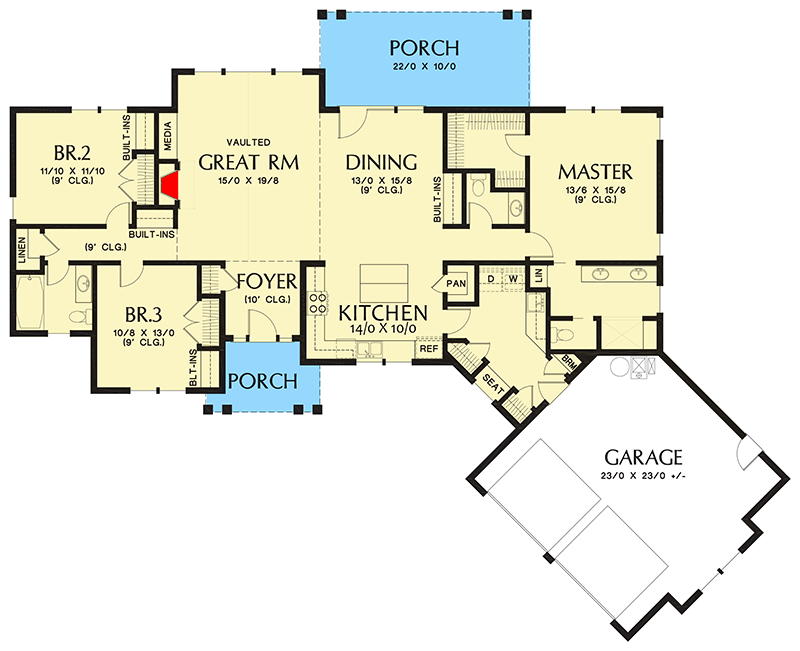

Main Level
floor plan image Main Level

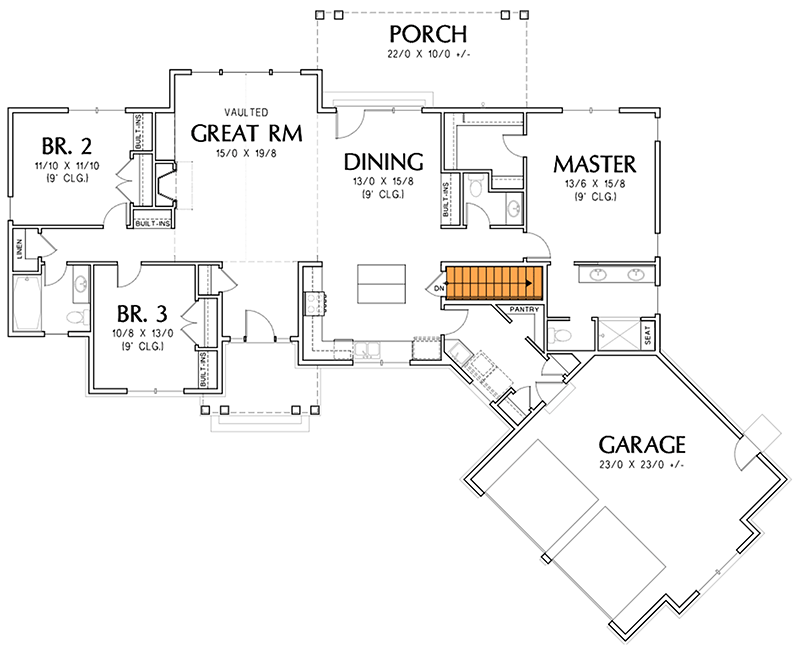

Basement Stair Location
floor plan image Basement Stair Location

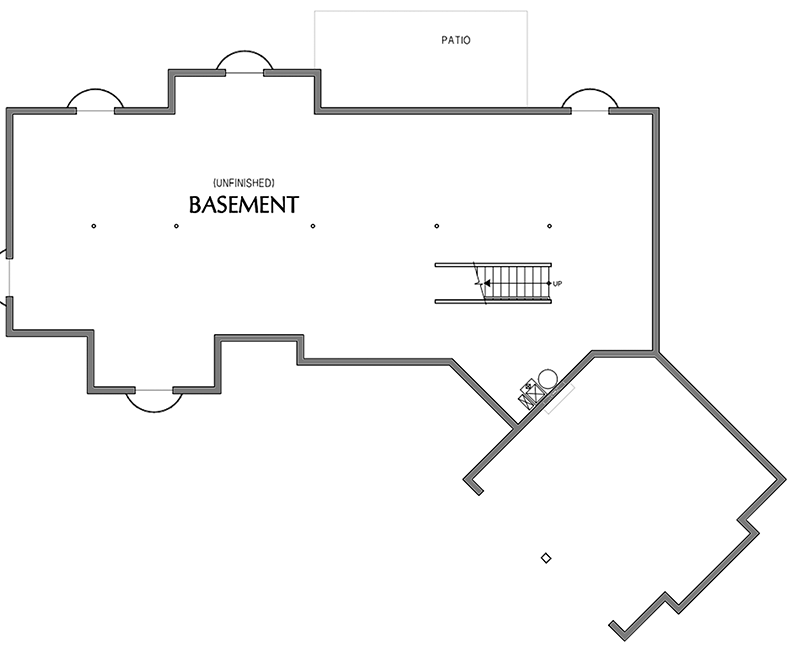

Unfinished Basement Level
floor plan image Unfinished Basement Level
Plan Details
  • Decorative wood trim adorns the entry to this Craftsman house plan, designed for one level living.
  • Built-ins can be found throughout the home adding good looks as well as storage.
  • A French door in the dining room leads out to the large rear covered porch.
  • The vaulted great room makes the home feel even larger.
  • With the master suite on one end of the home and the family bedrooms on the other, privacy can be had for all.
  • Related Plans: Get a 3-car garage with house plan 69749AM (1,953 sq. ft.) and get an alternate version with a finished walkout basement with house plan 69730AM.
What's Included

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,953 sq. ft.

1st Floor

1,953 sq. ft.

Basement Unfinished

1,814 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

81' 11"

Depth

65' 10"

Garage

Type

Attached

Area

579 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Craftsman

Mountain

Northwest

Special Features

Angled Garage

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,953 sq. ft.

1st Floor

1,953 sq. ft.

Basement Unfinished

1,814 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

81' 11"

Depth

65' 10"

Garage

Type

Attached

Area

579 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Craftsman

Mountain

Northwest

Special Features

Angled Garage

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
