Plan 51838HZ
Split Bedroom Hill Country House Plan with Large Walk-in Pantry - 2454 Sq Ft
Heated S.F.
2,454
Beds
3
Baths
2.5
Stories
1
Cars
3
TourPhotos
Floor Plan

Plan 51838HZ

Main Level
slide image 0
Basement Stairs Location
slide image 1

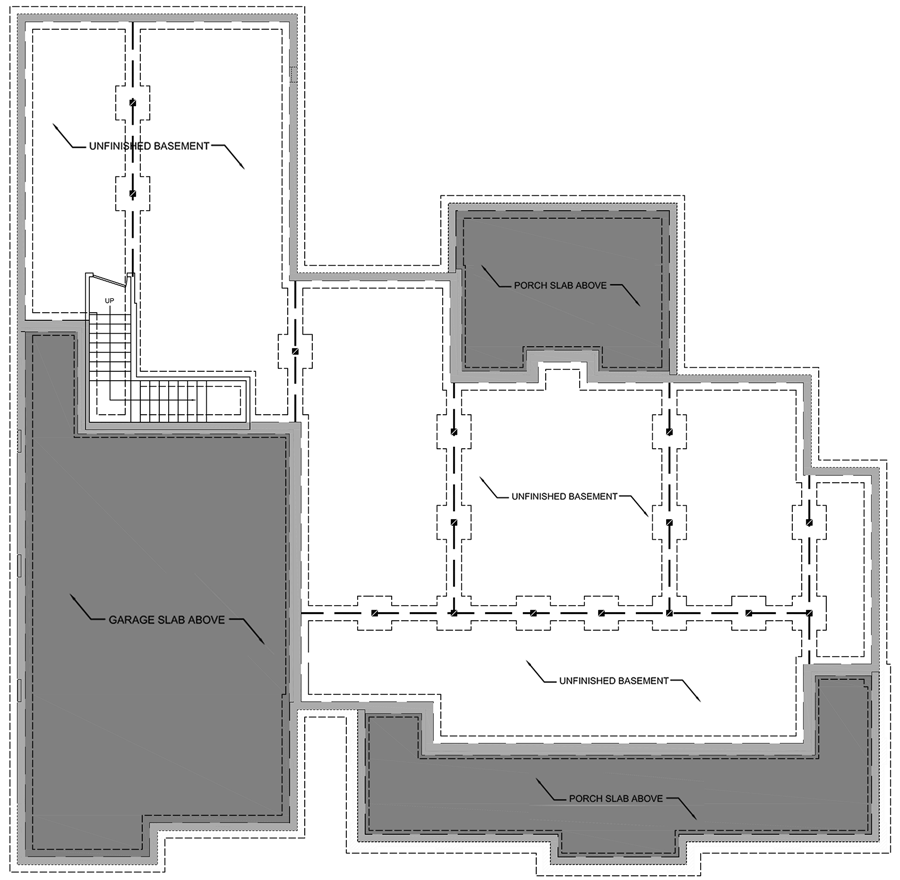

Unfinished Basement
slide image 2

Plan 51838HZ

1-800-854-7852

1-262-521-4596

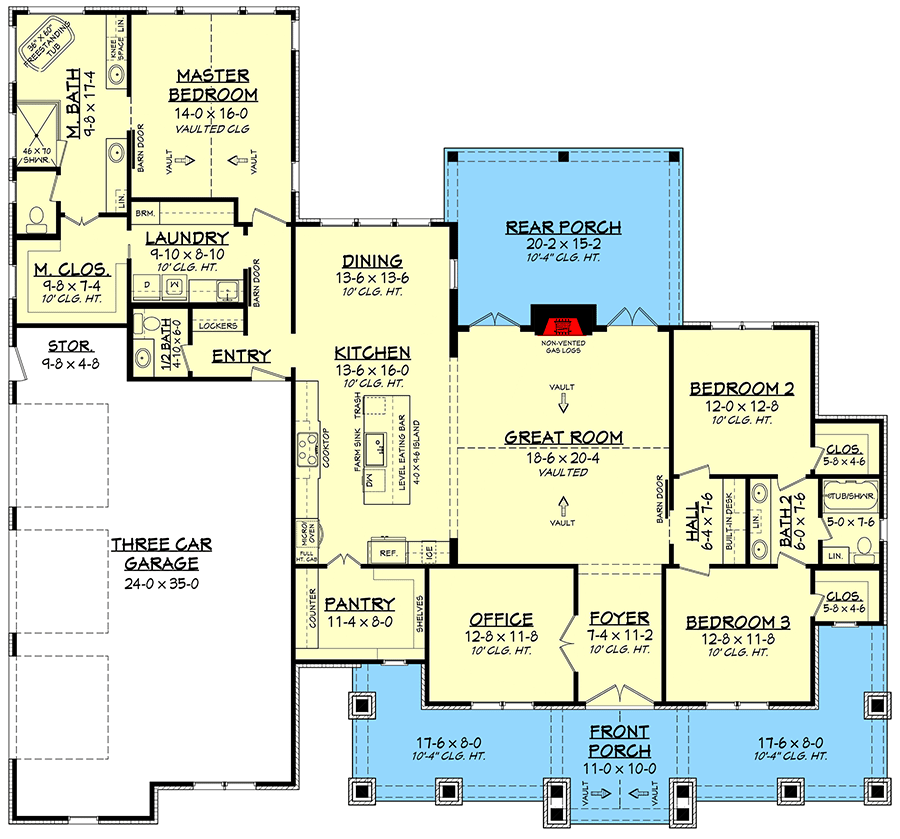

Main Level
floor plan image Main Level

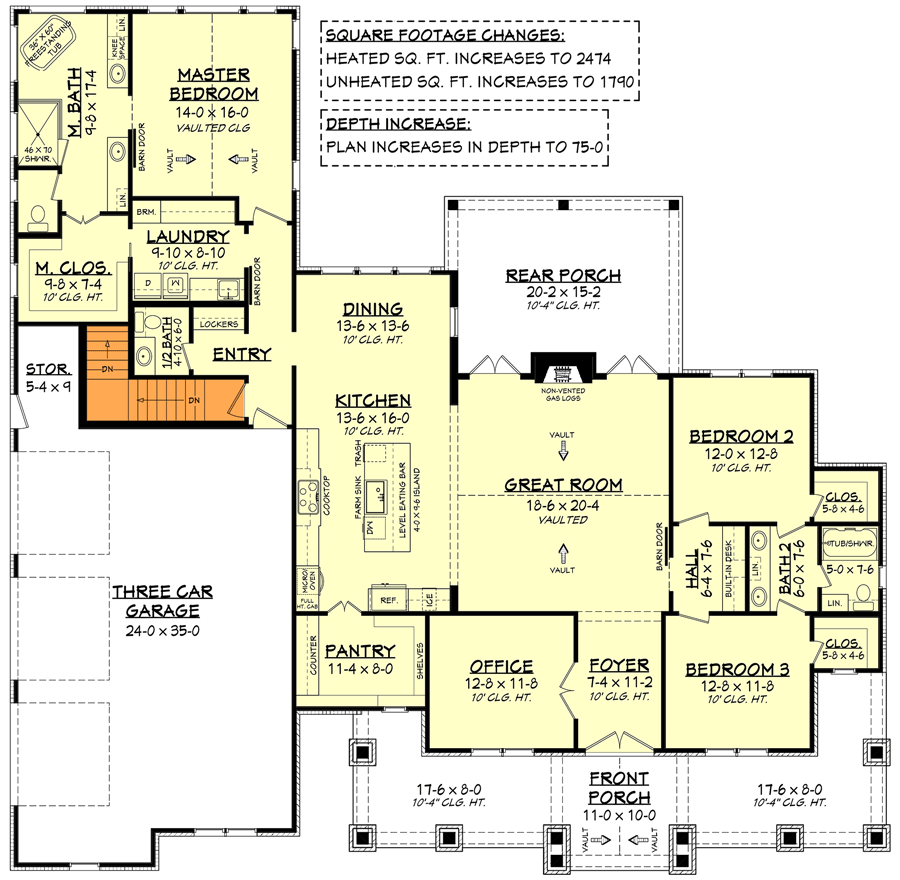

Basement Stairs Location
floor plan image Basement Stairs Location
Unfinished Basement
floor plan image Unfinished Basement
Plan Details
  • The wrap-around porch of this hill-country house plan adds to the immense curb appeal, while the well-appointed interior checks off all of your must-haves.
  • Step inside, and discover French doors that reveal a home office to the left. Straight ahead, a vaulted ceiling rises 16' above the great room, where a fireplace is flanked by French doors that lead to a rear porch.
  • The open kitchen allows you to interact easily with friends and family, and the massive walk-in pantry provides plenty of storage space.
  • Tucked behind the 3-car garage, you will find the master suite, complete with a 16' vaulted ceiling, freestanding tub in the 5-fixture bath, and a closet that leads to the laundry room.
  • Bedrooms 2 and 3 are located on the opposite side of the home, and share a Jack-and-Jill bathroom.
  • Related Plan: Get an alternate version in reverse orientation with house plan 51935HZ (2,195 sq. ft)
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 51838HZ Comes to Life in Texas

House Plan 51838HZ Comes to Life in Texas

53

Photos

build gallery item - House Plan 51838HZ Comes to Life in Georgia

House Plan 51838HZ Comes to Life in Georgia

26

Photos

What's Included
This house plan has 14 pages as follows:

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed first floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

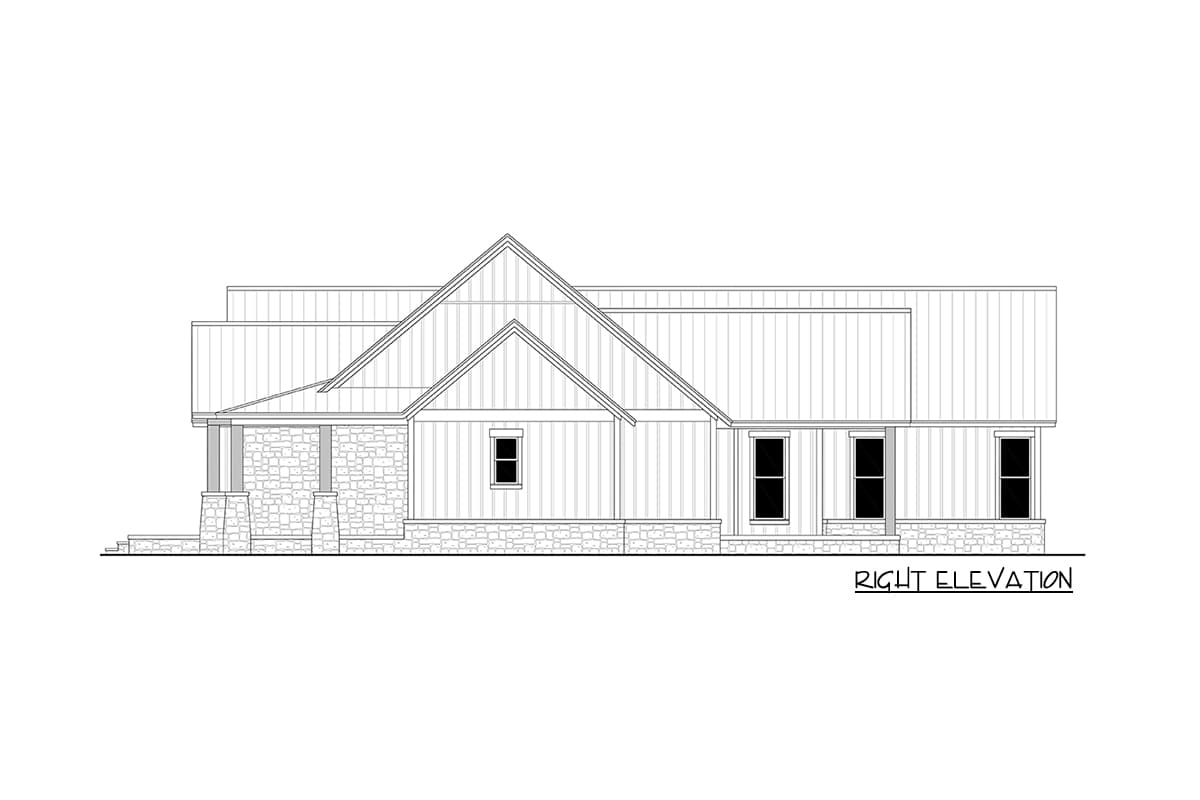

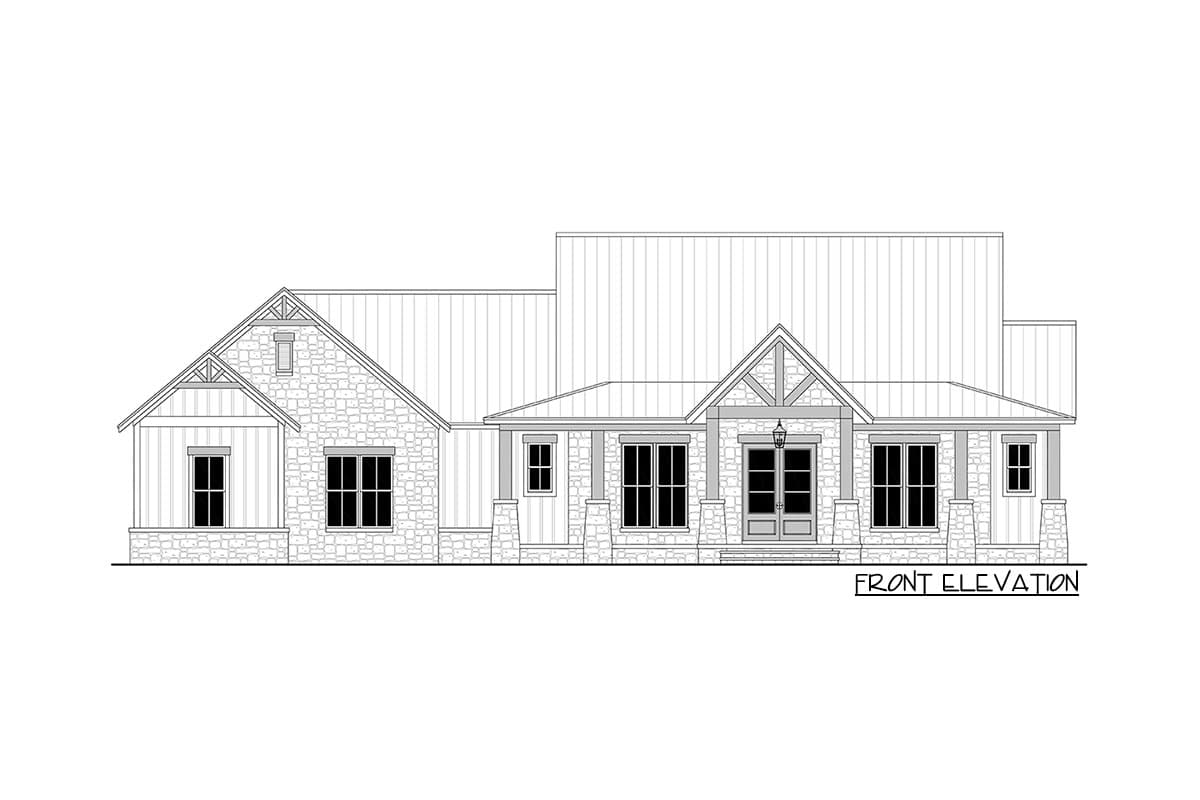

Page 4  Front and rear exterior views with additional details
Page 5  Right and left exterior views with additional details
Page 6  Cross Section & kitchen cabinet views
Page 7  Roof plan and span charts with additional details
Page 8  Ceiling Framing plan
Page 9 Roof framing plan
Page 10 Electrical plans & notes/ legend
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,454 sq. ft.

1st Floor

2,454 sq. ft.

Porch, Front

456 sq. ft.

Porch, Rear

300 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

76' 0"

Depth

70' 0"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

948 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Hill Country

New American

Ranch

Rustic

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Home Office

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Wrap Around Porch

Plan Collections

Home Office

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,454 sq. ft.

1st Floor

2,454 sq. ft.

Porch, Front

456 sq. ft.

Porch, Rear

300 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

76' 0"

Depth

70' 0"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

948 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Hill Country

New American

Ranch

Rustic

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Home Office

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Wrap Around Porch

Plan Collections

Home Office

Photo Gallery
