Plan 5969ND

Split-Bedroom Home Plan - 3108 Sq Ft

Heated S.F.

3,108

Beds

3

Baths

2.5

Stories

2

Cars

3

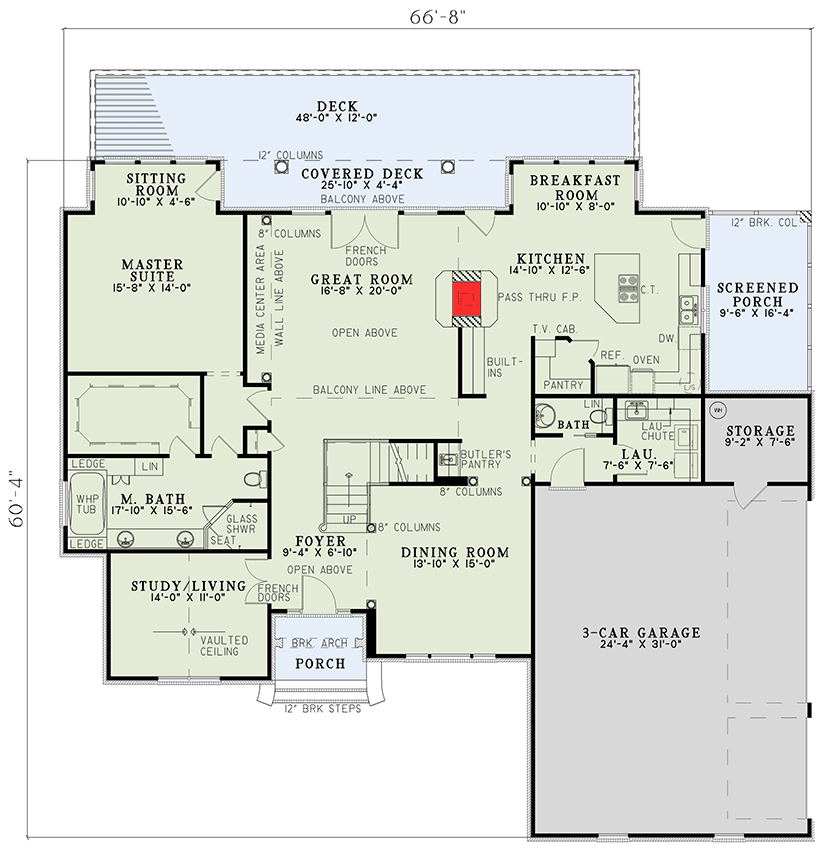

Floor Plan

Main Level

floor plan image Main Level

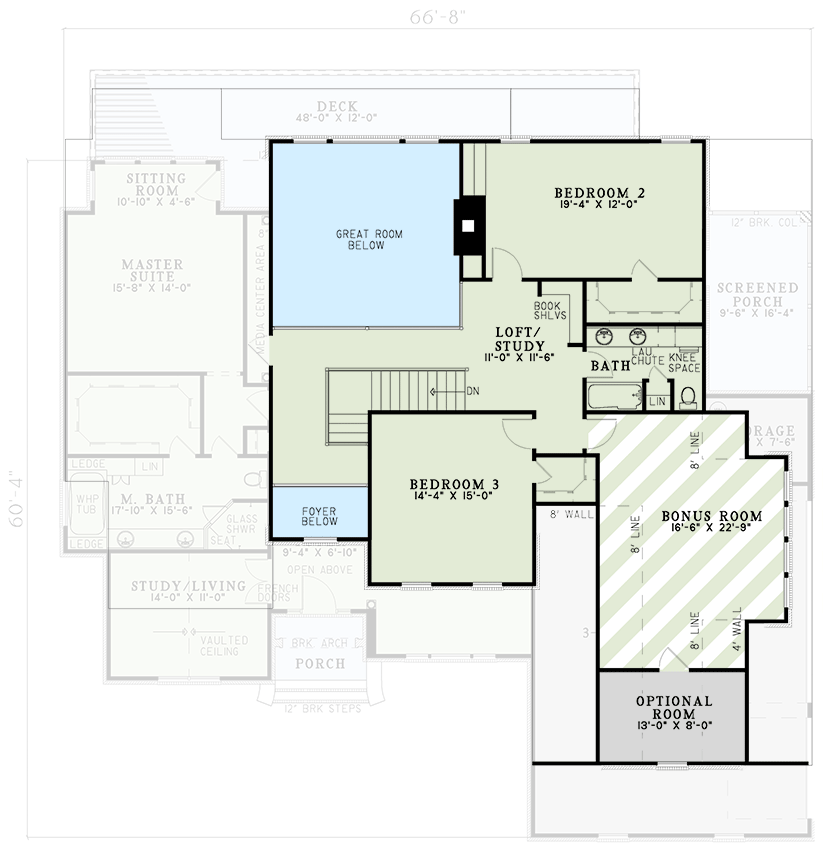

2nd Floor

floor plan image 2nd Floor

Plan Details

Invite the family to your house for the holidays in this impressive split bedroom home plan.
A comfortable great room displays a distinctive fireplace that is shared with the kitchen.
You can utilize the side screened porch as a convenient grilling porch.
Slip off for the evening to your master suite with a sitting room that opens to the rear covered deck.
Enticing French doors open to your private study.
On the upper floor, the rooms have spacious closets, and you have the opportunity for a home office and game room with the ample bonus and optional rooms available.
Related Plan: For an alternate layout, see house plan 59433ND.

What's Included

Foundation Plan (1/4″ or 1/2″ = 1′)
Floor Plans (1/4″= 1′)

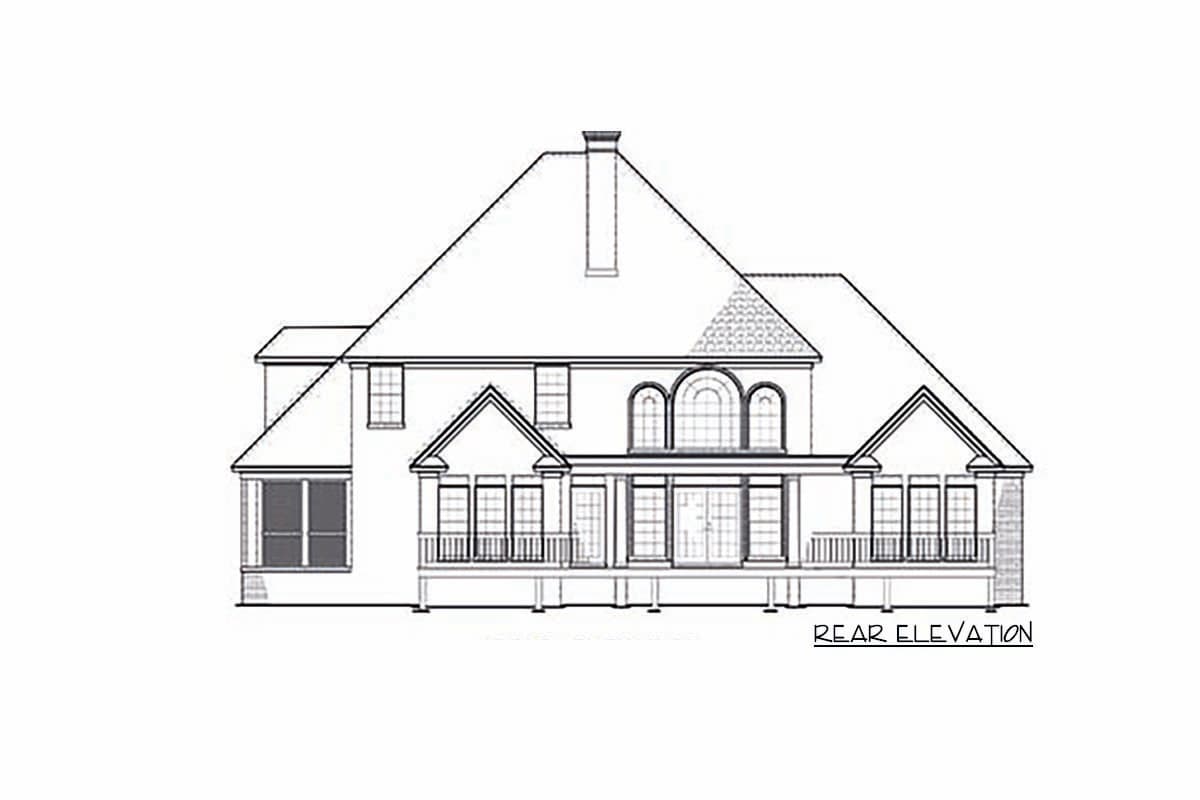

Set of Elevations (1/4″= 1′)
Miscellaneous Details (3/4″ = 1′)
An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,108 sq. ft.

1st Floor

2,107 sq. ft.

2nd Floor

1,001 sq. ft.

Bonus

485 sq. ft.

Porch, Front

129 sq. ft.

Porch, Rear

112 sq. ft.

Screened Porch

155 sq. ft.

Deck

576 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

66' 8"

Depth

60' 4"

Max Ridge Height

35' 2"

Garage

Type

Attached

Area

754 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Two Story Great Room

Plan Collections

Square Footage Breakdown

Total Heated Area

3,108 sq. ft.

1st Floor

2,107 sq. ft.

2nd Floor

1,001 sq. ft.

Bonus

485 sq. ft.

Porch, Front

129 sq. ft.

Porch, Rear

112 sq. ft.

Screened Porch

155 sq. ft.

Deck

576 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

66' 8"

Depth

60' 4"

Max Ridge Height

35' 2"

Garage

Type

Attached

Area

754 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Two Story Great Room

Plan Collections
