Plan 5909ND
Split Bedroom House Plan with Two Porches And Grilling Patio - 1525 Sq Ft
Heated S.F.
1,525
Beds
2 - 3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 5909ND

Main Level
slide image 0

Plan 5909ND

1-800-854-7852

1-262-521-4596

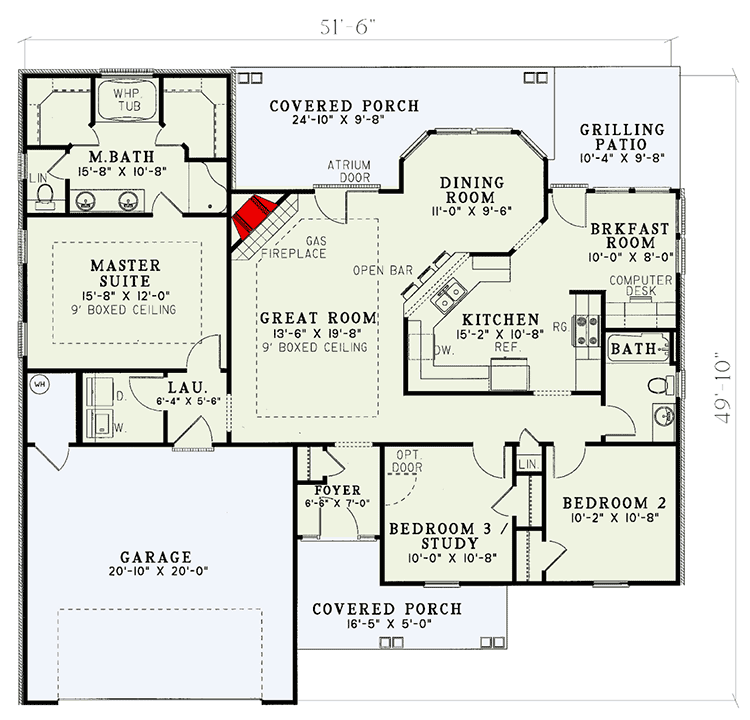

Main Level
floor plan image Main Level
Plan Details
  • Double columns dress up both the entry porch and the rear porch of this split-bedroom house plan. A separate patio is perfect for barbeques.
  • The great room features a nine-foot boxed ceiling and a gas fireplace. The angled eating bar separates the kitchen, the great room and the dining room.
  • A second nine-foot boxed ceiling is found in the master bedroom, which opens to an amenity-filled bath that includes a whirlpool tub between two walk-in closets.
  • On the other side of the house, two bedrooms share a hall bath. Bedroom three can become a wonderful study.
  • For the basement foundation option, the staircase is located between the laundry room and the garage.
  • This house plan is available in an alternate brick exterior. Request when ordering.
  • The basement staircase is located by the laundry room on the wall between it and the garage.
  • Related Plans: Get an all-brick exterior with house plan 60580ND and a wood exterior with house plan 60579ND. Get a version in reverse layout with house plan 5908ND.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,525 sq. ft.

1st Floor

1,525 sq. ft.

Porch, Combined

283 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

51' 6"

Depth

49' 10"

Max Ridge Height

21' 0"

Garage

Type

Attached

Area

459 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom
