Plan 420174WNT

Exclusive

Split Bedroom Modern Ranch House Plan with Vaulted Interior and a Flex Room - 3140 Sq Ft
Heated S.F.
3,140
Beds
4
Baths
3.5
Stories
1
Cars
2
Floor Plan

Plan 420174WNT

Main Level
slide image 0

Plan 420174WNT

1-800-854-7852

1-262-521-4596

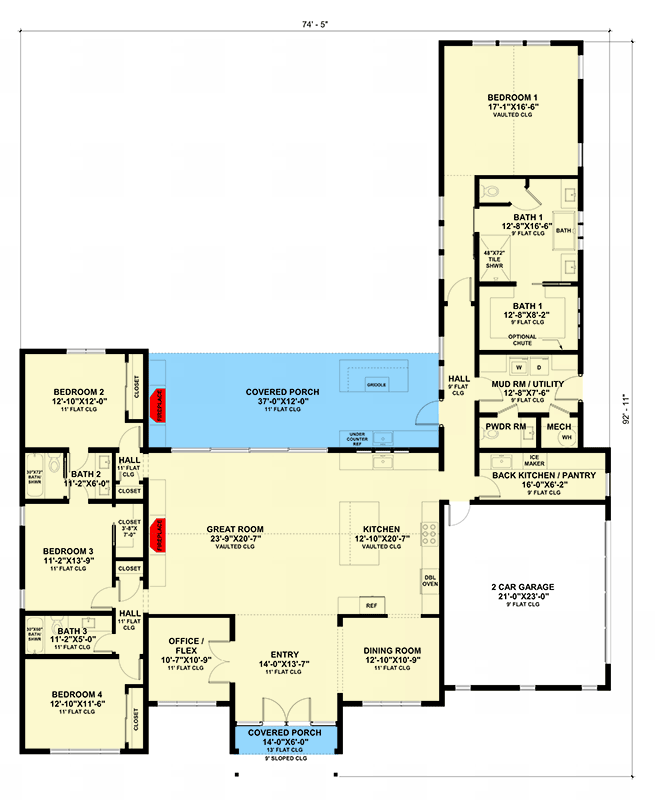

Main Level
floor plan image Main Level
Plan Details
  • This split bedroom modern ranch house plan gives you 4 beds, 3.5 baths and 3,140 square feet of heated living.
  • The center portion of the home is vaulted from the great room to the kitchen, giving you a great space to entertain in.
  • A flex room off the entry can be used as a home office or whatever use suits your needs.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • NOTE: Please allow 3 to 5 business days for delivery.
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

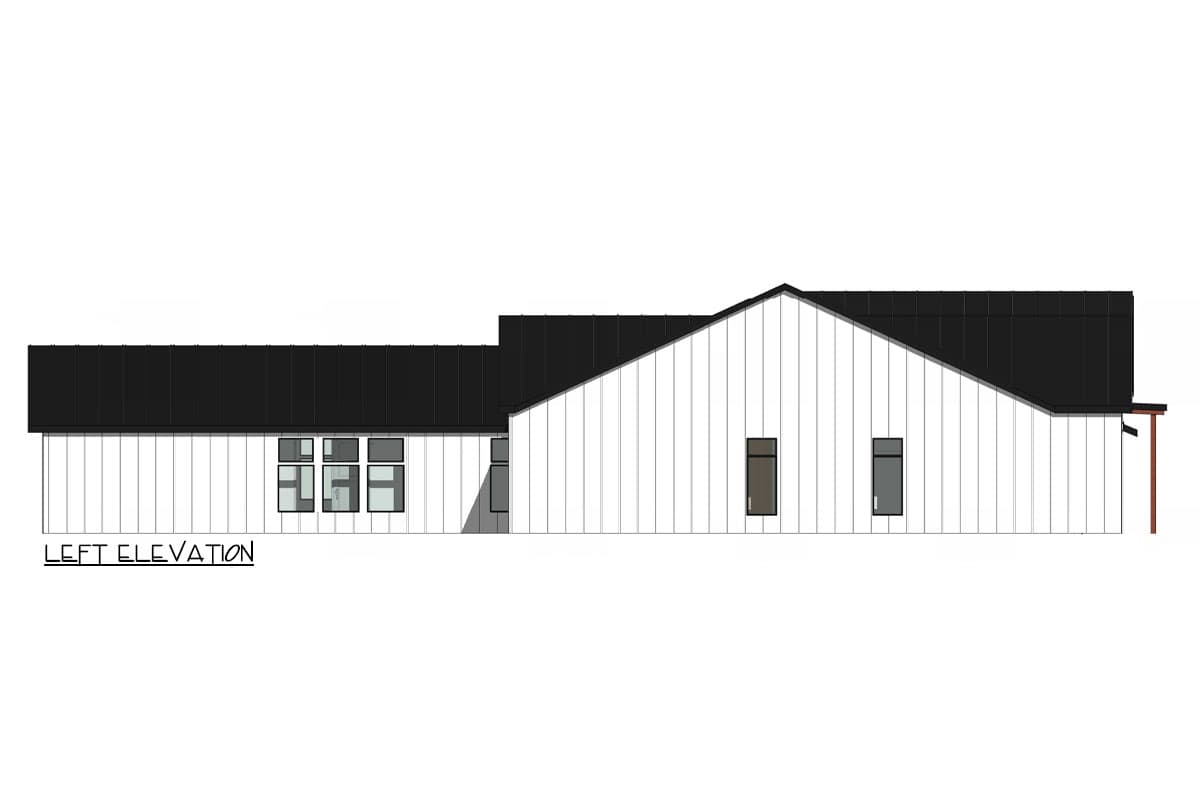

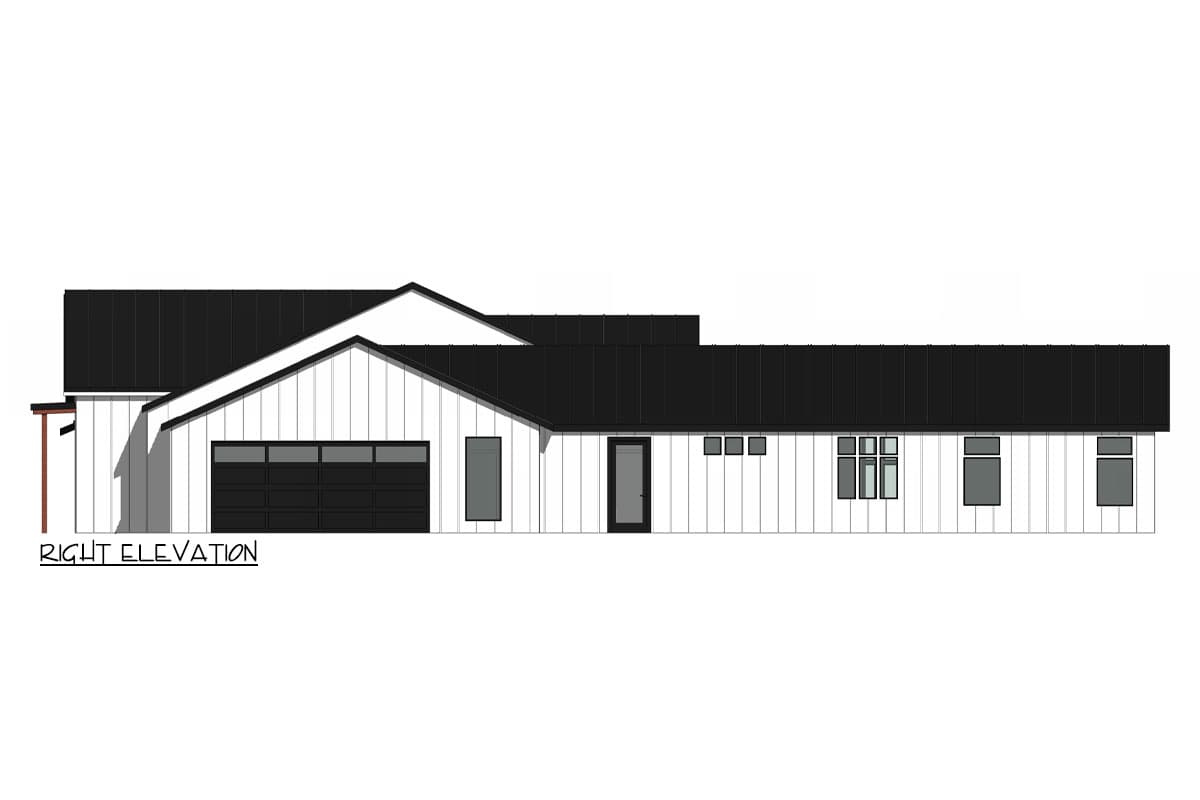

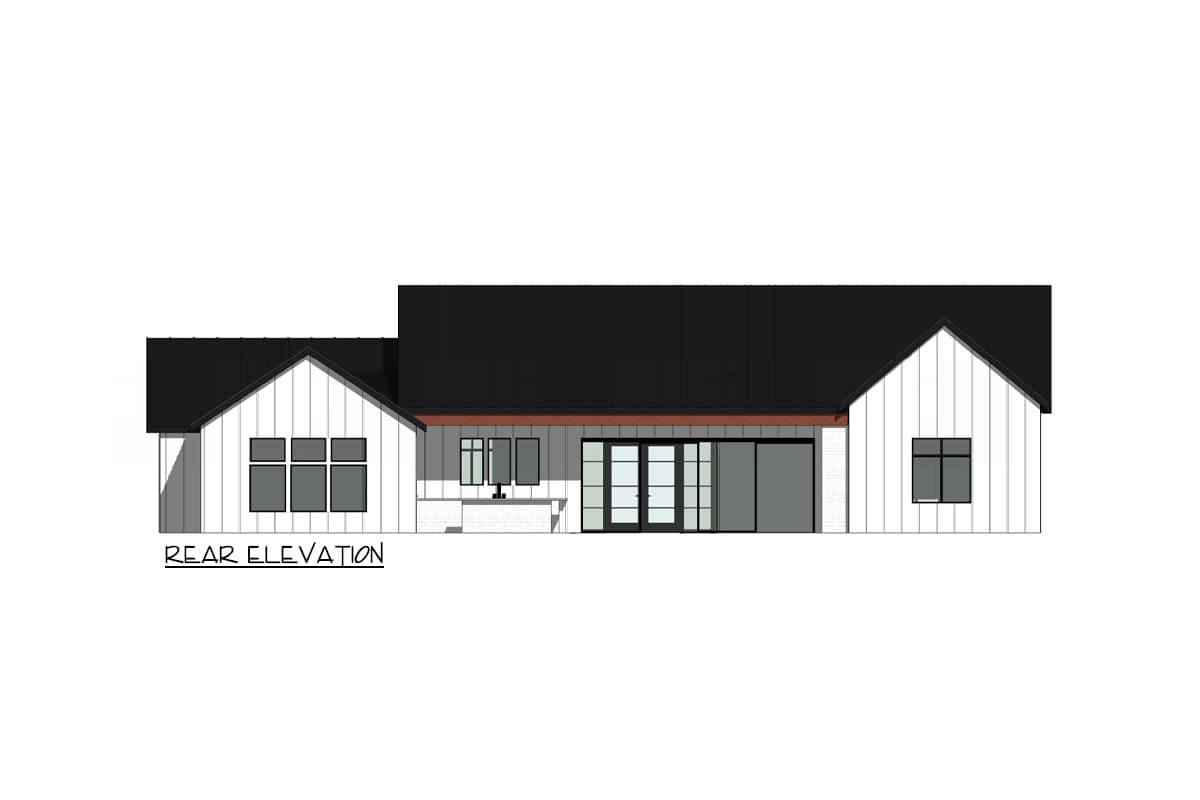

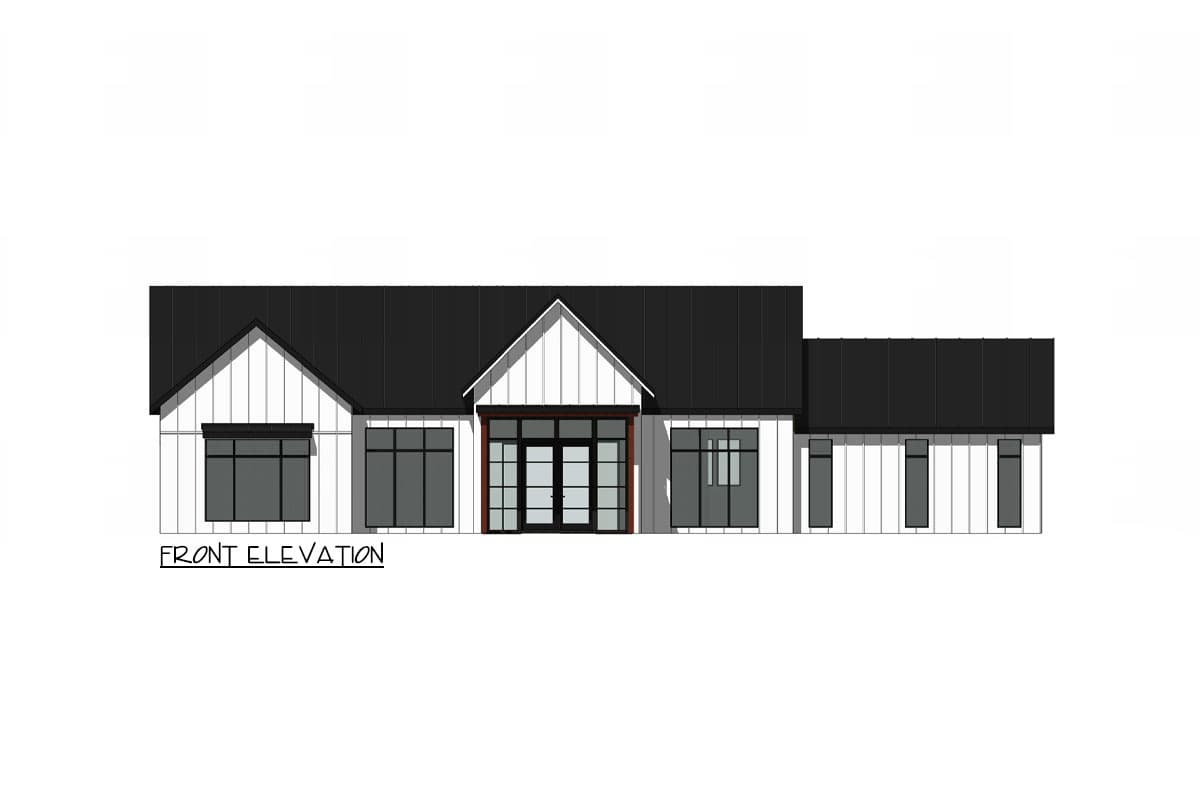

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Cross Section - View that depicts a vertical slice through the building.
  • Details and notes - Dissected drawings of foundation/footings, typical wall section, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,140 sq. ft.

1st Floor

3,140 sq. ft.

Porch, Front

84 sq. ft.

Porch, Rear

444 sq. ft.

Porch, Combined

528 sq. ft.

Entry

190 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

74' 5"

Depth

92' 11"

Max Ridge Height

20' 6"

Garage

Type

Attached

Area

483 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

11'

Room

Ceiling Type

Height

Great Room

Vaulted

15' 4''

Kitchen

Vaulted

15' 4''

Bedroom 1

Vaulted

12' 0''

Roof Details

Primary Pitch

5.5 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Contemporary

New American

Ranch

Transitional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Flex Room

Formal Dining

Home Office

In-Law Suite

Jack & Jill Bath

Laundry Chute

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Outdoor Kitchen

Two Master Suites

Two Story Great Room

Plan Collections
