Plan 89872AH
Split Bedroom Ranch Home Plan
Heated S.F.
2,584
Beds
3
Baths
2.5
Stories
1
Cars
3
Floor Plan

Plan 89872AH

Main Level
slide image 0

Plan 89872AH

1-800-854-7852

1-262-521-4596

Main Level

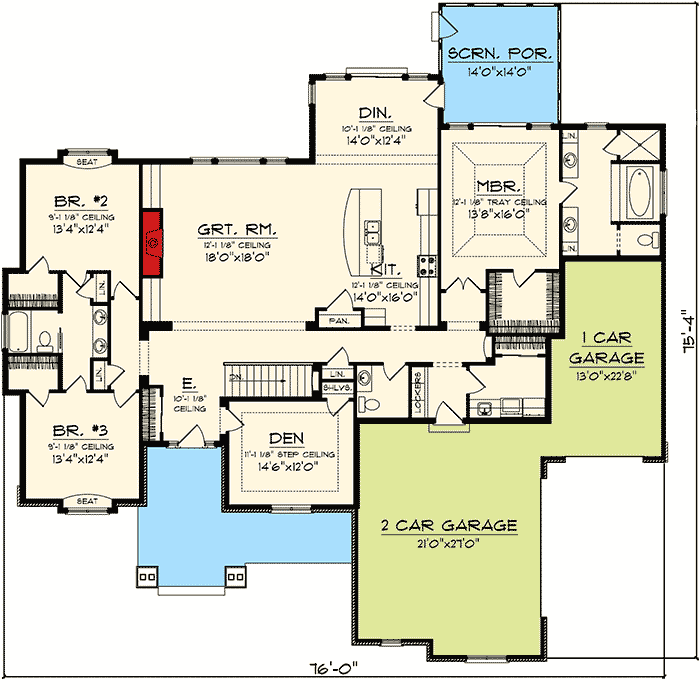

floor plan image Main Level
Plan Details
  • This traditional ranch features a hipped roof that adds a formal impression to the home design.
  • As you enter the home, a den with French door can be found to your right while the two smaller bedrooms are on the left with a Jack and Jill bathroom between them.
  • Directly ahead, a wall of windows draws you into the main living area where you'll love the great room's fireplace and the home's open plan.
  • The kitchen features a rounded island that overlooks the great room and dining space to create sight lines in all directions.
  • The master suite is tucked behind the garage and includes a tray ceiling, dual sinks and Jacuzzi tub.
  • A three-stall split-load garage provides extra space for all of dads tools.
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,584 sq. ft.

1st Floor

2,584 sq. ft.

Screened Porch

196 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

76' 0"

Depth

75' 4"

Max Ridge Height

28' 3"

Garage

Type

Attached

Area

875 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Den

Master Suite - 1st Floor
