Plan 849020PGE
Split Bedroom Ranch Home Plan with Flex Room - 1645 Sq Ft
Heated S.F.
1,645
Beds
4
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 849020PGE

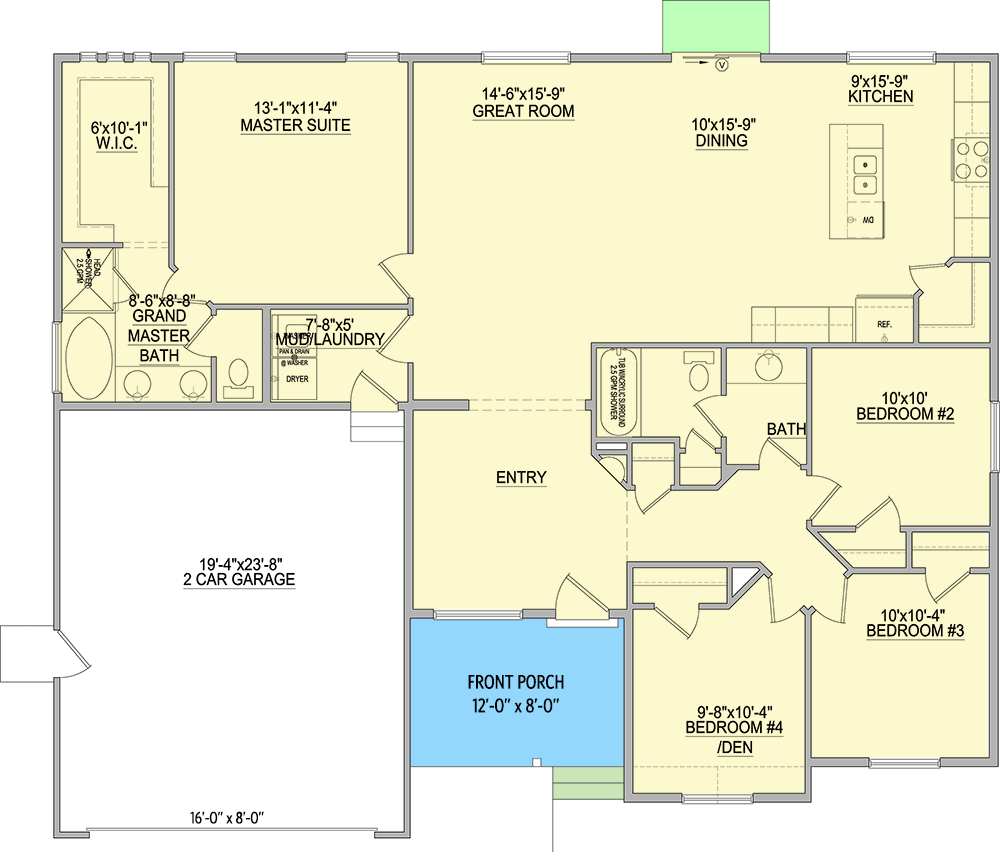

Main Level
slide image 0

Plan 849020PGE

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This split bedroom ranch home plan gives you 3 bedrooms (plus a flex room), 2 baths and 1645 square feet of heated living space.
  • A 2-car front-facing garage gives you 458 square feet of parking space and accesses the home through a mud room.
  • The master suite occupies the left side of the home and has a large walk-in closet and a five-fixture bath. Across the home, Bed 4 can be put to alternate uses including as a den or home office.
What's Included
  • Cover Sheet
  • Elevations
  • Foundation Plan
  • Floor Plan
  • Details and Schedules
  • Upper Floor Framing Plan
  • Roof Flaming Plan
  • Details
  • Sections and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,645 sq. ft.

1st Floor

1,645 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

53' 0"

Depth

44' 0"

Max Ridge Height

19' 6"

Garage

Type

Attached

Area

458 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Room

Ceiling Type

Height

Owner's Bedroom

Flat

8' 0''

Master Bath

Flat

8' 0''

Master WIC

Flat

8' 0''

Kitchen

Flat

8' 0''

Dining Room

Flat

8' 0''

Great Room

Flat

8' 0''

Bedroom 2

Flat

8' 0''

Bedroom 3

Flat

8' 0''

Bedroom 4

Flat

8' 0''

Laundry Room

Flat

8' 0''

Garage

Flat

8' 0''

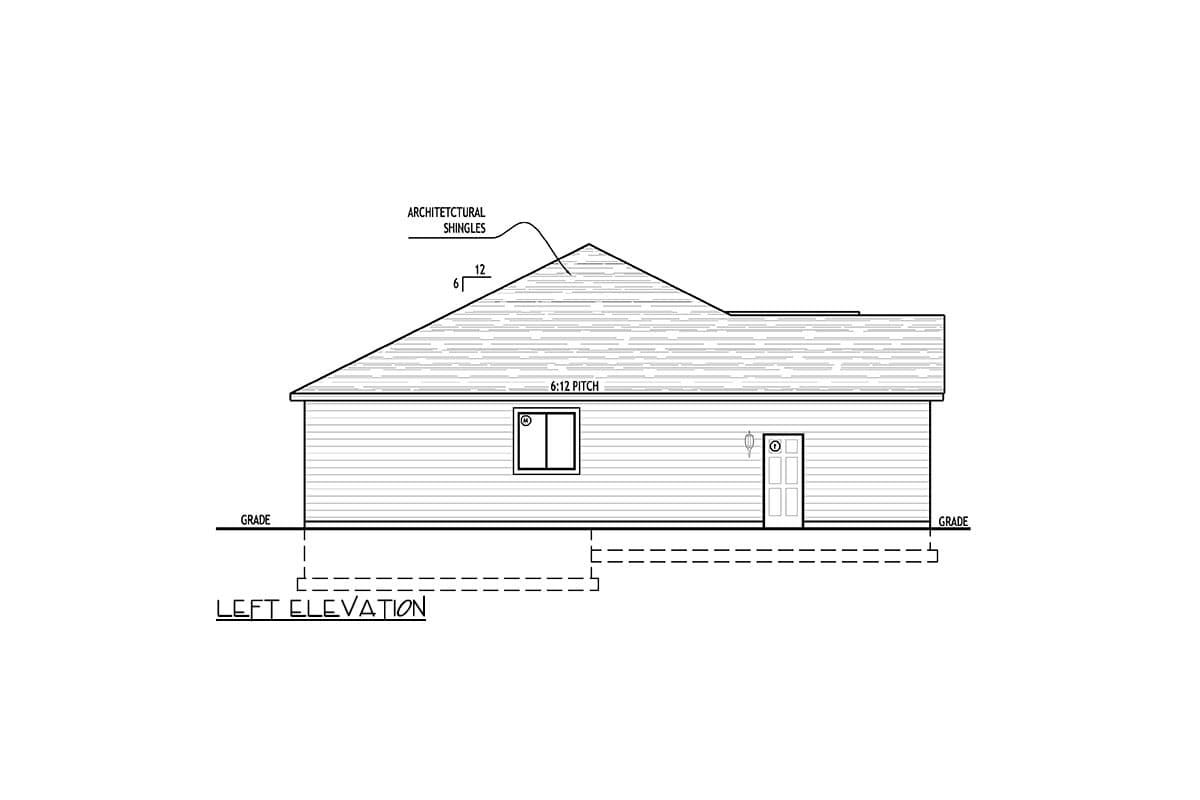

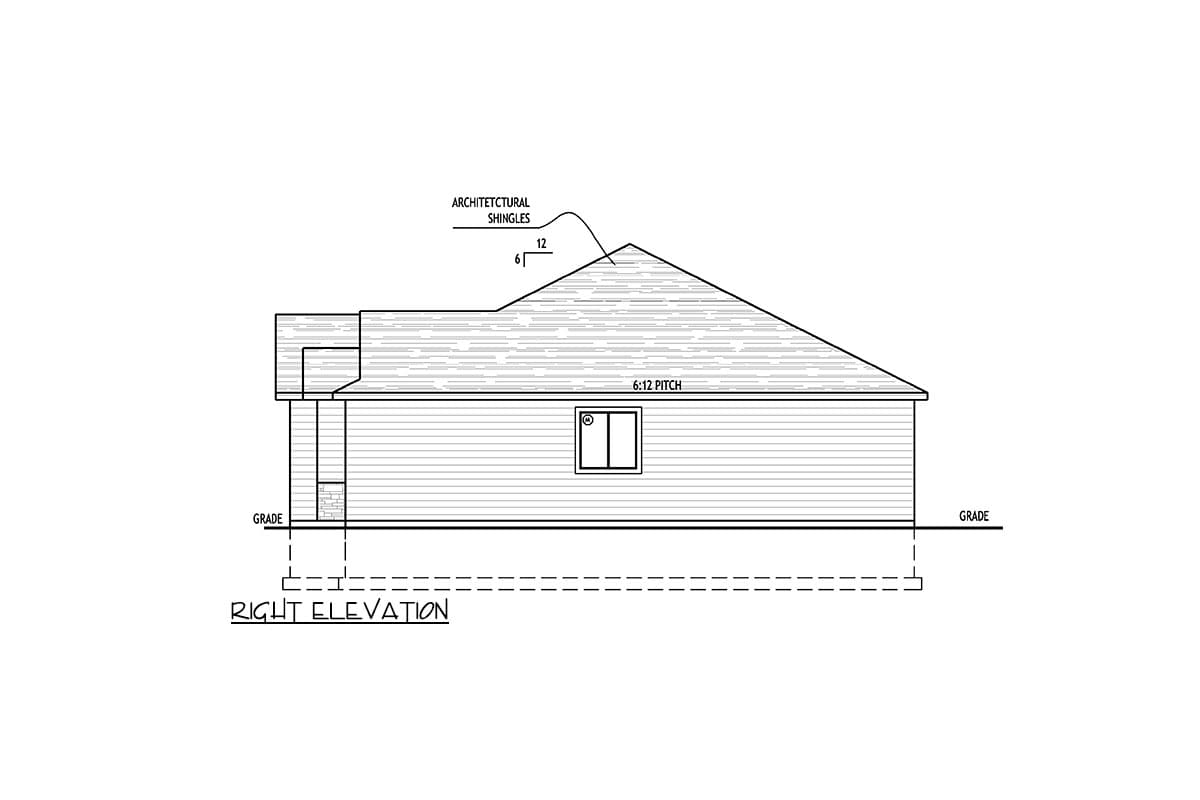

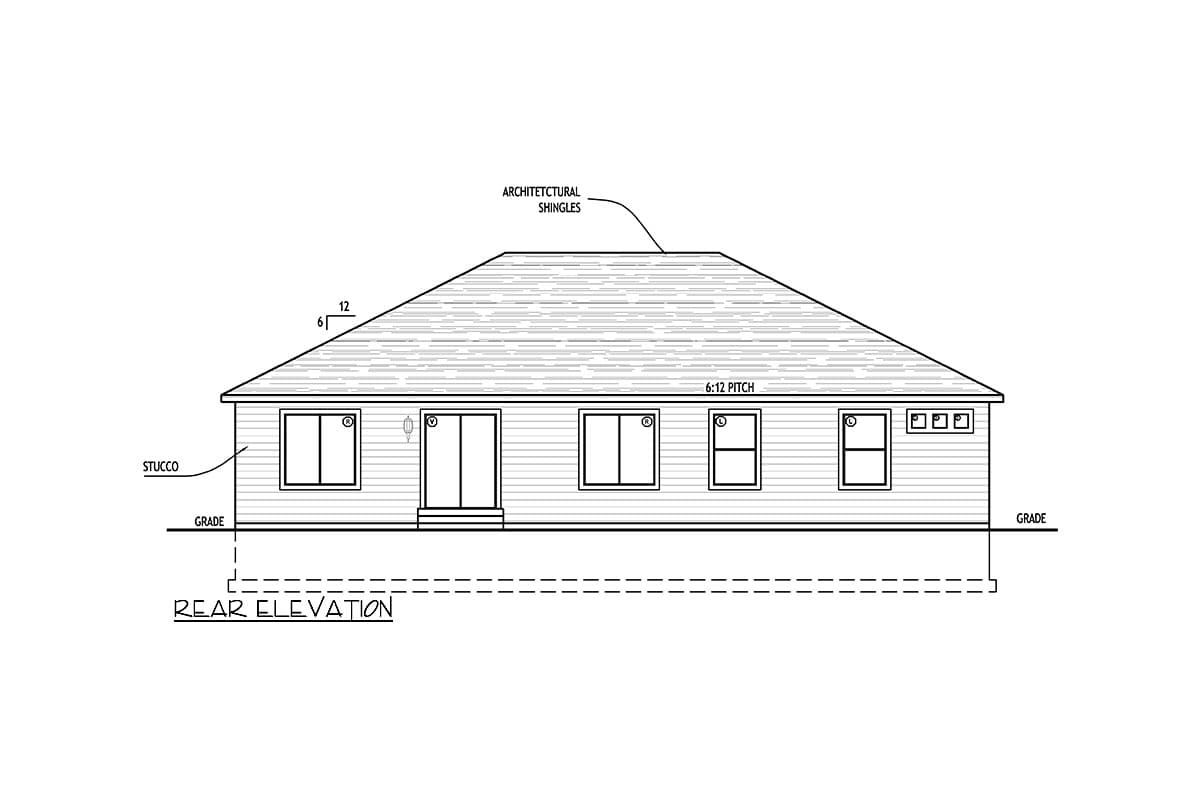

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Den

Flex Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery
