Plan 510016WDY
Split Bedroom Southern House Plan - 1689 Sq Ft
Heated S.F.
1,689
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 510016WDY

Main Level
slide image 0

Plan 510016WDY

1-800-854-7852

1-262-521-4596

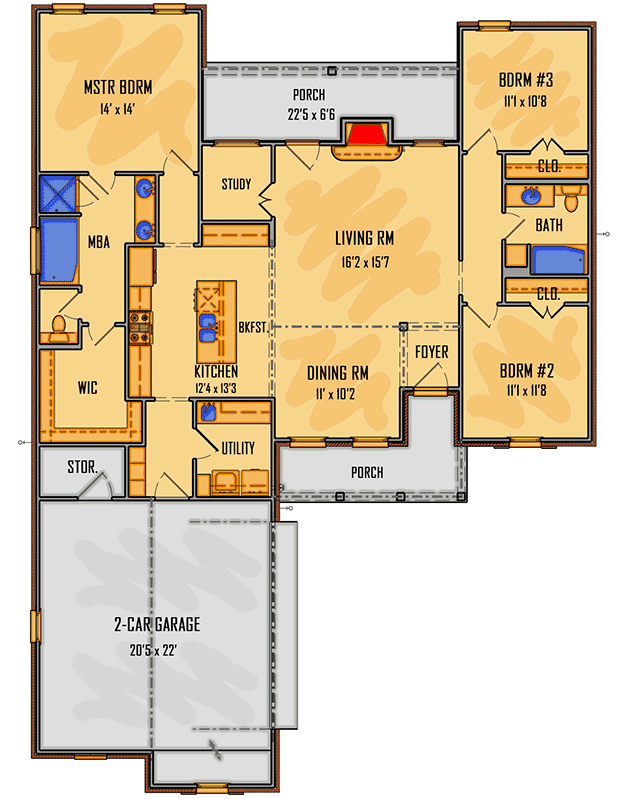

Main Level
floor plan image Main Level
Plan Details
  • Not too big and not too small, this graceful Southern house plan is just the right size for a comfortable home.
  • Rustic wood shutters add an appealing contrast to the elegant hip roof.
  • The open layout starts right at the foyer, giving you marvelous views of all the main rooms.
  • A spacious master bedroom is off by itself on the left with a roomy 9' by 8'3" walk-in closet while two family bedrooms lie on the right.
  • There's a pocket study tucked away off the living room and a big covered porch to give you shade.
What's Included
This plan has 6 sheets as follows:
  1. Coversheet Color Rendering
  2. Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing

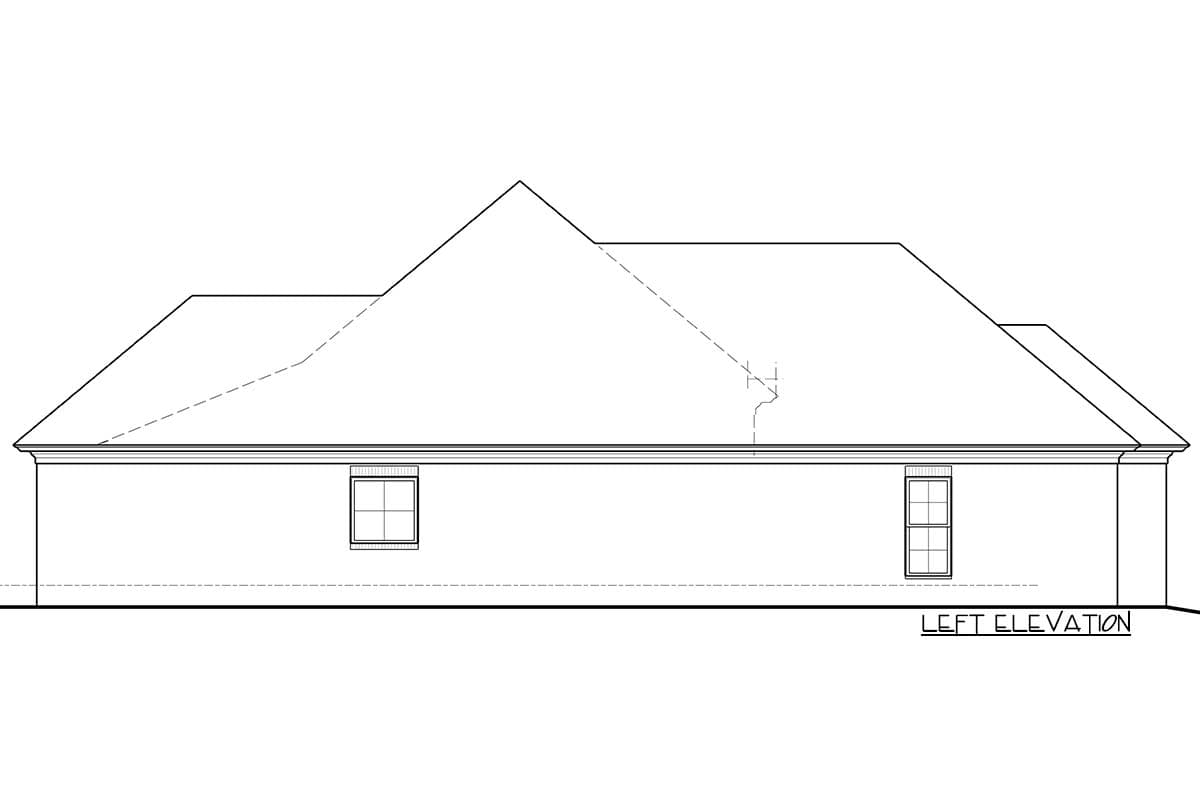

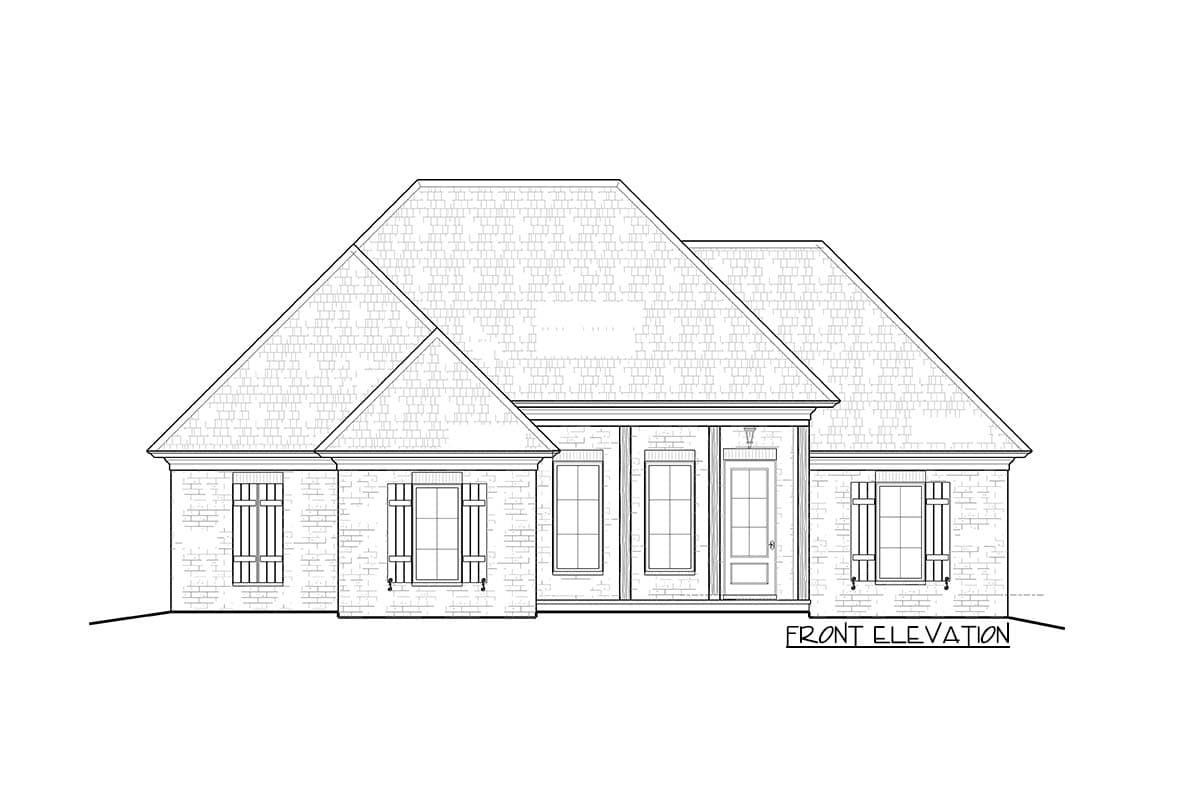

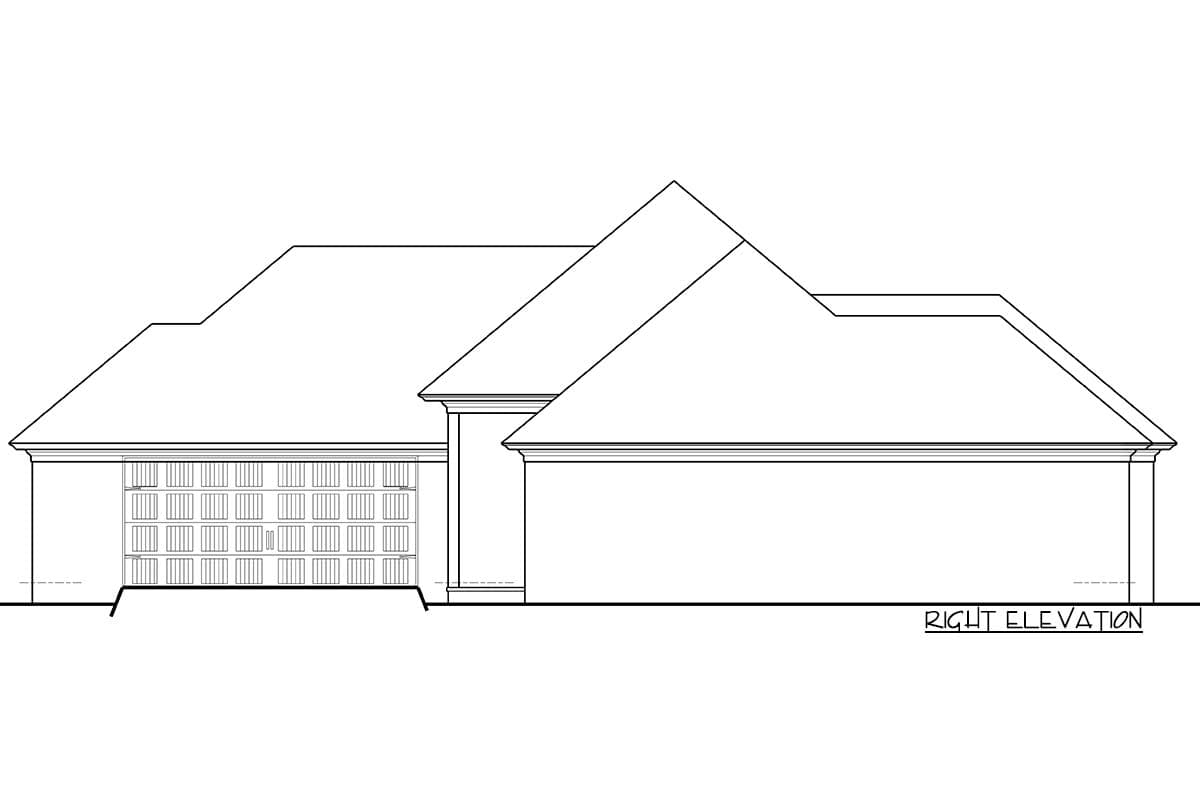

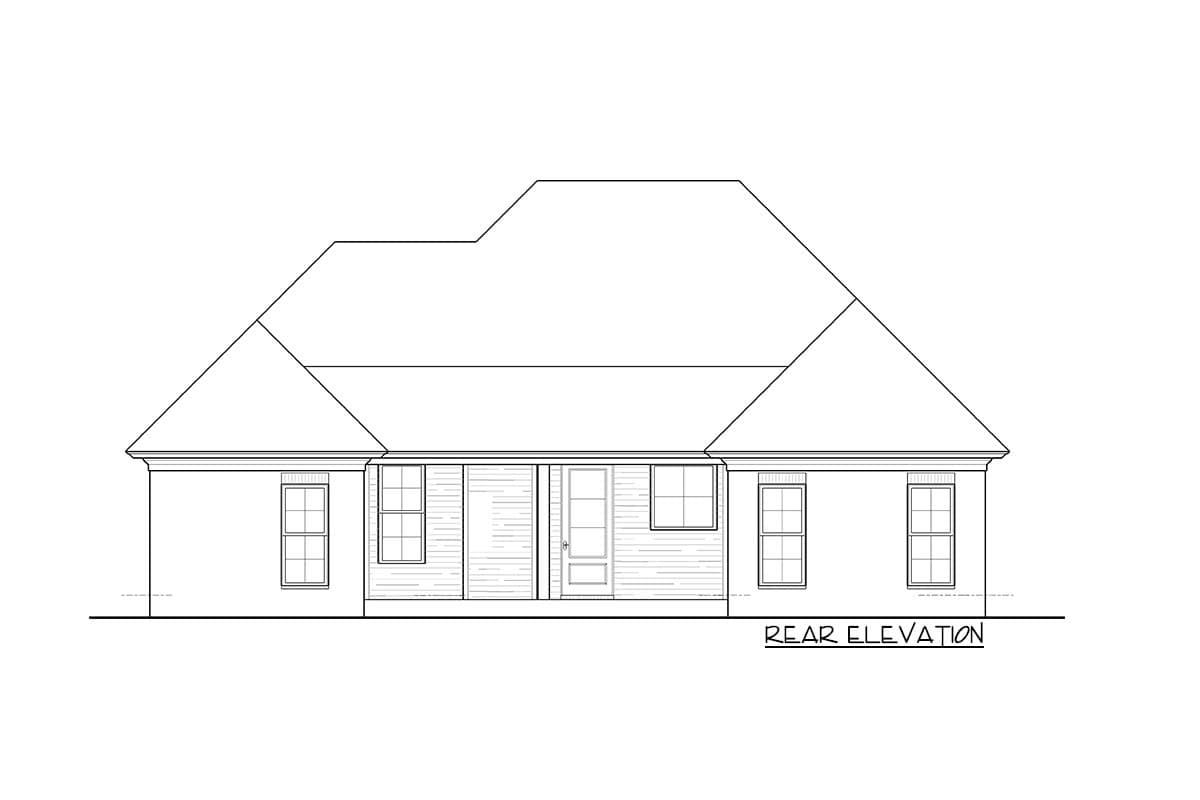

  3. Front , Rear, Left and Right Side elevations, Roof Plan and Sections, Cornice Details
  4. Electrical Plan and Schedules, Rafter Schedules
  5. Slab on Grade Foundation
  6. Footing Details

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,689 sq. ft.

1st Floor

1,689 sq. ft.

Porch, Front

100 sq. ft.

Porch, Rear

140 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 9"

Depth

69' 4"

Max Ridge Height

24' 10"

Garage

Type

Attached

Area

538 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Dining Room

11' 0''

Great Room

11' 0''

Foyer

11' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Acadian

French Country

Louisiana

Southern

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,689 sq. ft.

1st Floor

1,689 sq. ft.

Porch, Front

100 sq. ft.

Porch, Rear

140 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 9"

Depth

69' 4"

Max Ridge Height

24' 10"

Garage

Type

Attached

Area

538 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Dining Room

11' 0''

Great Room

11' 0''

Foyer

11' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Acadian

French Country

Louisiana

Southern

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom
