Plan 62645DJ
Split Bedroom Starter Home Plan Under 1200 Sq Ft
Heated S.F.
1,185
Beds
3
Baths
2
Stories
1
Cars
2
TourPhotos
Floor Plan

Plan 62645DJ

Main Level
slide image 0

Plan 62645DJ

1-800-854-7852

1-262-521-4596

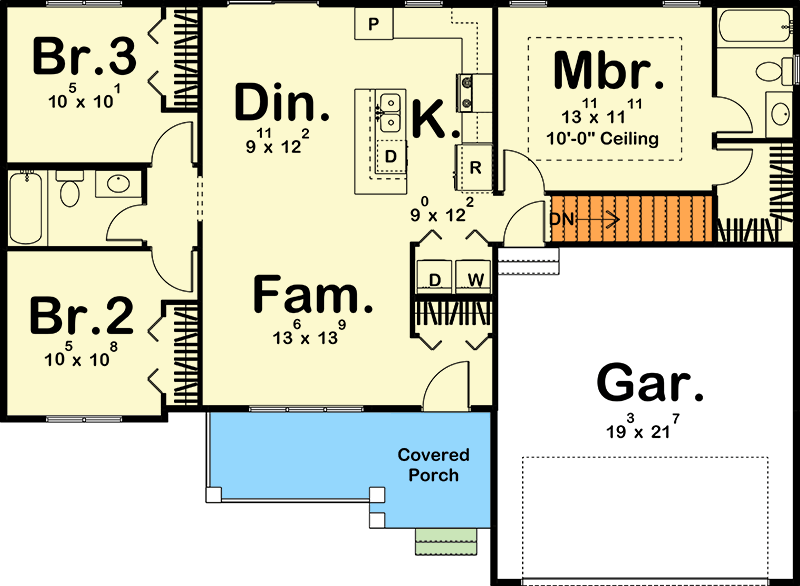

Main Level
floor plan image Main Level
Plan Details

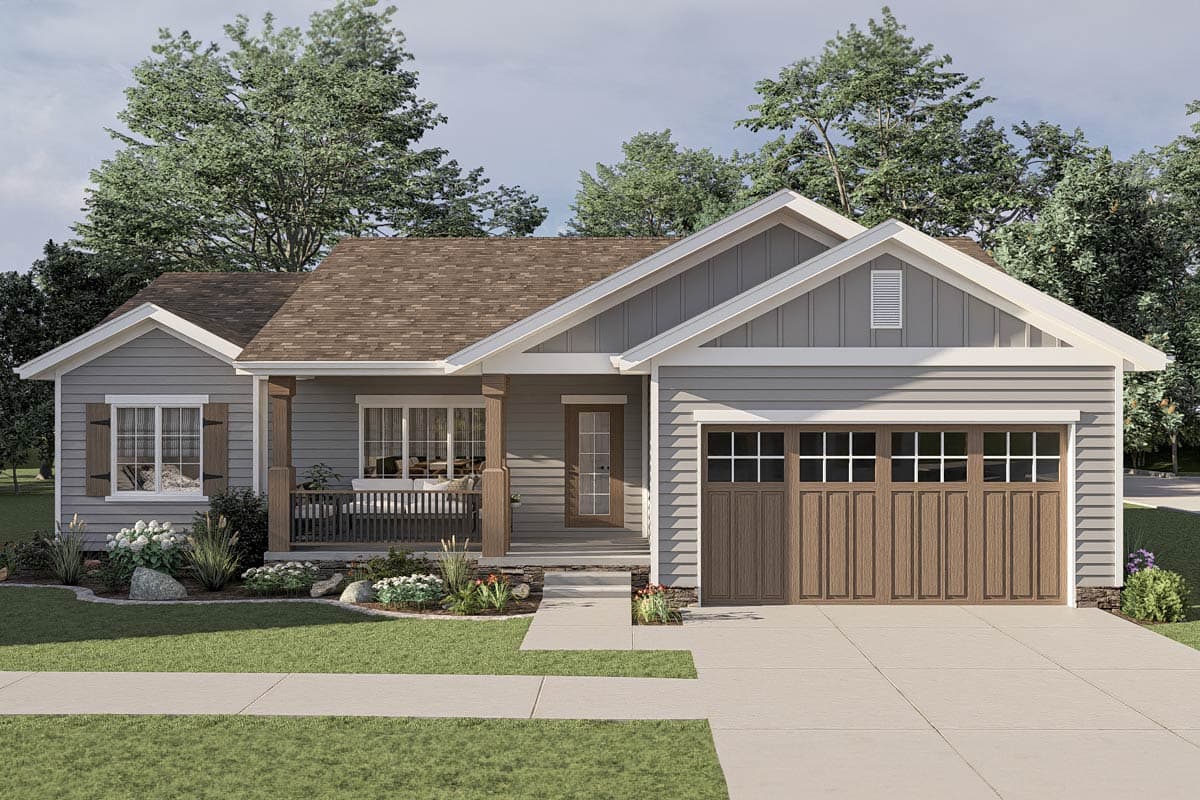

  • Just the right size for a starter home or for retirees who are downsizing, this neat and tidy cottage holds great appeal.

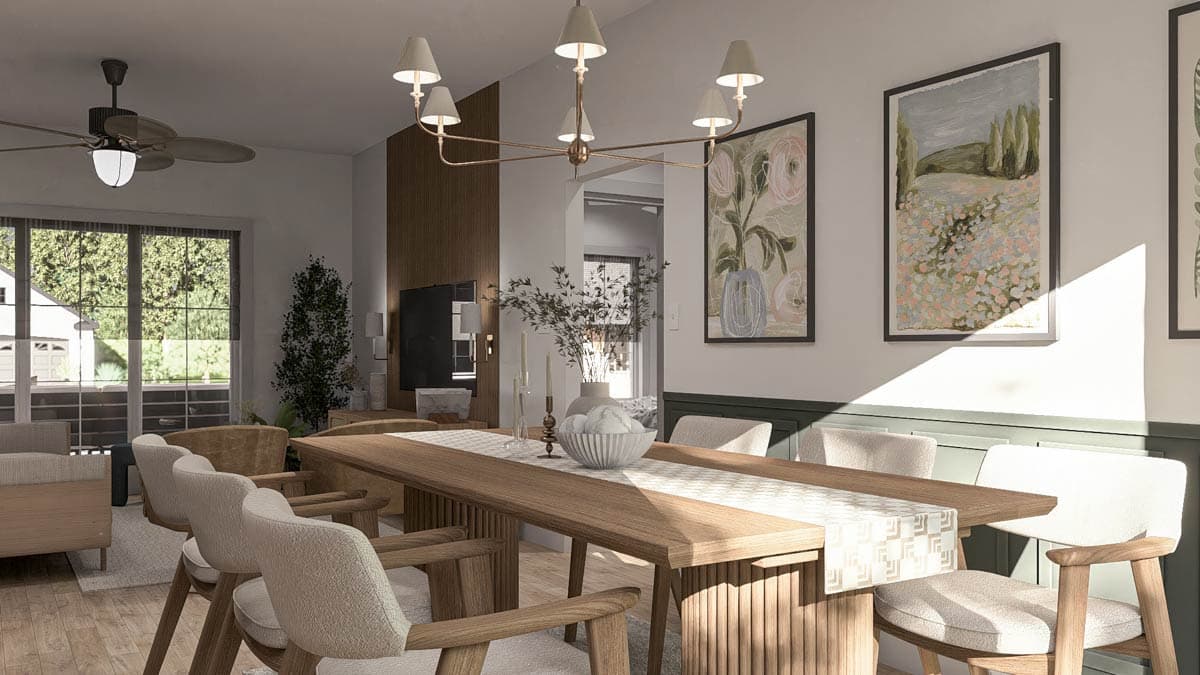

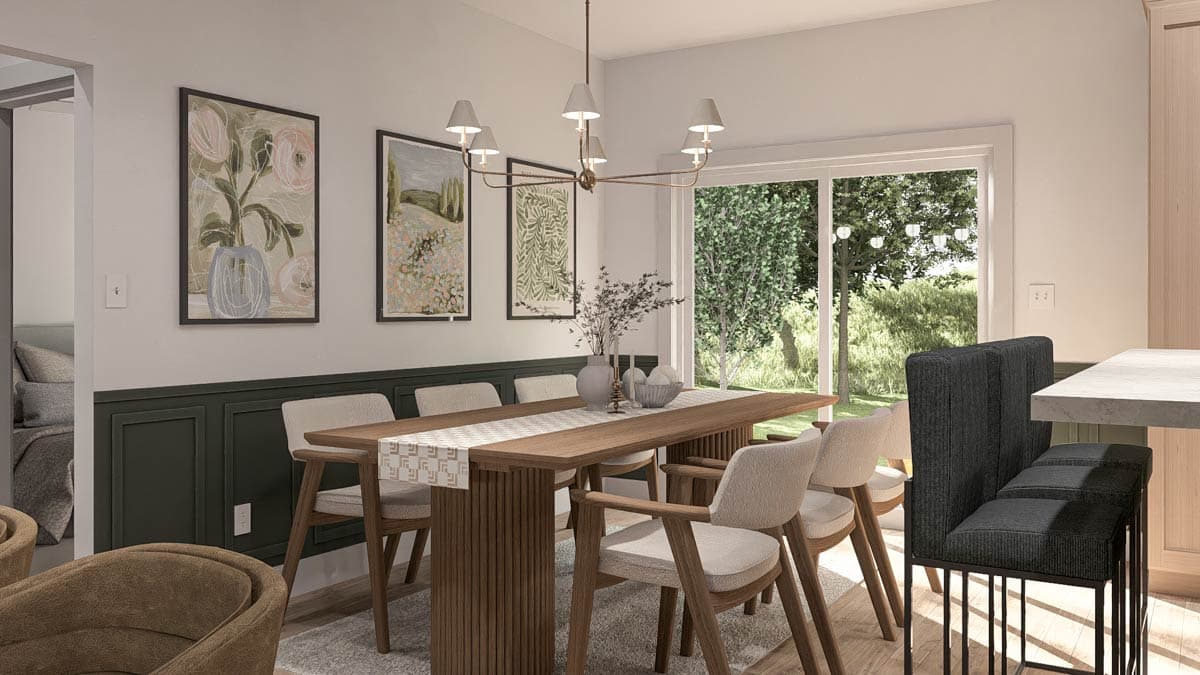

  • The big, open floor makes the home feel even larger than it is and maximizes the sightlines.

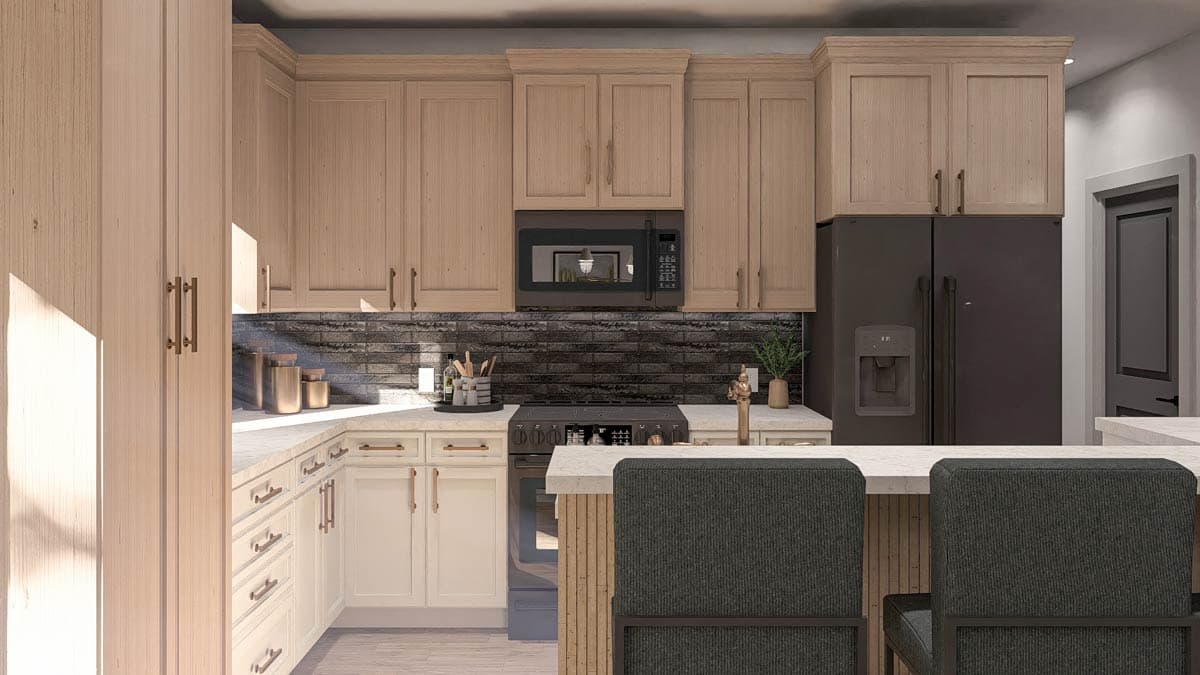

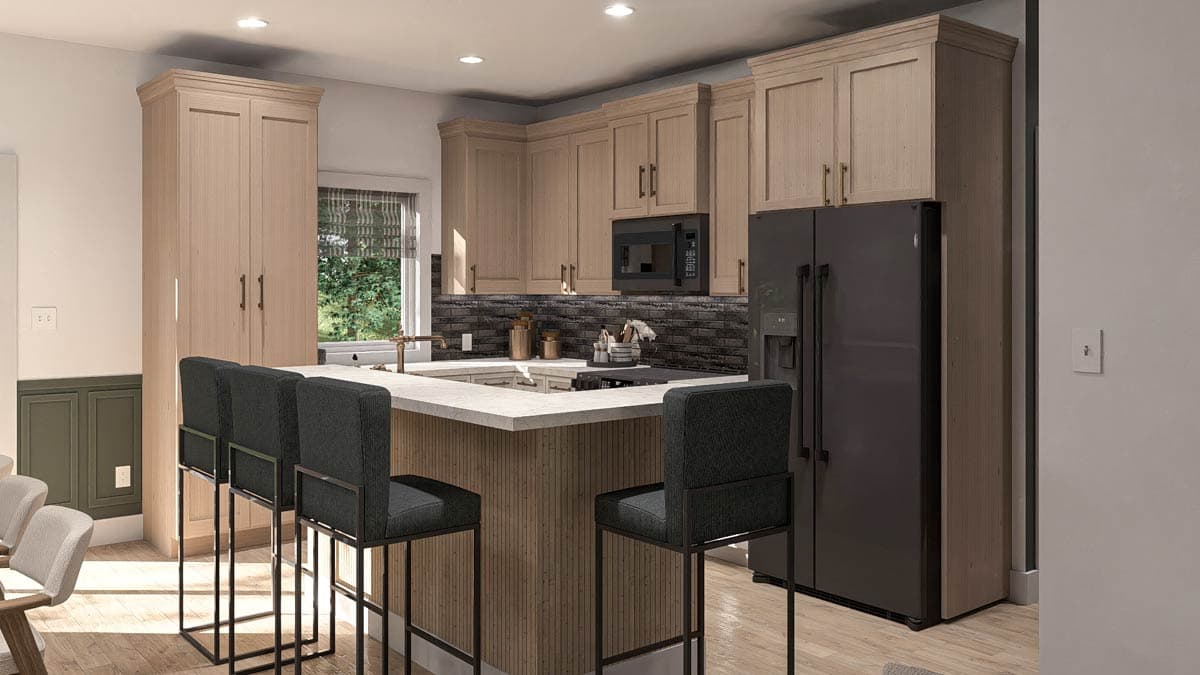

  • A washer/dryer closet lies close to the kitchen so you can keep things moving without having to go far.
  • The split bedroom layout works well to give the master suite some privacy and quiet.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 62645DJ comes to life in Maine

House Plan 62645DJ comes to life in Maine

13

Photos

build gallery item - House Plan 62645DJ Comes to Life in Texas

House Plan 62645DJ Comes to Life in Texas

24

Photos

What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,185 sq. ft.

1st Floor

1,185 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

52' 0"

Depth

38' 0"

Max Ridge Height

17' 10"

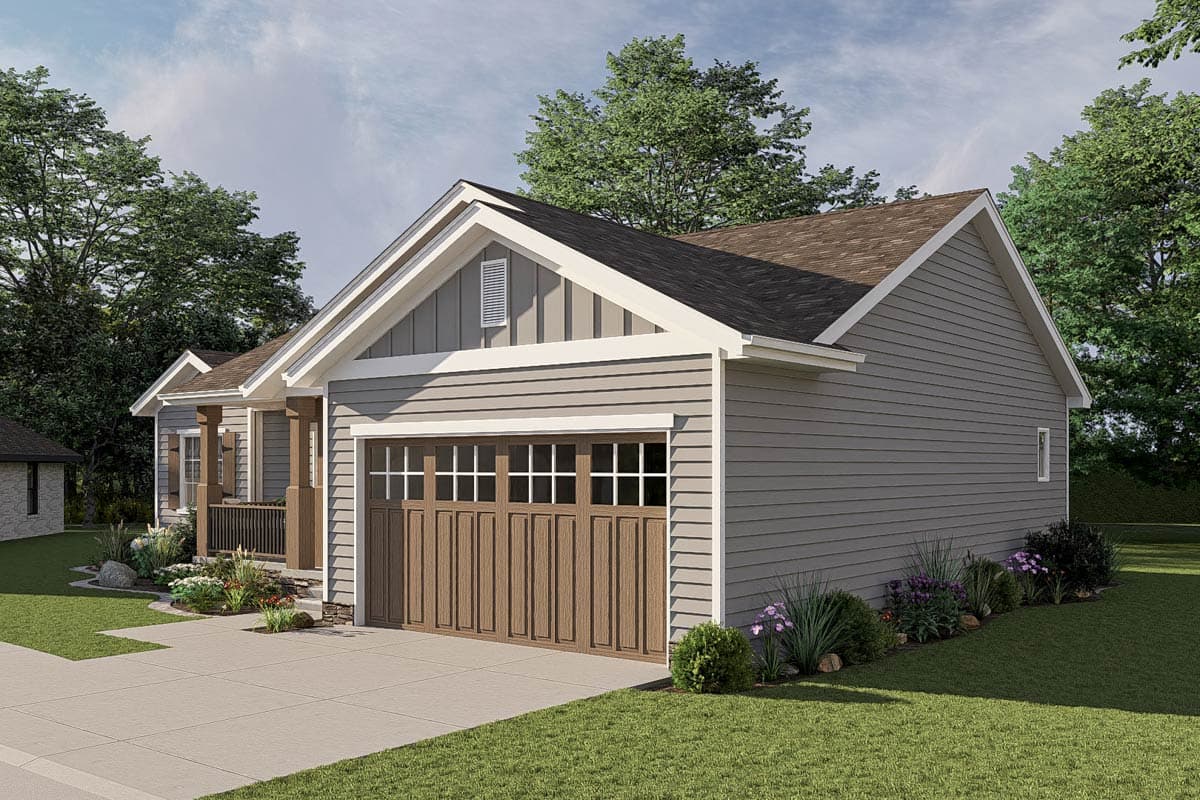

Garage

Type

Attached

Area

436 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Master Bedroom

Tray

10' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Cottage

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor
