Plan 68791VR
Split Bedroom Vacation Home Plan with Vaulted Interior and Large Rear Deck
Heated S.F.
1,484
Beds
2
Baths
2
Stories
1
Floor Plan

Plan 68791VR

Main Level
slide image 0
Main Level - Walkout (Standard)
slide image 1
Lower Level - Walkout (Standard)
slide image 2
Main Level - Walkout Option
slide image 3
Lowe Level - Walkout Option
slide image 4

Plan 68791VR

1-800-854-7852

1-262-521-4596

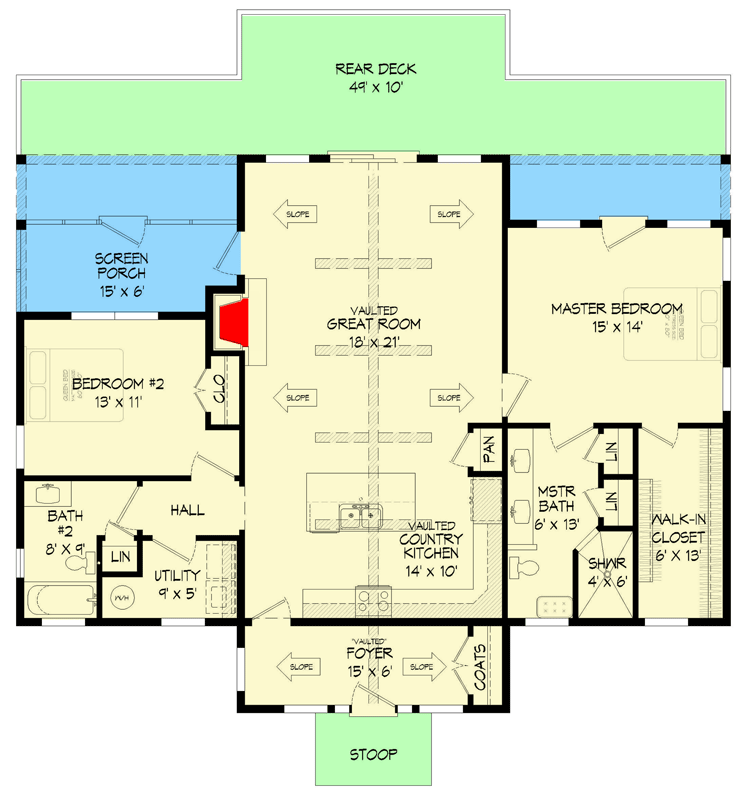

Main Level
floor plan image Main Level

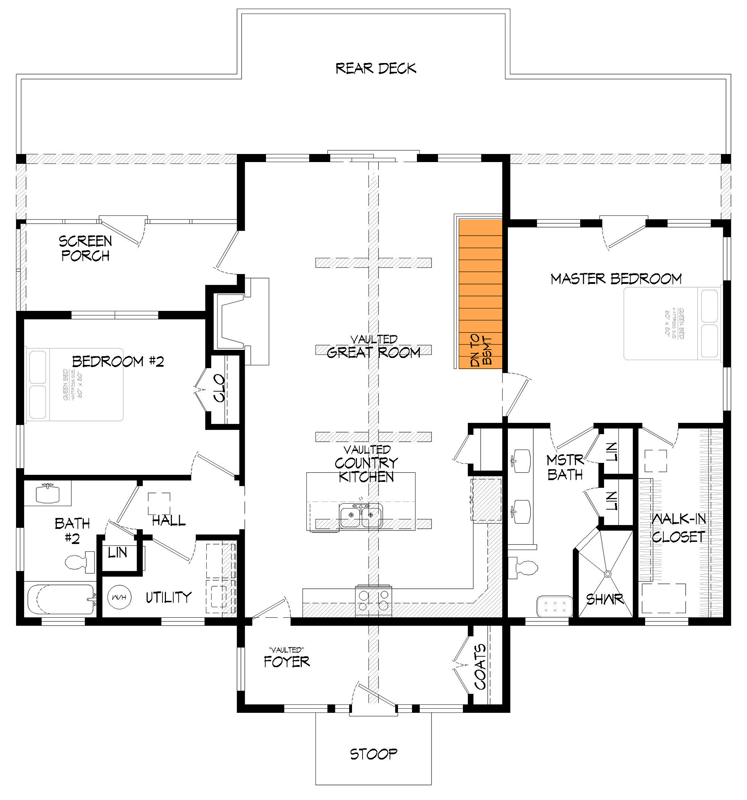

Main Level - Walkout (Standard)
floor plan image Main Level - Walkout (Standard)

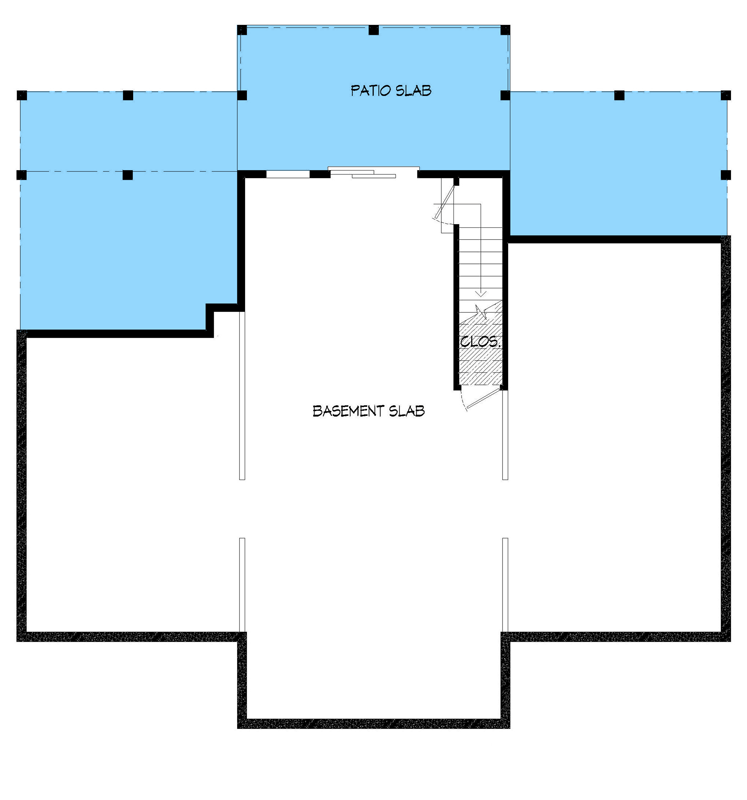

Lower Level - Walkout (Standard)
floor plan image Lower Level - Walkout (Standard)

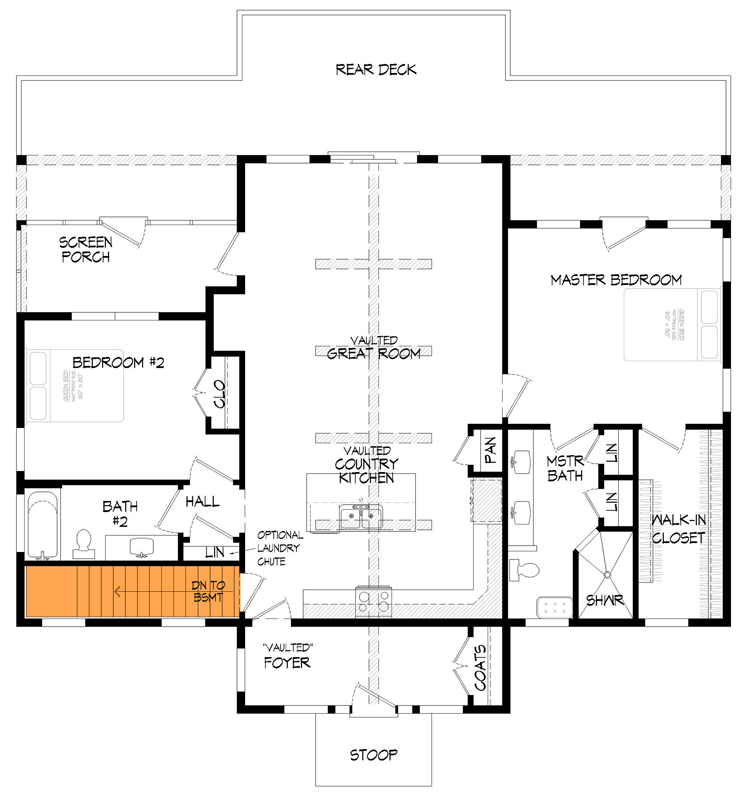

Main Level - Walkout Option
floor plan image Main Level - Walkout Option

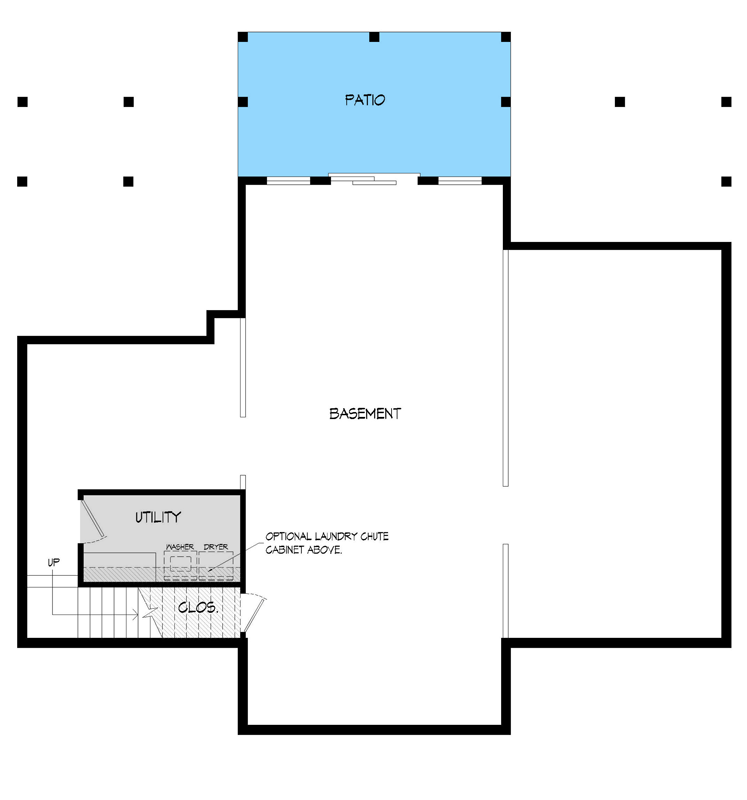

Lowe Level - Walkout Option
floor plan image Lowe Level - Walkout Option
Plan Details
  • This 2 bed house plan has a vaulted foyer that opens to reveal an vaulted front-to-back interior.
  • The great room has a fireplace and is open to the kitchen. Sliding doors on the back take you to a balcony spanning the entire width of the home.
  • The master bedroom has a walk-in closet and private bath. Across the home, a second bedrooms has its own bath.
  • A screened porch is tucked in back and has access to the rear deck.
  • Related Plans: Turn the screened porch into a home office with house plan 68738VR and get an alternate version with house plan 68911VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

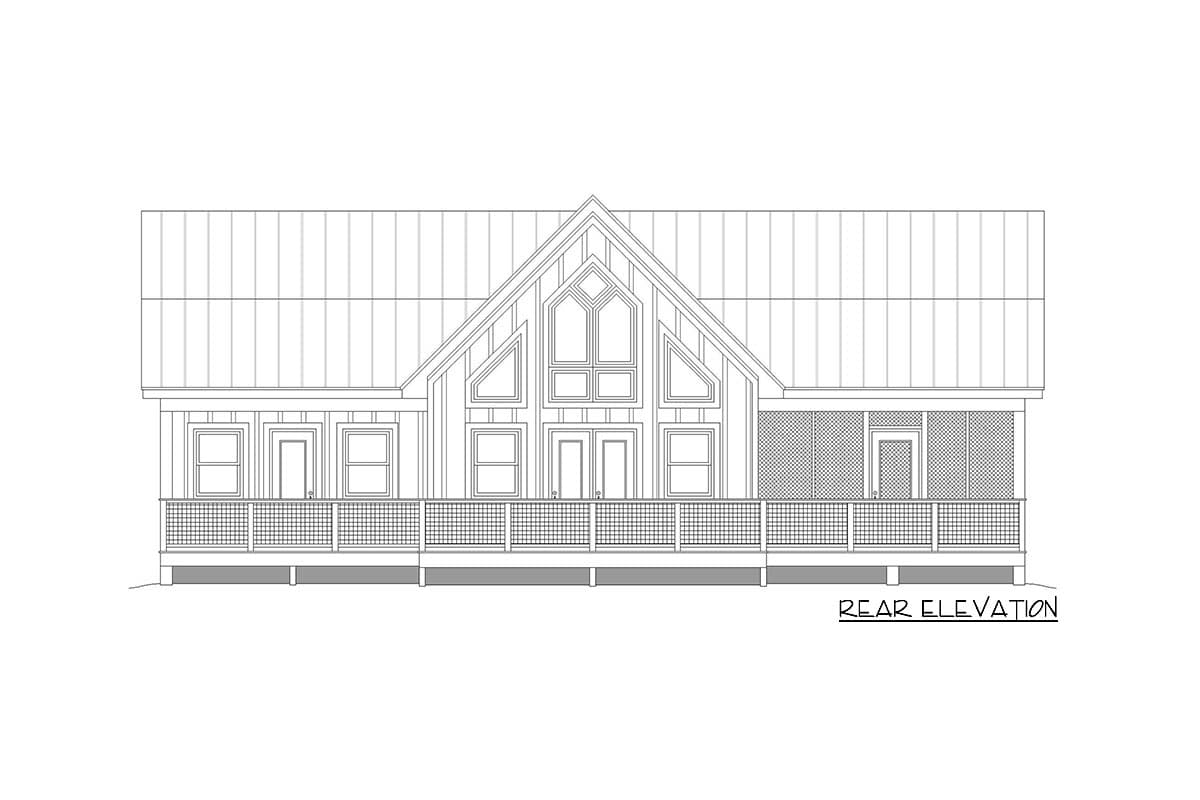

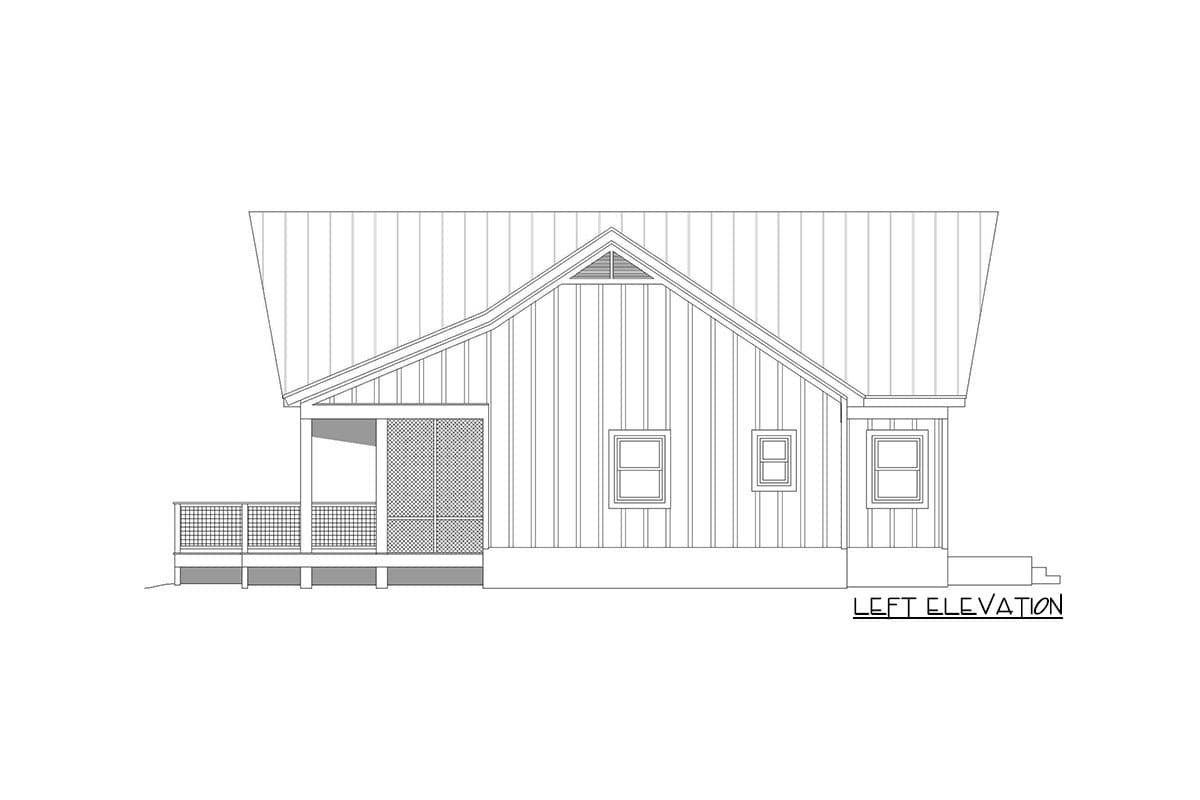

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,484 sq. ft.

1st Floor

1,484 sq. ft.

Porch, Rear

493 sq. ft.

Screened Porch

92 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

49' 3"

Depth

48' 6"

Max Ridge Height

20' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Country

Mountain

Rustic

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room
