Plan 3079D
Split Bedroom With Home Office
Heated S.F.
2,587
Beds
4
Baths
3.5
Stories
1
Cars
2
Floor Plan

Plan 3079D

Main Level
slide image 0

Plan 3079D

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • With a beautiful facade featuring a columned front porch and a covered rear deck, this split-bedroom design includes a study/home office inside the entry.
  • Varying ceiling heights and special ceiling treatments provide interest. Coffered ceilings top both the formal dining room and the master bedroom, 12 feet and 10 feet respectively. The great room, with an 11-foot ceiling, a kitchen and large breakfast room form one large open space.
  • The outdoor entry to a bath is also used by bedroom two. Bedrooms three and four, each with a walk-in closet, share another full bath.
  • On the other side of the house is the bayed master suite. In the luxurious master bath are walk-in closets for both him and her and two vanities.
  • The side-entry garage suits the home to a corner lot.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas.  If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.
What's Included

  • Foundation plan
  • Fully dimensioned floor plan

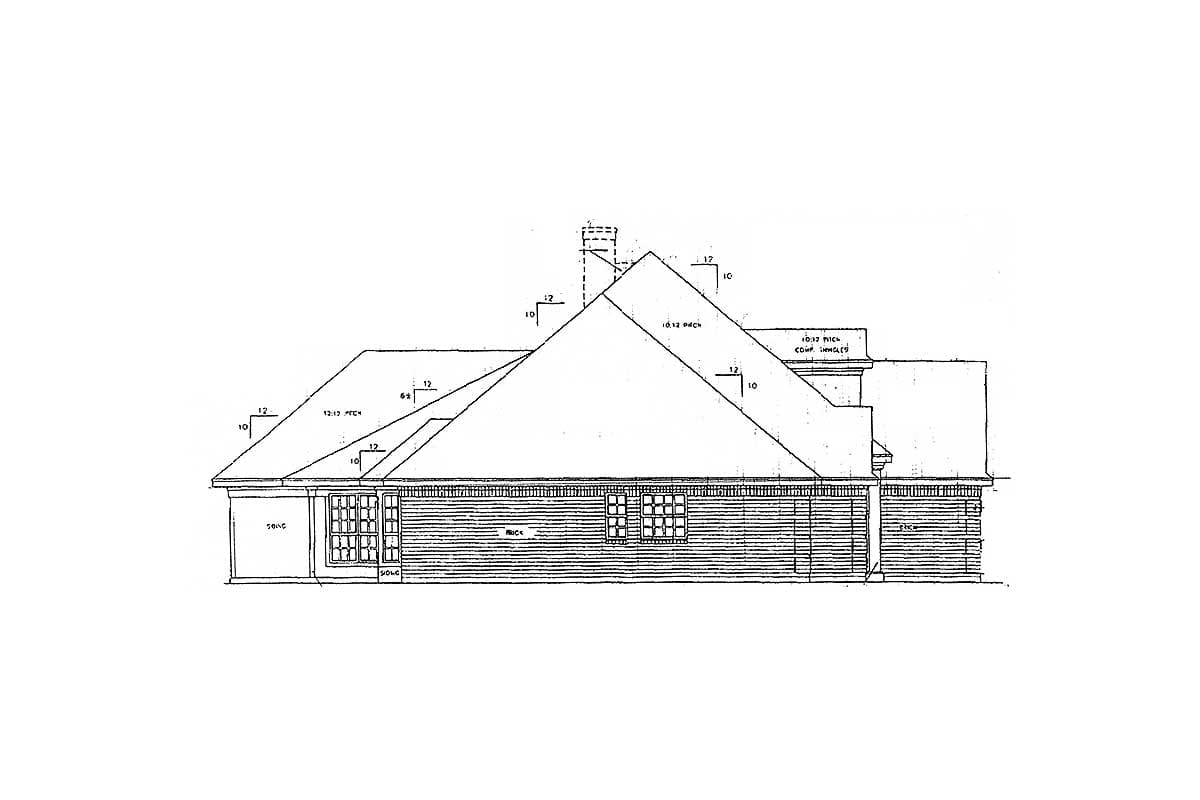

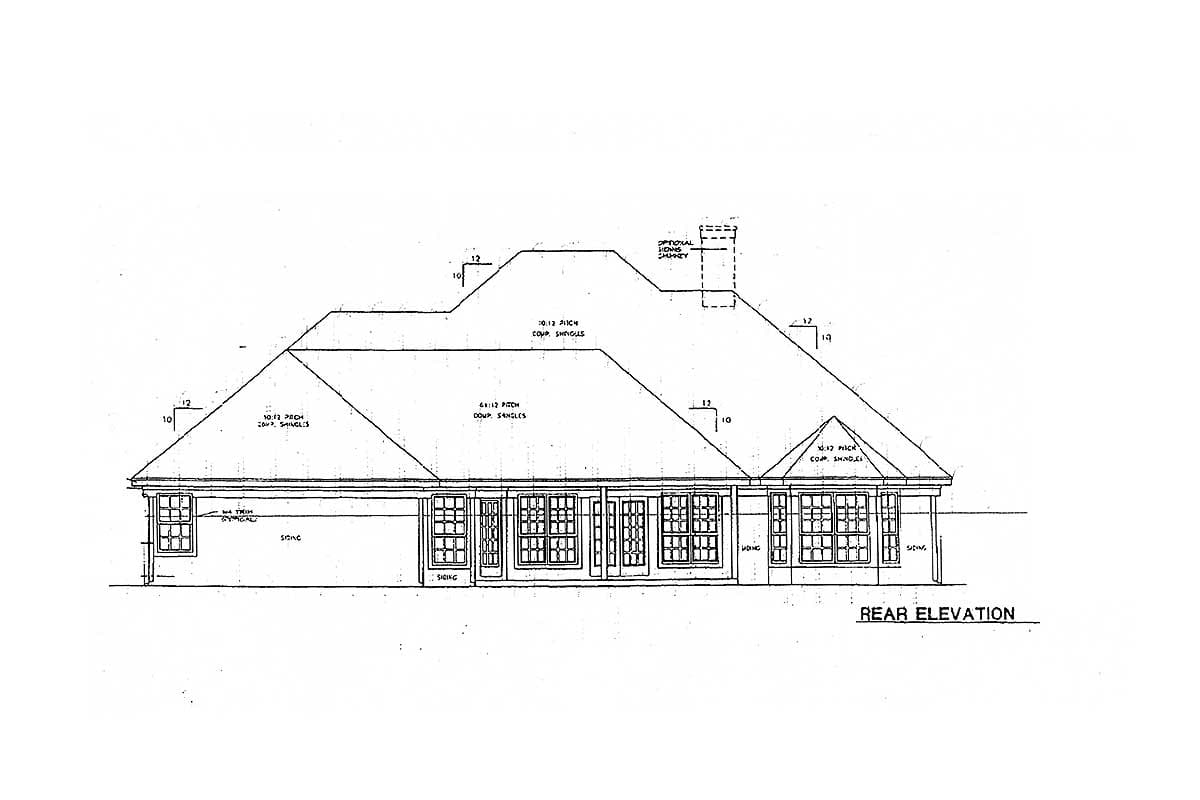

  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,587 sq. ft.

1st Floor

2,587 sq. ft.

Basement Unfinished

2,587 sq. ft.

Porch, Front

119 sq. ft.

Deck

273 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

68' 7"

Depth

65' 2"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

411 sq. ft.

Count

2 Cars

Entry Location

Side

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Hill Country

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Home Office

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Media Room

Plan Collections

Photo Gallery
