Plan 12740MA

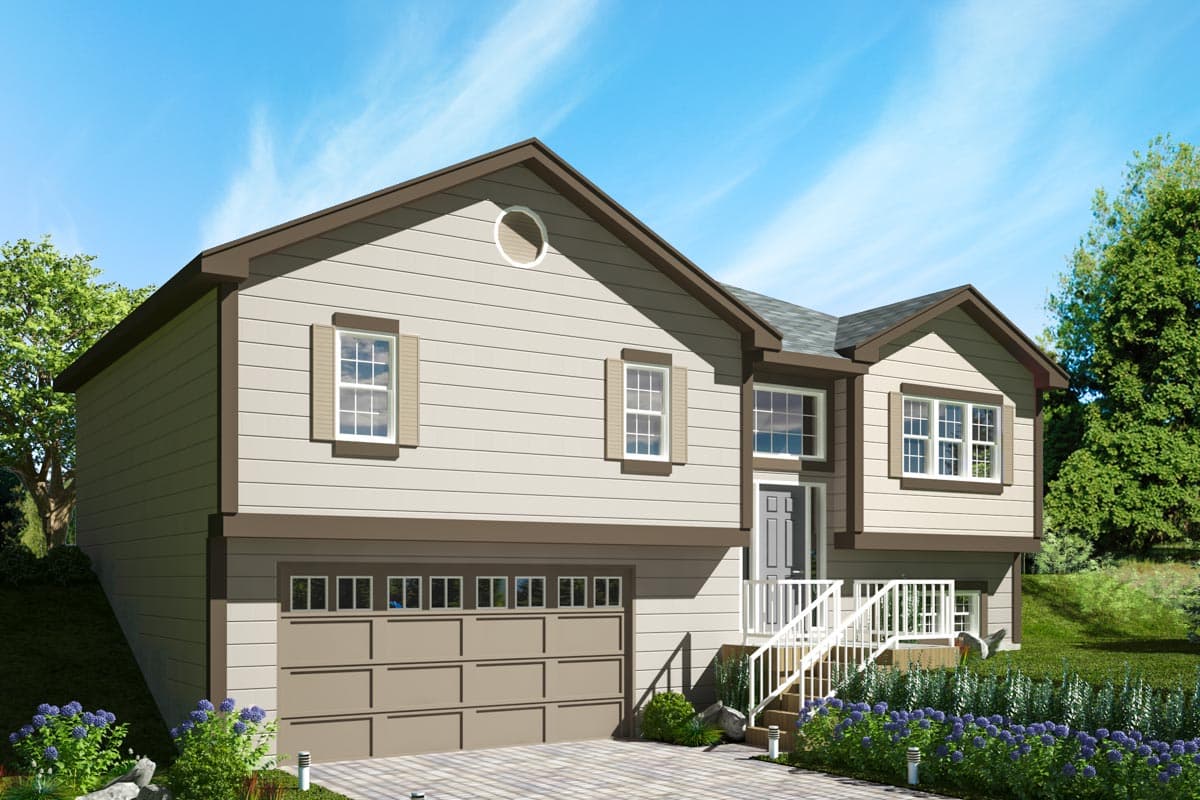

Split Level Country House Plan with Lower-Level Garage
Heated S.F.
1,749
Beds
3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 12740MA

Main Level
slide image 0
Lower Level
slide image 1

Plan 12740MA

1-800-854-7852

1-262-521-4596

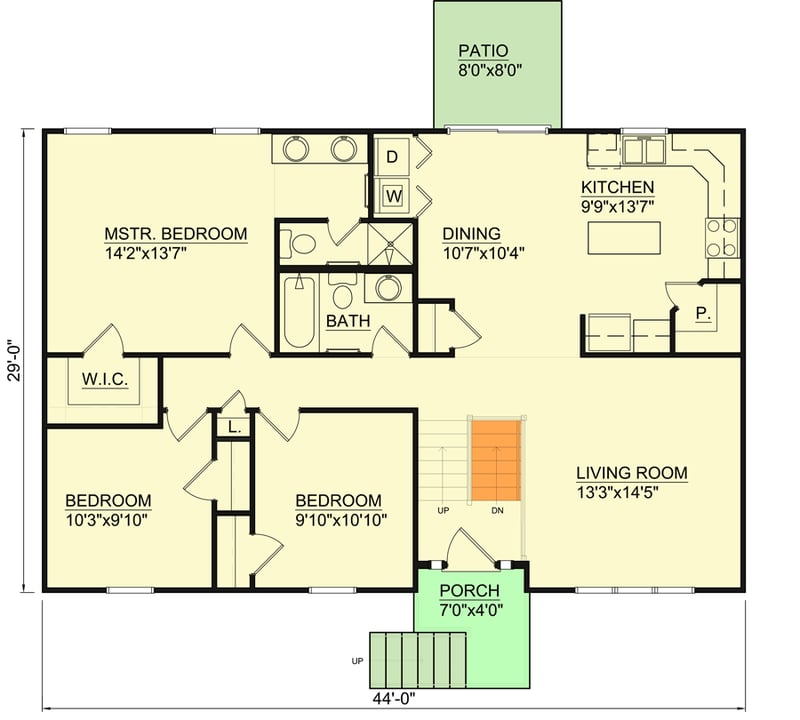

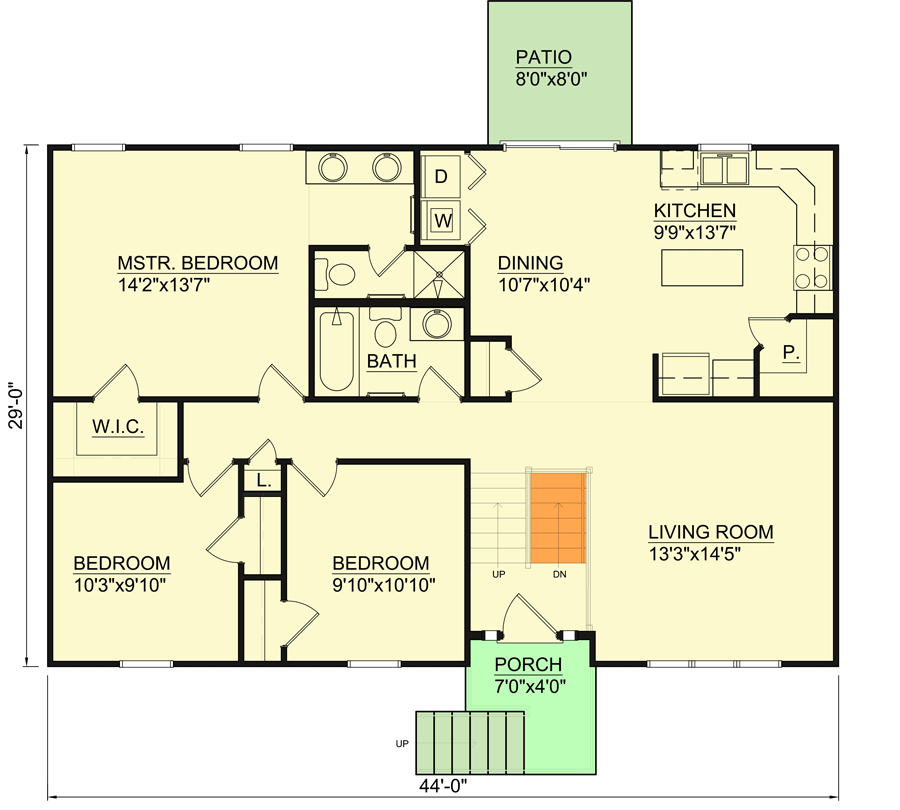

Main Level
floor plan image Main Level

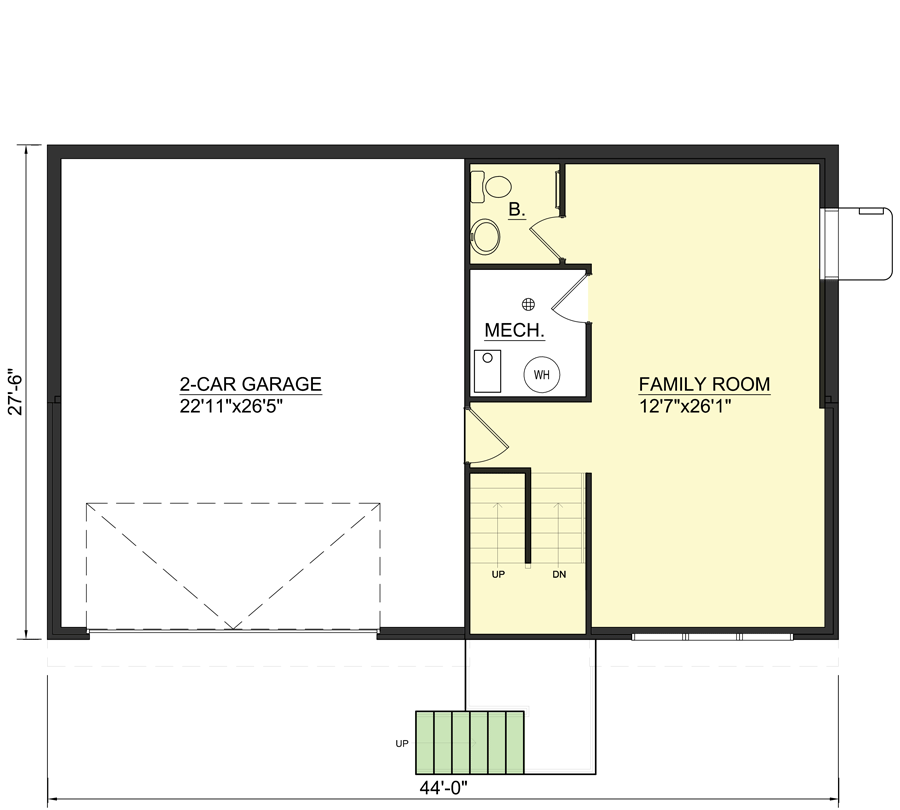

Lower Level
floor plan image Lower Level
Plan Details
  • This split level, country house plan is ideal for forward sloping lots with a lower-level garage, and split-level foyer.
  • A few steps up from the foyer, discover the spacious living room. An oversized opening leads to the eat-in kitchen, where counters, cabinets, and appliances wrap around a central prep island in the kitchen.
  • Multi-task with the conveniently located laundry closet next to the dining area. The neighboring wall features sliding doors to the back patio to grill, or just relax outdoors.
  • Down the hall, the master bedroom offers rearward views, while two vanities are tucked into a nook, with a nearby toilet and shower room. Across the hall, a linen closet sits between bedrooms 2 and 3, which are nearly identical in size.
  • The double garage can be found on the lower level, which opens into a generous, second family room with a powder bath.
What's Included
  • Cover Sheet
  • IRC Notes
  • Floor Plan

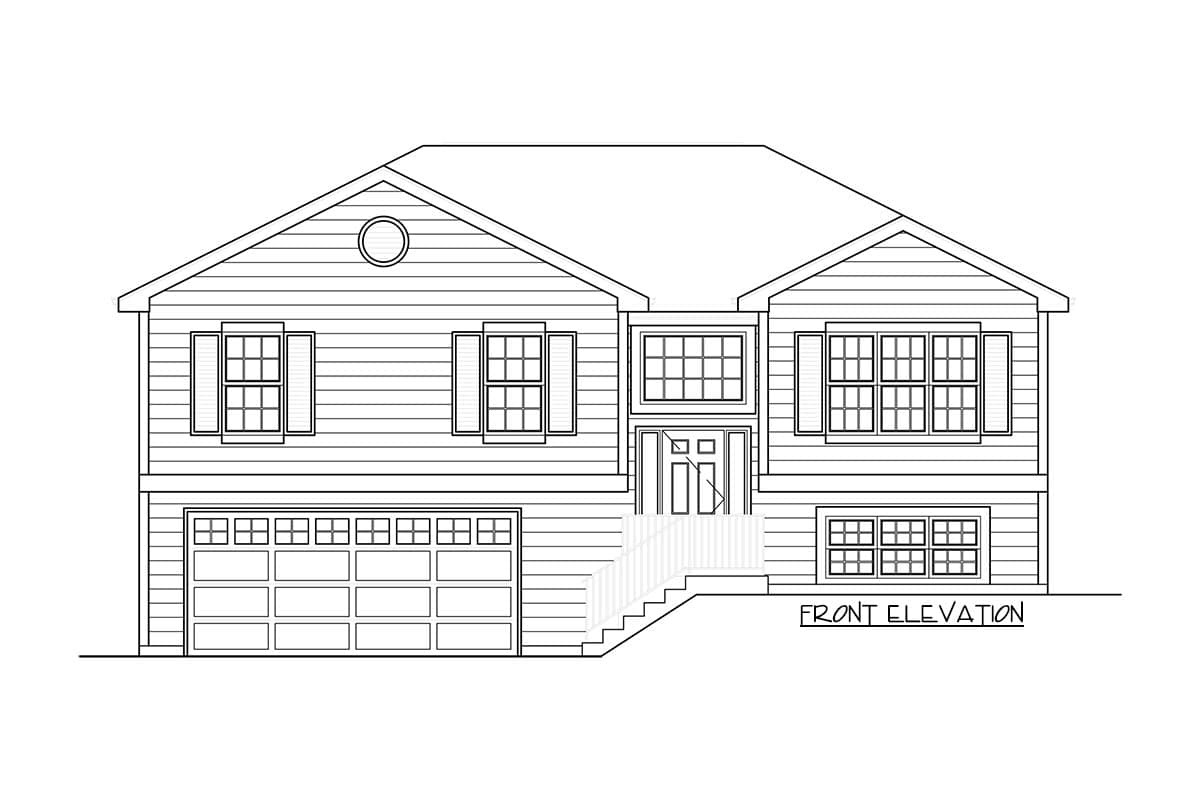

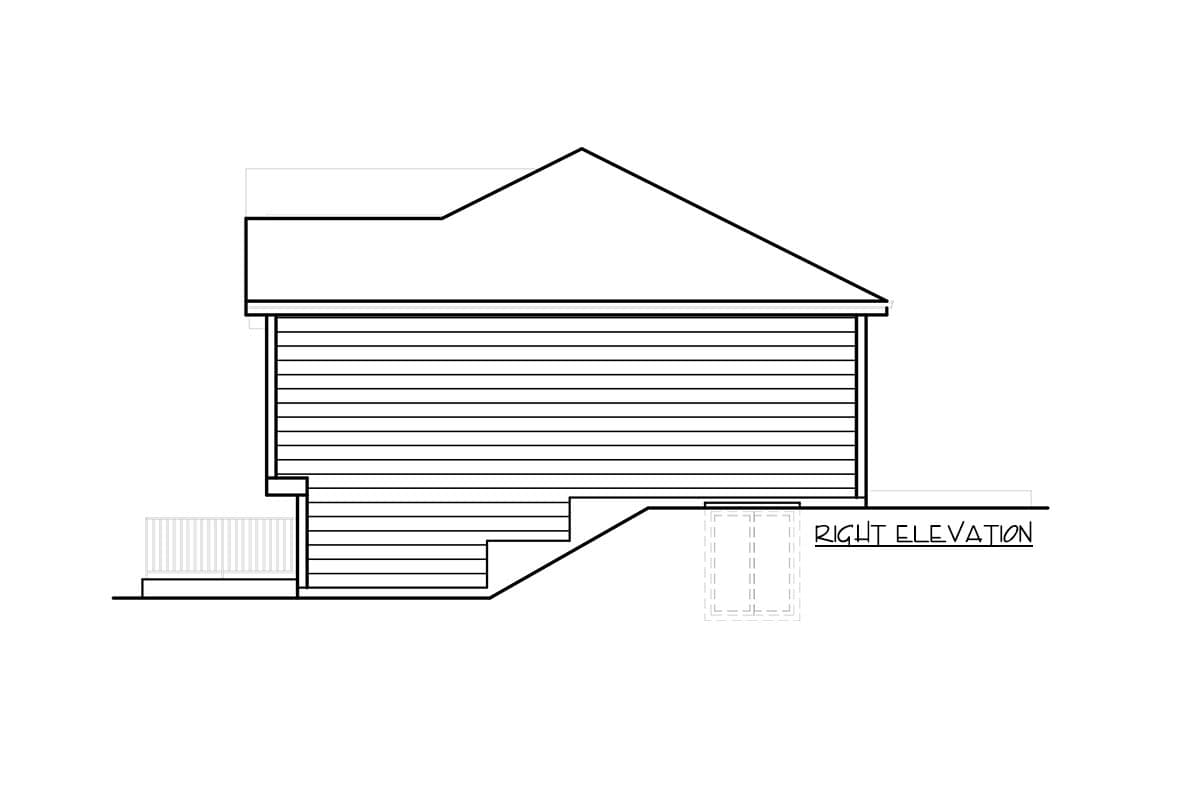

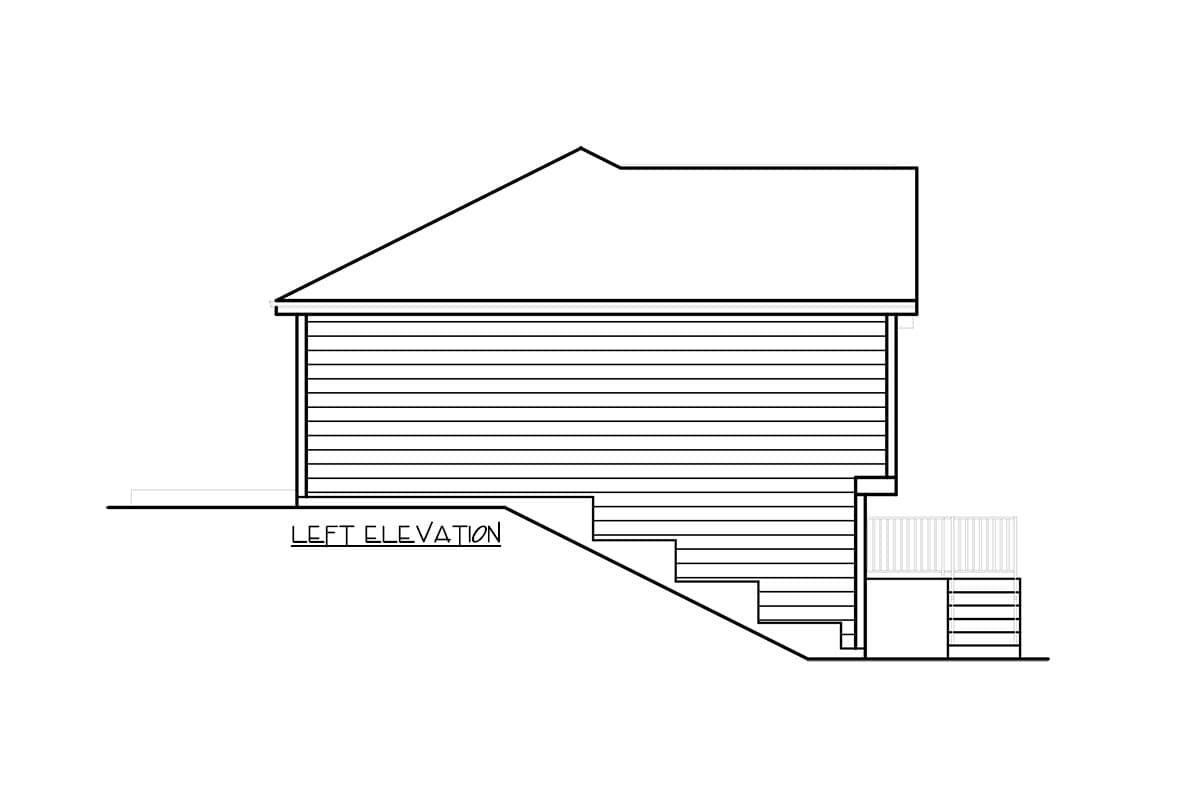

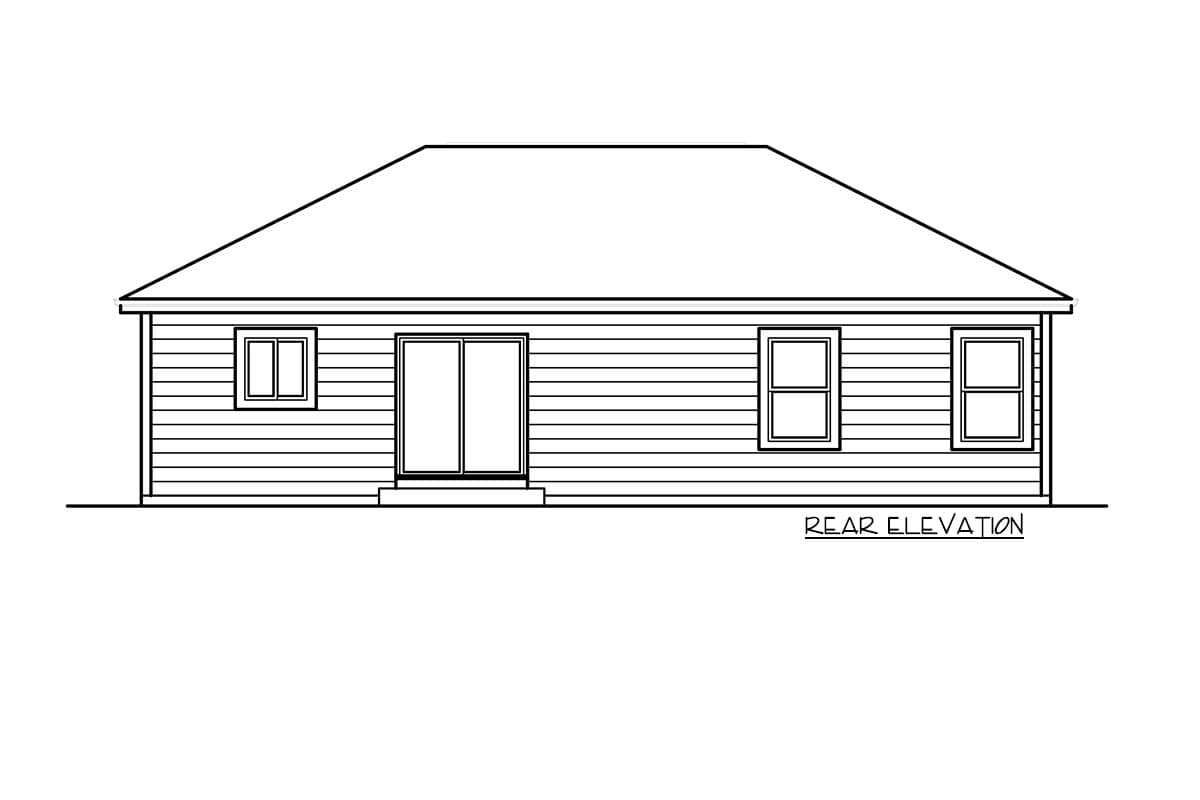

  • Exterior Elevations
  • Building Sections
  • Foundation
  • Details
  • Air Barrier Details
  • Optional Solar Details
  • Framing Plan
  • Electrical Floor Plan
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally if required
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,749 sq. ft.

Lower Level

483 sq. ft.

1st Floor

1,266 sq. ft.

Porch, Front

43 sq. ft.

Porch, Rear

64 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

44' 0"

Depth

29' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached, Drive Under

Area

611 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

7' 9"

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Country

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Butler Walk-in Pantry

Master Suite - 1st Floor

Split Level

Plan Collections

Sloping Lot

Split Level House Plans
