Plan 69784AM
Split Level Craftsman House Plan with Large Picture Window
Heated S.F.
2,098
Beds
4
Baths
3
Stories
1
Cars
3
Floor Plan

Plan 69784AM

Ground Level
slide image 0
First Floor
slide image 1

Plan 69784AM

1-800-854-7852

1-262-521-4596

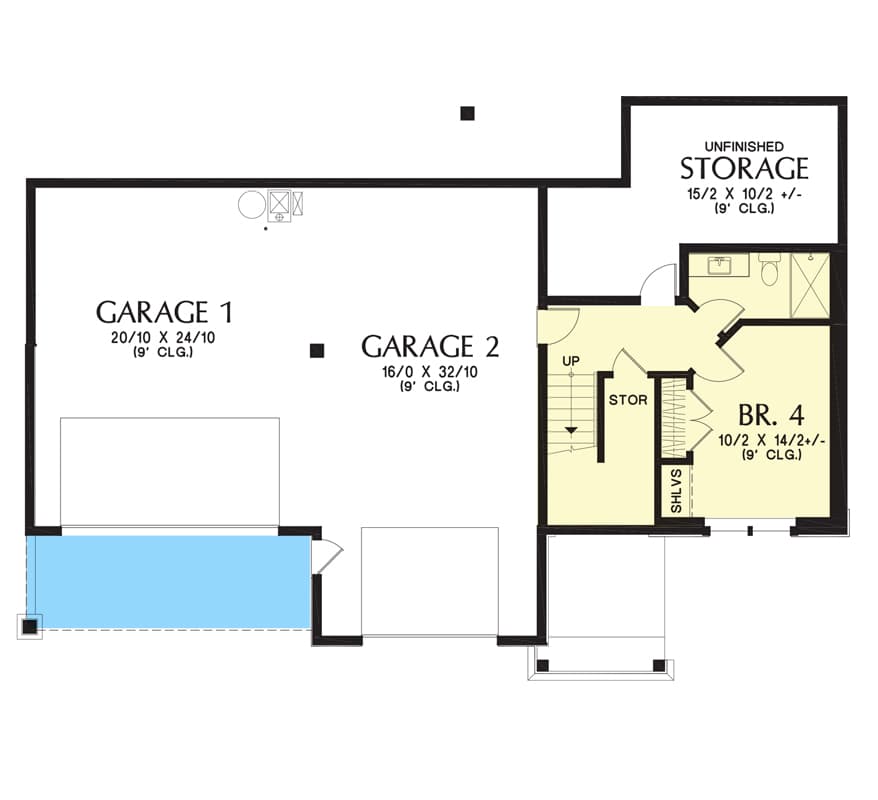

Ground Level
floor plan image Ground Level

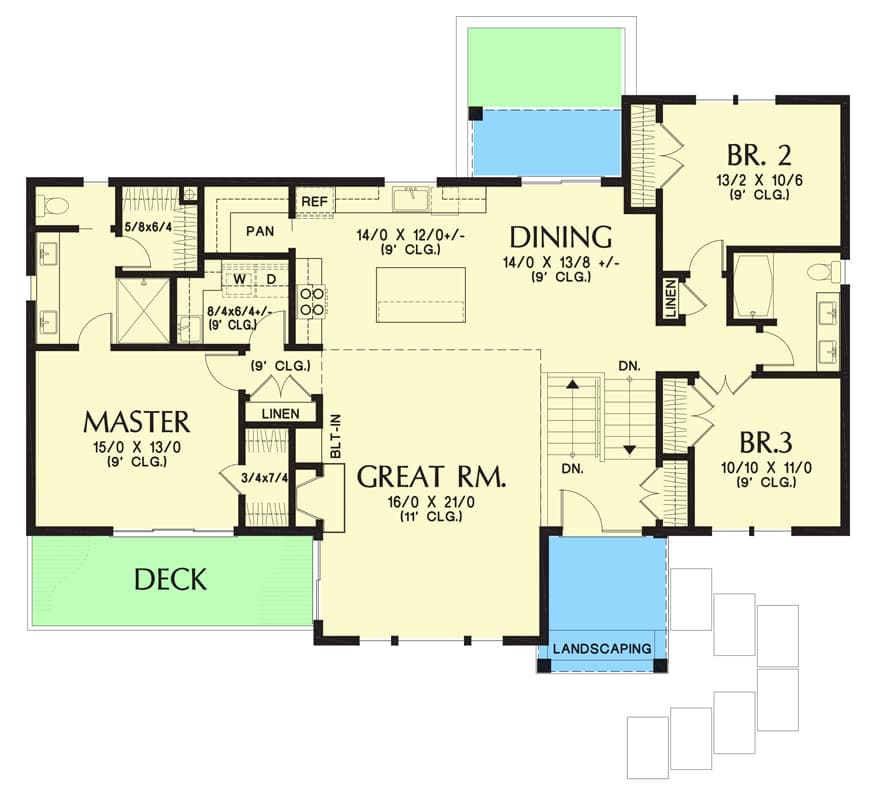

First Floor
floor plan image First Floor
Plan Details
  • Clapboard, stone and wood give and a large window above the drive-under garage give this 4-bed split level house plan great curb appeal.
  • The lower level is where you'll find three garage bays, along with unfinished storage space, a fourth bedroom, and a full bath.
  • The main level provides forward and rear-facing outdoor spaces to fully enjoy the surrounding landscape, while inside, an open floor plan invites you to entertain family and friends. A large picture window in the great room gives you great views out the front.
  • The master bedroom occupies the left side of the home and presents two walk-in closets and a 4-fixture bathroom. The laundry room is conveniently located next door.
  • Two family bedrooms line the right side and share the 4-fixture bathroom that separates them.
  • Related Plan: Get an alternate exterior with house plan 69777AM.
What's Included

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,098 sq. ft.

Lower Level

408 sq. ft.

1st Floor

1,690 sq. ft.

Basement Unfinished

222 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

42' 0"

Max Ridge Height

20' 8"

Garage

Type

Attached, Drive Under

Area

1064 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

New American

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Split Level

Plan Collections

Sloping Lot

Split Level House Plans
