Plan 80719PM
Split-Level European Home Plan
Heated S.F.
1,225
Beds
2
Baths
1
Stories
1
Cars
1
Floor Plan

Plan 80719PM

Main Level
slide image 0
Main Level
slide image 1

Plan 80719PM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Main Level
floor plan image Main Level
Plan Details
  • A curved window wall makes the living room in this split-level European home plan unique.
  • The garage and entry foyer are on the ground level while the rest of the home is raised up three steps.
  • The dining area is open to the kitchen that has sliding glass doors to the rear.
  • Two bedrooms share the hall bathroom with its soaking tub plus a shower.
What's Included
Please note this plan is designed to the National Building Code of Canada.

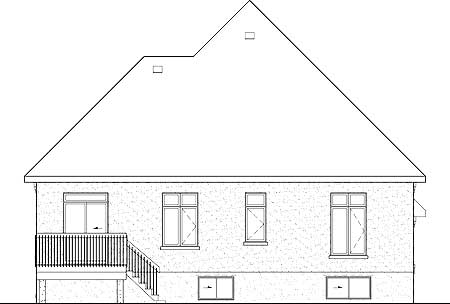

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.

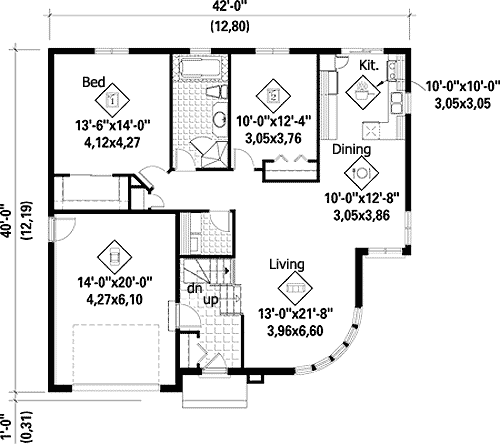

  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,225 sq. ft.

1st Floor

1,225 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 0"

Depth

40' 0"

Max Ridge Height

33' 9"

Garage

Type

Attached

Area

307 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

European

Special Features

Master Suite - 1st Floor

Split Level

Plan Collections

Canadian House Plans

Metric

Split Level House Plans

Square Footage Breakdown

Total Heated Area

1,225 sq. ft.

1st Floor

1,225 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 0"

Depth

40' 0"

Max Ridge Height

33' 9"

Garage

Type

Attached

Area

307 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

European

Special Features

Master Suite - 1st Floor

Split Level

Plan Collections

Canadian House Plans

Metric

Split Level House Plans
