Plan 59514ND
Split Level House Plan with a Vaulted and Open Great Room - 2010 Sq Ft
Heated S.F.
2,010
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 59514ND

Main Level
slide image 0
Basement
slide image 1

Plan 59514ND

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level

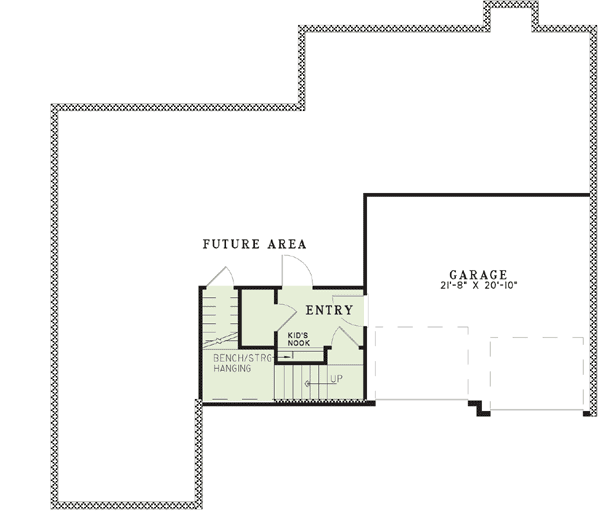

Basement
floor plan image Basement
Plan Details
  • This versatile split level house plan is as comfortable in the city as it is in the country. The down-home great room feels even larger with the vaulted ceiling and barrier-free entry into the kitchen and breakfast room.
  • The urban, open design features an island that serves double duty as a snack bar.
  • The breakfast room is bright and sunny with access to a significant grilling porch where guests can mingle and converse.
  • The lower floor holds endless expansion possibilities as family needs evolve.
  • Related Plans: Get a version in reverse orientation with house plan 70529MK and get more square footage with house plan 59512ND (2,495 sq. ft.).
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

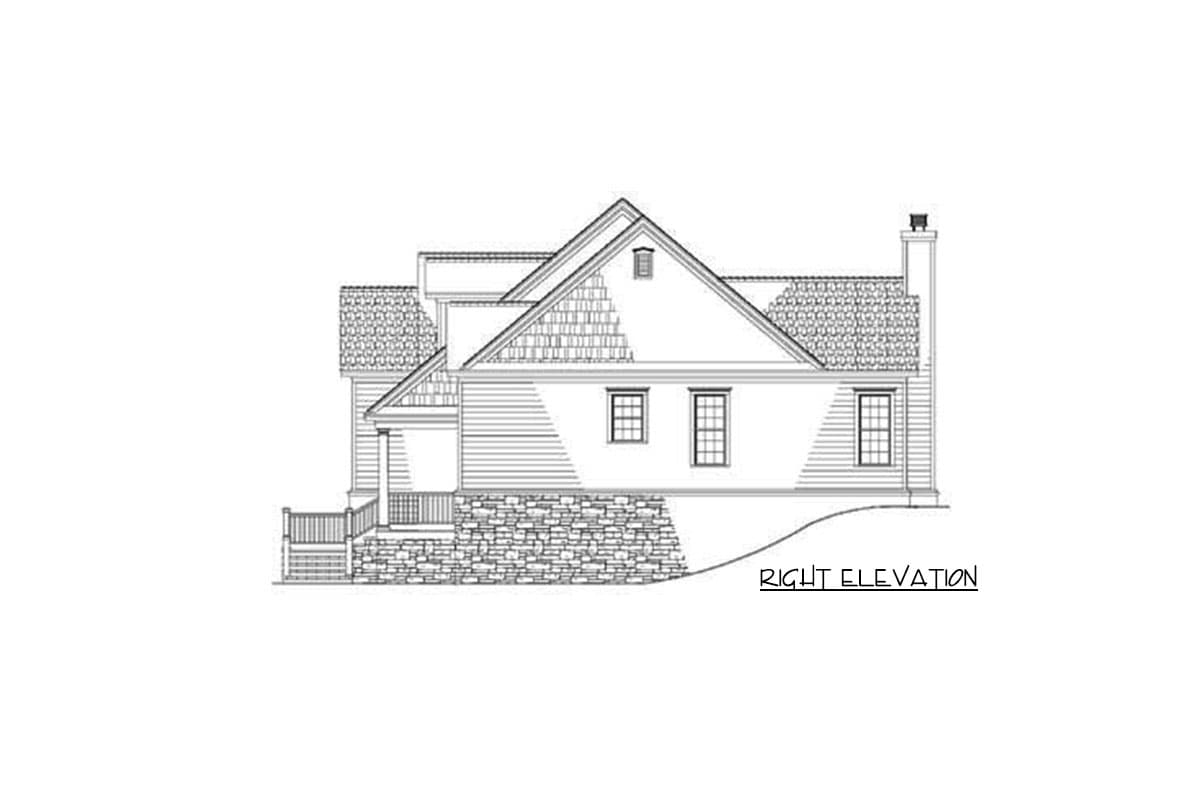

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,010 sq. ft.

1st Floor

1,935 sq. ft.

2nd Floor

75 sq. ft.

Porch, Combined

304 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

53' 0"

Depth

49' 4"

Max Ridge Height

28' 2"

Garage

Type

Attached

Area

468 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Split Level

Square Footage Breakdown

Total Heated Area

2,010 sq. ft.

1st Floor

1,935 sq. ft.

2nd Floor

75 sq. ft.

Porch, Combined

304 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

53' 0"

Depth

49' 4"

Max Ridge Height

28' 2"

Garage

Type

Attached

Area

468 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Split Level
