Split Level Starter Contemporary House Plan
Heated S.F.
927
Beds
2 - 3
Baths
1.5
Stories
1
Cars
1
Floor Plan

Plan 80788PM

Main Level
slide image 0

Plan 80788PM

1-800-854-7852

1-262-521-4596

Main Level

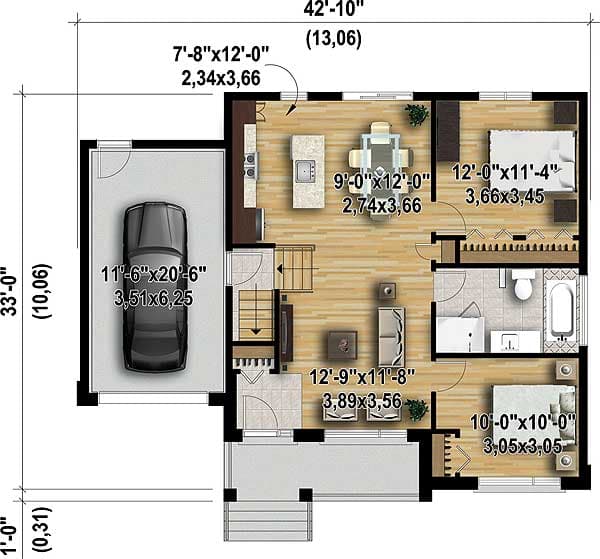

floor plan image Main Level
Plan Details
  • With only two bedrooms, this split level Contemporary house plan is an ideal size as a starter home.
  • The foyer opens up to the large great room where the kitchen, dining and living space are all combined to increase the open feeling.
  • Four steps down takes you to the one car garage and more stairs take you down to the basement.
  • Both bedrooms share a large four piece bathroom.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
