Name: Plan 36683TX: Sprawling Hill Country House Plan with Motor Court and Over 6,100 Square Feet of Living Space
SKU: 36683TX
Price: 2860.0 USD
Availability: InStock

Plan 36683TX

Sprawling Hill Country House Plan with Motor Court and Over 6,100 Square Feet of Living Space

Heated S.F.

6,146

Beds

Baths

5.5+

Stories

Cars

Floor Plan

Main Level

Plan Details

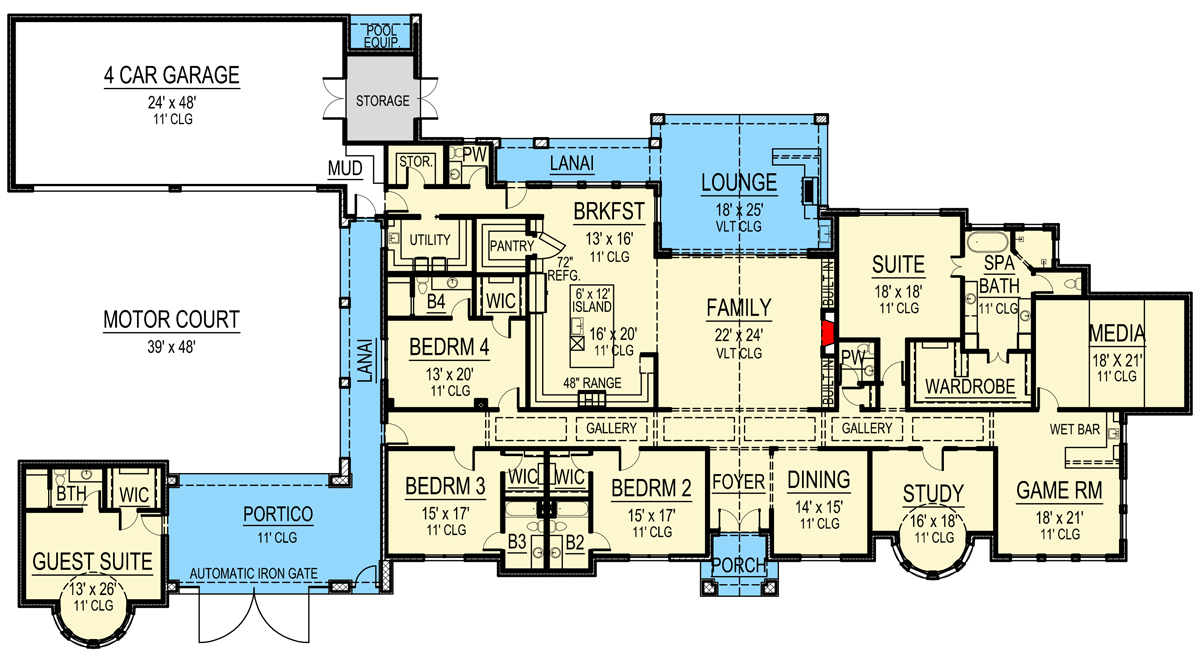

A portico to the left of this sprawling Hill Country house plan provides drive-thru access to the motor court and connects the guest suite to the main living space.
The spacious family room enjoys a vaulted ceiling and easy access onto the outdoor lounge, while the adjacent kitchen is destined to host family gatherings with its large island and range, walk-in pantry, and ample workspace.
The homeowner's wing boasts a deluxe bedroom and bathroom, study with round bay window, game room with wet bar, and media room.
Each of the additional bedroom suites includes a full bath and walk-in closet.
Dedicated storage space in the 4-car garage is a nice feature, along with a mudroom and pool equipment nook.

What's Included

Cover sheet
Foundation Plan - schematic only
First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

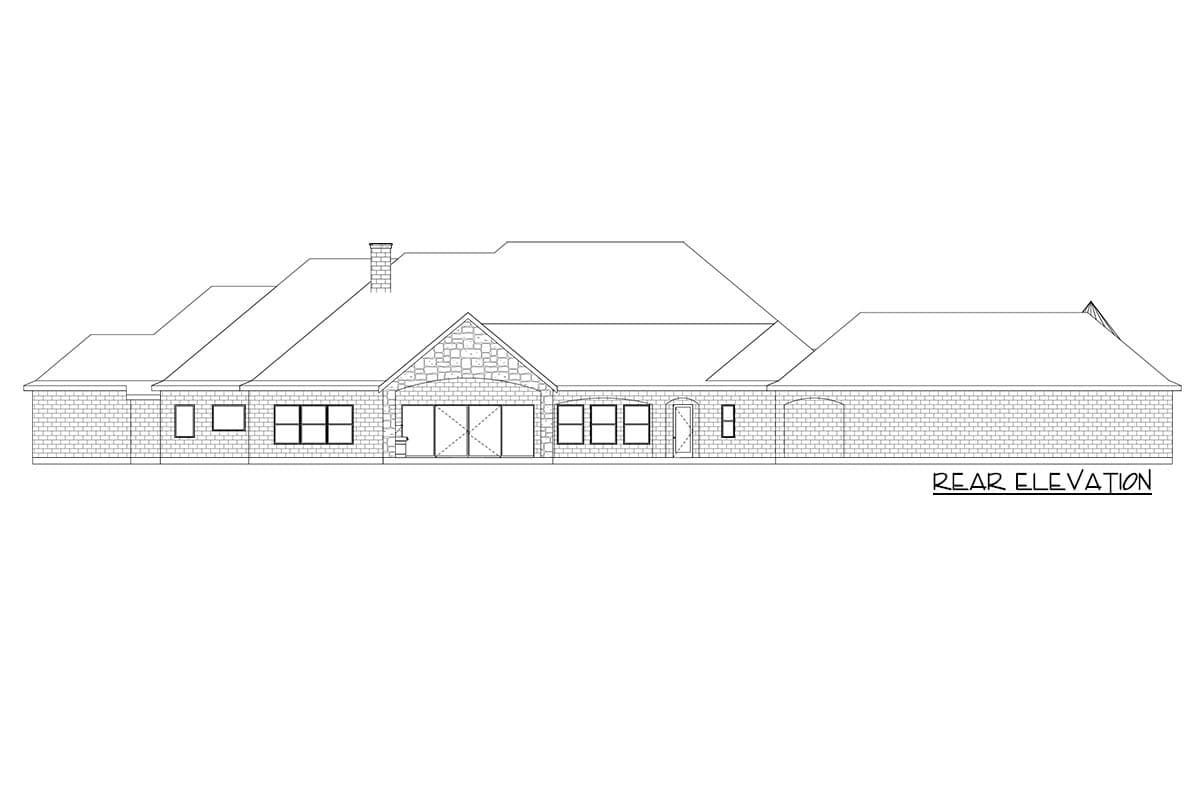

Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

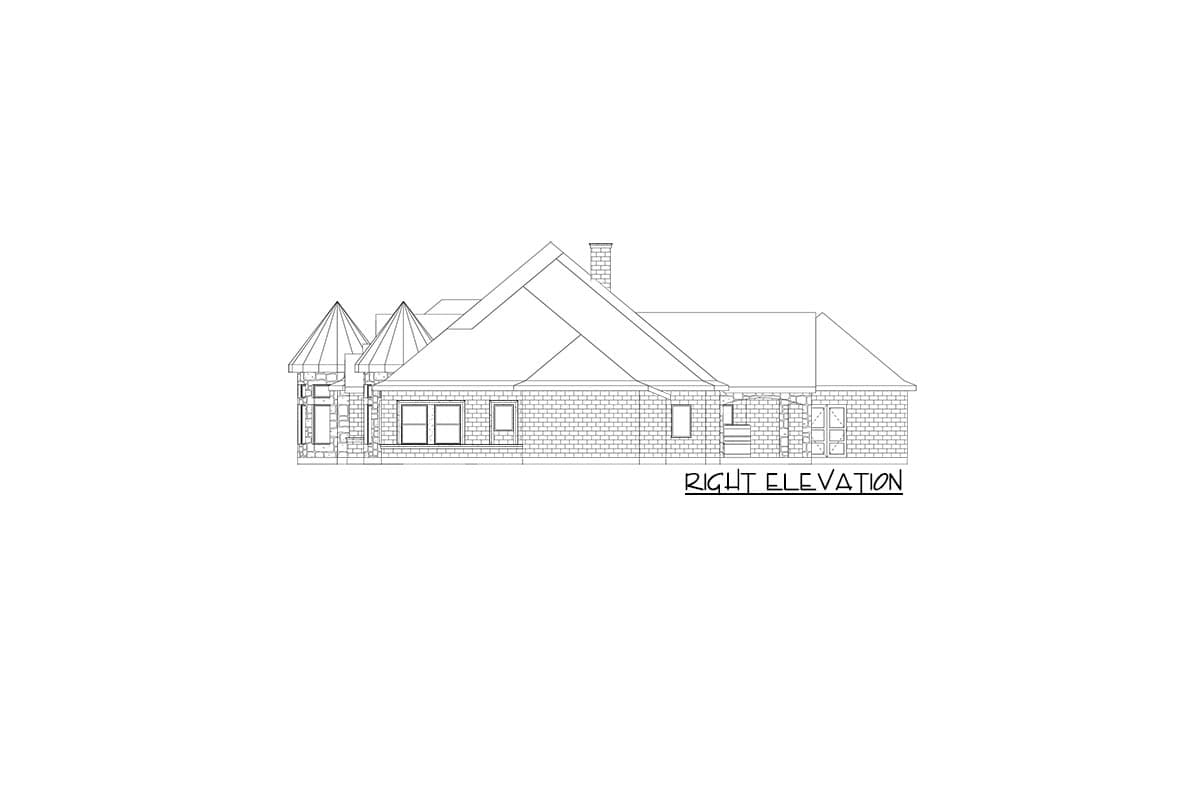

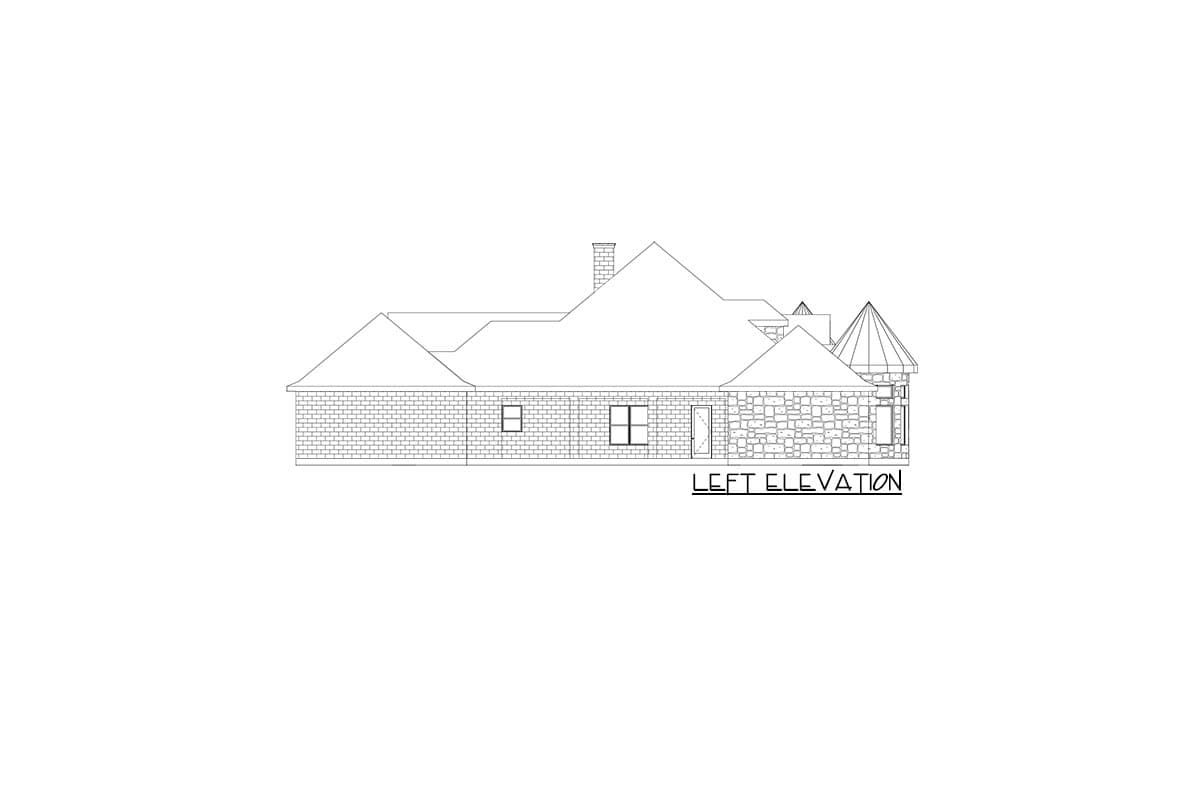

Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
Sections page
Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
