Plan 23782JD
Sprawling Modern Farmhouse Plan with First-Floor Master
Heated S.F.
5,390
Beds
4 - 5
Baths
4.5
Stories
2
Cars
3
Floor Plan

Plan 23782JD

Main Level
slide image 0

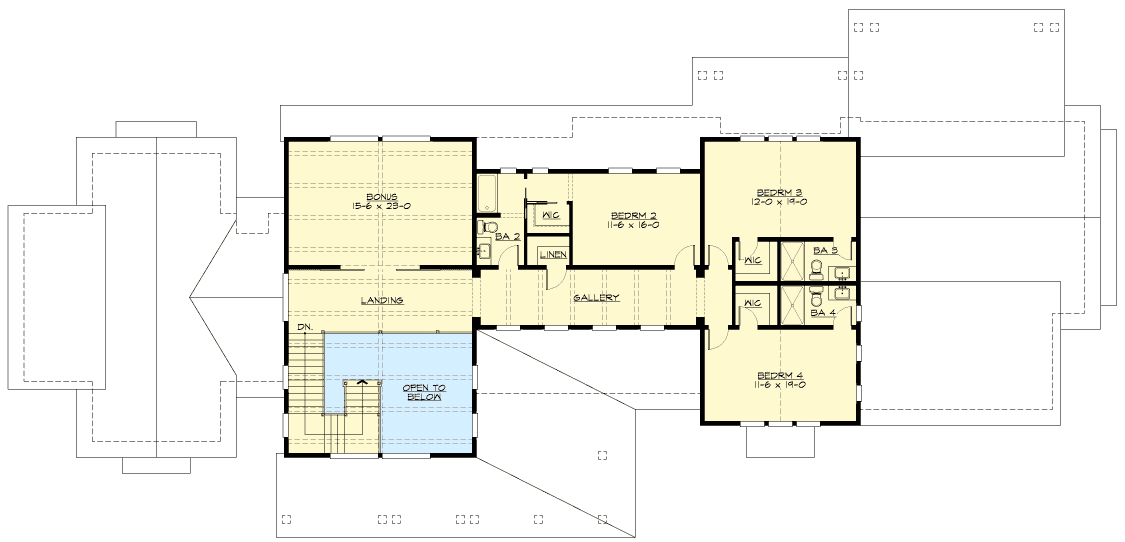

2nd Floor
slide image 1

Plan 23782JD

1-800-854-7852

1-262-521-4596

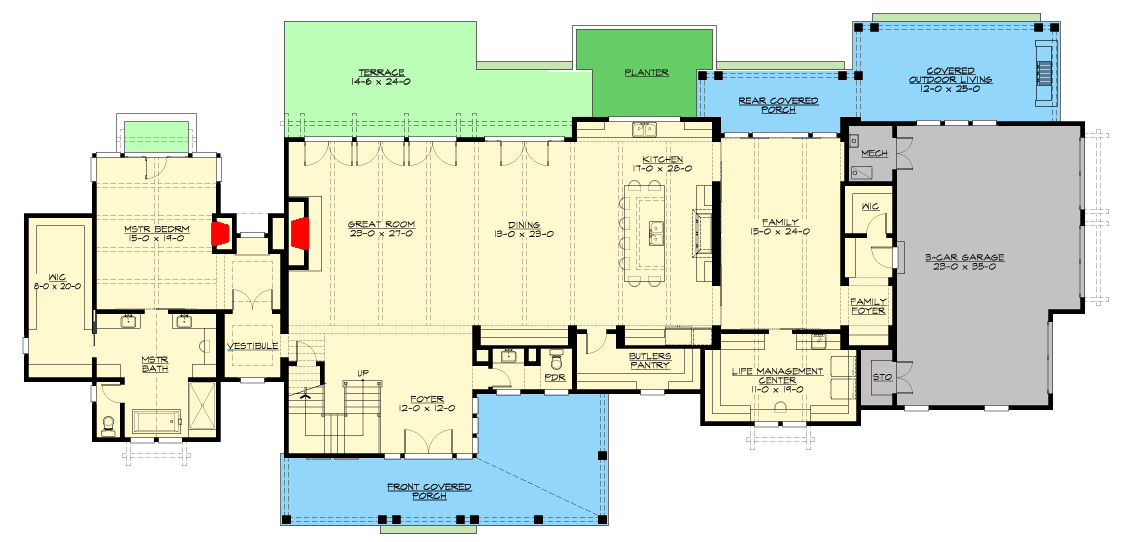

Main Level
floor plan image Main Level

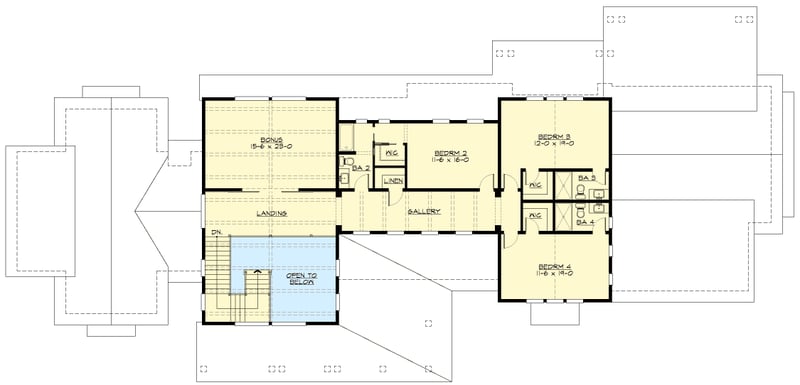

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Country charm defines this 5-bedroom, farmhouse plan with a wrap-around, front porch, metal roof accents, and board and batten siding.
  • The light and airy, open-concept floor plan provides a grand space for family and friends to gather. The great room includes a fireplace and three sets of french doors opening to the terrace. Casual seating for six is available at the oversized kitchen island, and a tucked away butler's pantry offers ample workspace.
  • A second, quiet family room sits behind the kitchen, just inside from the 3-car garage, neighboring the main-level, laundry room.
  • Your secluded, master suite boasts a private patio, fireplace, and 5-fixture master bath with a walk-in closet.
  • Three bedrooms can be found upstairs, each with access to a full bathroom. Decorative barn doors at the top of the stairs lead to a bonus room - included in the total living area figures and could serve as an optional fifth bedroom - for added versatility.
  • The cabana shown in the third rendering is plan 23765JD and is sold separately.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

5,390 sq. ft.

1st Floor

3,535 sq. ft.

2nd Floor

1,855 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

132' 6"

Depth

63' 0"

Max Ridge Height

33' 0"

Garage

Type

Attached

Area

815 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Country

Farmhouse

New American

Traditional

Special Features

Bonus Room

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

5,390 sq. ft.

1st Floor

3,535 sq. ft.

2nd Floor

1,855 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

132' 6"

Depth

63' 0"

Max Ridge Height

33' 0"

Garage

Type

Attached

Area

815 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Country

Farmhouse

New American

Traditional

Special Features

Bonus Room

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor
