Plan 66104WE
Standout Bridged Walkway
Heated S.F.
3,580
Beds
4
Baths
4
Stories
2
Cars
3
Floor Plan

Plan 66104WE

Main Level
slide image 0
2nd Floor
slide image 1

Plan 66104WE

1-800-854-7852

1-262-521-4596

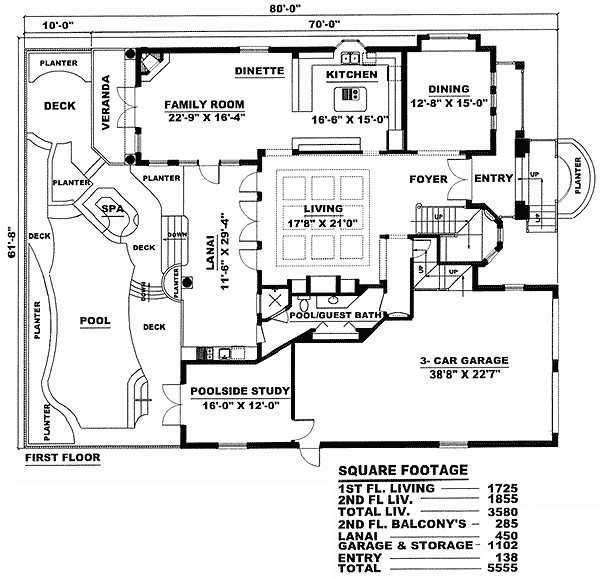

Main Level
floor plan image Main Level

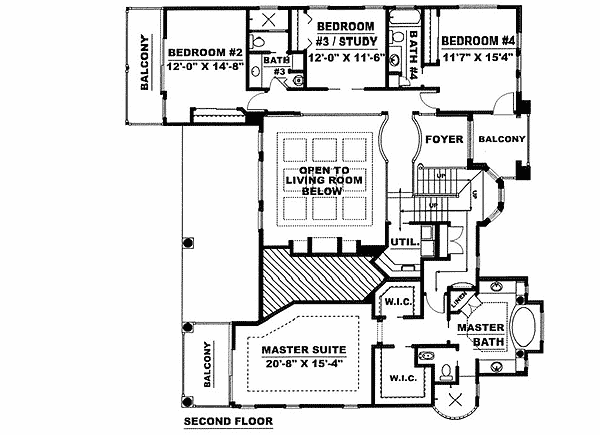

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Stylish front steps lead to the foyer of this house plan which embraces living areas accented by a bridged walkway above. The living room is accented by a large expanse of double pocket sliding glass doors that offer access to a covered lanai for outside enjoyments.
  • The gourmet kitchen delights with its openness to the rest of the house. The sunny parlor room radiates from the first-floor living area with a stunning overlook to the front porch.
  • Upstairs, accessible by stair or elevator, you'll find the luxurious master suite. With a balcony and a private bath opening through a pocket door, it contains His and Her walk-in closets, a whirlpool tub, dual vanities, and an oversize shower with a curved wall of glass block.
  • Stroll across your open walkway to three oversized bedrooms, one with its own private balcony to overlook the screen enclosed pool and spa area.
What's Included
Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,580 sq. ft.

1st Floor

1,725 sq. ft.

2nd Floor

1,855 sq. ft.

Entry

138 sq. ft.

Balcony / Veranda

285 sq. ft.

Lanai

450 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

61' 8"

Depth

70' 0"

Max Ridge Height

34' 0"

Garage

Type

Attached

Area

1102 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Family Room

Flat

10' 0''

Dining Room

Flat

10' 0''

Study

Flat

10' 0''

Entry

Flat

10' 0''

All Bedrooms

Flat

9' 0''

Lanai

Vaulted

20' 4''

Kitchen

Flat

10' 0''

Master Bath

Flat

11' 0''

Foyer

Vaulted

20' 4''

Dinette

Flat

10' 0''

Master Bedroom

Vaulted

9' 1''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida

Mediterranean

Special Features

Bedrooms - Split

Breakfast Nook

Elevator

Flex Room

Formal Dining

Laundry - Upstairs

Library/Study

Master Suite - 2nd Floor

Outdoor Kitchen

Two Story Great Room

Plan Collections
