Name: Plan 36231TX: Stately Home Plan with Courtyard Style Entry
SKU: 36231TX
Price: 1290.0 USD
Availability: InStock

Plan 36231TX

Stately Home Plan with Courtyard Style Entry

Heated S.F.

3,685

Beds

Baths

3.5

Stories

Cars

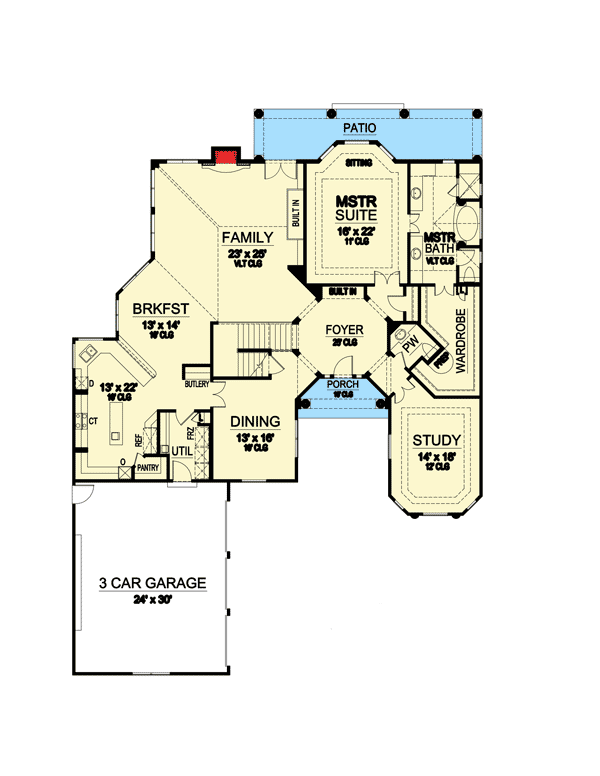

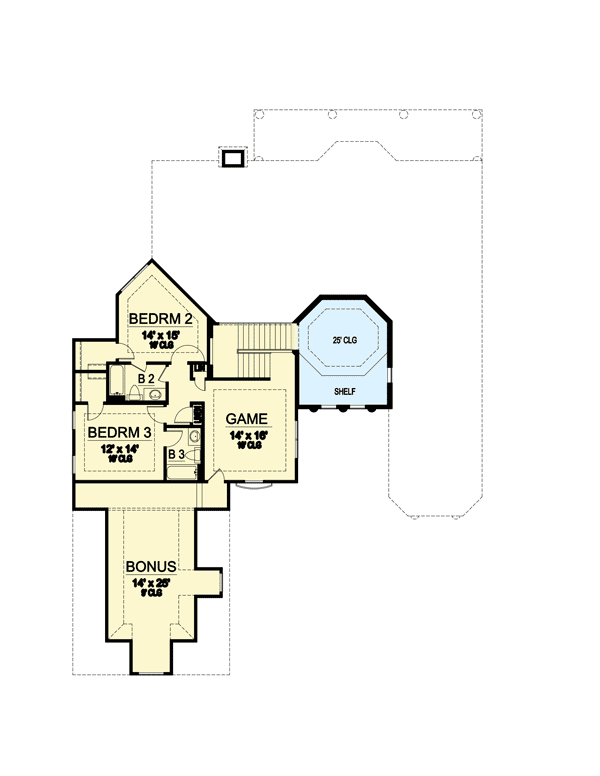

Floor Plan

Main Level

2nd Floor

Plan Details

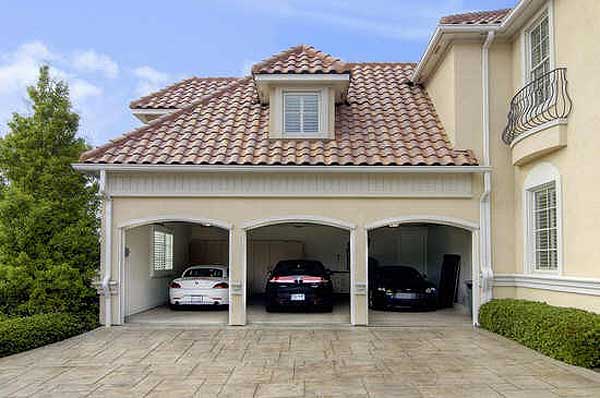

This house plan greets you with its courtyard-style entry created by the 3-car garage pulled out from the home.

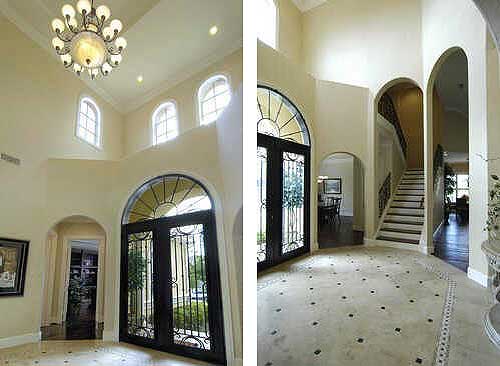

The covered porch entry leads to your vaulted foyer with 25' ceiling. Four angled archways make this area service as the homes main traffic director.

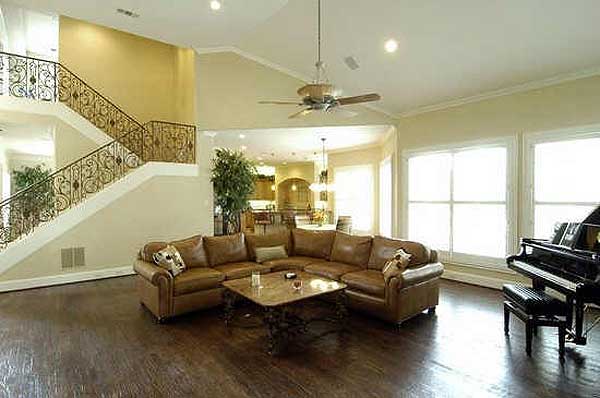

The family room featurs a vaulted ceiling and a fireplace plus built-ins for your home media. It is open to the breakfast room where you'll find counter seating and views outside.

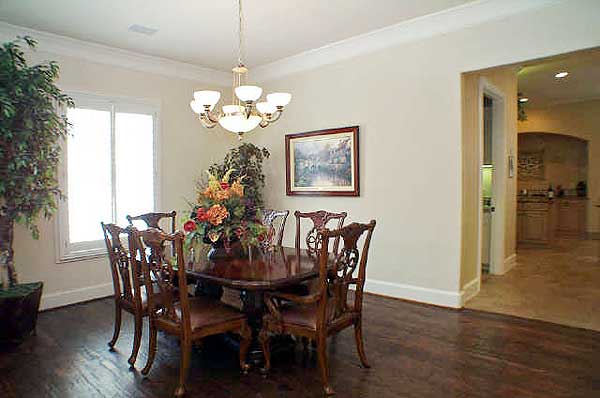

A butlery services the formal dining room.

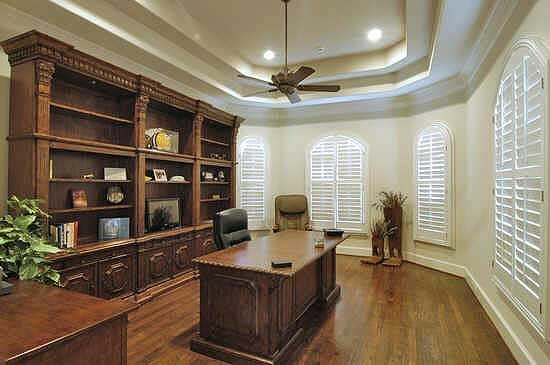

The private study has french doors and a 12' double tray ceiling.

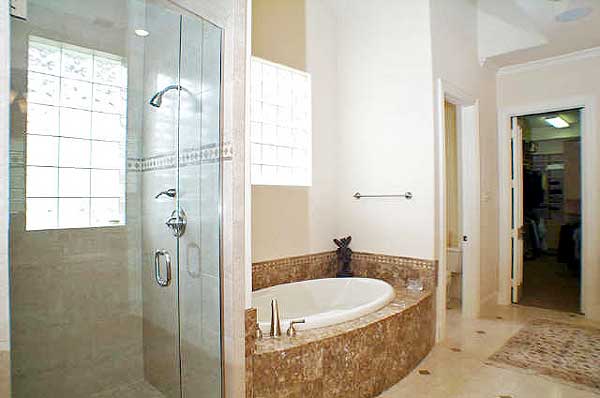

The master suite features a sitting area and tray ceilings. The master bath is spacious as is the wardrobe with built-ins.

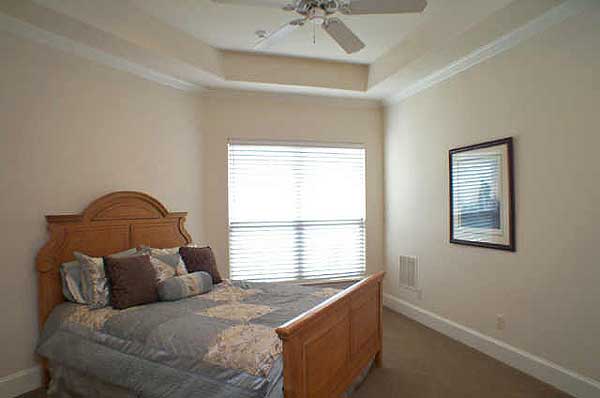

Upstairs, two bedroom suites with walk-ins plus a game room and future expansion space complete the home.
Related Plan: For a slightly different study, see house plan 36166TX.

What's Included

Cover sheet
Foundation Plan - schematic only
First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

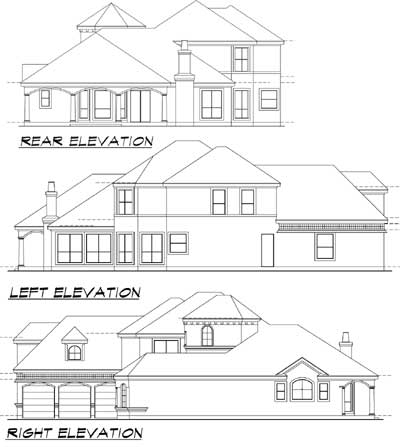

Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
Sections page
Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
