Plan 15824GE
Stone Clad Manor with Options
Heated S.F.
2,742
Beds
4
Baths
2.5 - 3.5
Stories
2
Cars
2
Floor Plan

Plan 15824GE

Main Level
slide image 0
2nd Floor
slide image 1
Optional
slide image 2

Plan 15824GE

1-800-854-7852

1-262-521-4596

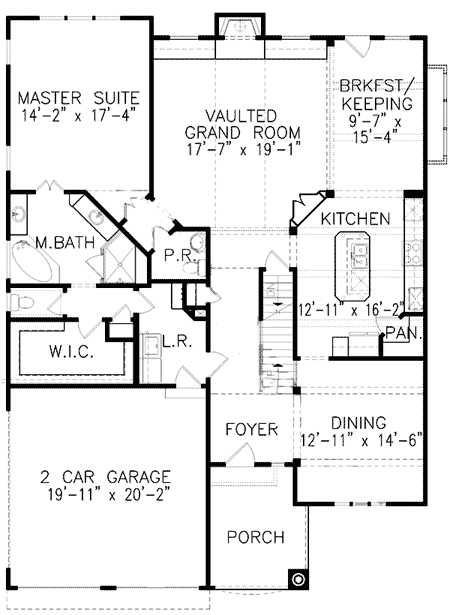

Main Level
floor plan image Main Level

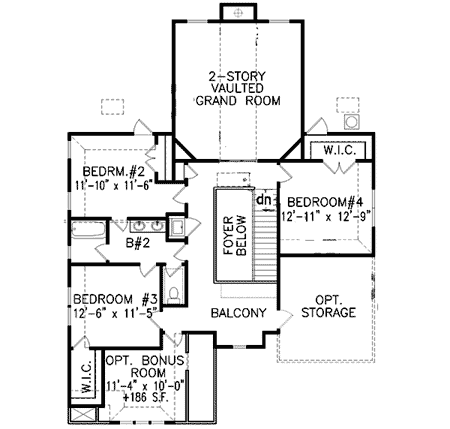

2nd Floor
floor plan image 2nd Floor
Optional
floor plan image Optional
Plan Details
  • The two-story vaulted grand room with fireplace is the centerpiece of this beautiful stone manor home.
  • The spacious kitchen with center island has a walk-in pantry and views of the breakfast nook.
  • Triple windows in the first floor master suite add extra light and there is even an entrance directly to the laundry room for convenience.
  • Three large bedrooms occupy the second floor along with optional storage a bonus space. These bedrooms all show vaulted ceiling options. They can tray up to 2' or be raised to 11' flat ceilings if preferred.
  • The optional bonus room vaults starting at 8' and goes up t 18'4" with a flat mid'section at 5' wide.
  • Related Plan: Get more room and an alternate exterior with house plan 15755GE (3,145 sq. ft.).
What's Included
  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,742 sq. ft.

1st Floor

1,791 sq. ft.

2nd Floor

951 sq. ft.

Bonus

186 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 6"

Depth

58' 4"

Max Ridge Height

31' 2"

Garage

Type

Attached

Area

402 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Architectural Style

Cottage

Square Footage Breakdown

Total Heated Area

2,742 sq. ft.

1st Floor

1,791 sq. ft.

2nd Floor

951 sq. ft.

Bonus

186 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 6"

Depth

58' 4"

Max Ridge Height

31' 2"

Garage

Type

Attached

Area

402 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Architectural Style
