Plan 90300PD
Striking Modern House Plan
Heated S.F.
1,578
Beds
2
Baths
1.5
Stories
2
Cars
1- 2
Floor Plan

Plan 90300PD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 90300PD

1-800-854-7852

1-262-521-4596

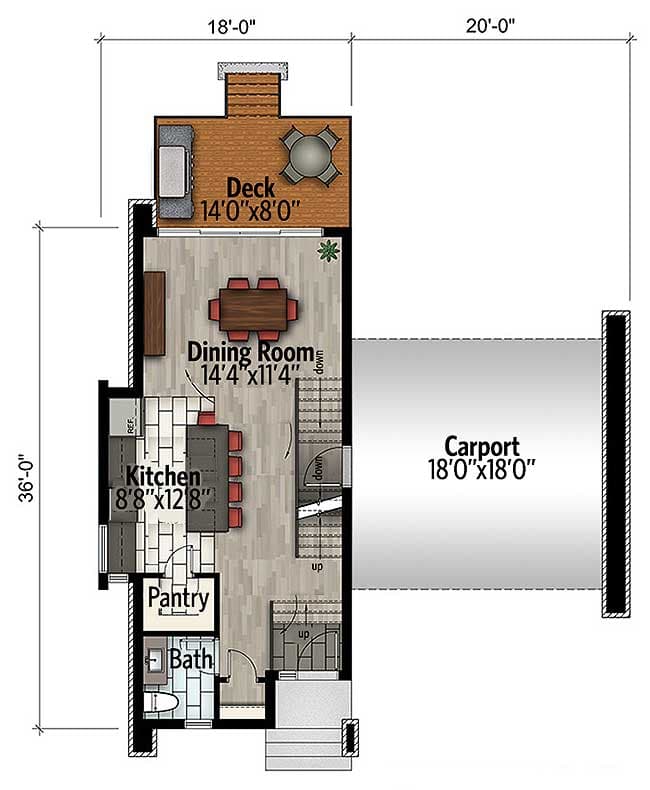

Main Level
floor plan image Main Level

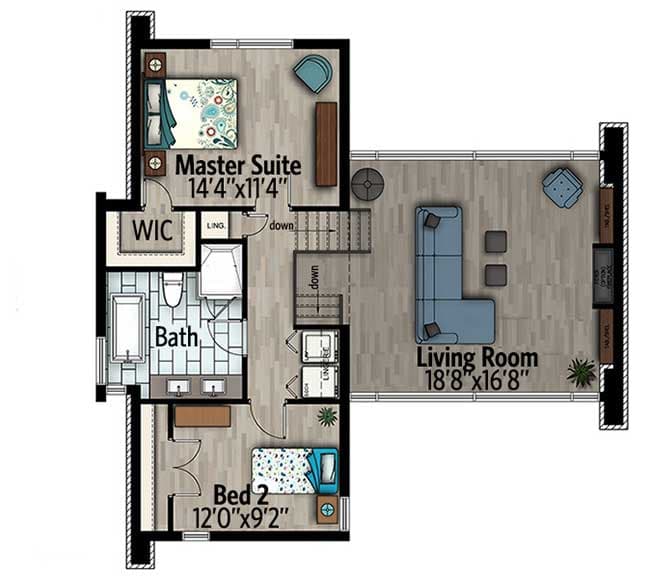

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Walls of glass on both sides of this living room give this Modern house plan a strikingly beautiful look.
  • On the ground level, you have the carport, kitchen and dining room with sliding glass doors out to a balcony.
  • The glass living room above the carport sits midway between the kitchen and bedroom levels.
  • There are two bedrooms and a washer/dryer closet plus a five piece washroom on the top level.
  • Use the home as a modern getaway or a starter home.
What's Included
Please note this plan is designed to the National Building Code of Canada.

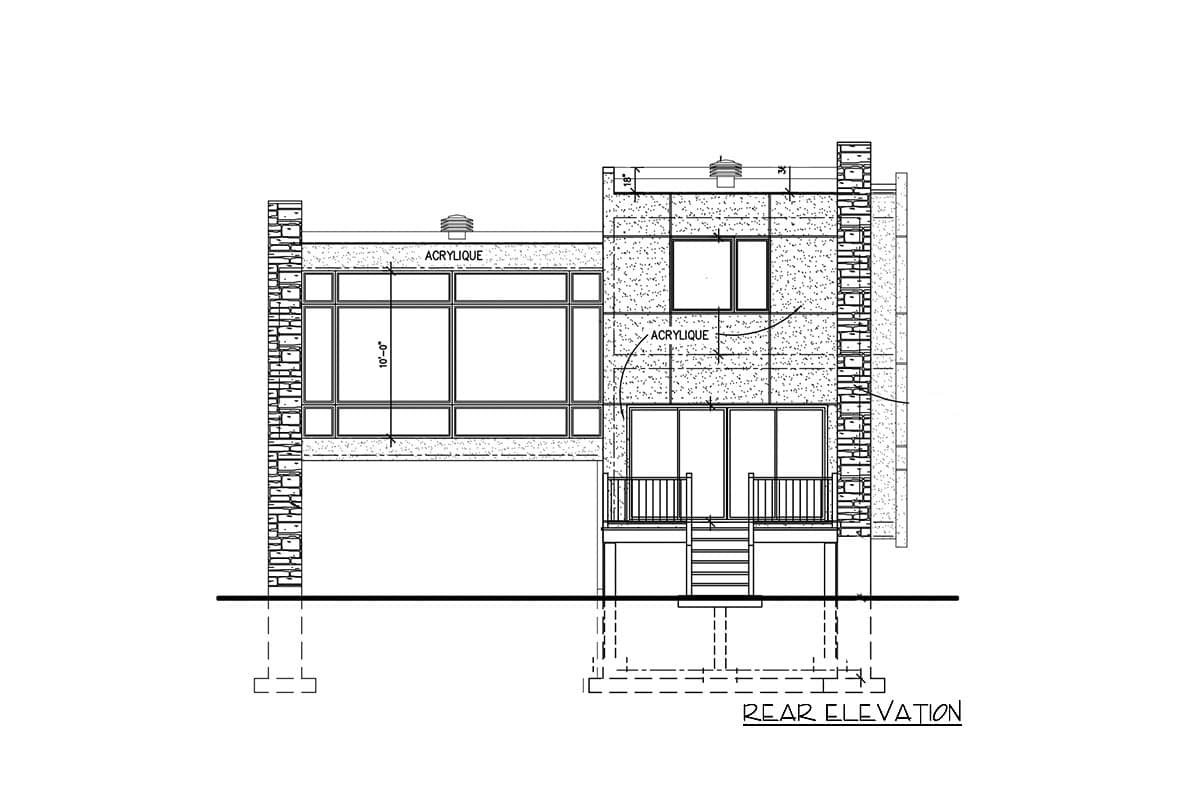

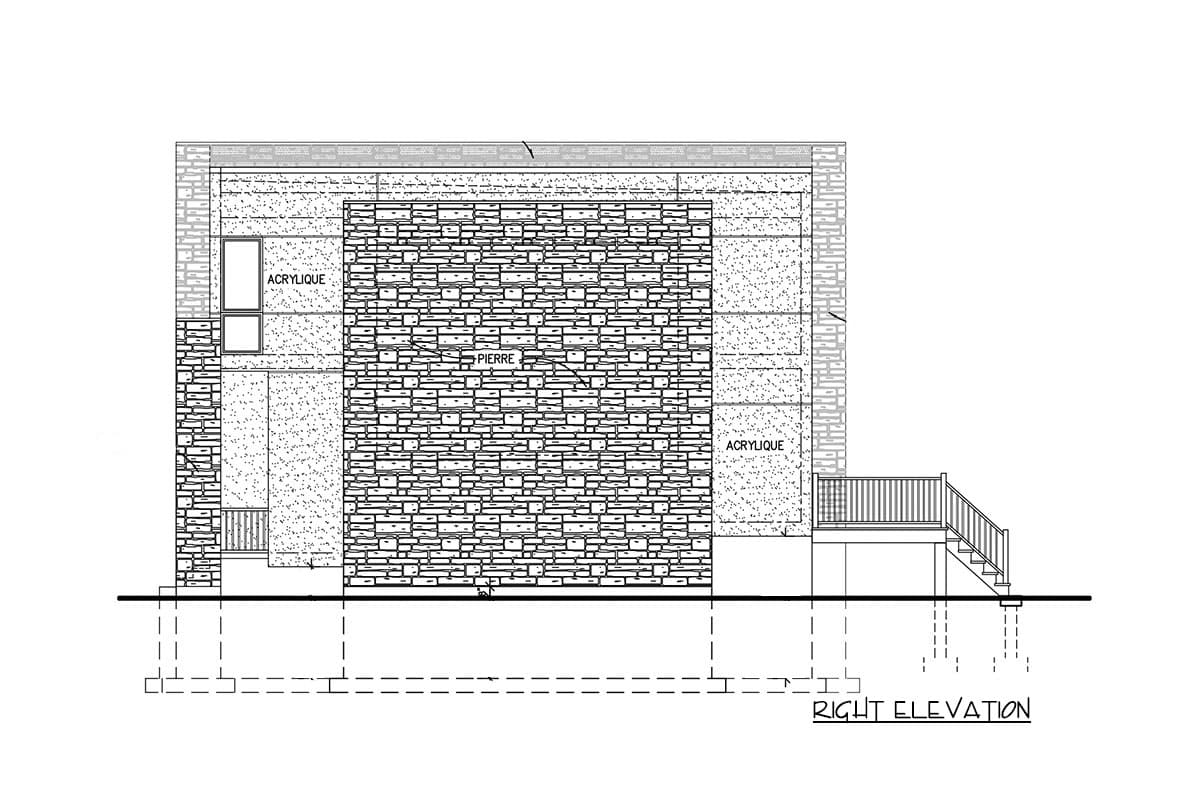

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
  • Suggested lighting plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,578 sq. ft.

1st Floor

595 sq. ft.

2nd Floor

983 sq. ft.

Basement Unfinished

595 sq. ft.

Carport

324 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

36' 0"

Max Ridge Height

27' 0"

Garage

Type

Carport, Drive Under

Count

1 or 2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Vacation

Special Features

Bedrooms - Clustered

Breakfast Nook

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor

Split Level

Plan Collections

Canadian House Plans
