Name: Plan 65675BS: Stucco-Clad Mediterranean Home Plan with Outdoor Fireplace and Kitchen Space - 4133 Sq Ft
SKU: 65675BS
Price: 4133.0 USD
Availability: InStock

Plan 65675BS

Stucco-Clad Mediterranean Home Plan with Outdoor Fireplace and Kitchen Space - 4133 Sq Ft

Heated S.F.

4,133

Beds

Baths

5.5

Stories

Cars

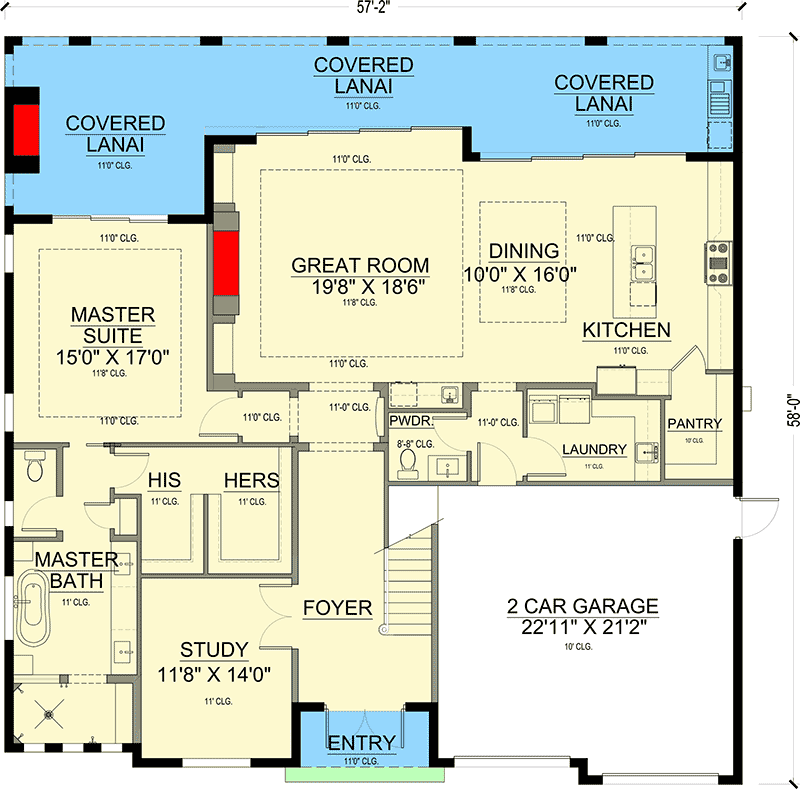

Floor Plan

Main Level

2nd Floor

Plan Details

Four pillars support the front porch of this stucco-clad, Mediterranean home plan. Inside, oversized sliding doors create an easy flow between the interior and rear covered lanai for an indoor outdoor lifestyle.
With a kitchen that opens to the great room and lanai, this home is perfect for entertaining. A large walk-in pantry offers plenty of storage and a kitchen island serves as a natural conversation hub.
Enjoy the convenience of a main-level master suite, which provides access to the lanai, his and hers closets, and a 5-fixture bathroom with a large walk-in shower.
A quiet study resides just off the foyer and completes the main floor.
Four sizable bedroom suites can be found upstairs, surrounding a generous loft. Each of the rear-facing rooms lead to an elongated balcony to make the most of the view.
BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida. Please contact us with your site address to confirm.

What's Included

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
