Plan 31824DN
Stunning and Spacious Beach House Plan
Heated S.F.
4,450
Beds
4
Baths
5.5
Stories
2
Cars
2
Floor Plan

Plan 31824DN

Main Level
slide image 0
2nd Floor
slide image 1

Plan 31824DN

1-800-854-7852

1-262-521-4596

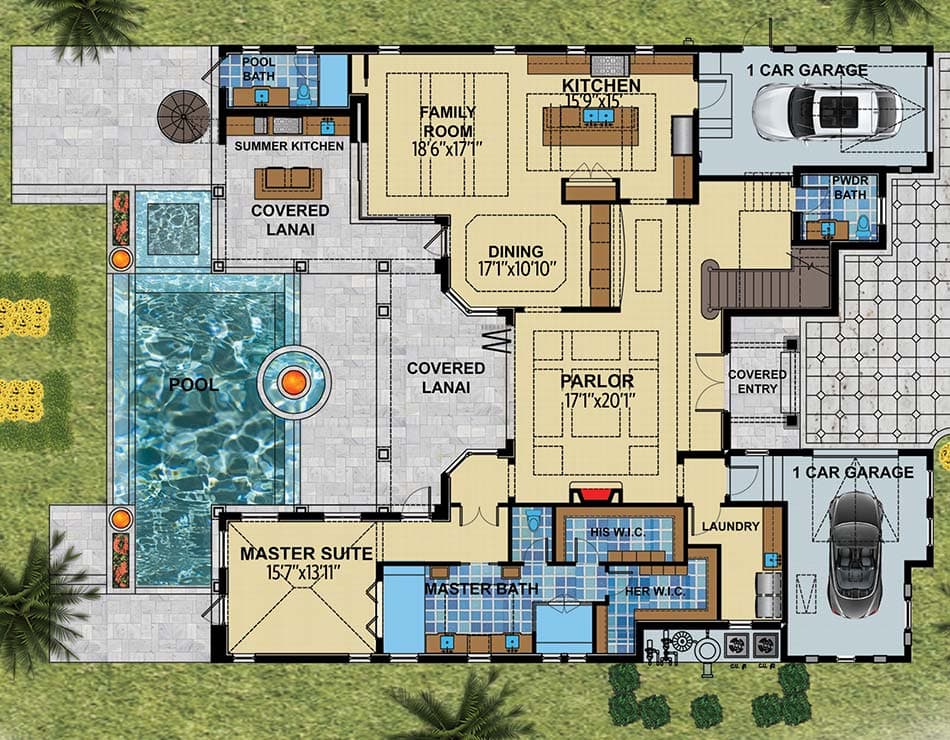

Main Level
floor plan image Main Level

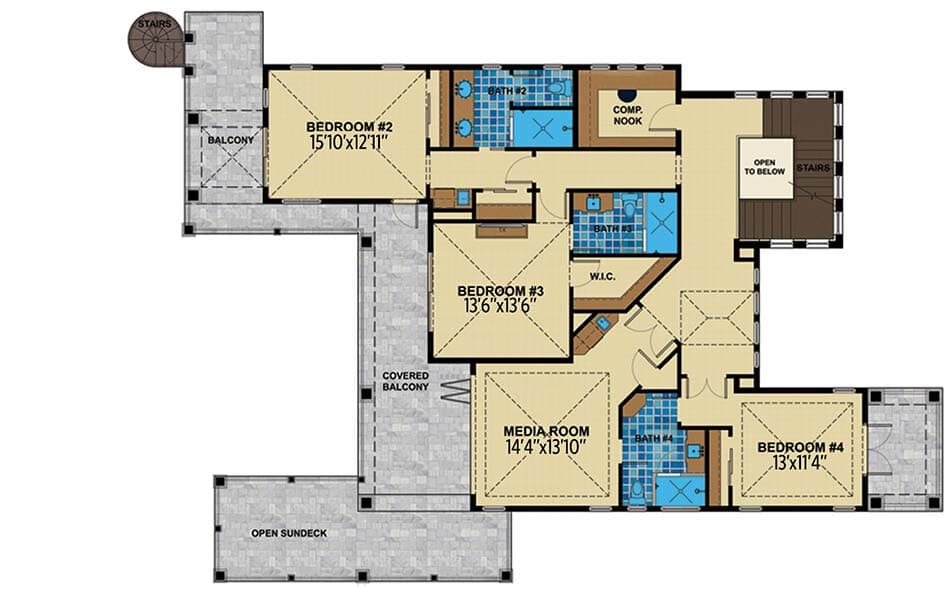

2nd Floor
floor plan image 2nd Floor
Plan Details

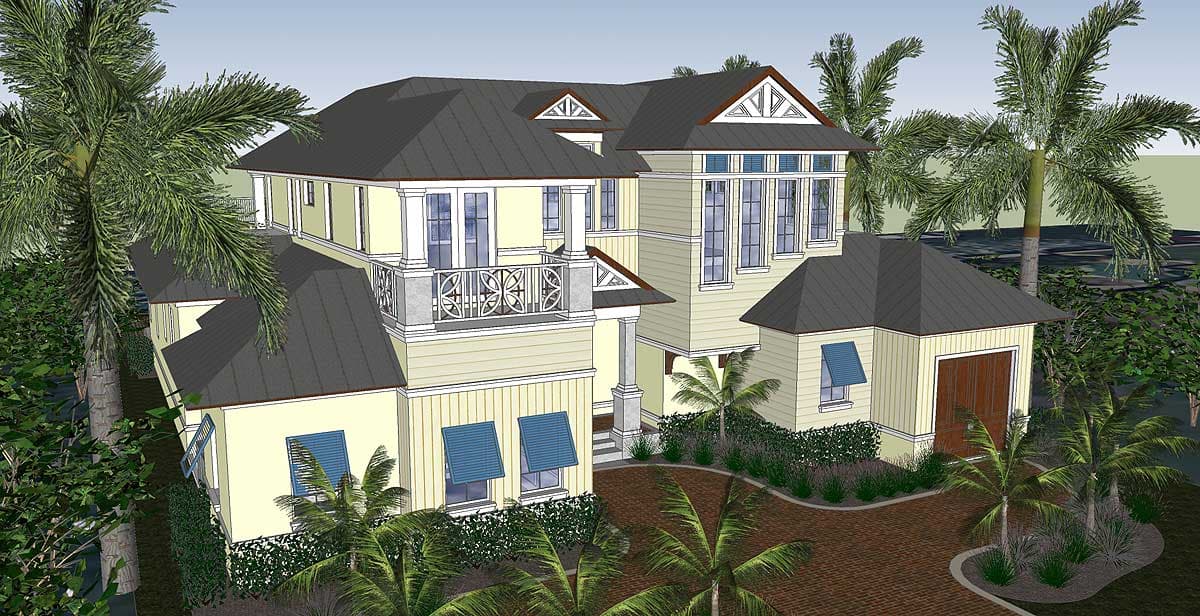

  • A covered entry greets you as you enter this 4 bedroom luxury house plan that has balconies and outdoor spaces on both levels to give you great entertaining and relaxing opportunities wherever you are.

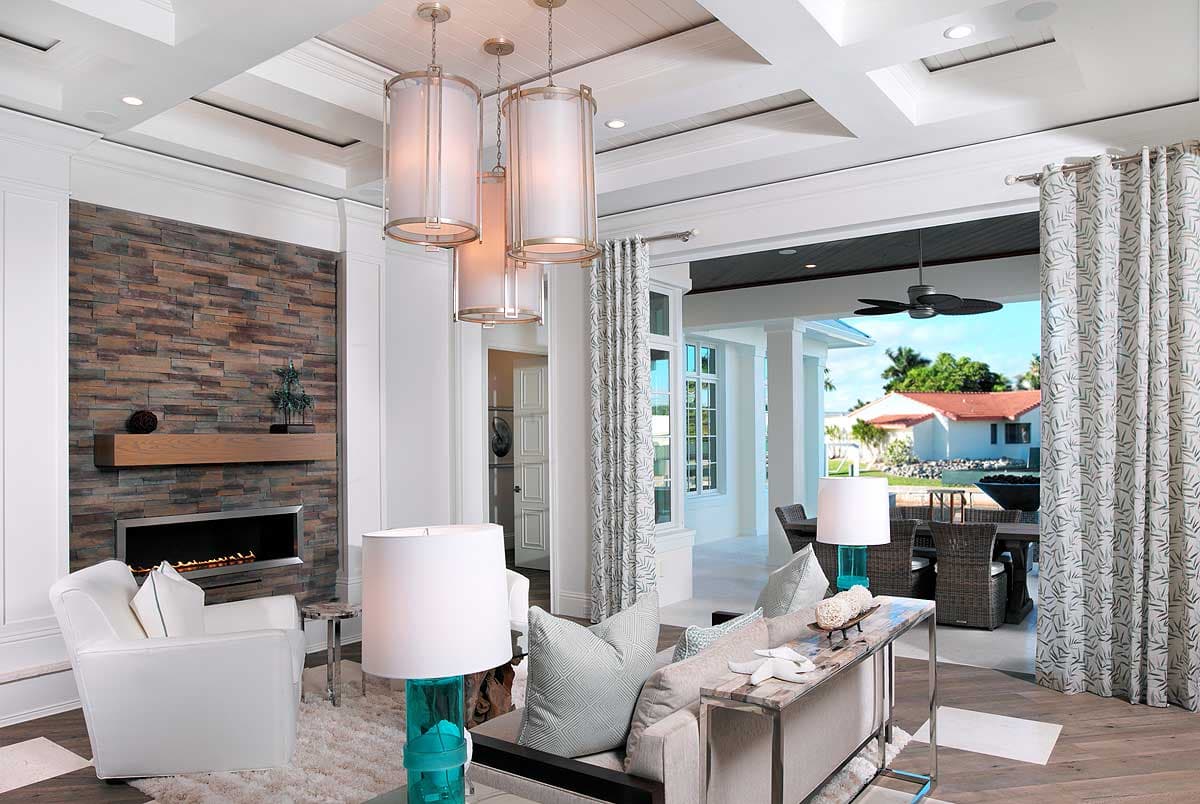

  • French doors open to the parlor where the back wall collapses joining the covered lanai to the indoors.

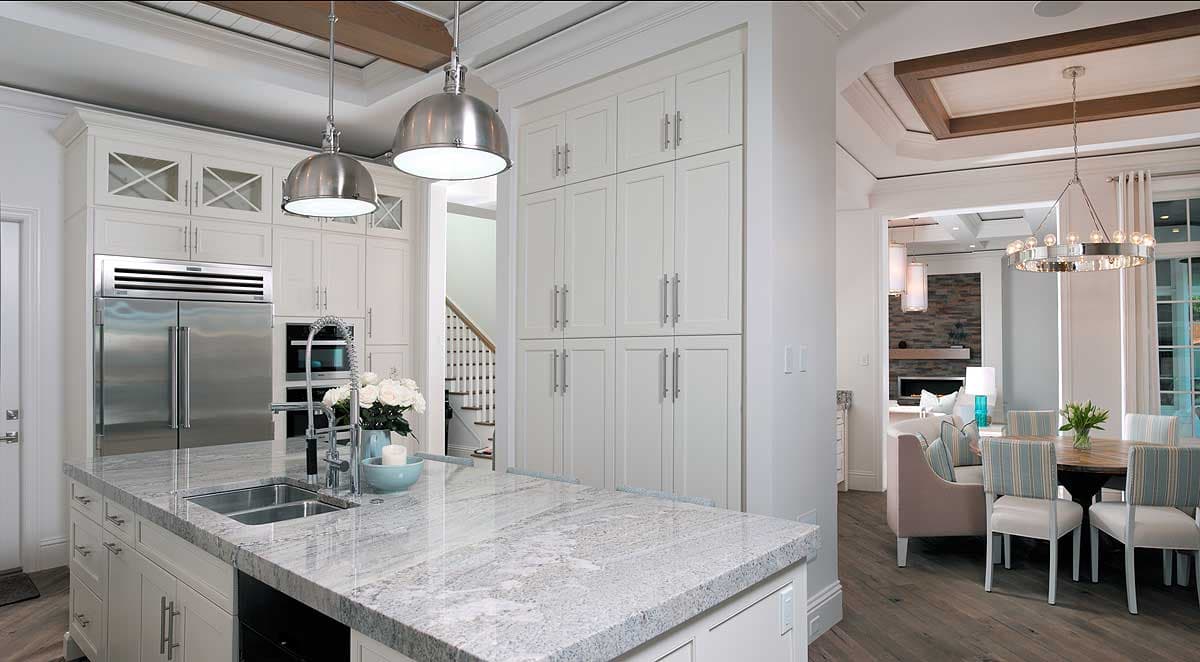

  • The kitchen is off to the right and is open to the family room and the dining room. A large island has a sink and casual seating.

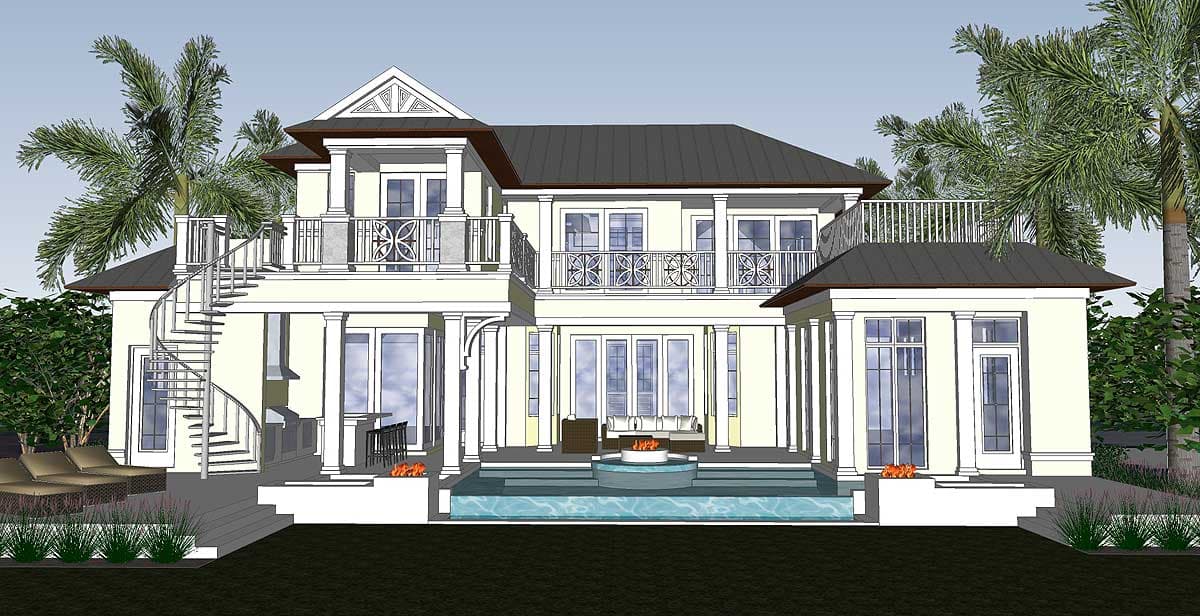

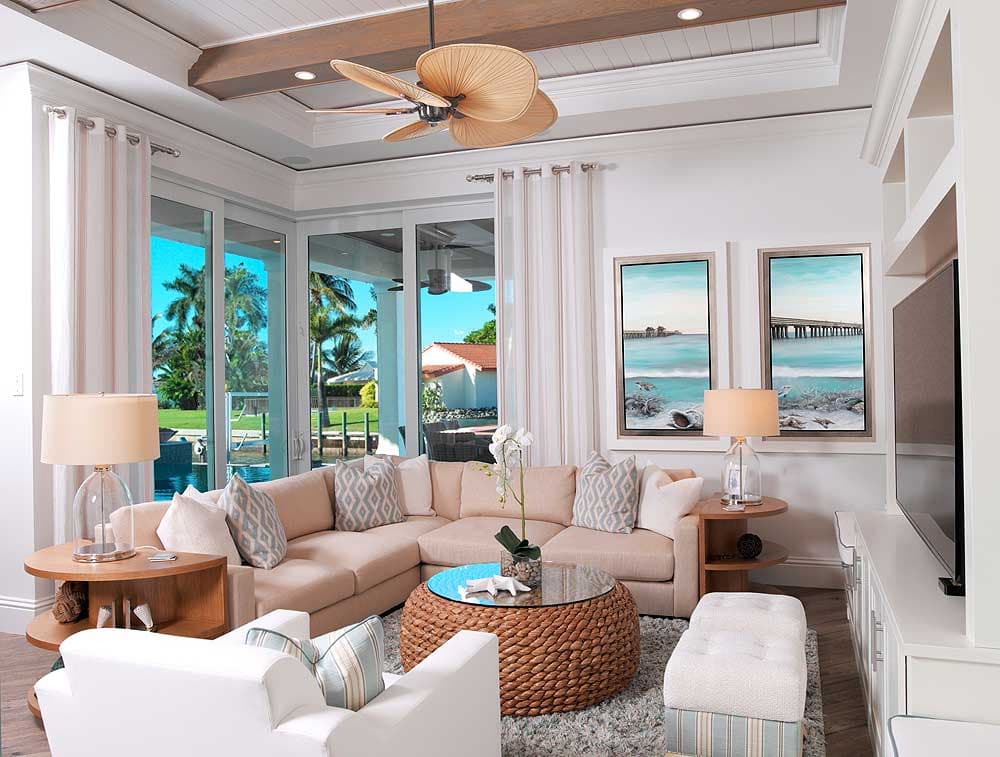

  • Two walls in the family room slide open giving you access to the covered lanai where there is room for an outdoor living room by the summer kitchen.
  • The master suite is on the main floor and also has outdoor access. The bath has dual vanities, two large walk-in closets and his and her showers.
  • All three upstairs bedrooms have balcony access. The media room has a vaulted ceiling and a collapsible wall opening the room to the covered balcony as well.
What's Included

  • Slab Plan
  • Floor Plans with Notes and Dimensions
  • Door and Window Schedules
  • Electrical Plans
  • Ceiling Plans
  • Elevations of All Sides
  • Roof Plans
  • Building Sections
  • Wall Sections
  • Fastener Requirements

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,450 sq. ft.

1st Floor

2,716 sq. ft.

2nd Floor

1,734 sq. ft.

Deck

464 sq. ft.

Entry

68 sq. ft.

Balcony / Veranda

339 sq. ft.

Lanai

595 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

64' 8"

Depth

75' 10"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

687 sq. ft.

Count

2 Cars

Entry Location

Front, Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9' 6"

Room

Ceiling Type

Height

Family Room

Tray

10' 0''

Dining Room

Tray

10' 0''

Living Room

Tray

10' 0''

Kitchen

Tray

10' 0''

Master Bedroom

Vaulted

0' 0''

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Coastal

European

Florida

Southern

Transitional

Special Features

Formal Dining

Game/Rec Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Mudroom

Outdoor Kitchen

Two Master Suites

Wet Bar

Plan Collections

Luxury

Photo Gallery

Premium Collection
