Plan 15809GE
Stunning Curb Appeal
Heated S.F.
4,522
Beds
4 - 5
Baths
4.5
Stories
2
Cars
3
Floor Plan

Plan 15809GE

Main Level
slide image 0
2nd Floor
slide image 1

Plan 15809GE

1-800-854-7852

1-262-521-4596

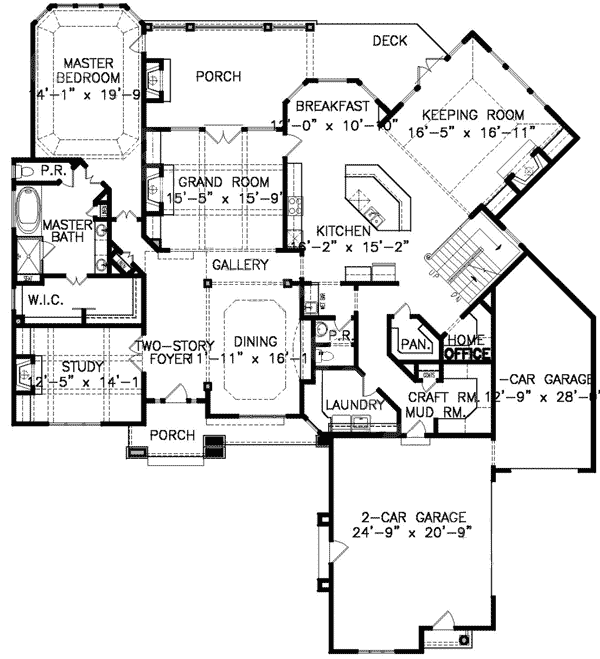

Main Level
floor plan image Main Level

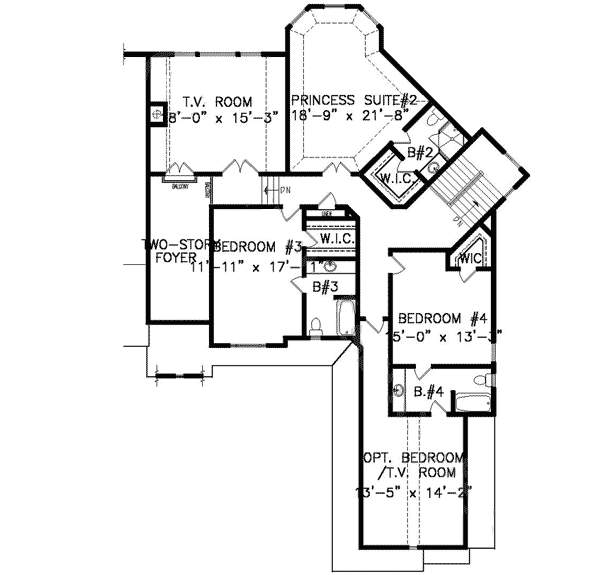

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Multiple gables with elements of stone and brick give this Traditional style house plan stunning curb appeal.
  • Adjacent to the two-story foyer, you are greeted by a dining room and a study complimented with a tray ceiling, built in bookcases and a fireplace.
  • The angled keeping room shares open space with a spacious kitchen.
  • Double doors lead from a covered porch and open deck to the keeping room and grand room with its coffered ceiling.
  • The master bedroom is crafted with a tray ceiling. An oversized walk in closet and master bath complete the master suite.
  • The second floor consists of a princess suite, two bedrooms with a third bedroom option and a T.V. room.
What's Included
  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

4,522 sq. ft.

1st Floor

2,944 sq. ft.

2nd Floor

1,578 sq. ft.

Bonus

200 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

76' 6"

Depth

85' 0"

Garage

Type

Attached

Area

840 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Architectural Style

Traditional

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Plan Collections

Luxury

Photo Gallery

Square Footage Breakdown

Total Heated Area

4,522 sq. ft.

1st Floor

2,944 sq. ft.

2nd Floor

1,578 sq. ft.

Bonus

200 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

76' 6"

Depth

85' 0"

Garage

Type

Attached

Area

840 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Architectural Style

Traditional

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Plan Collections

Luxury

Photo Gallery
