Plan 65605BS
Stunning Mediterranean Home Plan
Heated S.F.
3,182
Beds
3
Baths
3
Stories
1
Cars
3
Floor Plan

Plan 65605BS

Main Level
slide image 0

Plan 65605BS

1-800-854-7852

1-262-521-4596

Main Level

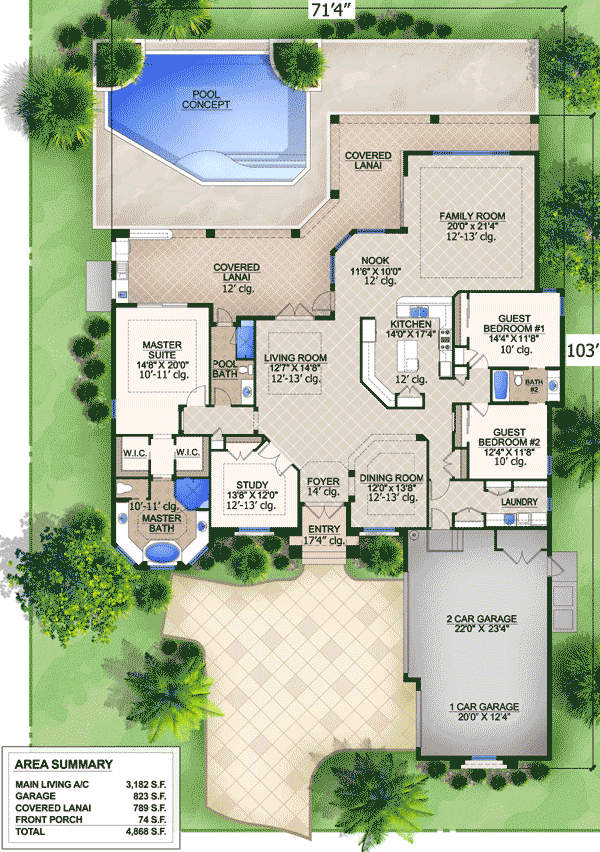

floor plan image Main Level
Plan Details
  • A spacious, open floor plan makes this stunning Mediterranean home plan seem even larger.
  • Tray ceilings can be found throughout the house, adding elegance.
  • Double doors off the foyer lead to a quiet study that could serve as an extra bedroom, if desired.
  • Views from the large gourmet kitchen encompass the nook, family room and covered lanai.
  • Relax on your huge covered lanai or dine out with a built-in grilling area.
  • BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida. Please contact us with your site address to confirm.
What's Included
Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:
  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • Floor and Deck Joist Sizes, Spacing and Direction
  • Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:
  • Miscellaneous General Notes
  • Stairway Details (if applicable)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,182 sq. ft.

1st Floor

3,182 sq. ft.

Entry

74 sq. ft.

Lanai

789 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

71' 4"

Depth

103' 0"

Max Ridge Height

24' 8"

Garage

Type

Attached

Area

823 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

None

13' 0''

None

11' 0''

None

12' 0''

None

10' 0''

None

17' 4''

None

12' 0''

None

11' 0''

None

14' 0''

None

10' 0''

None

13' 0''

None

13' 0''

None

13' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida

Mediterranean

Spanish

Special Features

Bedrooms - Split

Breakfast Nook

Den

Formal Dining

Home Office

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Outdoor Kitchen

Square Footage Breakdown

Total Heated Area

3,182 sq. ft.

1st Floor

3,182 sq. ft.

Entry

74 sq. ft.

Lanai

789 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

71' 4"

Depth

103' 0"

Max Ridge Height

24' 8"

Garage

Type

Attached

Area

823 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

None

13' 0''

None

11' 0''

None

12' 0''

None

10' 0''

None

17' 4''

None

12' 0''

None

11' 0''

None

14' 0''

None

10' 0''

None

13' 0''

None

13' 0''

None

13' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida

Mediterranean

Spanish

Special Features

Bedrooms - Split

Breakfast Nook

Den

Formal Dining

Home Office

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Outdoor Kitchen
