Plan 29801RL

Stunning Mountain Retreat

Heated S.F.

3,352

Beds

3 - 6

Baths

3.5 - 5.5

Stories

1

Cars

2

Floor Plan

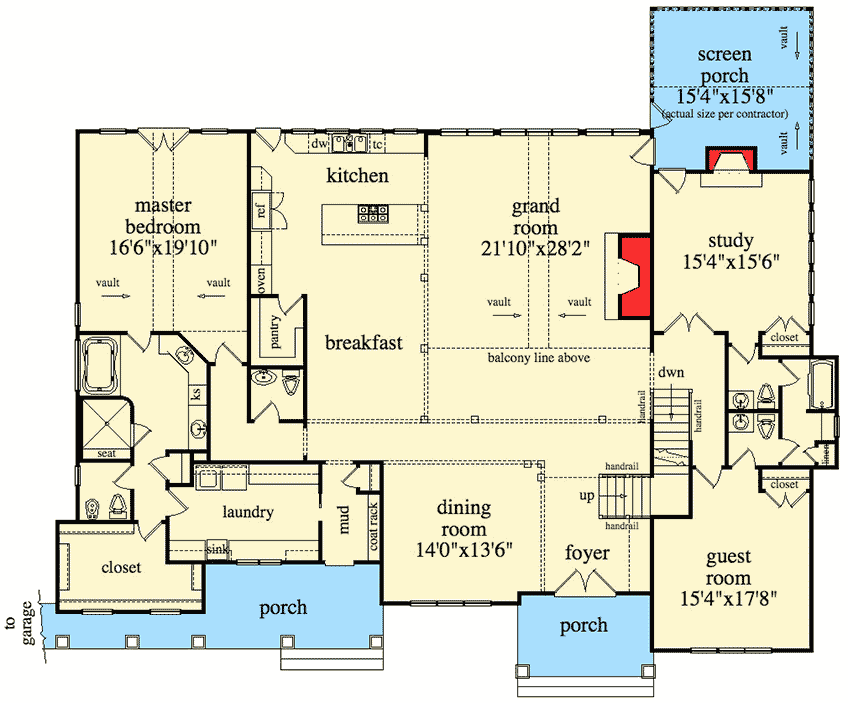

Main Level

floor plan image Main Level

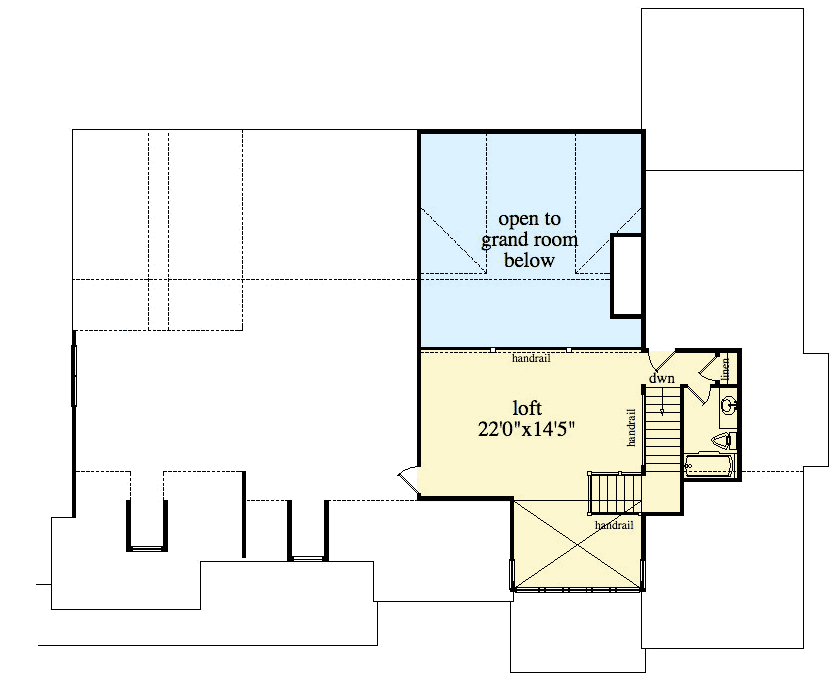

2nd Floor

floor plan image 2nd Floor

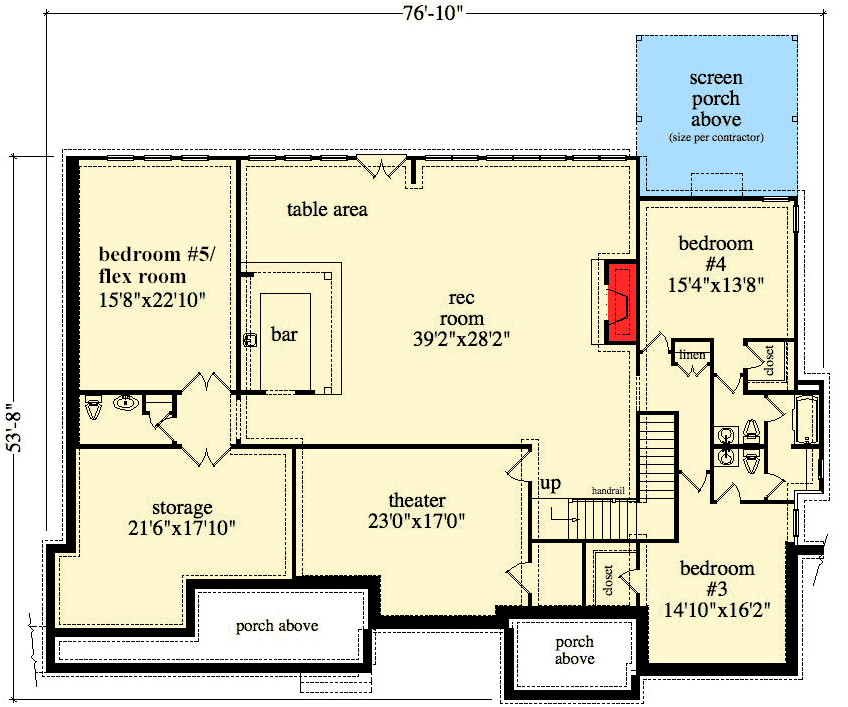

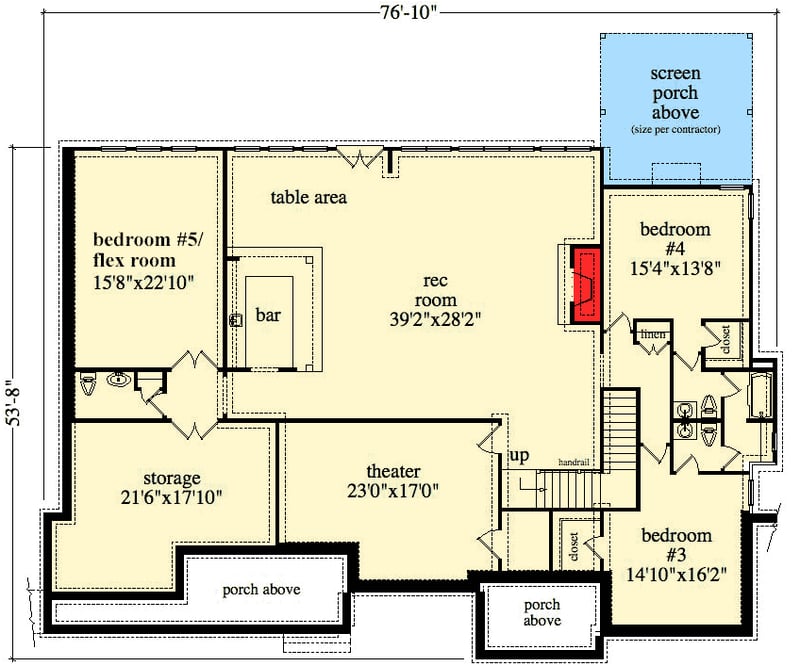

Lower Level

floor plan image Lower Level

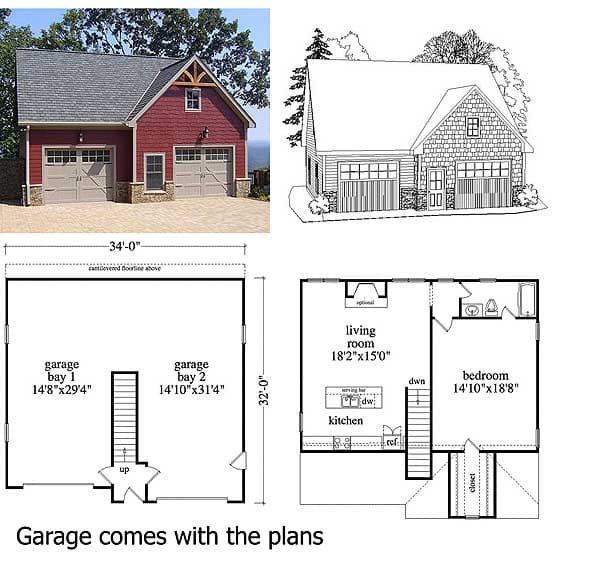

Detached Garage

floor plan image Detached Garage

Plan Details

This very popular house plan was designed for hillside lots and spectacular views and offers flexibility in construction with the option to build out or not the terrace level.
The master suite and a guest suite across the home are located on the main level and were designed with ease-of-use and privacy in mind.

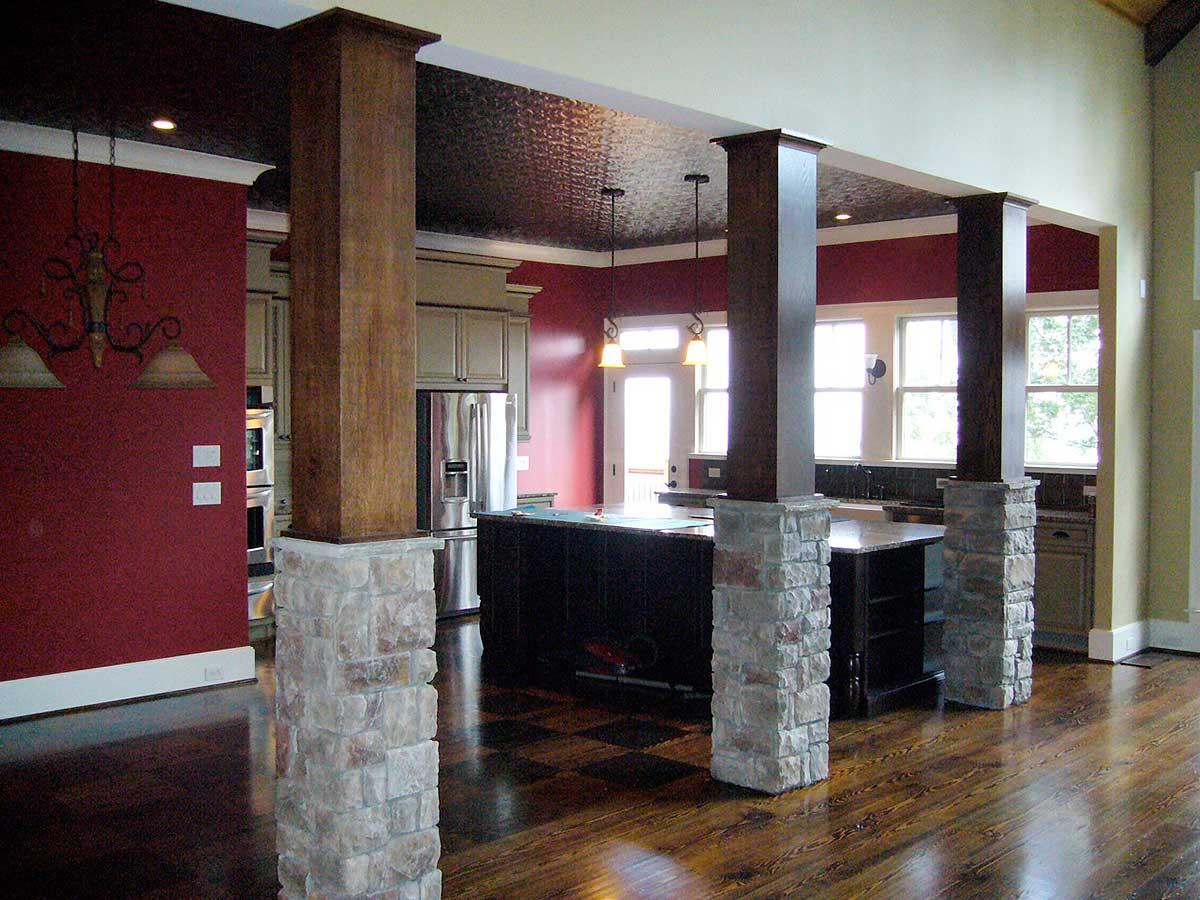

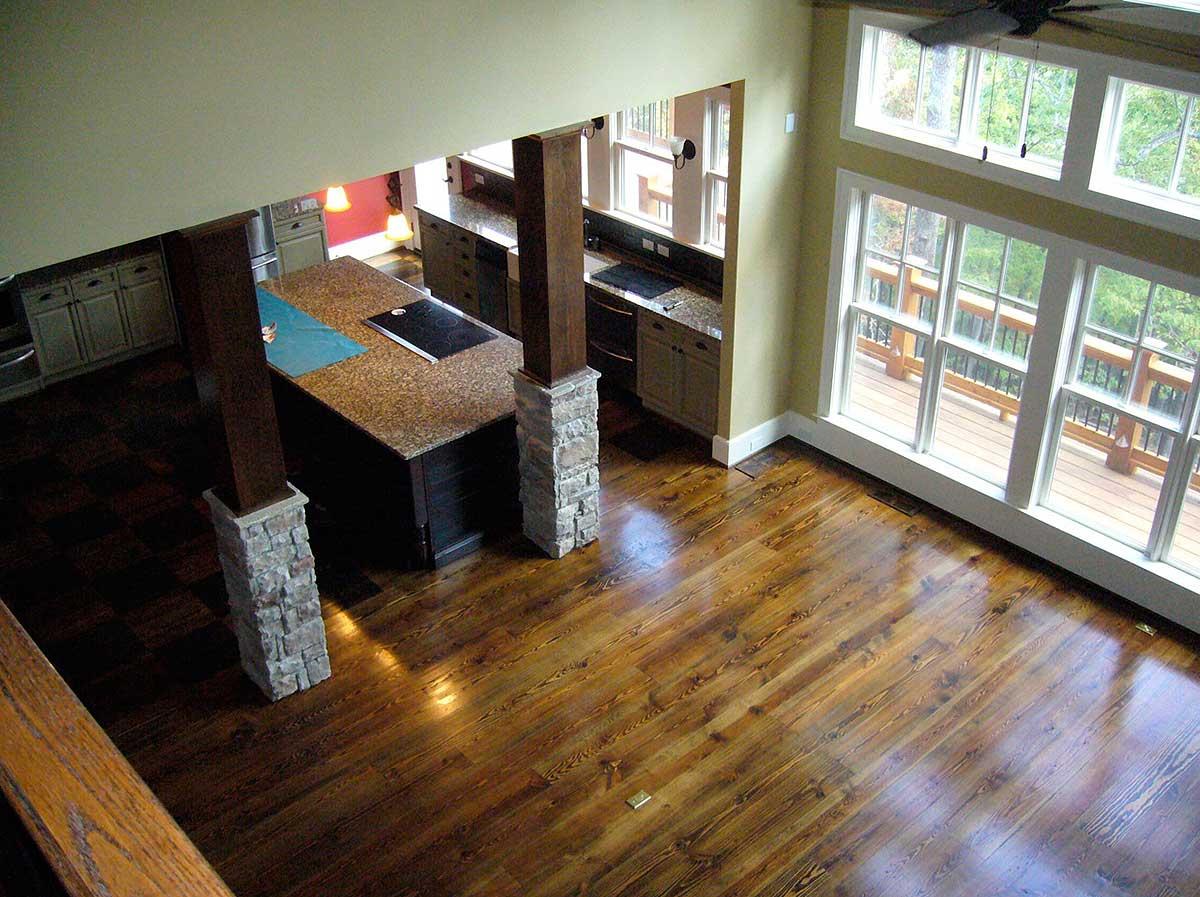

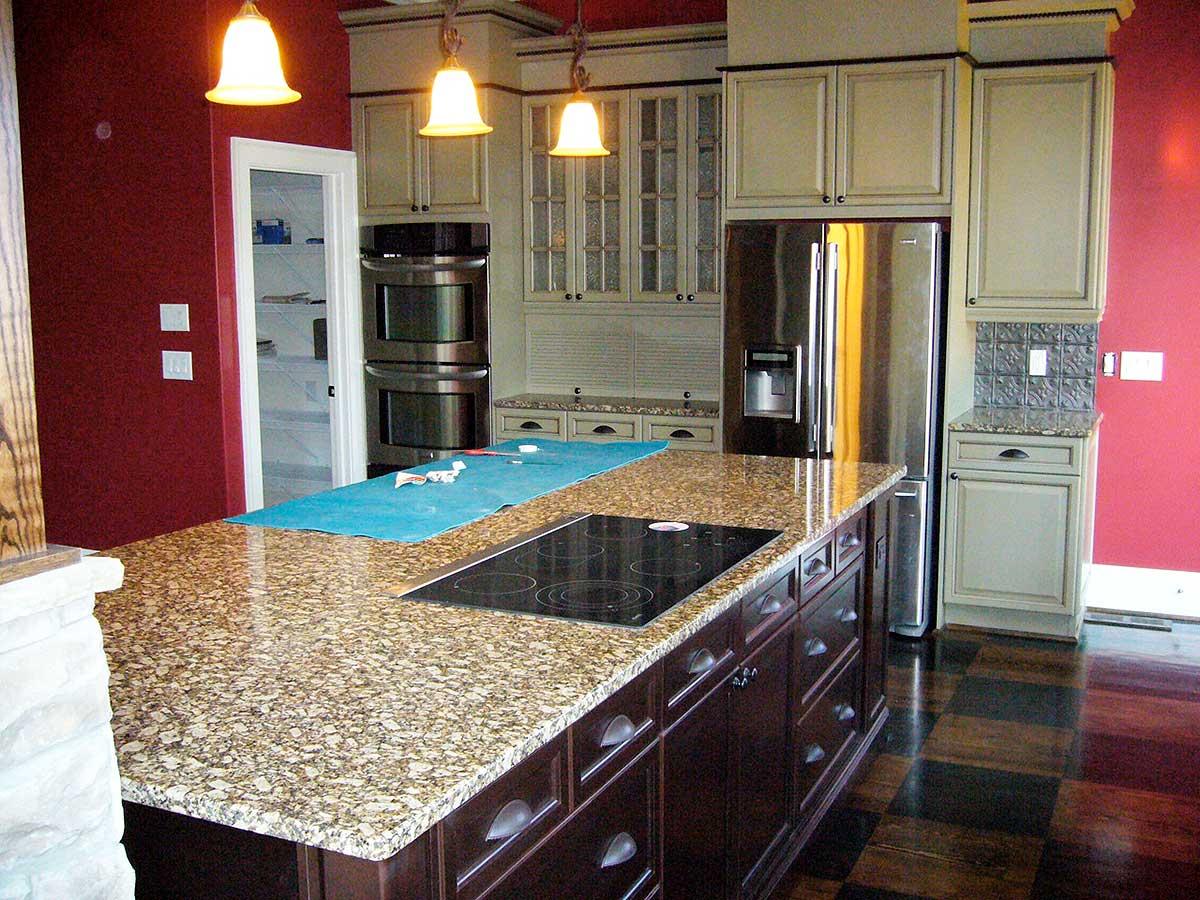

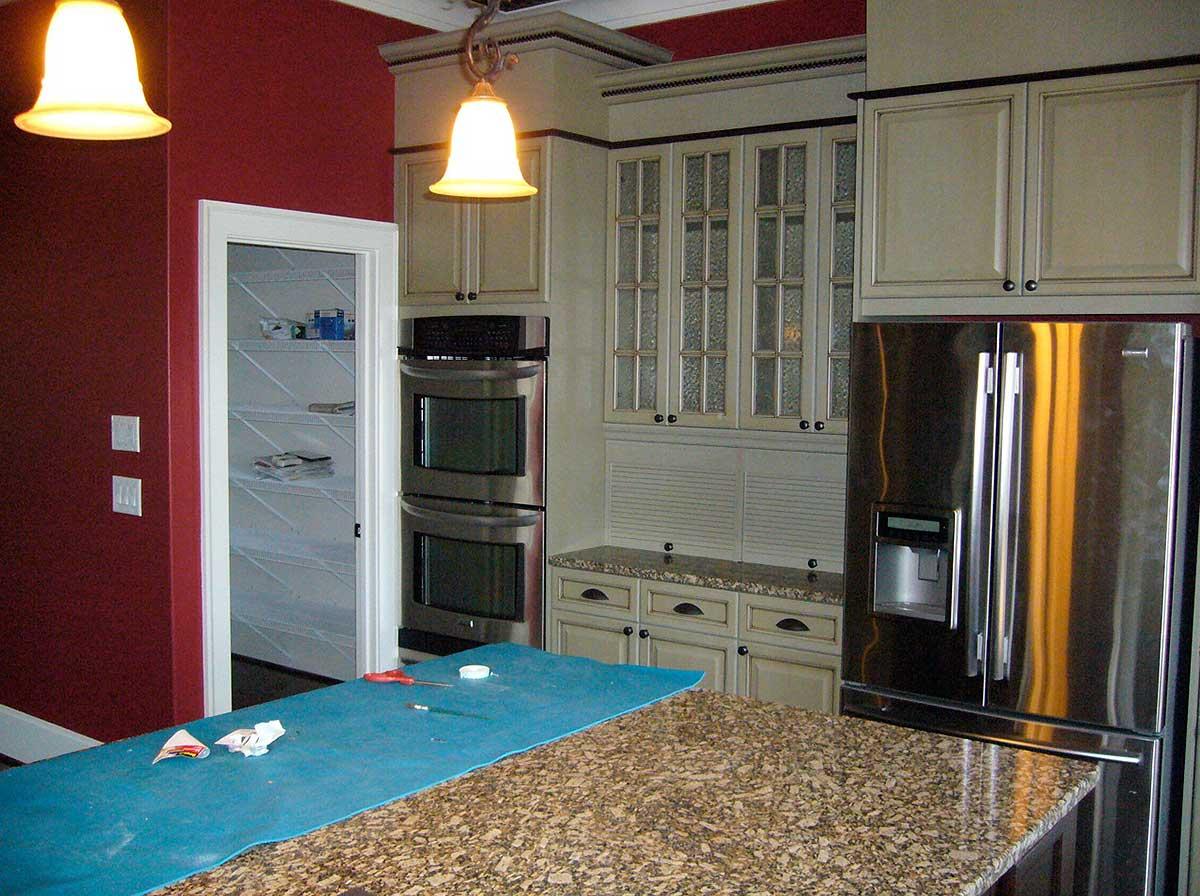

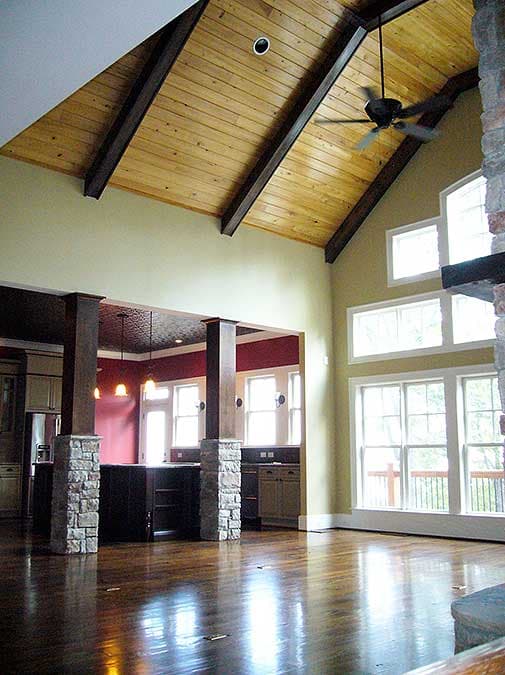

The main level also features a kitchen with abundant work space and a large walk-in pantry. The breakfast area and vaulted great room are both in view.

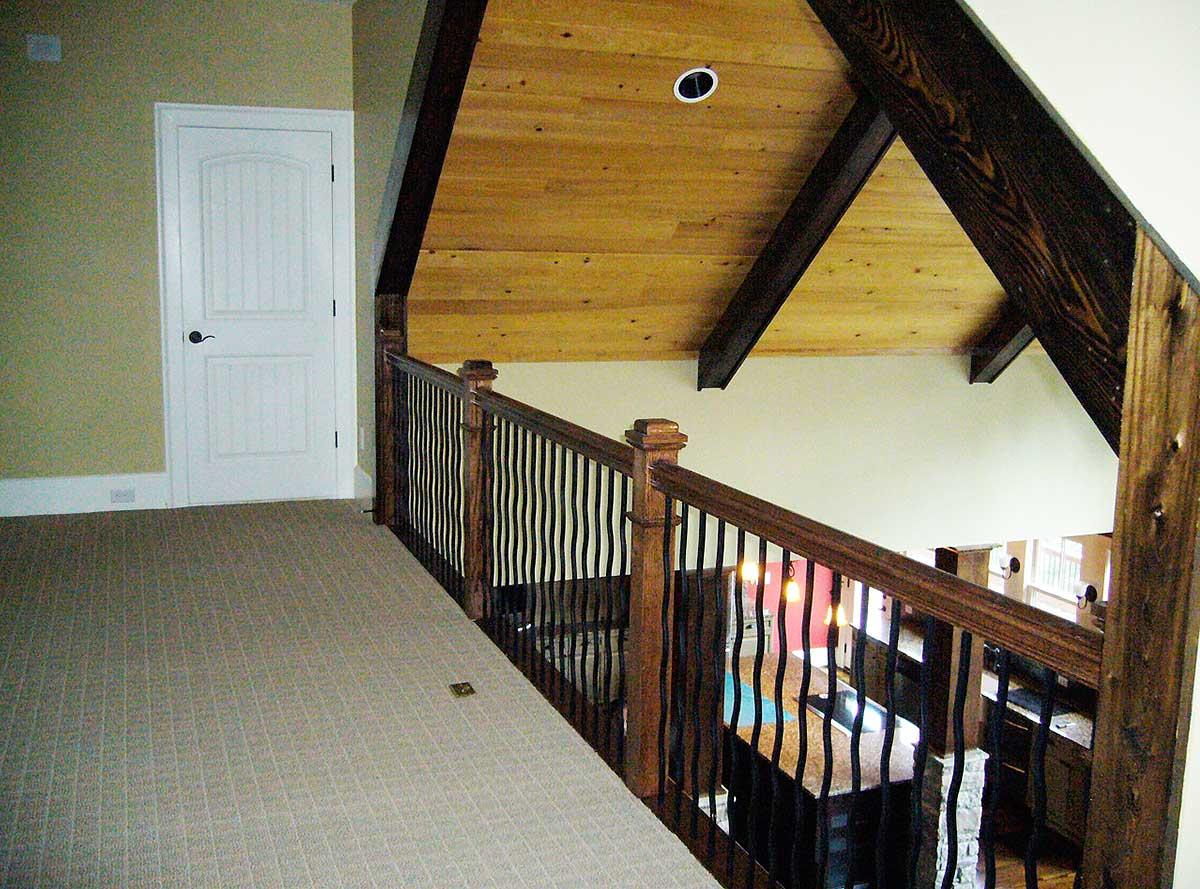

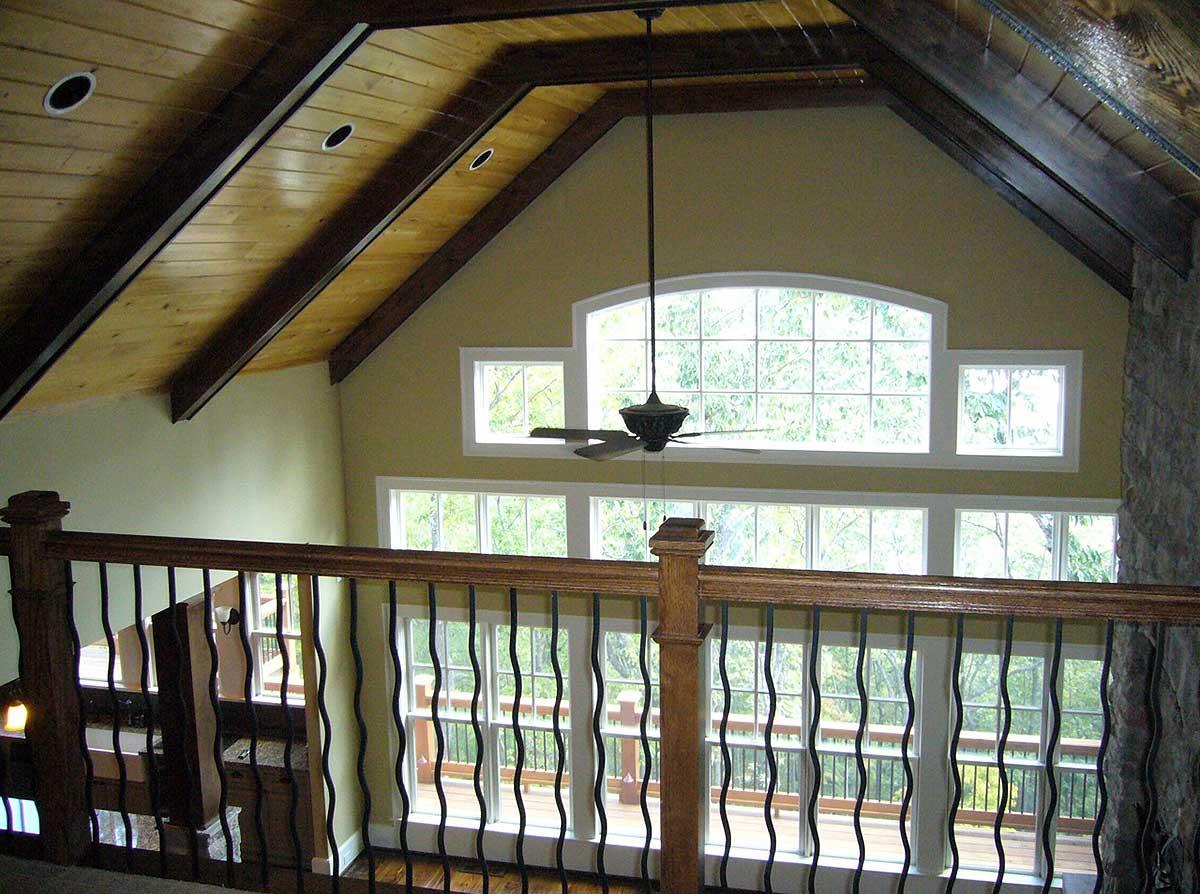

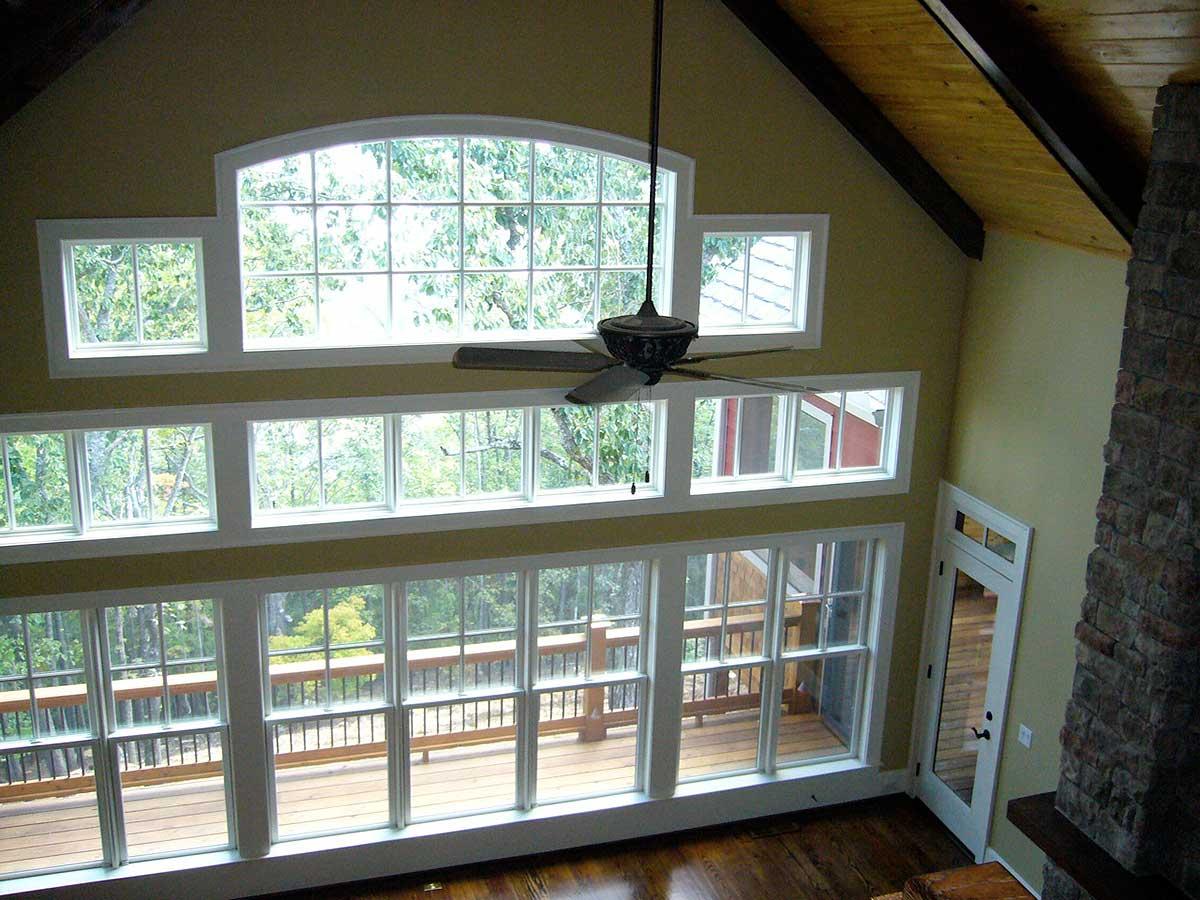

A balcony looks out across the great room and affords majestic views from above out the rear wall of windows.

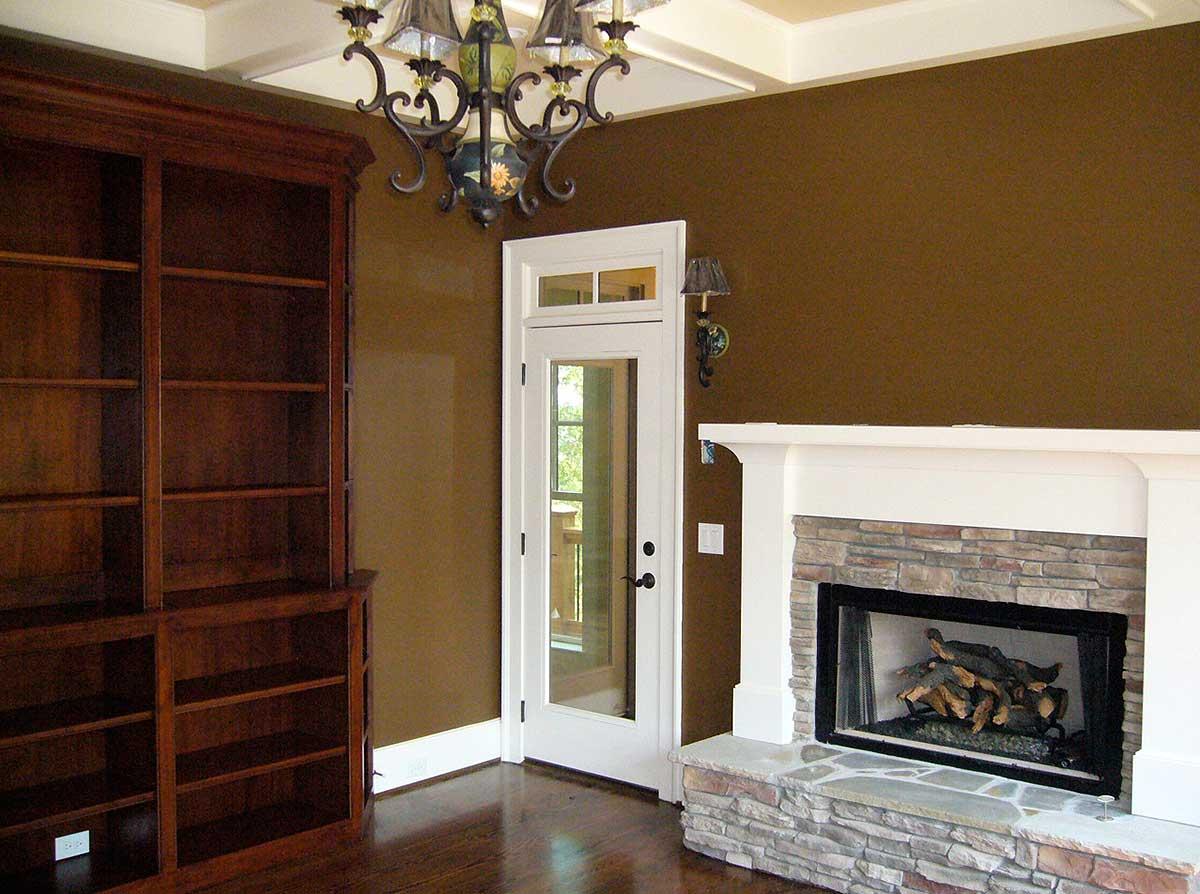

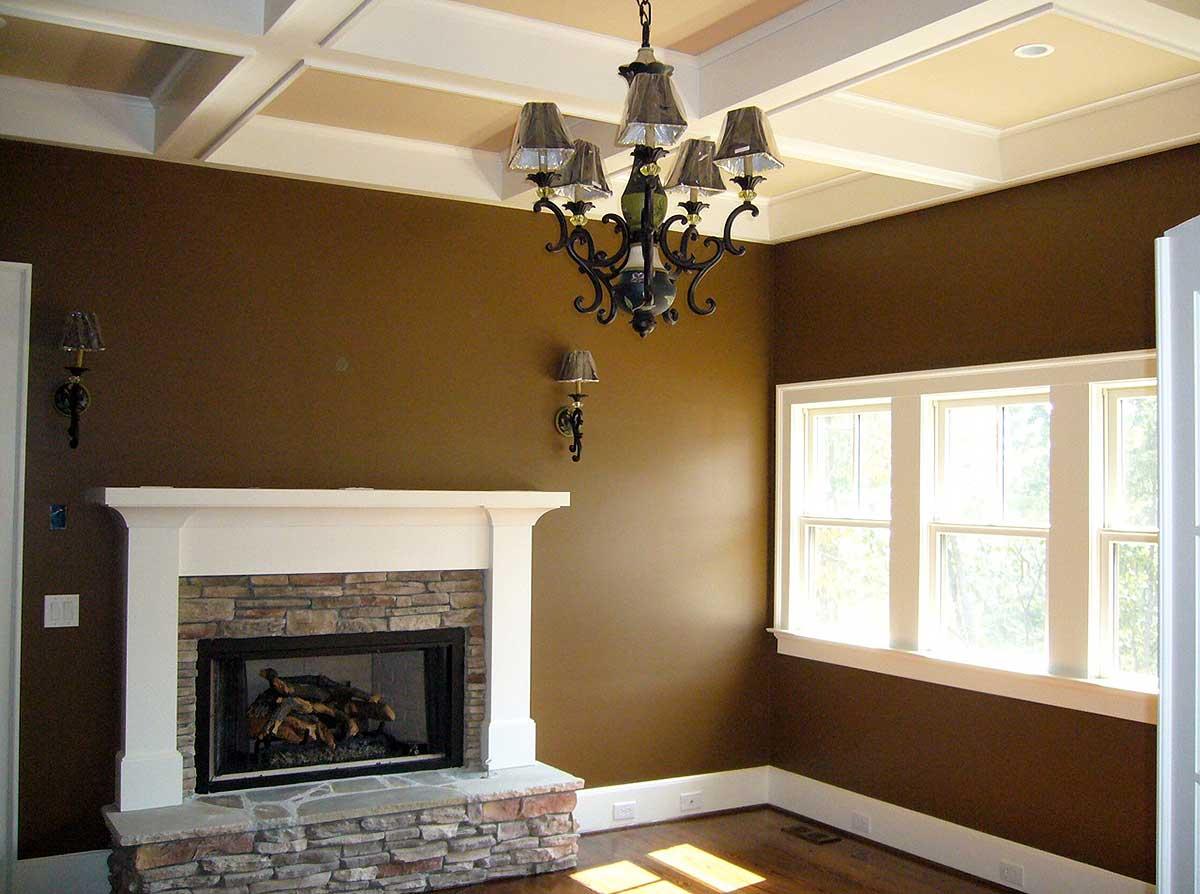

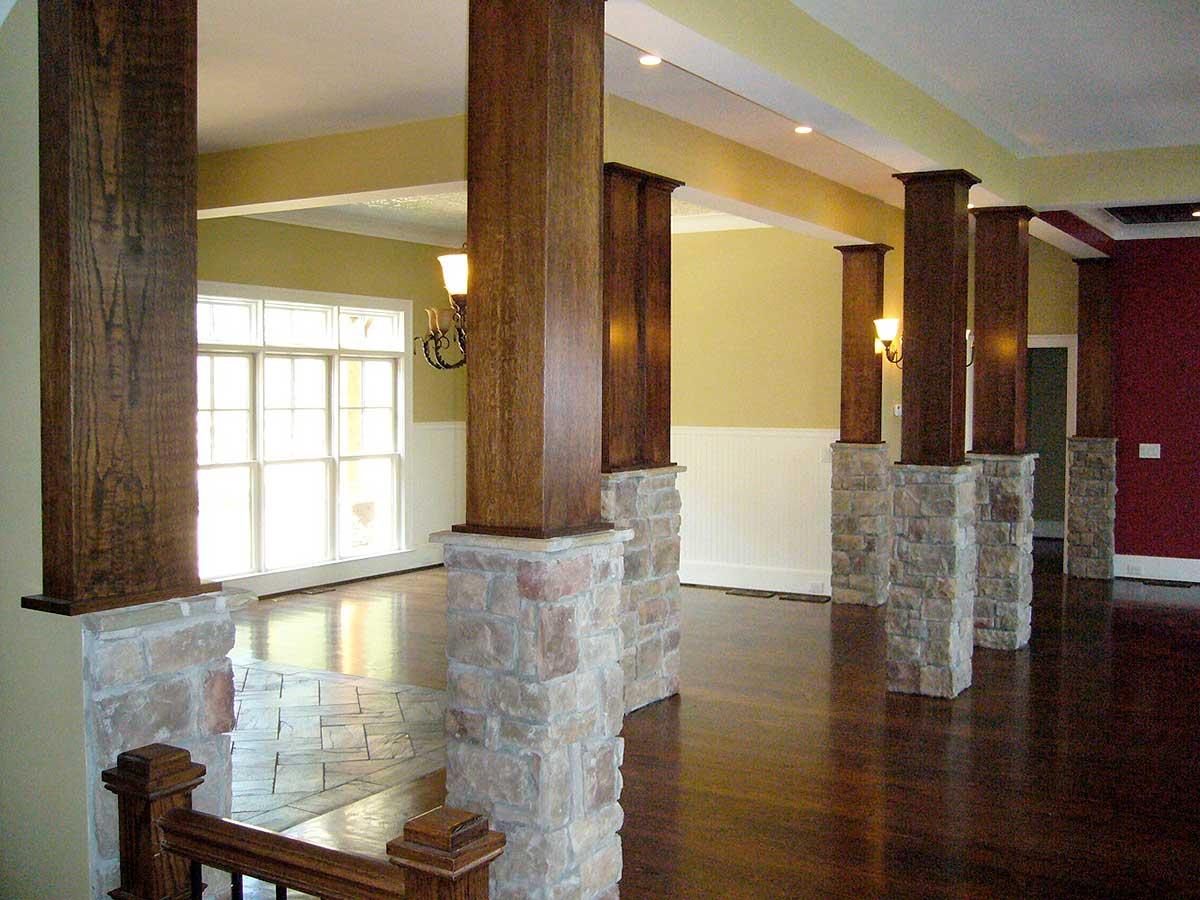

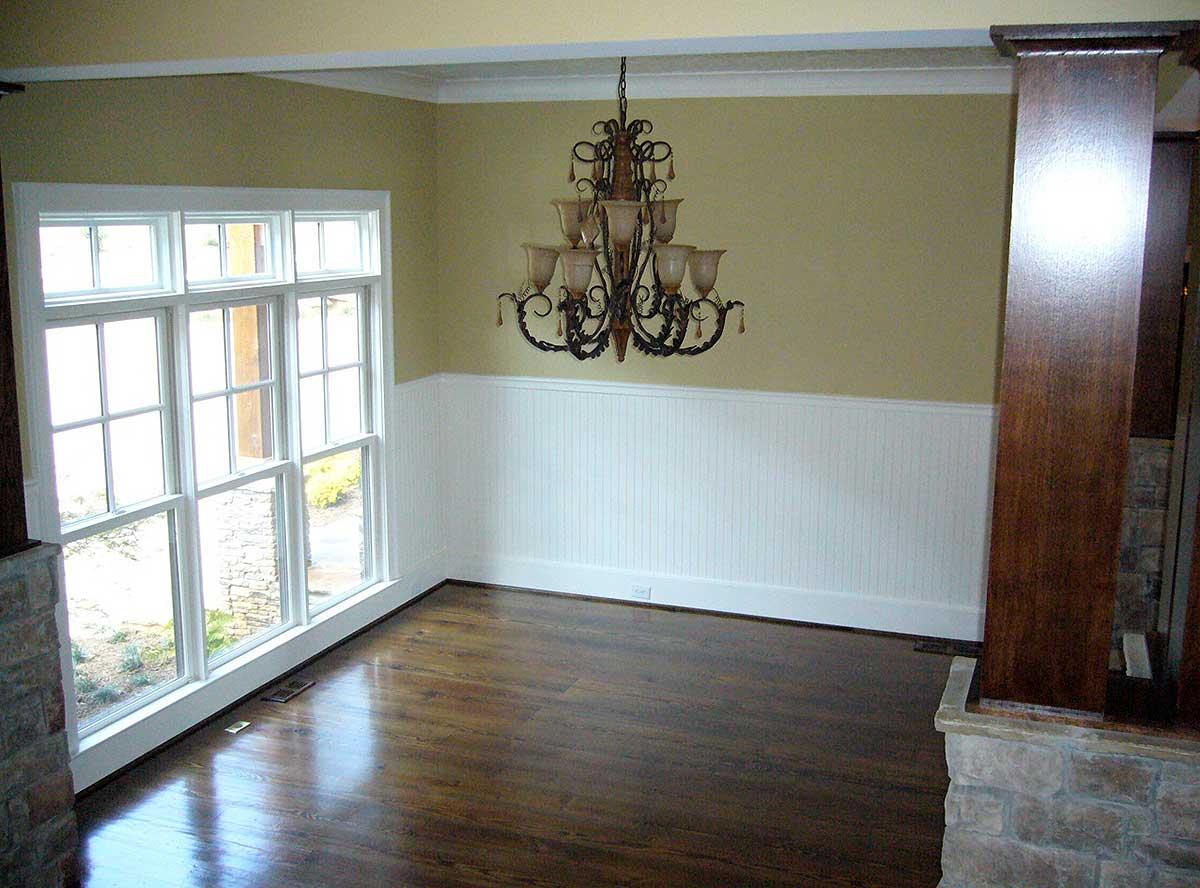

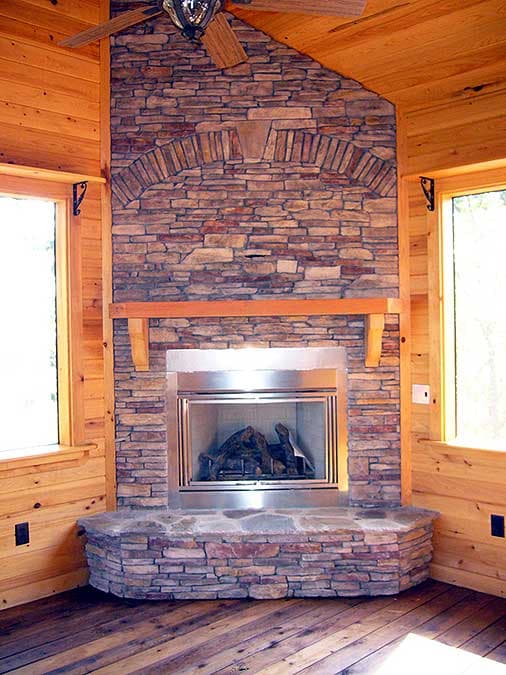

A formal dining room, study with vaulted screened porch access, mud and laundry rooms complete this floor.
On the terrace level you'll get up to 3 additional bedrooms, home theater, recreation area with wet bar and ample storage. This area can be finished as needed and affords the same great views of the outdoors as the main level of the house.

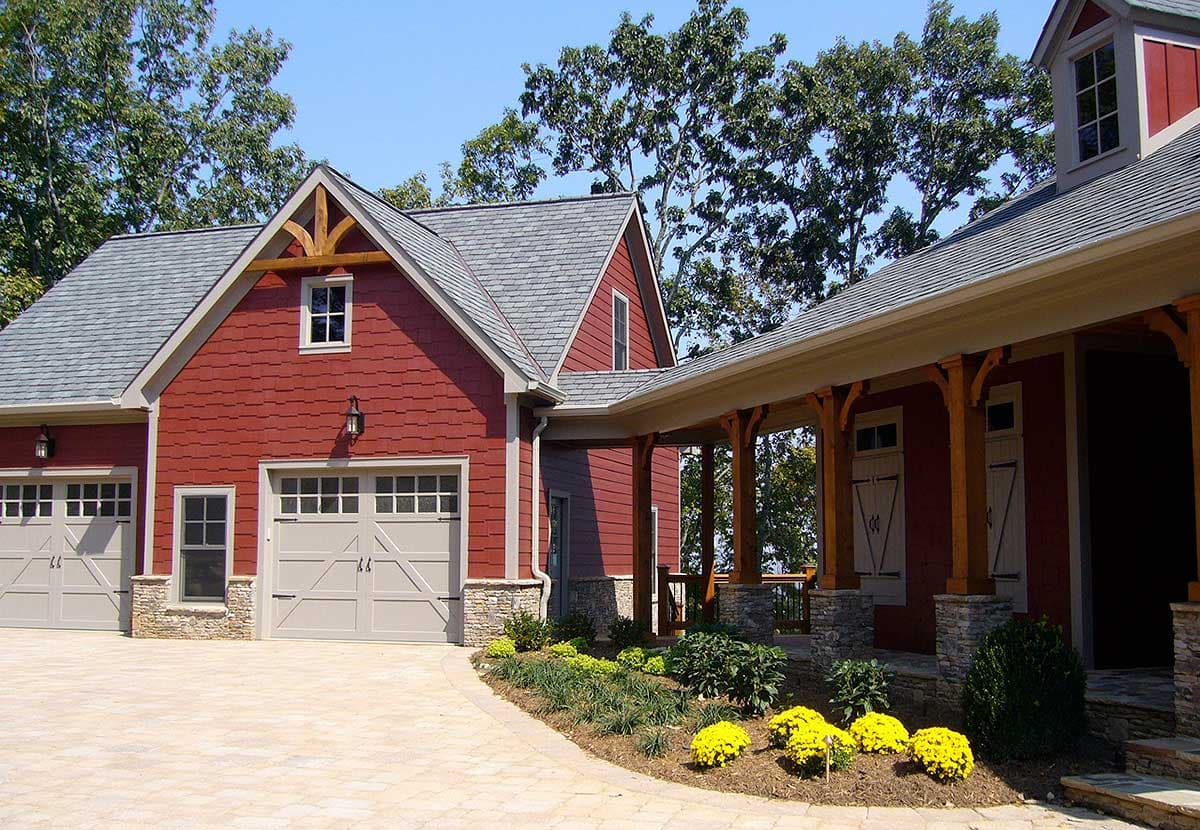

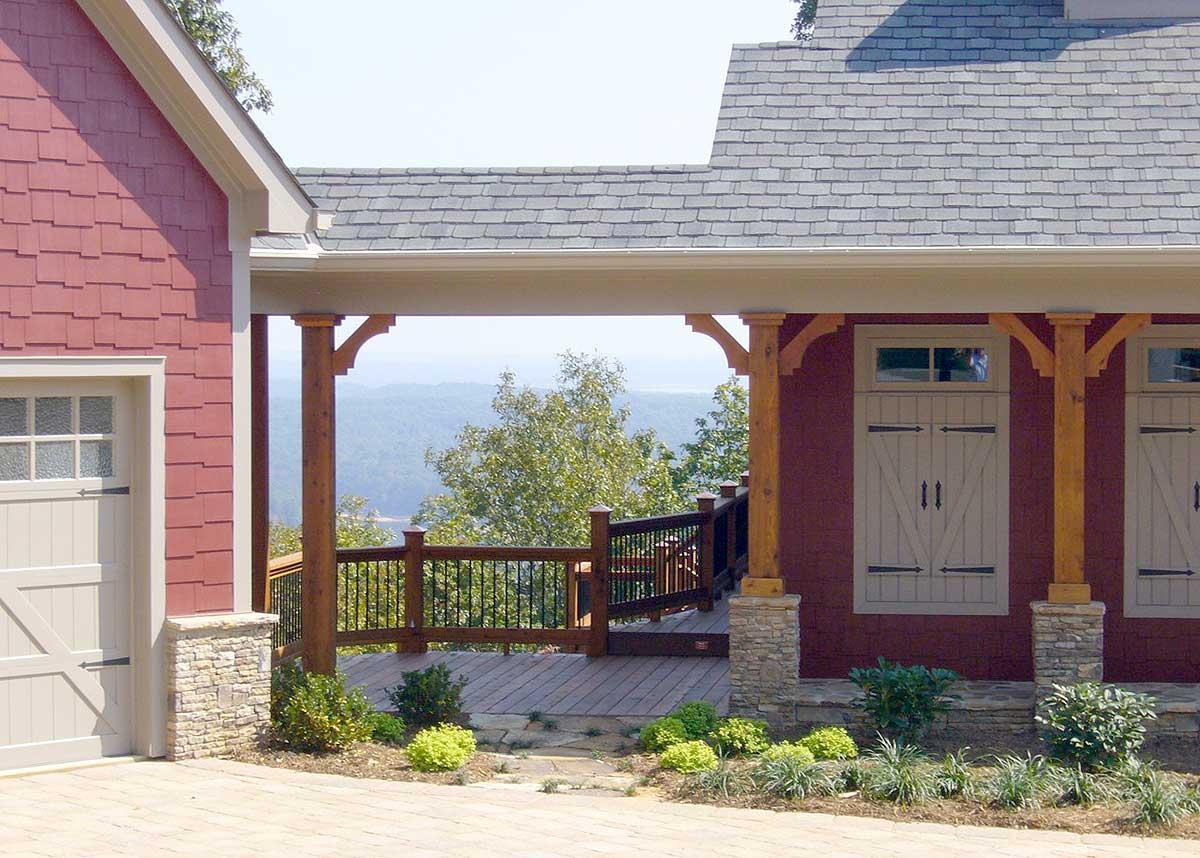

The 2-car garage is attached by a breezeway and can be angled to suit site conditions or your own personal tastes.
Related Plan: Downsize with house plan 29877RL (2,979 sq. ft.).

Build Gallery

See and hear from existing customers with real photos, videos, and reviews.

build gallery item - House Plan 29801RL comes to life in Texas!

House Plan 29801RL comes to life in Texas!

9

Photos

What's Included

All 4 elevations (front, rear, left, right)
2D Roof overview
3D Roof overview
Main Level Layout
Basement Level Layout
Cross-Section (Typical Wall, Stairs (if applicable))
Typical Details

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,352 sq. ft.

1st Floor

3,352 sq. ft.

Optional Lower Level

2,884 sq. ft.

Loft

529 sq. ft.

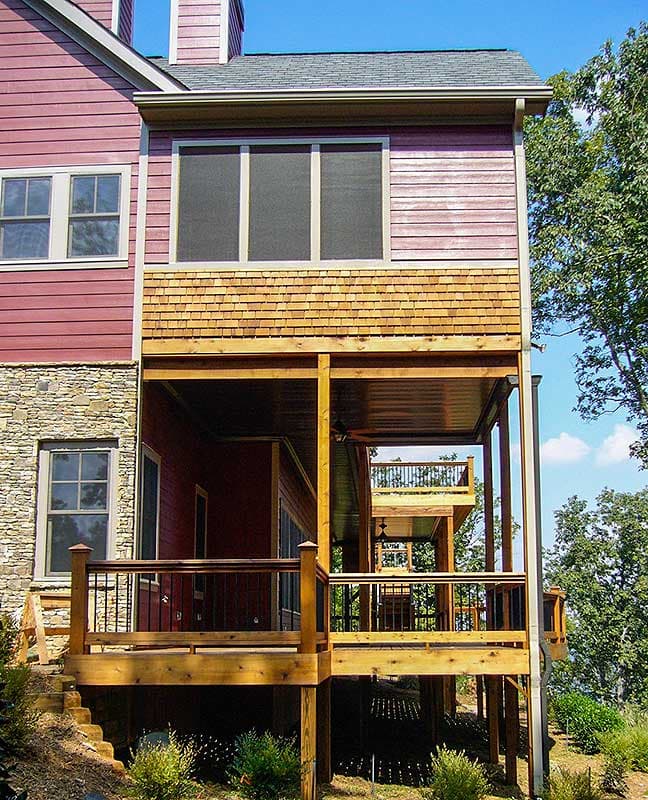

Screened Porch

240 sq. ft.

Beds/Baths

Bedrooms

3, 4, 5, or 6

Full bathrooms

3, 4, or 5

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

76' 10"

Depth

53' 8"

Max Ridge Height

28' 2"

Garage

Type

Detached

Area

1050 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10'

First Floor

10'

Second Floor

8'

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Jack & Jill Bath

Laundry Access from Master Suite

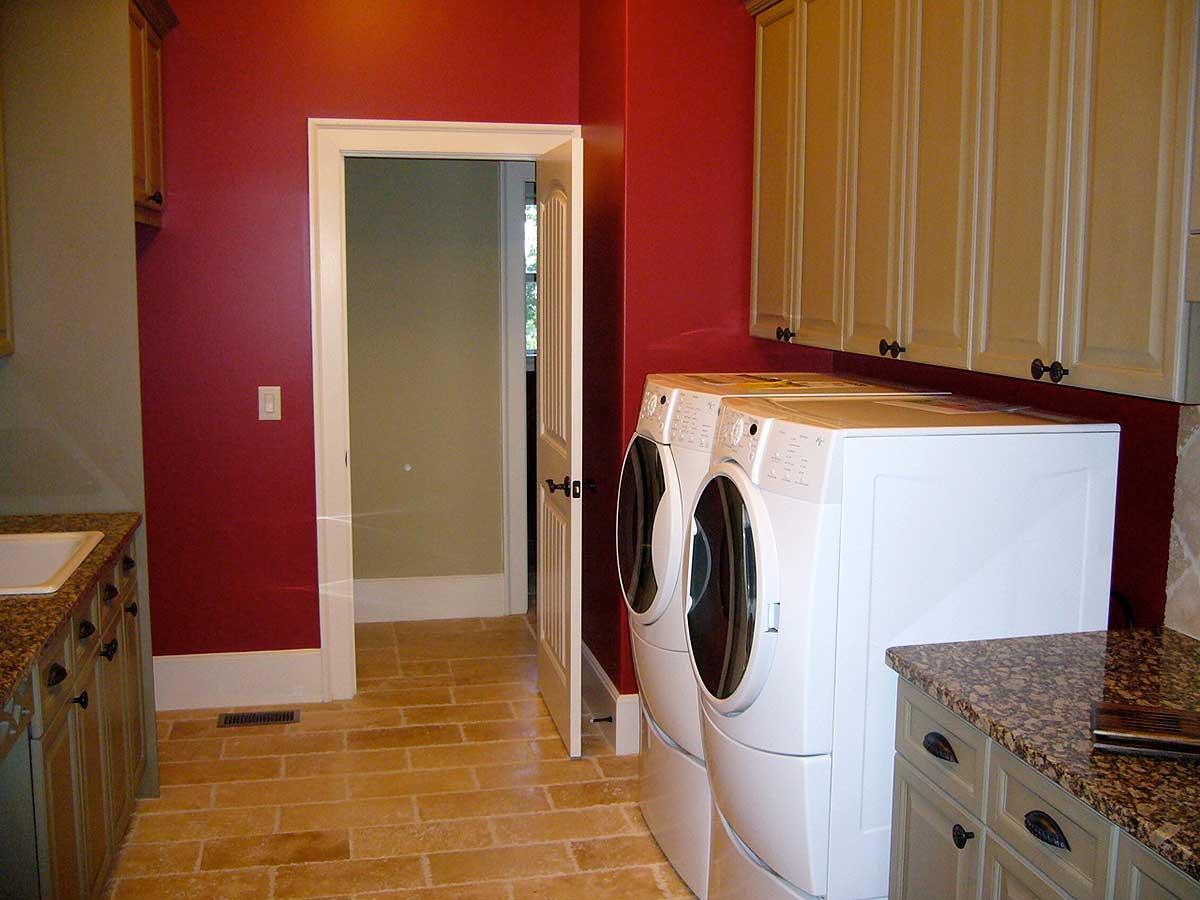

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Premium Collection
