Plan 23581JD
Stylish Craftsman with Five Bedrooms
Heated S.F.
3,857
Beds
4 - 5
Baths
4
Stories
2
Cars
3
Photos
Floor Plan

Plan 23581JD

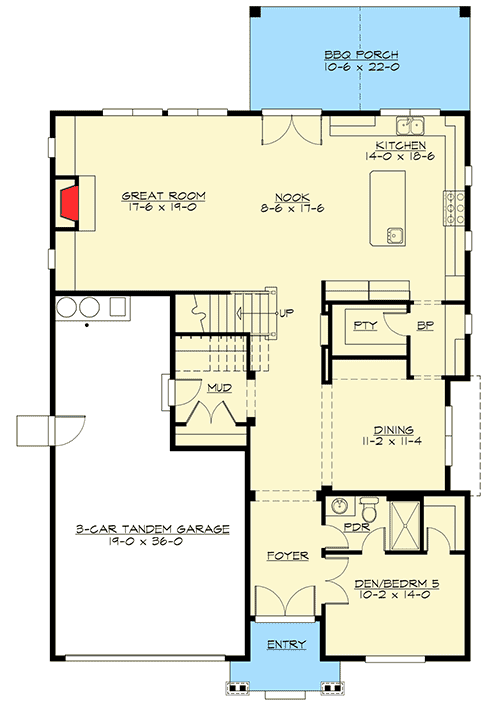

Main Level
slide image 0
2nd Floor
slide image 1

Plan 23581JD

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level

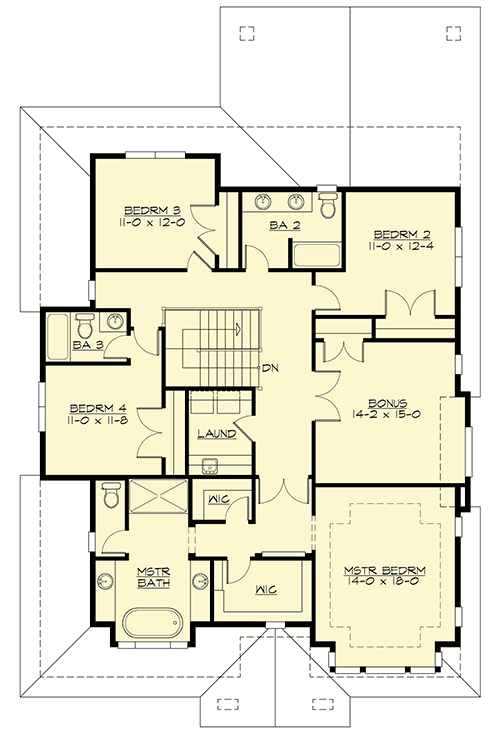

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Outstanding curb appeal combines with a flexible floor plan that gives you the option of extra bedrooms in this Craftsman house plan.

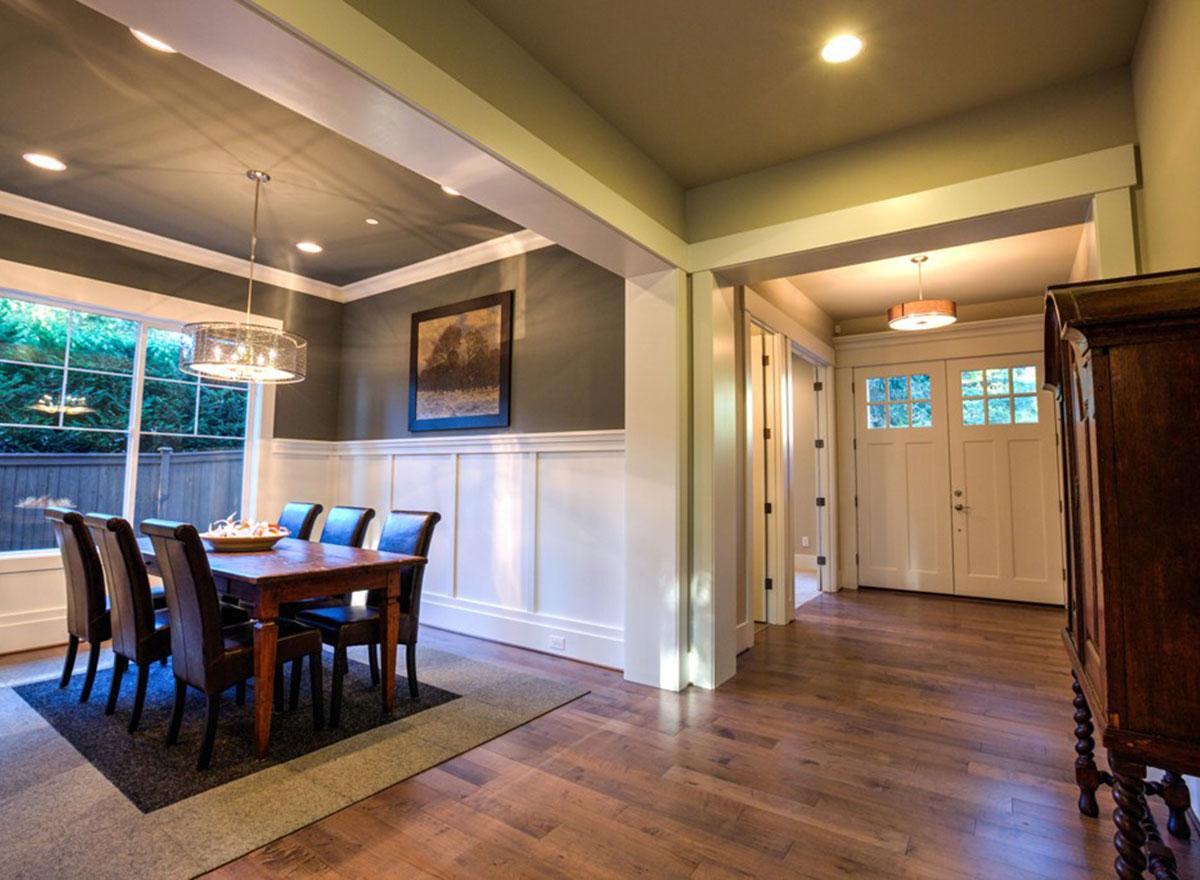

  • The den or fifth bedroom is right off the foyer and would make a wonderful private guest suite.
  • The spacious kitchen has a huge island plus a butlers pantry and big walk-in pantry for storage.

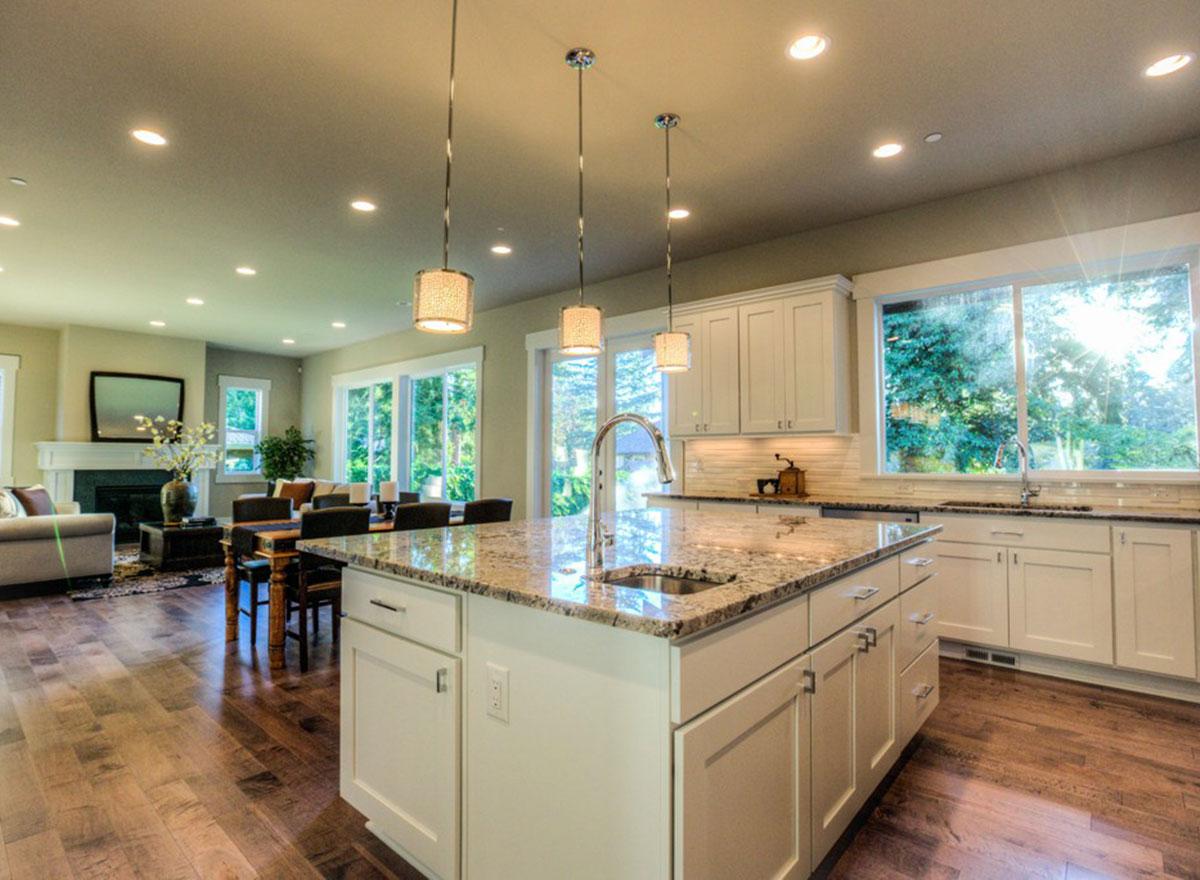

  • Built-ins flank the great room fireplace that can be seen all the way from the kitchen island.
  • Four bedrooms and a bonus room are up on the massive second floor.
  • The laundry room has been placed on this level for added convenience.
  • The roof is a truss design with a 4:12 pitch.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

    •

Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 23581JD comes to life in Washington

House Plan 23581JD comes to life in Washington

25

Photos

What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

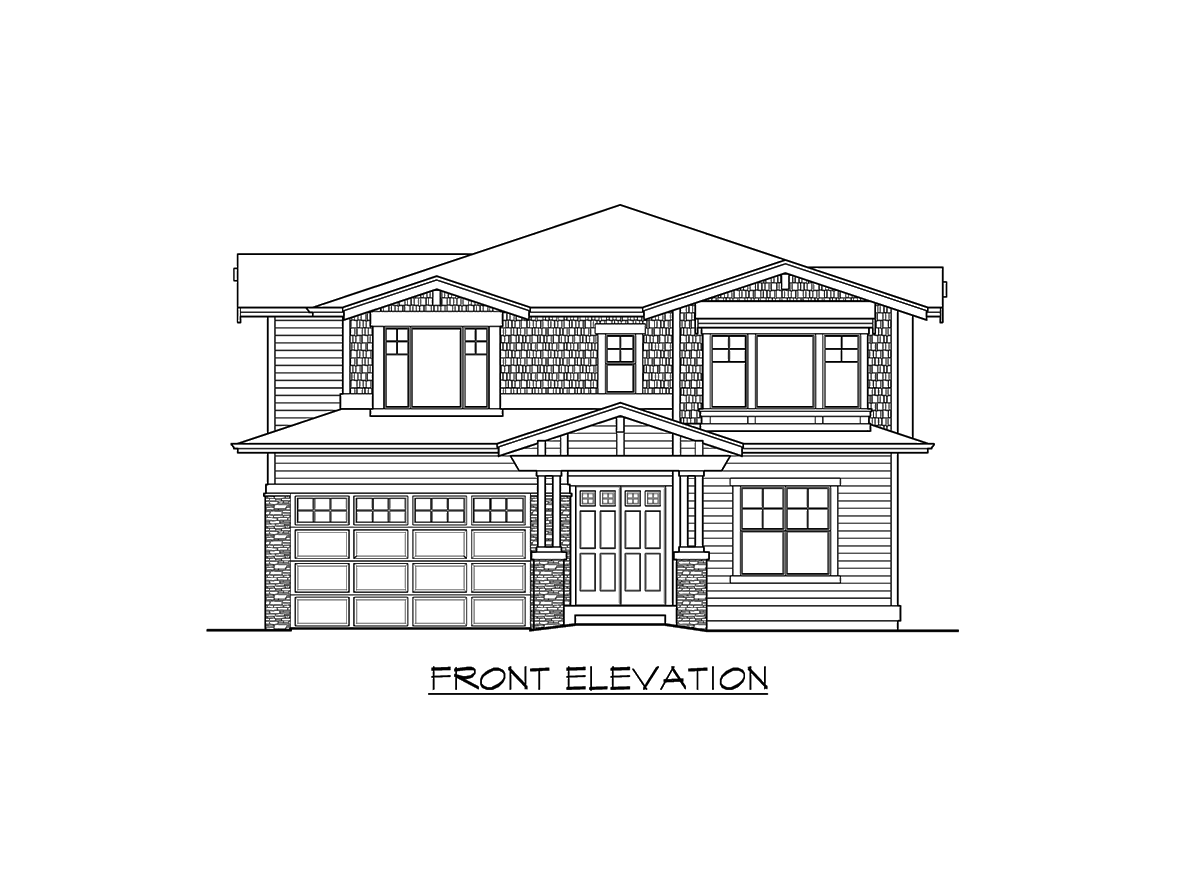

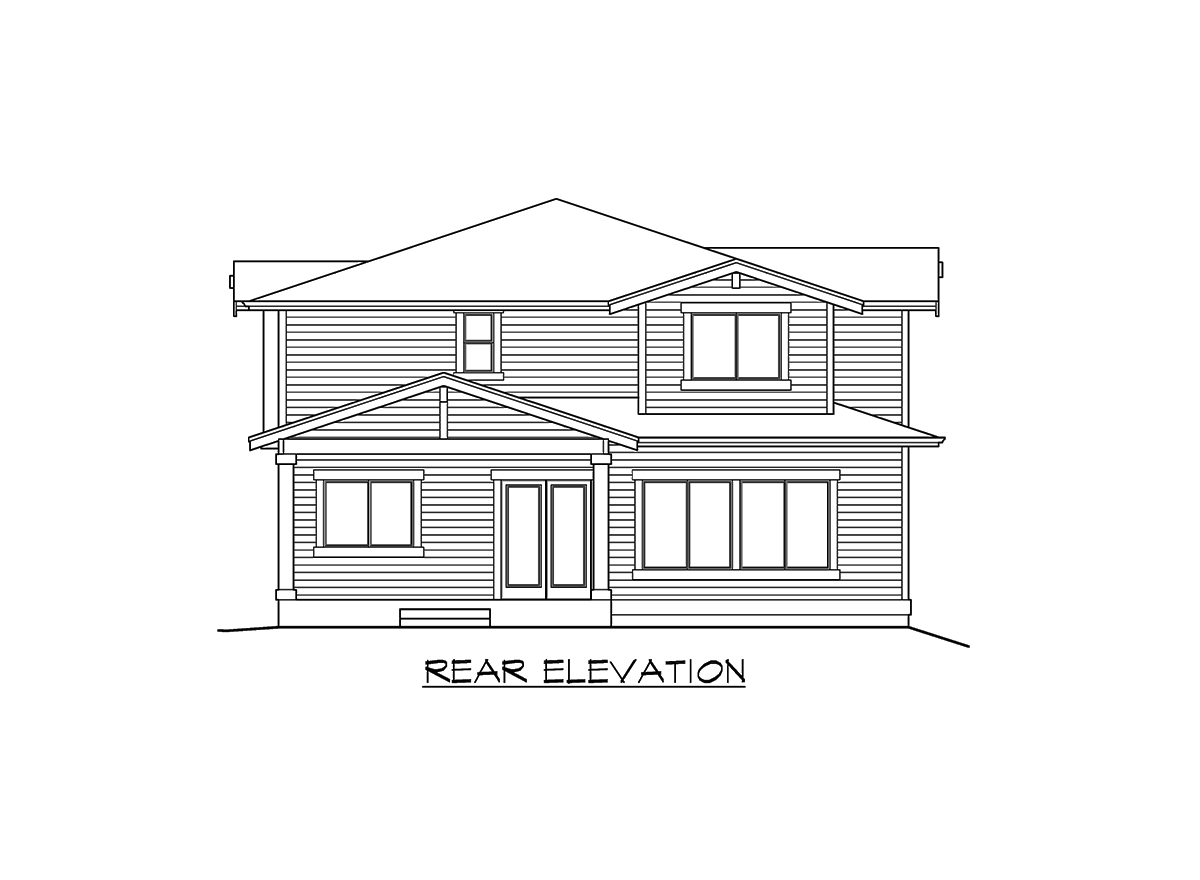

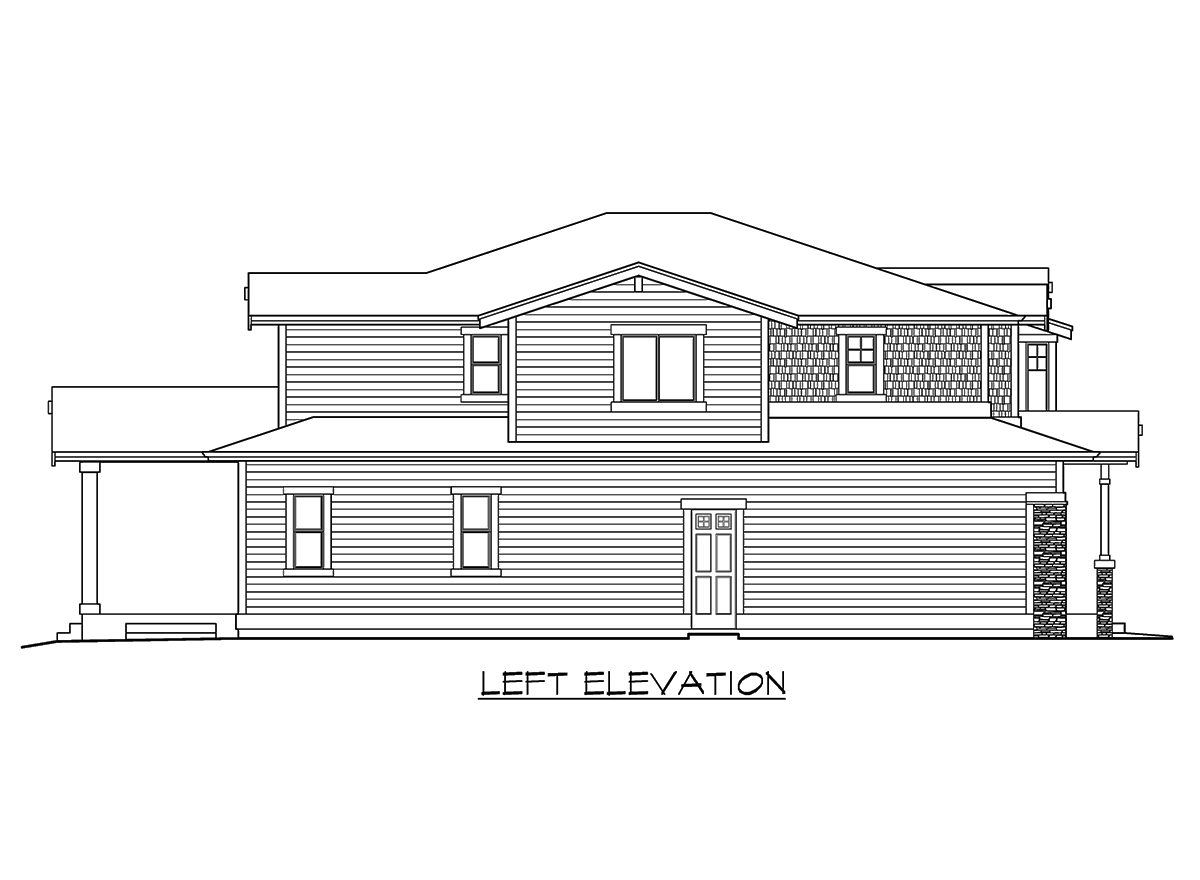

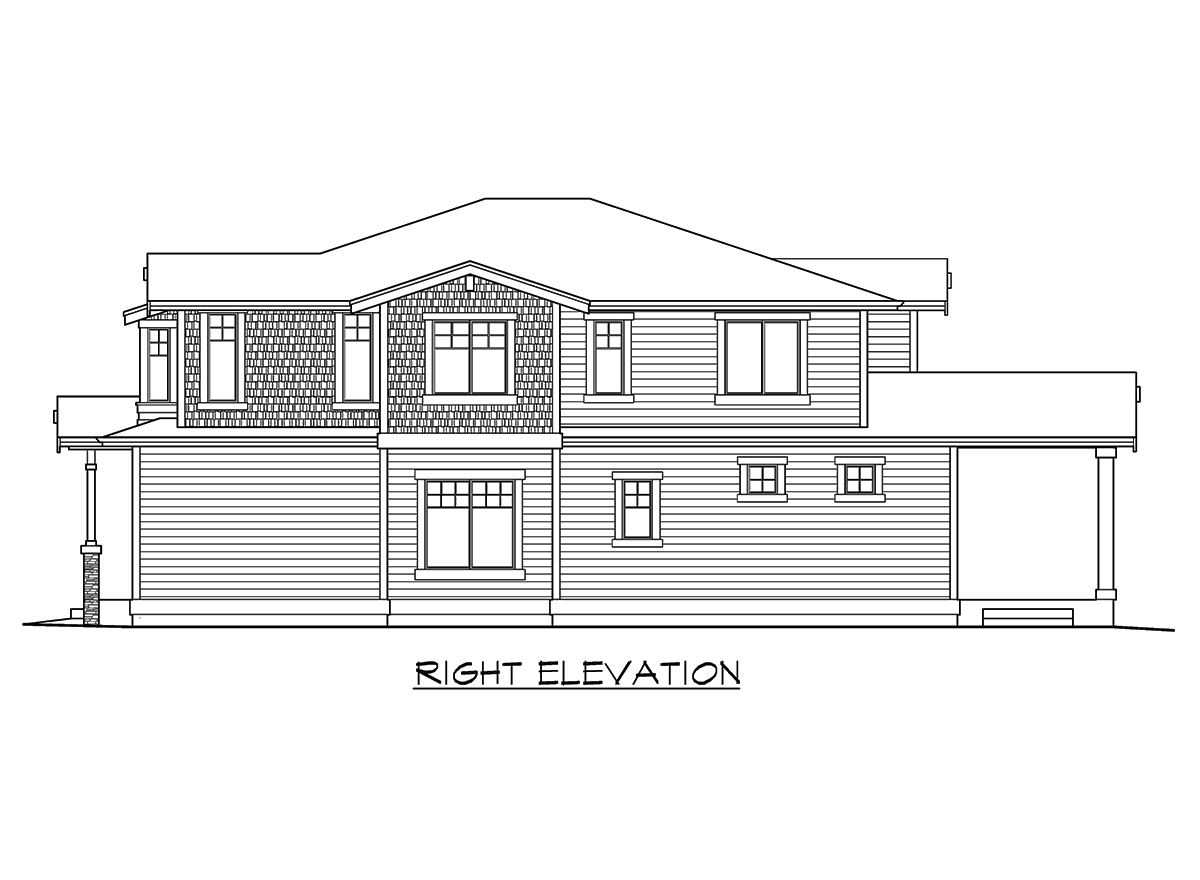

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
