Stylish Five Bedroom Southern House Plan
Heated S.F.
3,865
Beds
5
Baths
4.5
Stories
2
Cars
3
Floor Plan

Plan 510034WDY

Main Level
slide image 0

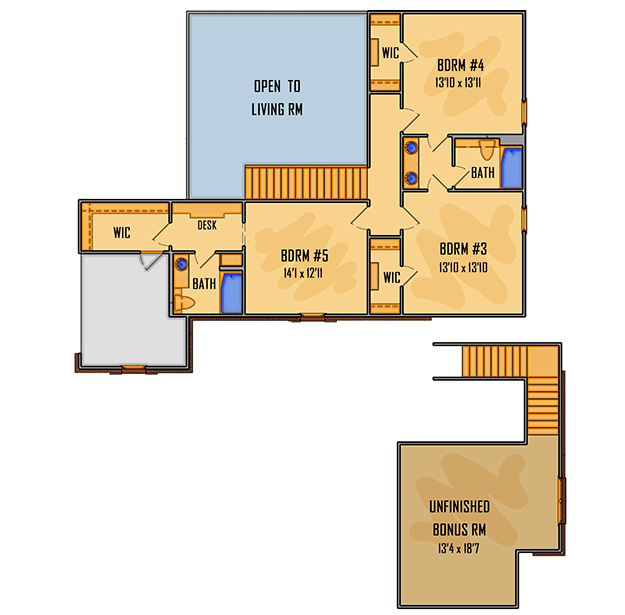

2nd Floor
slide image 1

Plan 510034WDY

1-800-854-7852

1-262-521-4596

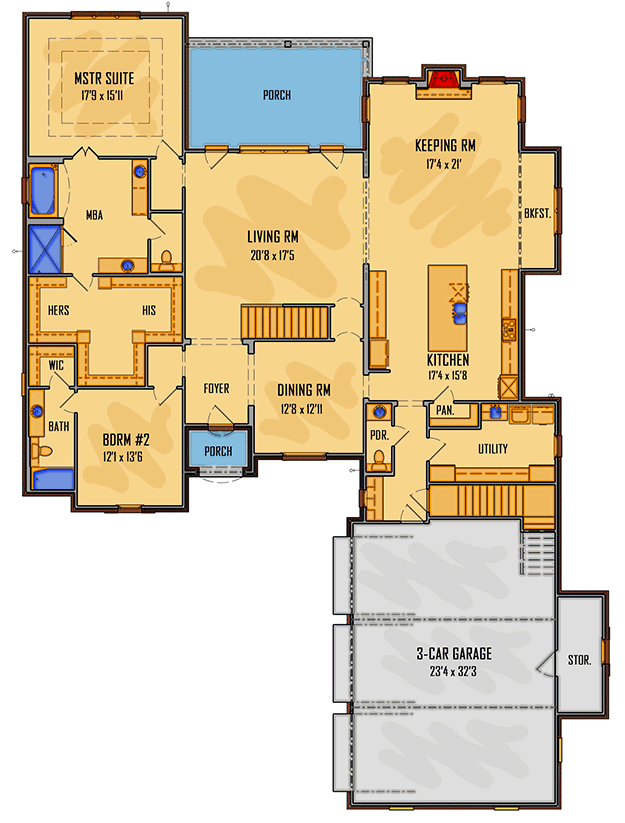

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

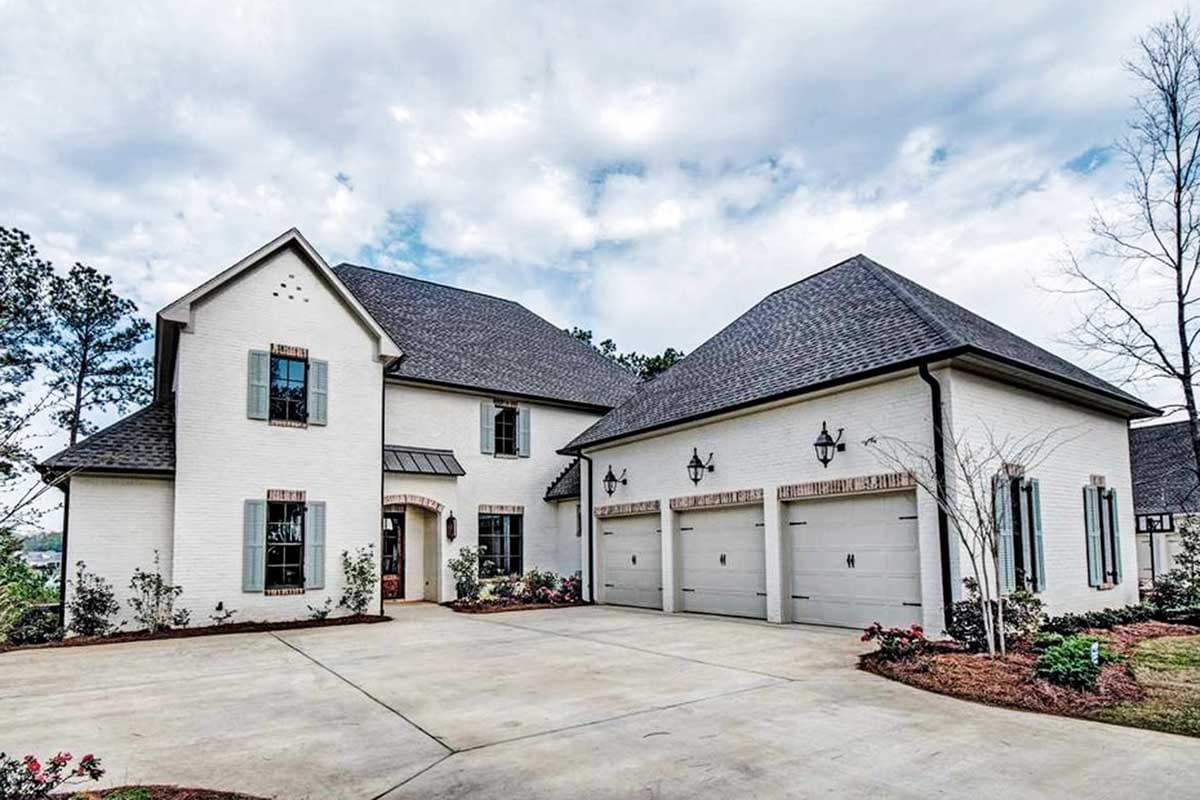

  • Beautiful styling enhances this Southern house plan that has a gracious exterior.
  • The open layout inside is equally appealing.

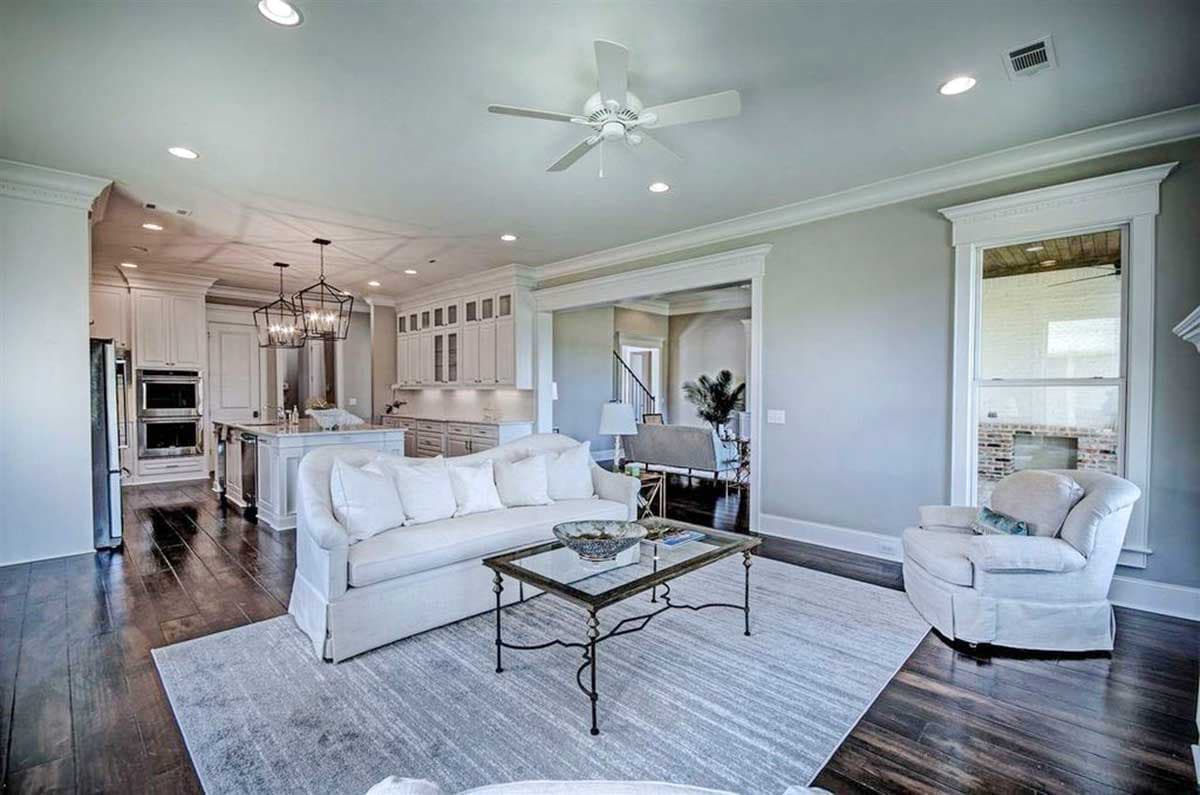

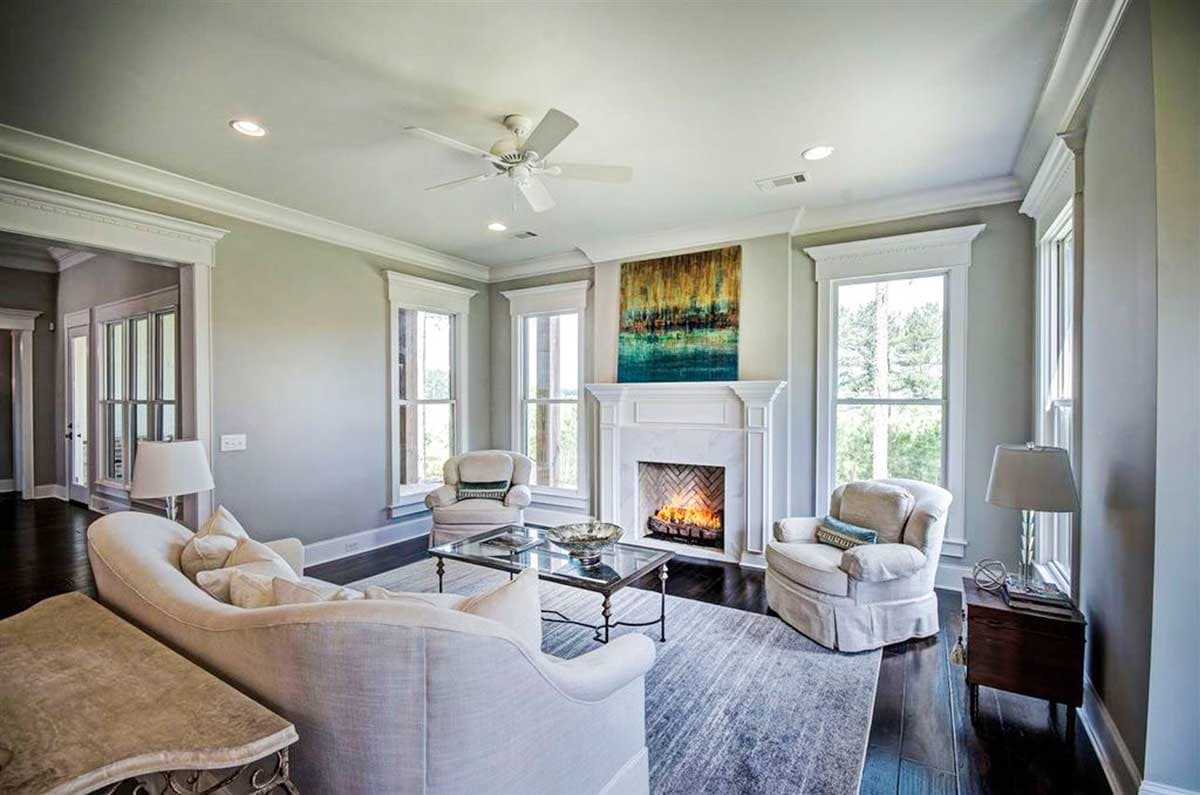

  • Relax in the giant living room or in the keeping room where you can gather around the fireplace.
  • A breakfast nook has been carved out at the side for informal meals.
  • Homeowners get a beautiful first floor master suite with a double tray ceiling.

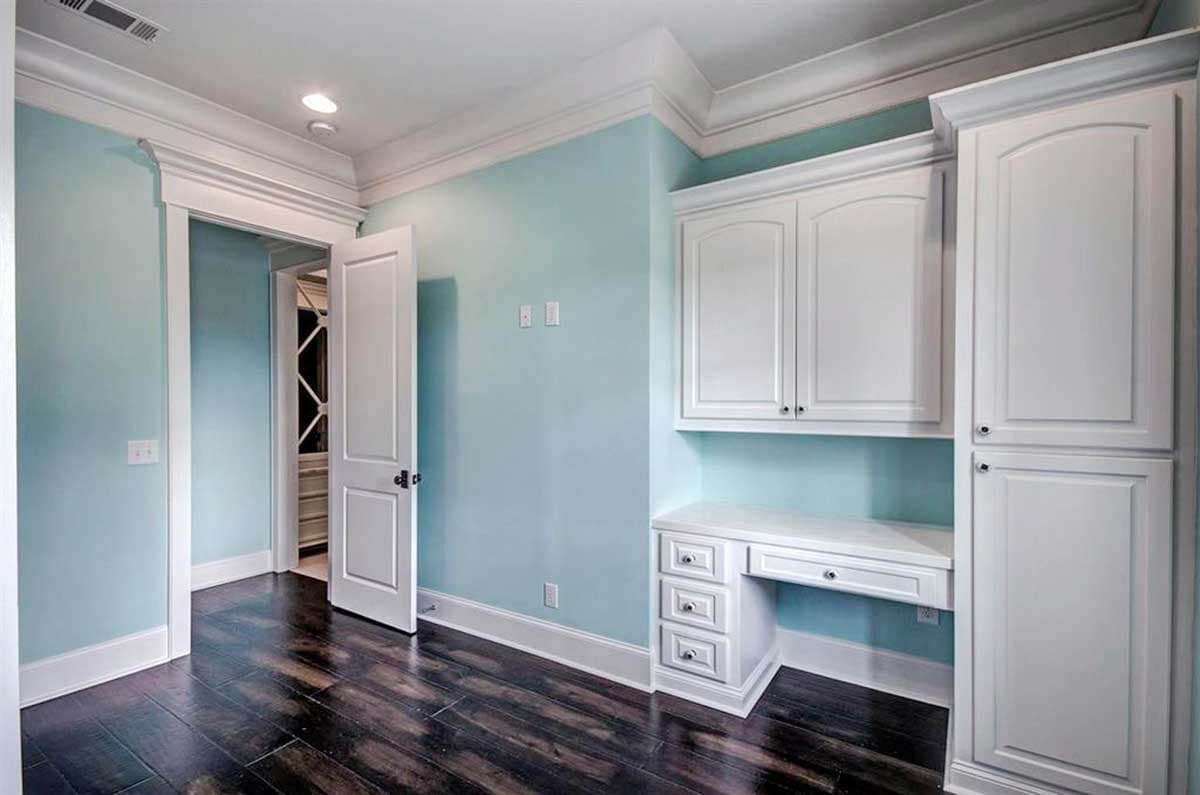

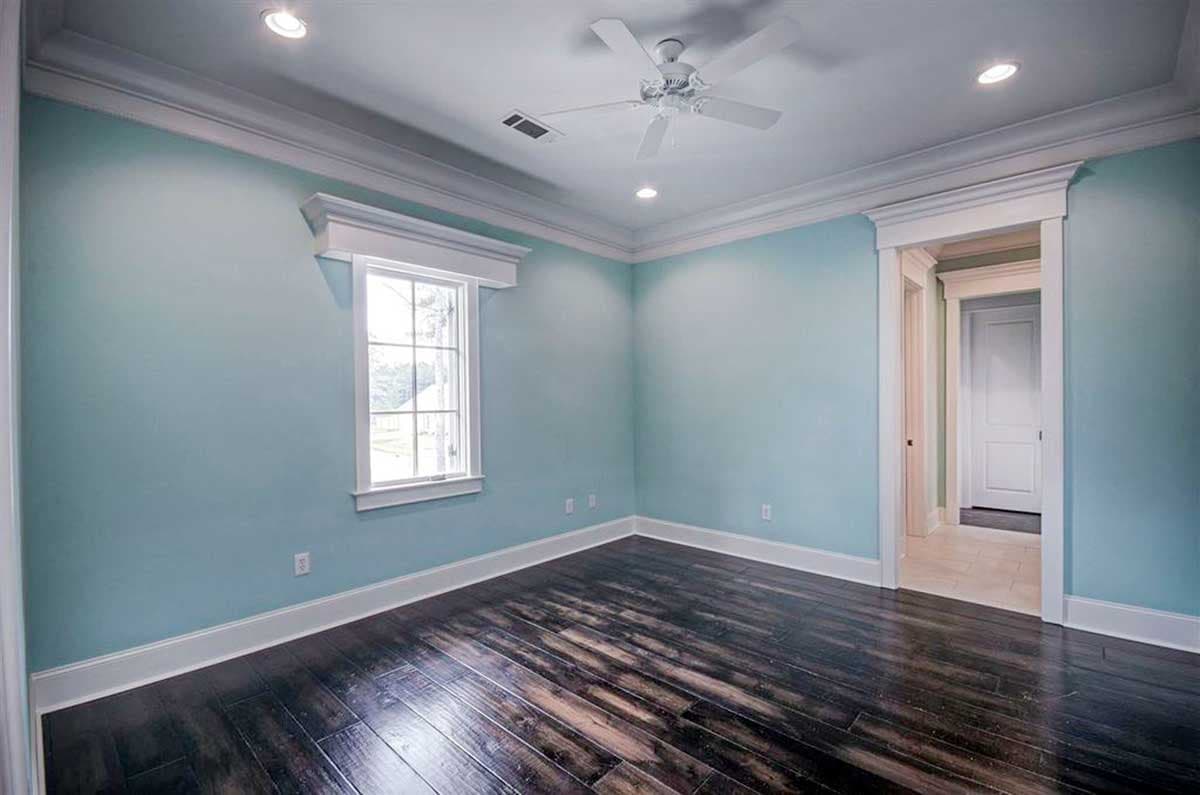

  • Bedroom 2 is also on the first floor with the remaining three bedrooms up on the second floor - all with walk-in closets.
  • Bonus space over the garage adds an extra 424 square feet if finished.
  • Related Plan: Get a smaller version in reverse with house plan 510031WDY (3,413 sq. ft.).
What's Included
This plan has 9 pages as follows:
  1. Page 1 Coversheet Color Rendering
  2. First Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing
  3. Second Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing

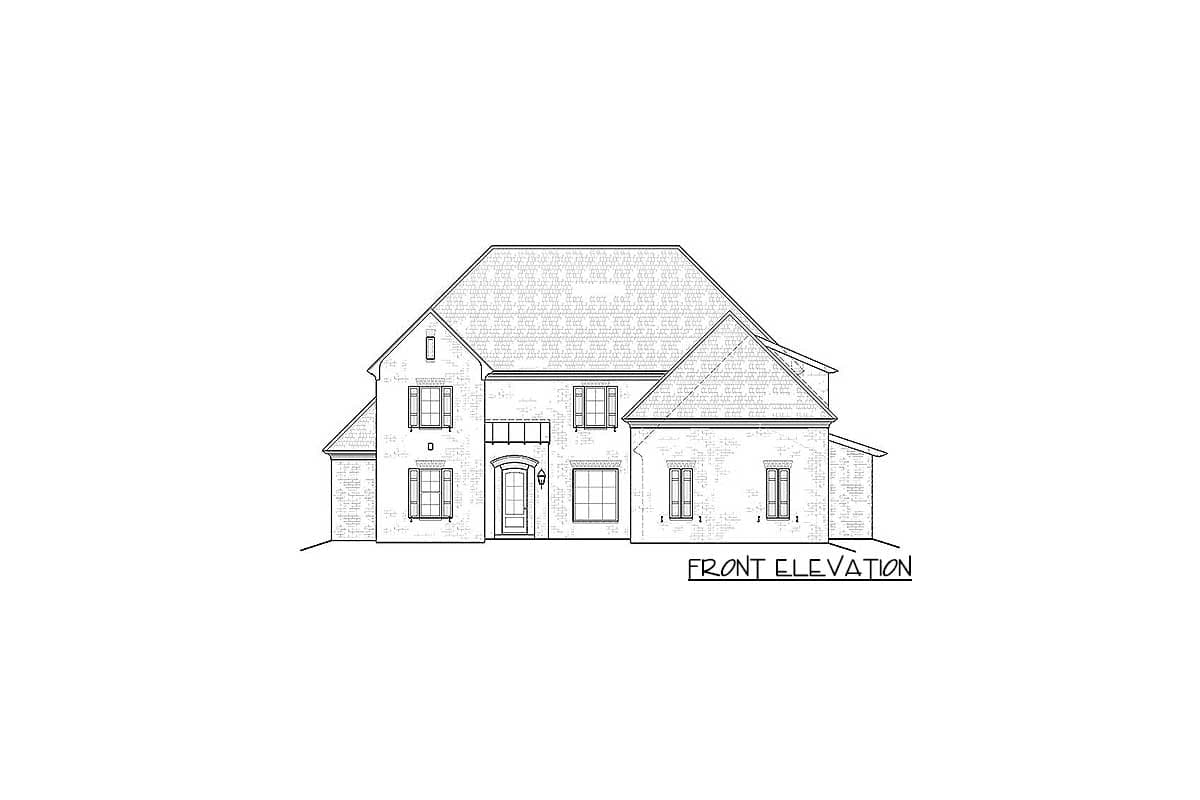

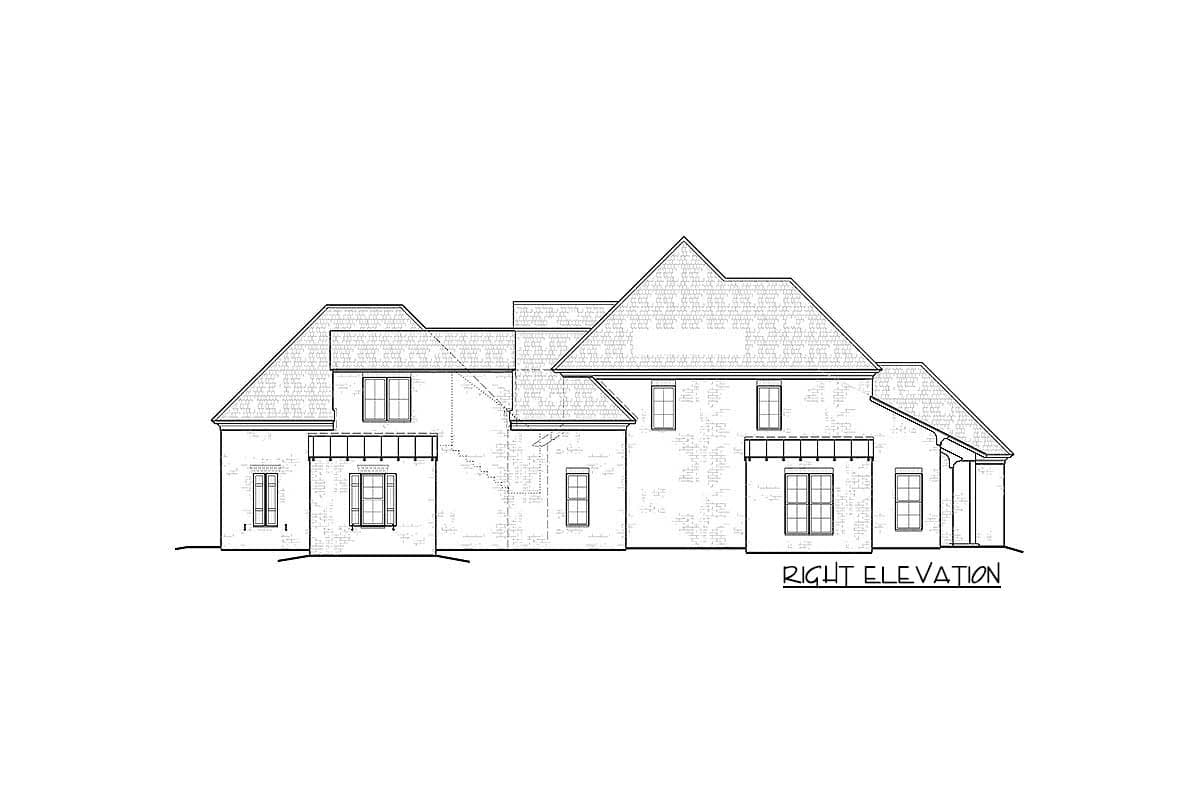

  4. All Four Exterior Elevations and Roof Plan
  5. Building Section, Cornice Details, Column Detail, Flashing Detail, Stair Detail, Rafter Span Schedule
  6. First Floor Electrical Plans and Schedules
  7. Second Floor Electrical Plans and Schedules
  8. Slab Foundation
  9. Footing Details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,865 sq. ft.

1st Floor

2,839 sq. ft.

2nd Floor

1,026 sq. ft.

Bonus

424 sq. ft.

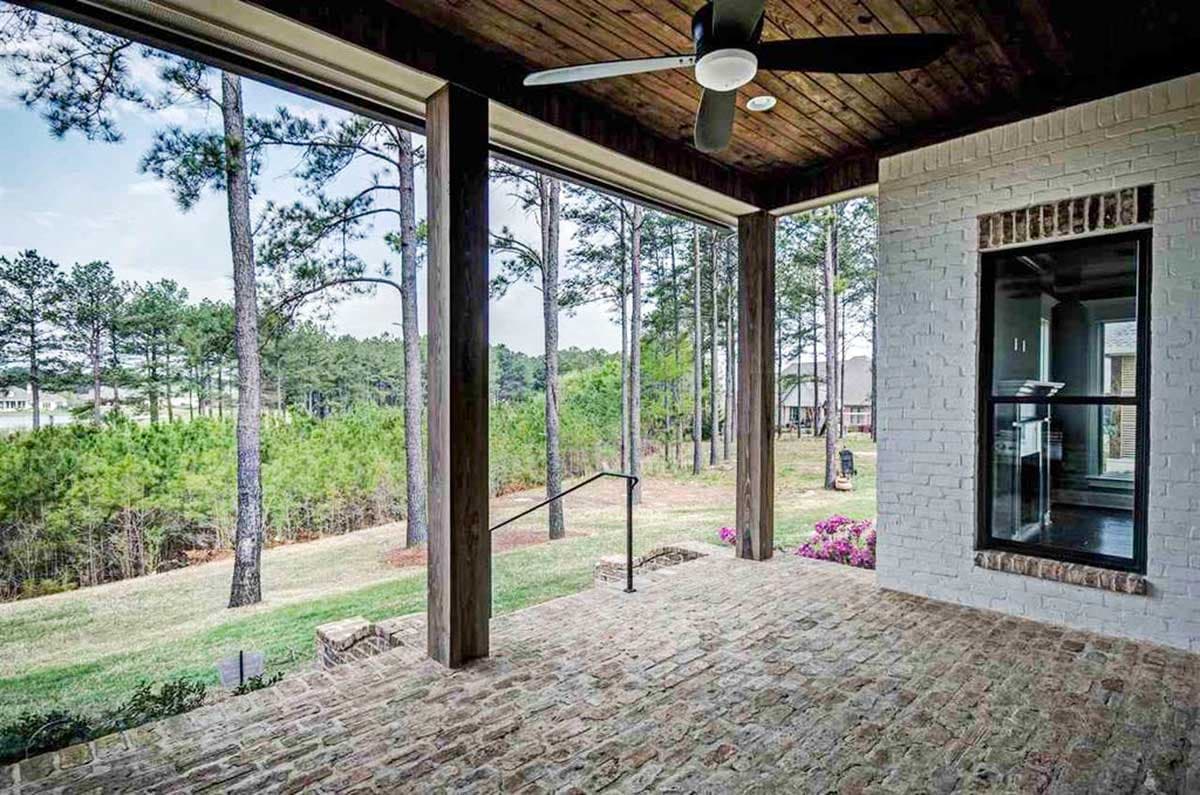

Porch, Rear

259 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

67' 11"

Depth

92' 4"

Max Ridge Height

35' 11"

Garage

Type

Attached

Area

929 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

European

French Country

Southern

Special Features

Bonus Room

Breakfast Nook

Butler Walk-in Pantry

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Luxury

Photo Gallery

Premium Collection

Square Footage Breakdown

Total Heated Area

3,865 sq. ft.

1st Floor

2,839 sq. ft.

2nd Floor

1,026 sq. ft.

Bonus

424 sq. ft.

Porch, Rear

259 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

67' 11"

Depth

92' 4"

Max Ridge Height

35' 11"

Garage

Type

Attached

Area

929 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

European

French Country

Southern

Special Features

Bonus Room

Breakfast Nook

Butler Walk-in Pantry

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Luxury

Photo Gallery

Premium Collection
