Plan 23660JD
Stylish Northwest House Plan with Garage Apartment
Heated S.F.
4,785
Beds
4
Baths
4.5
Stories
2
Cars
2
Floor Plan

Plan 23660JD

Main Level
slide image 0
Second Level
slide image 1
Third Level
slide image 2

Plan 23660JD

1-800-854-7852

1-262-521-4596

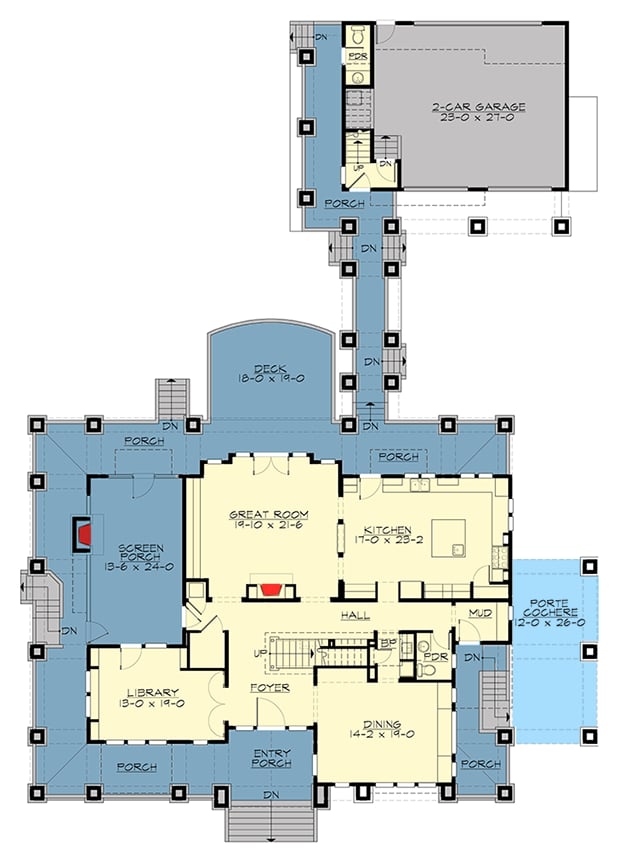

Main Level
floor plan image Main Level

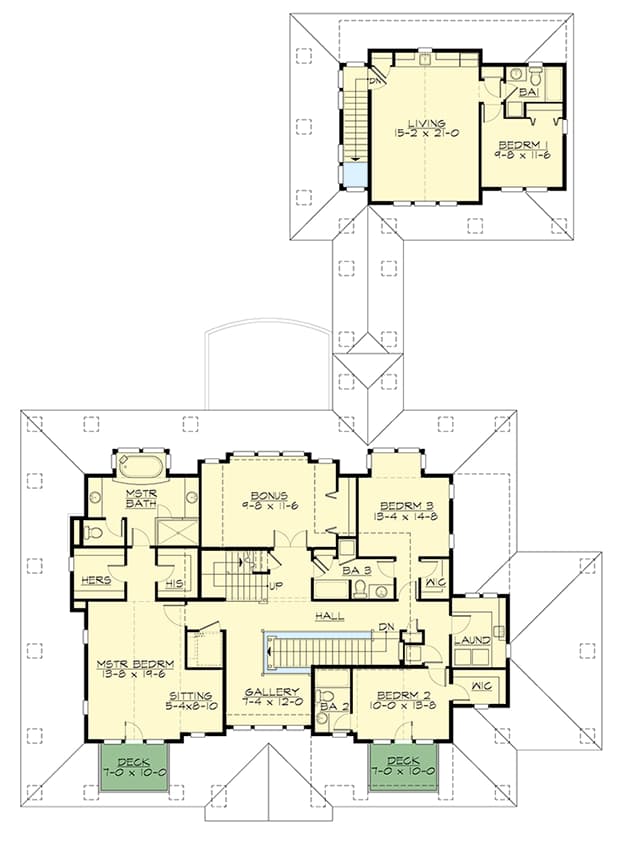

Second Level
floor plan image Second Level

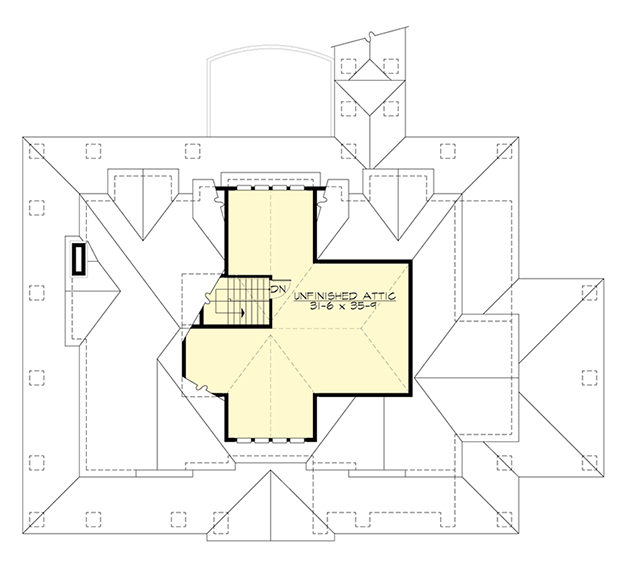

Third Level
floor plan image Third Level
Plan Details

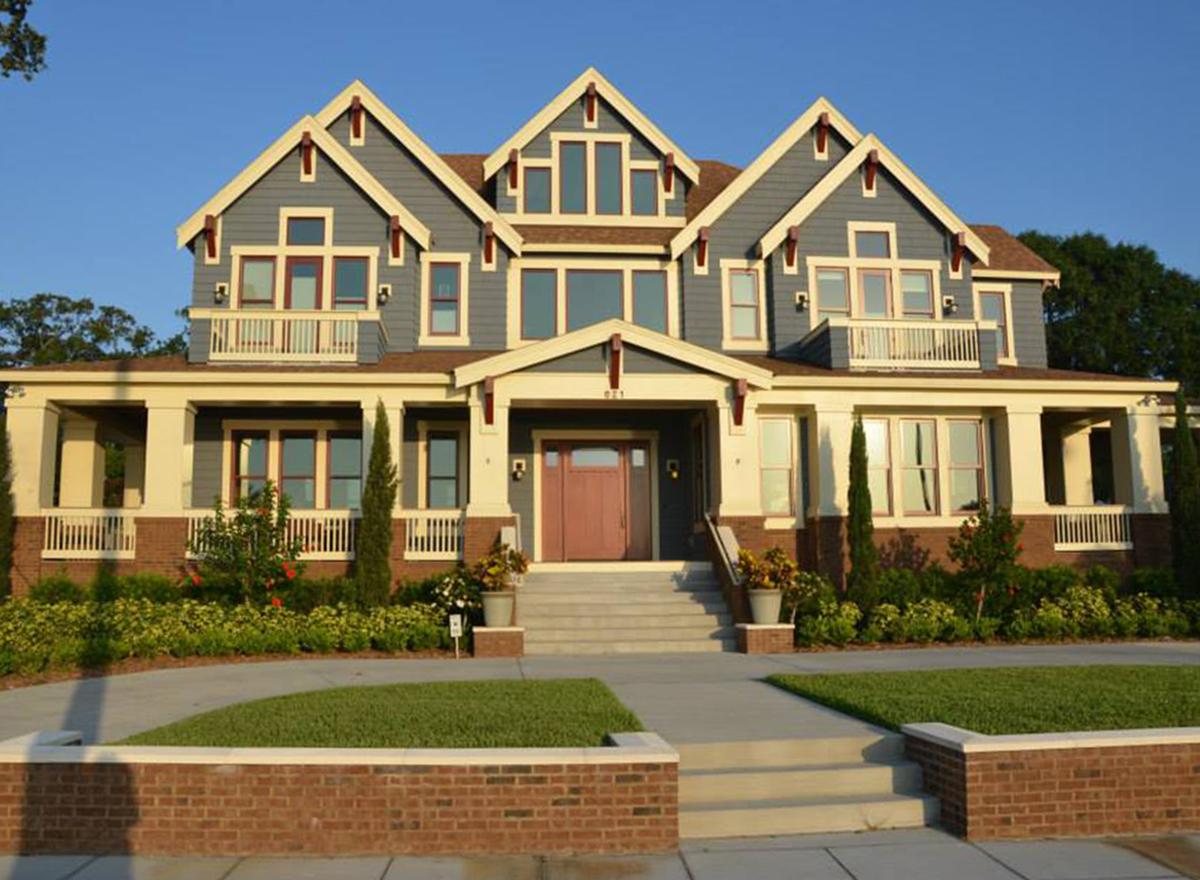

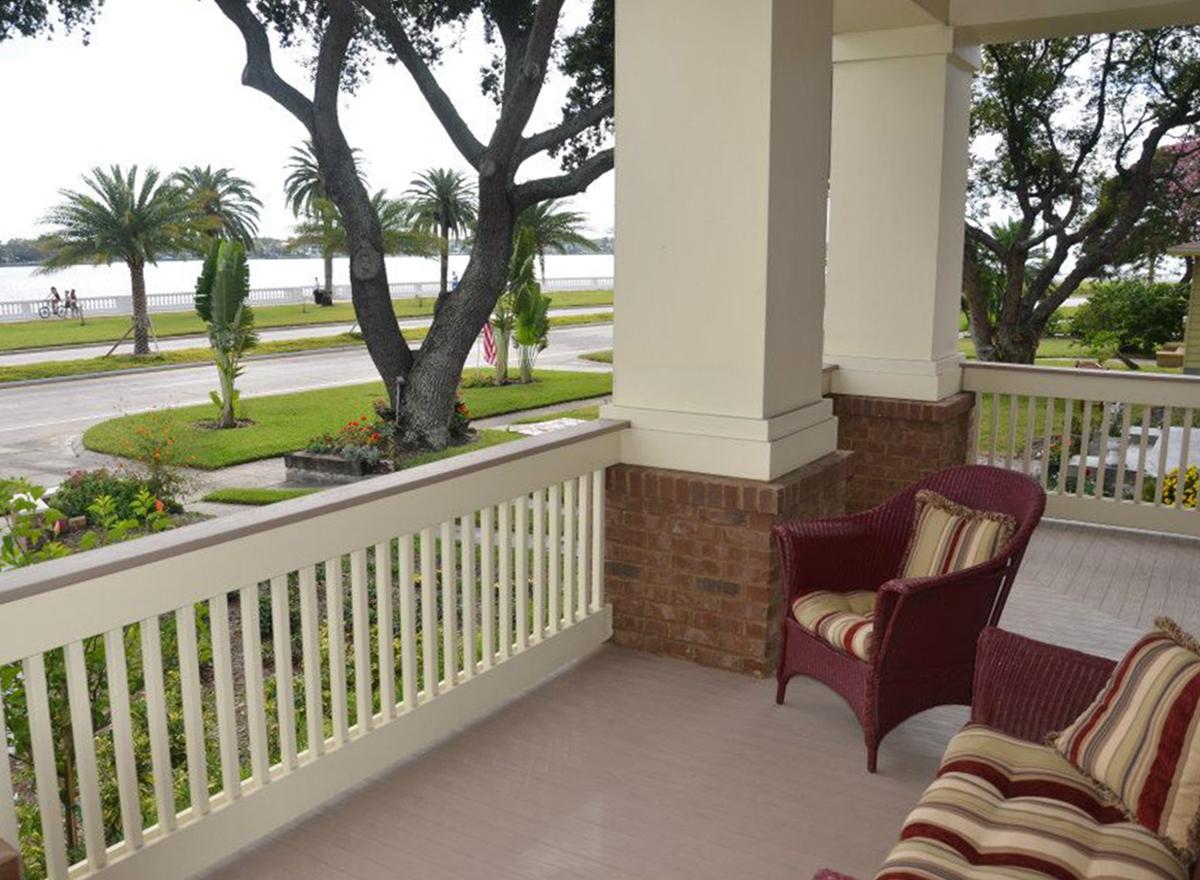

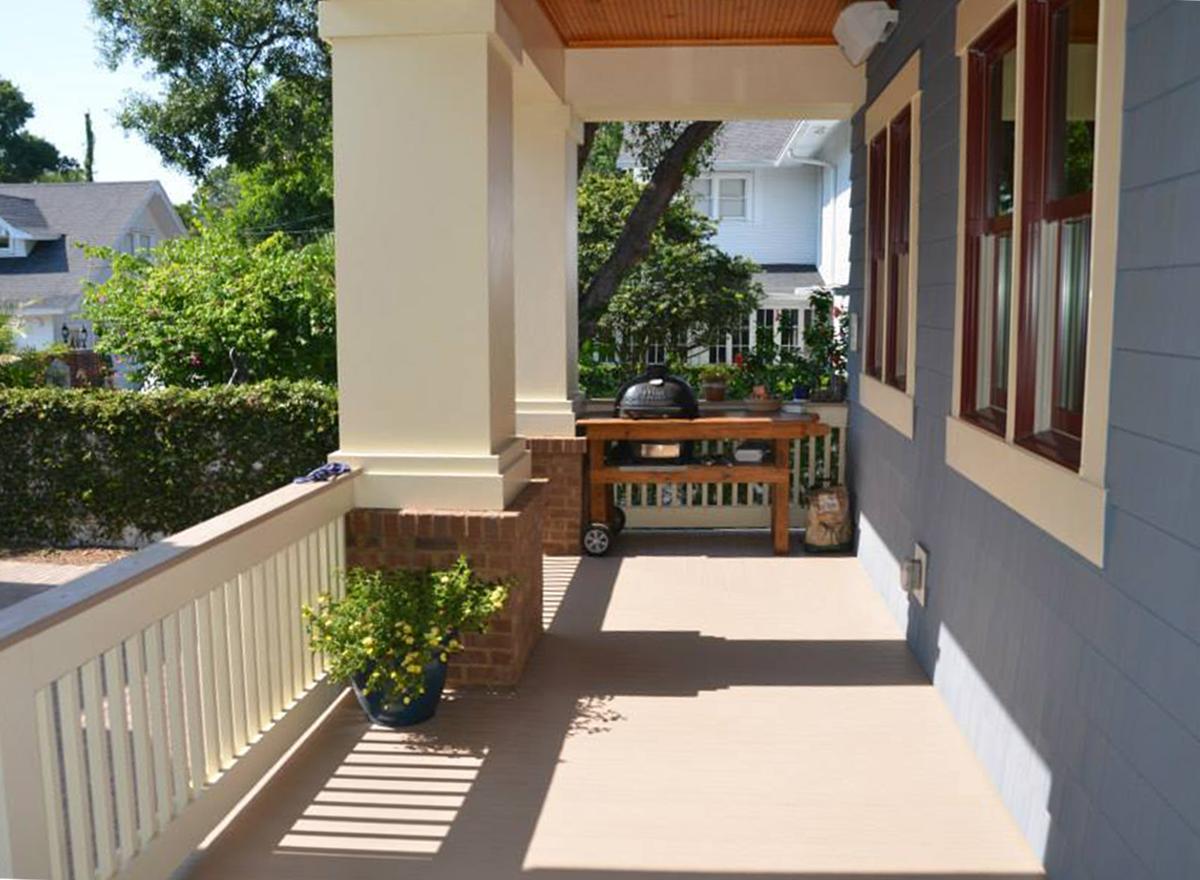

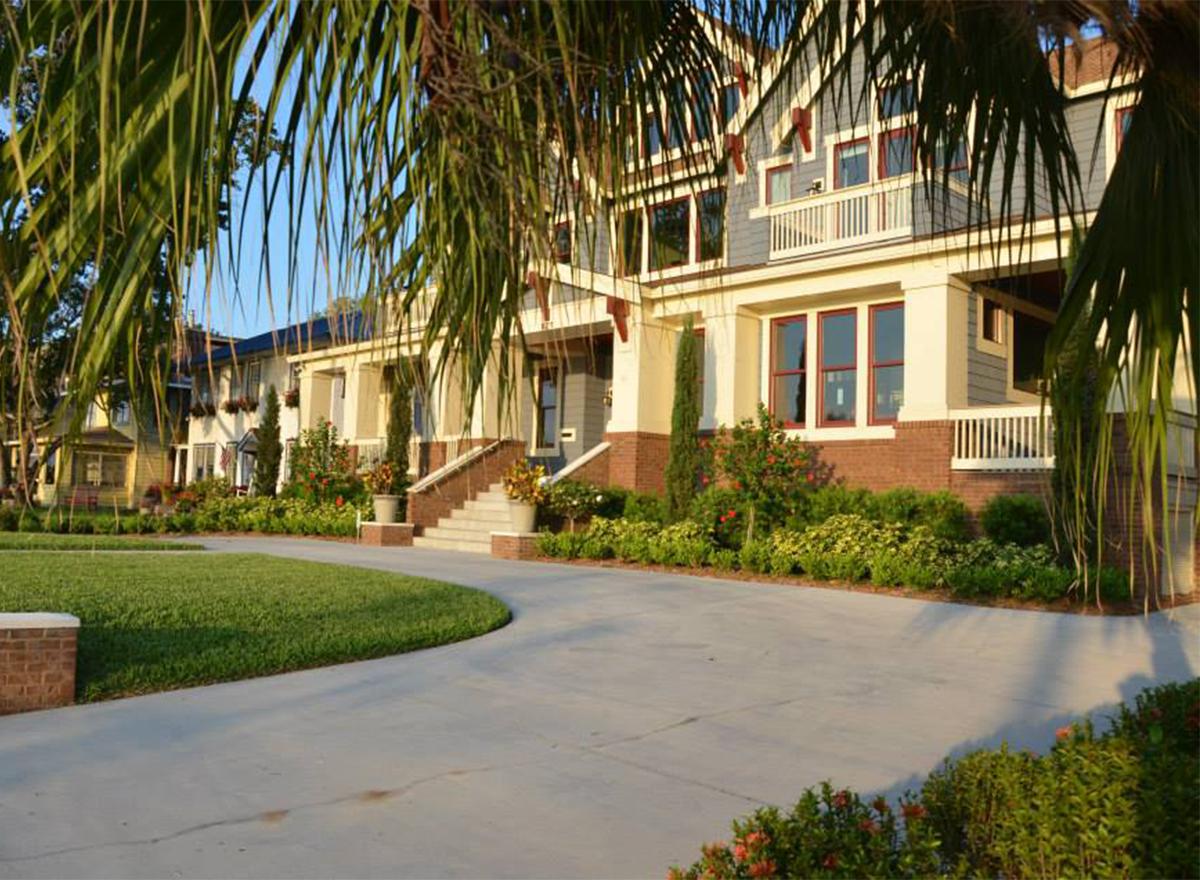

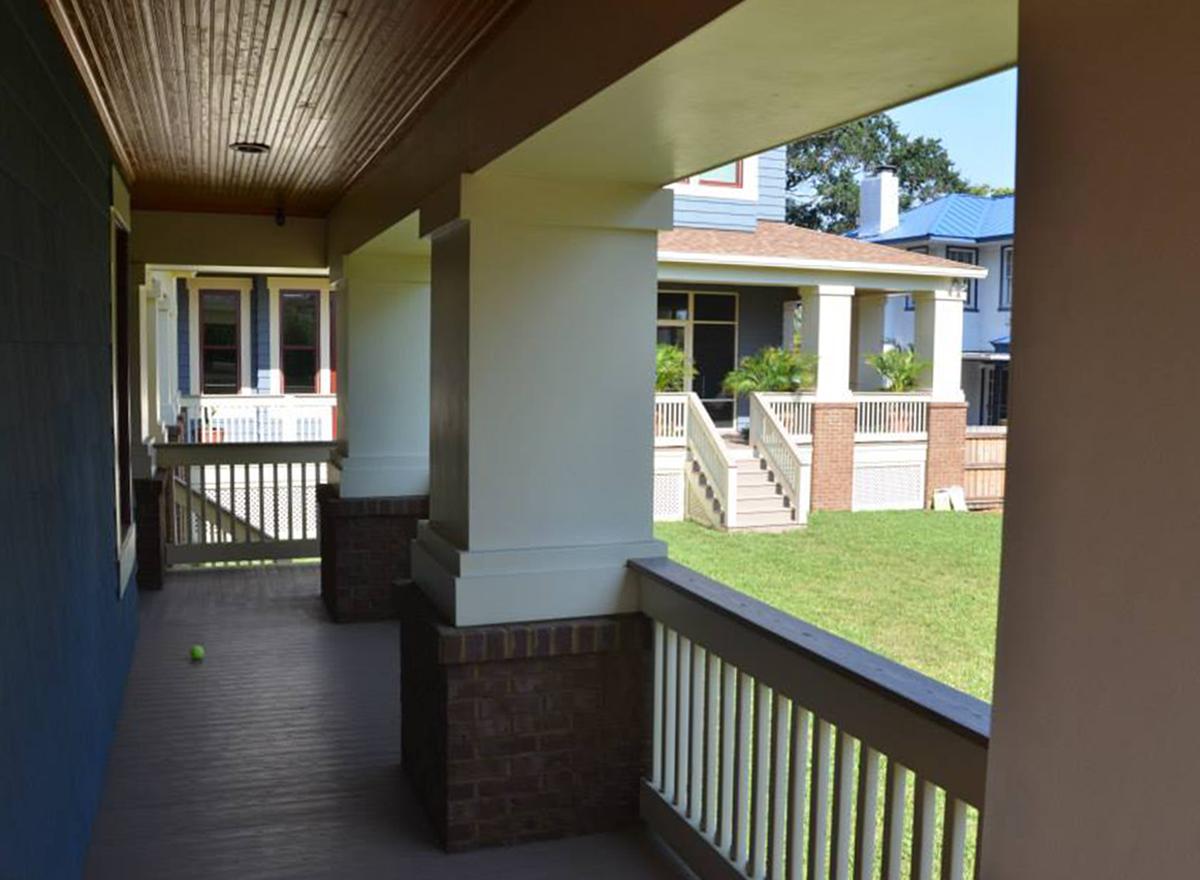

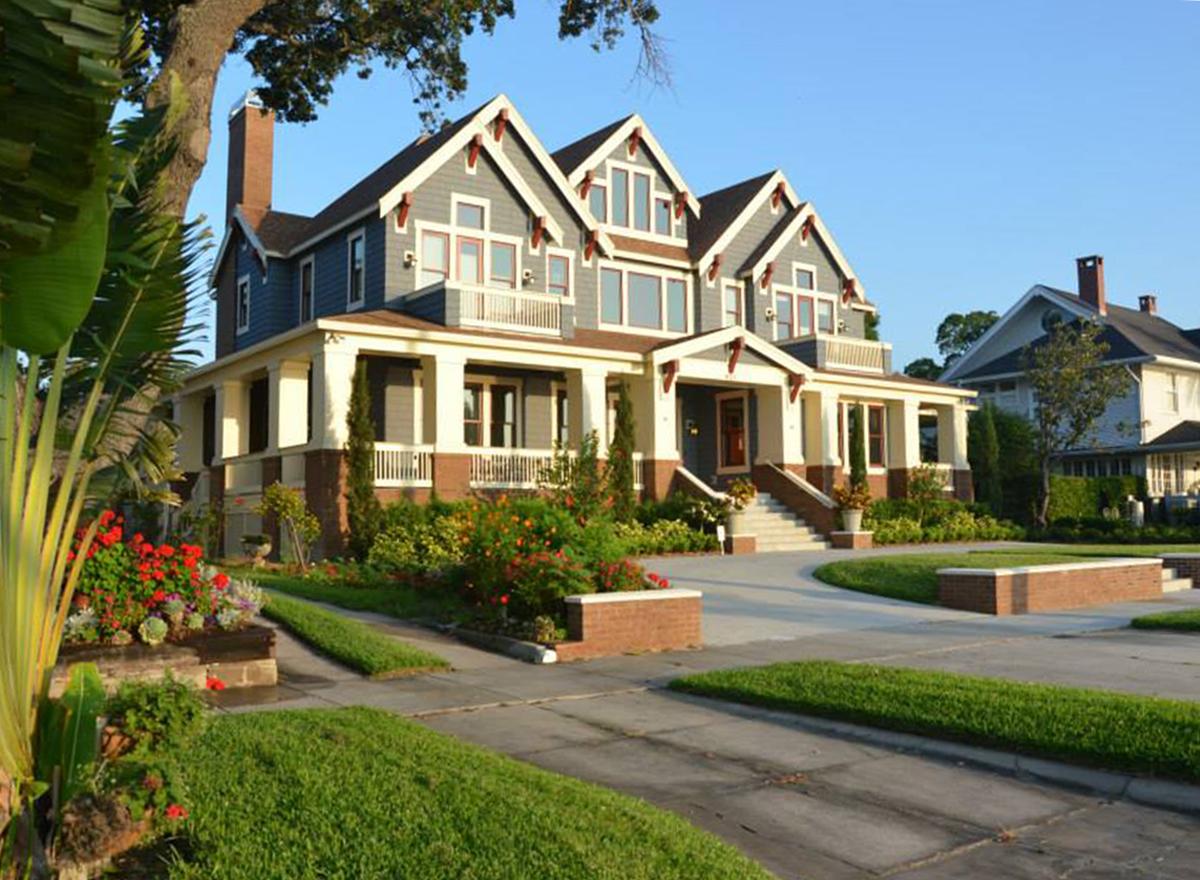

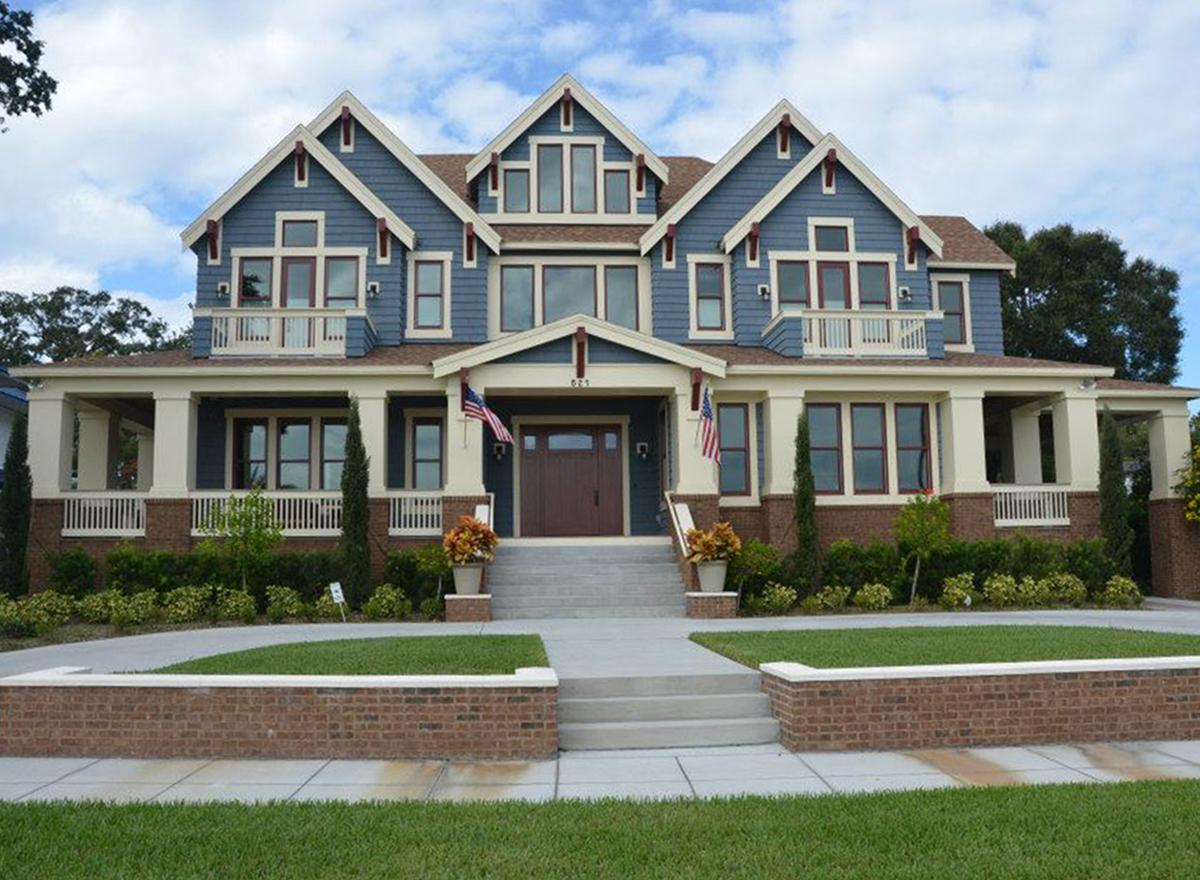

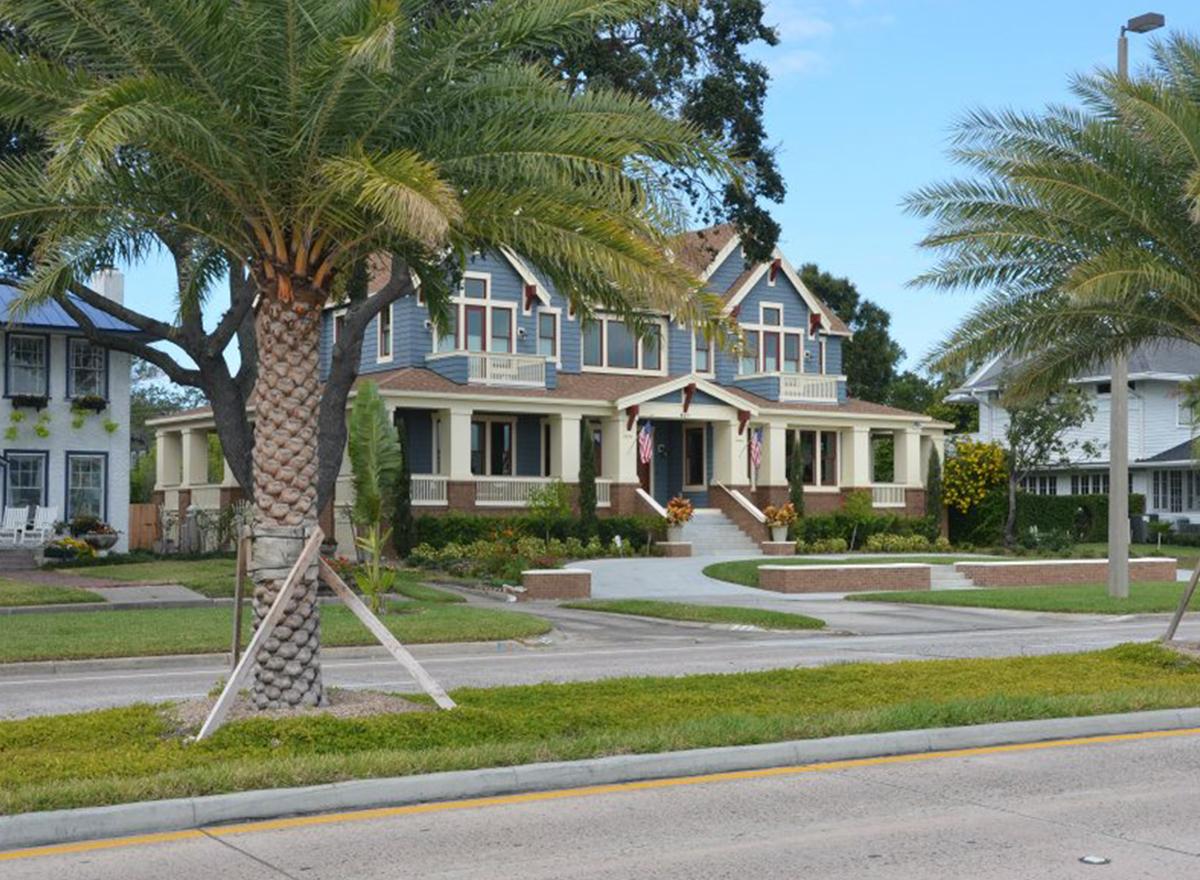

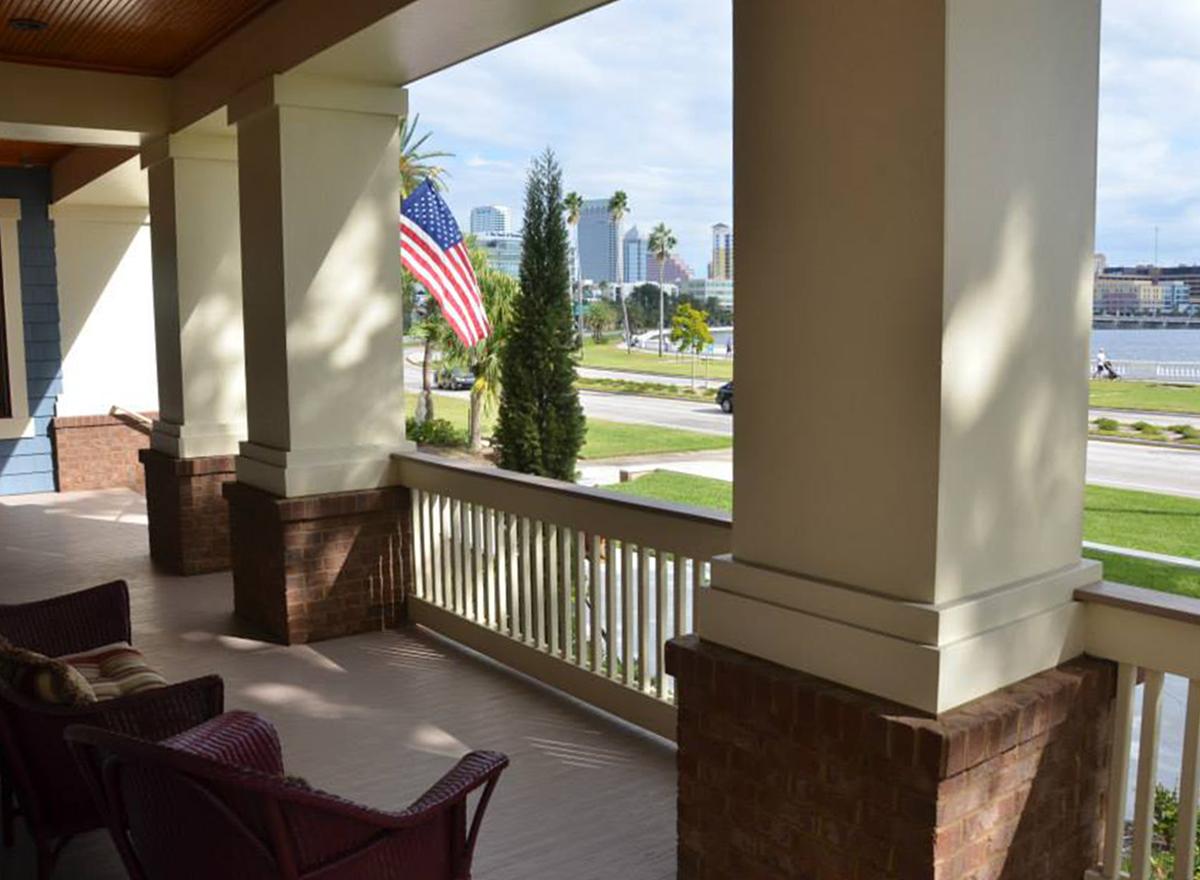

  • A huge porch wraps around this stylish and spacious Northwest house plan with the added bonus of a screened porch with fireplace.

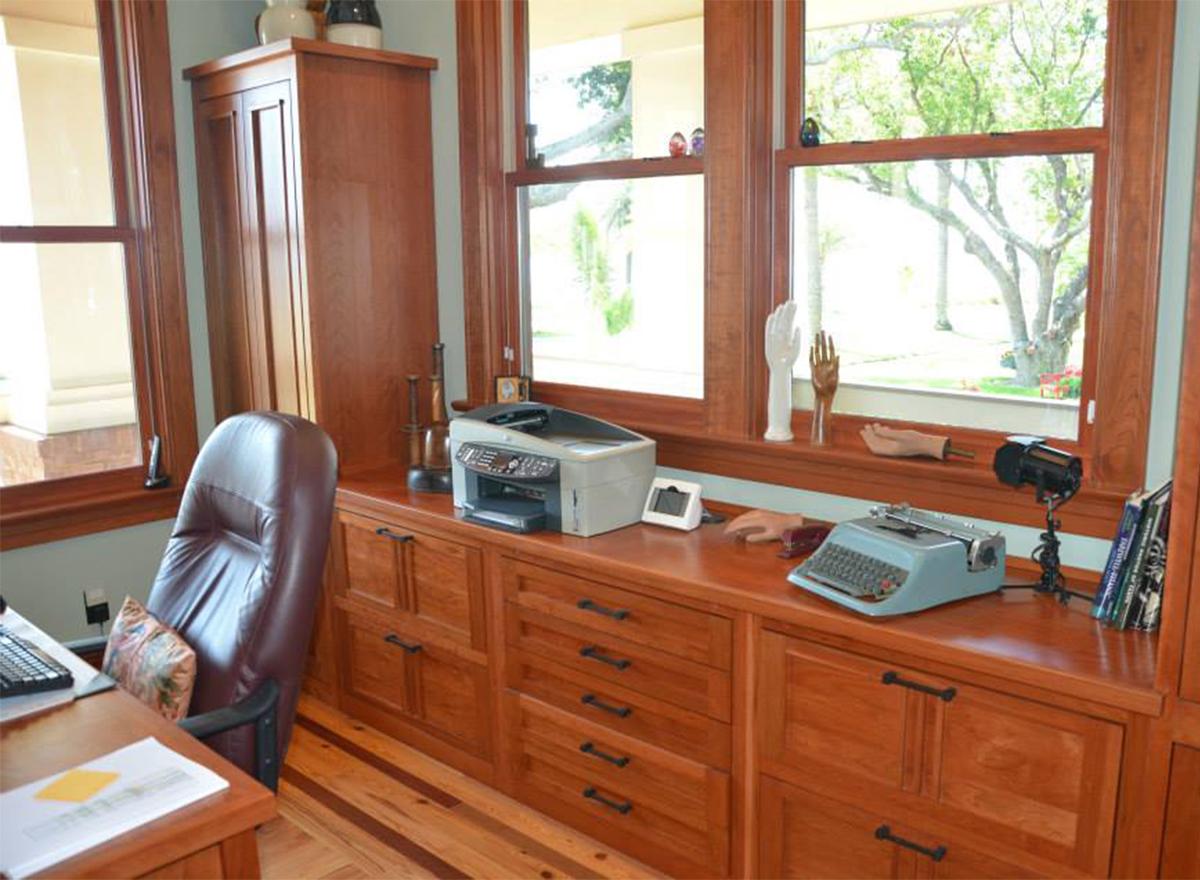

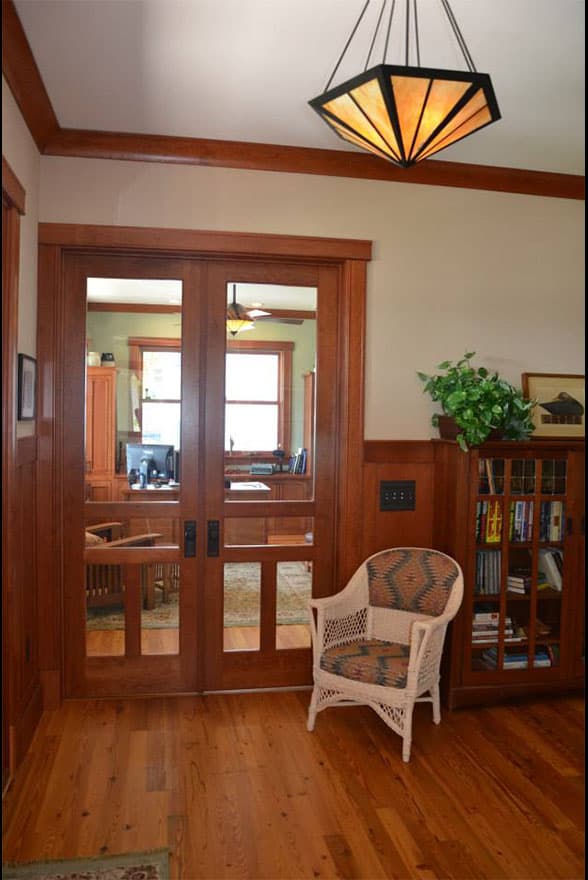

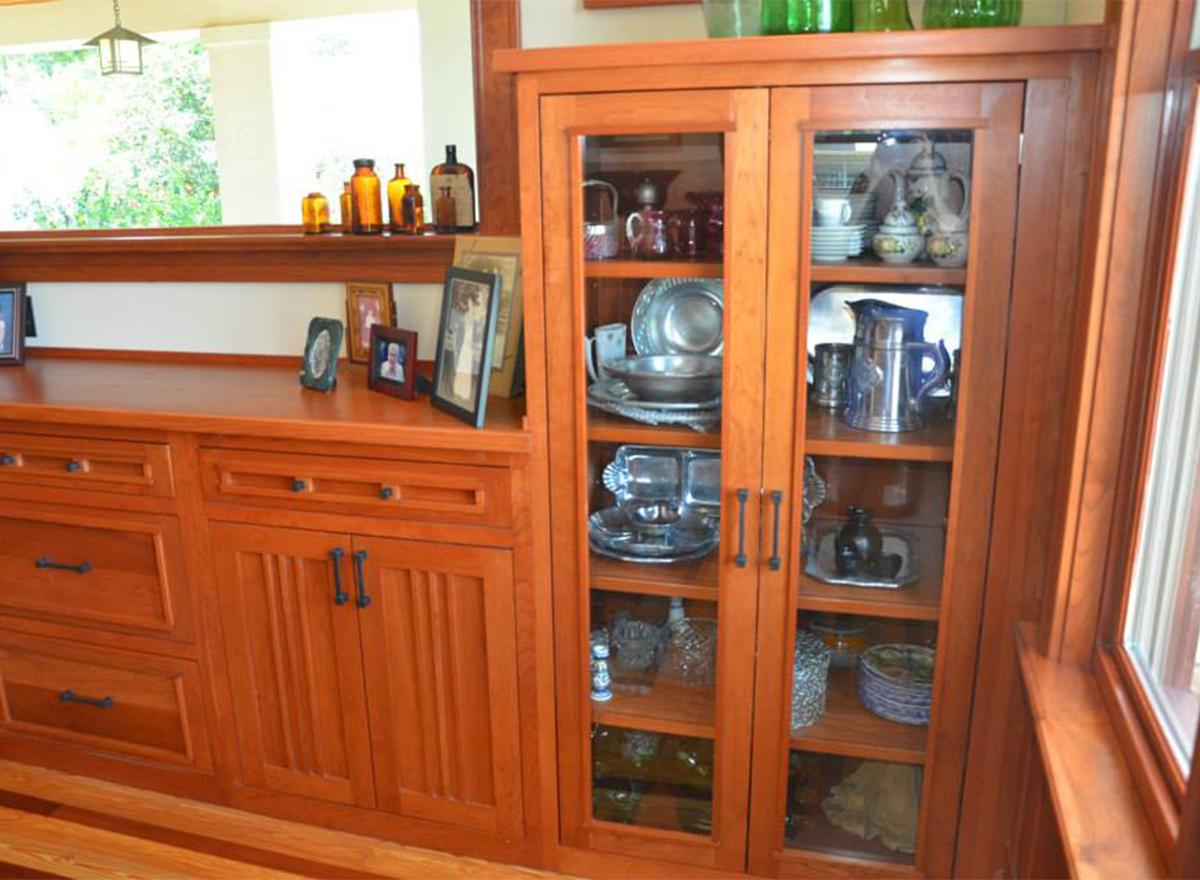

  • Every room is a generous size, with built-ins throughout the home for a custom touch.

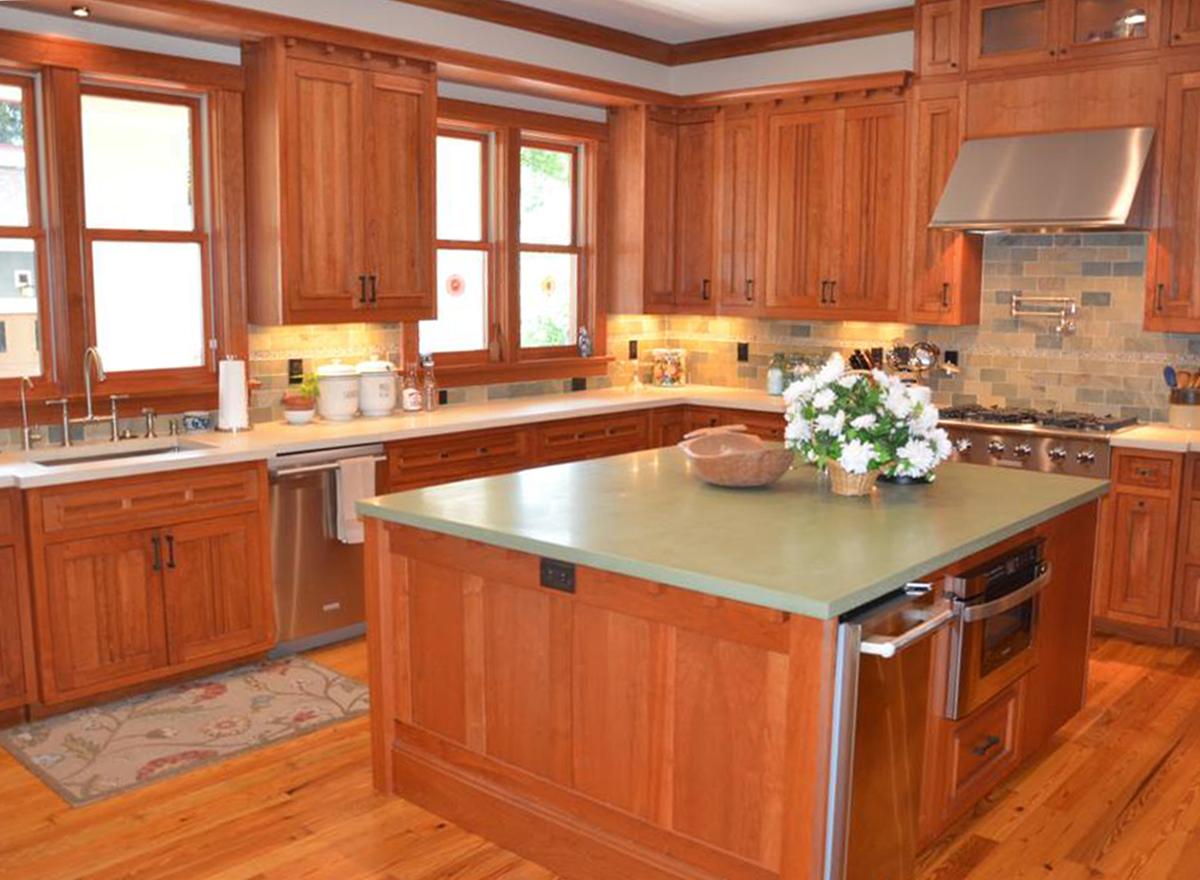

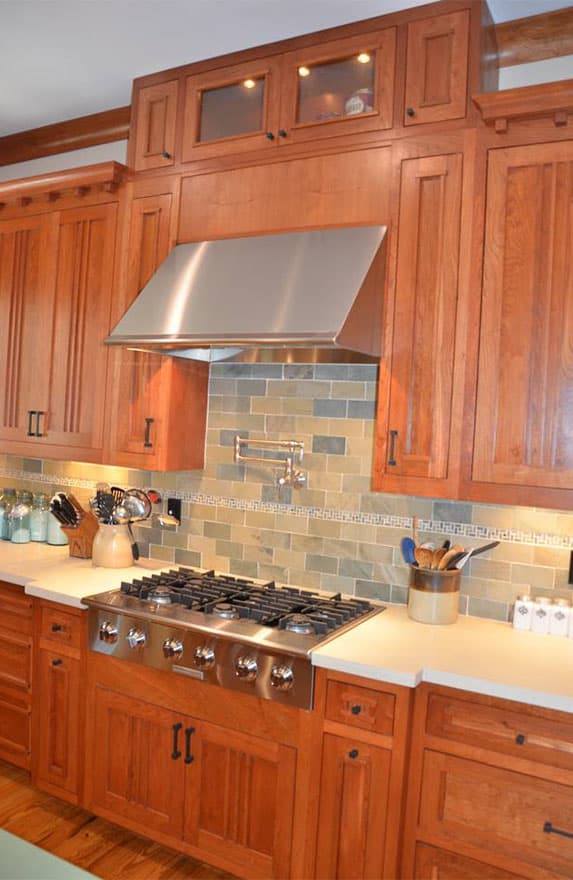

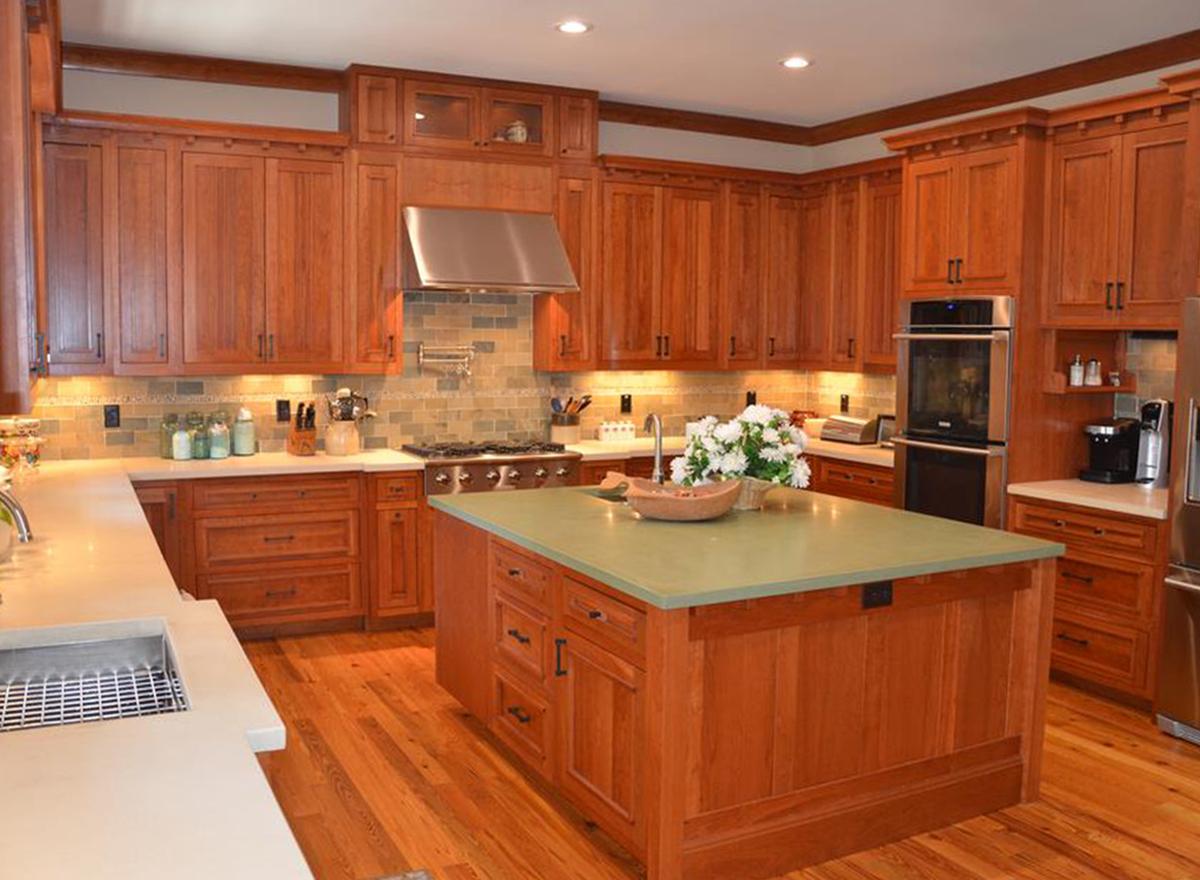

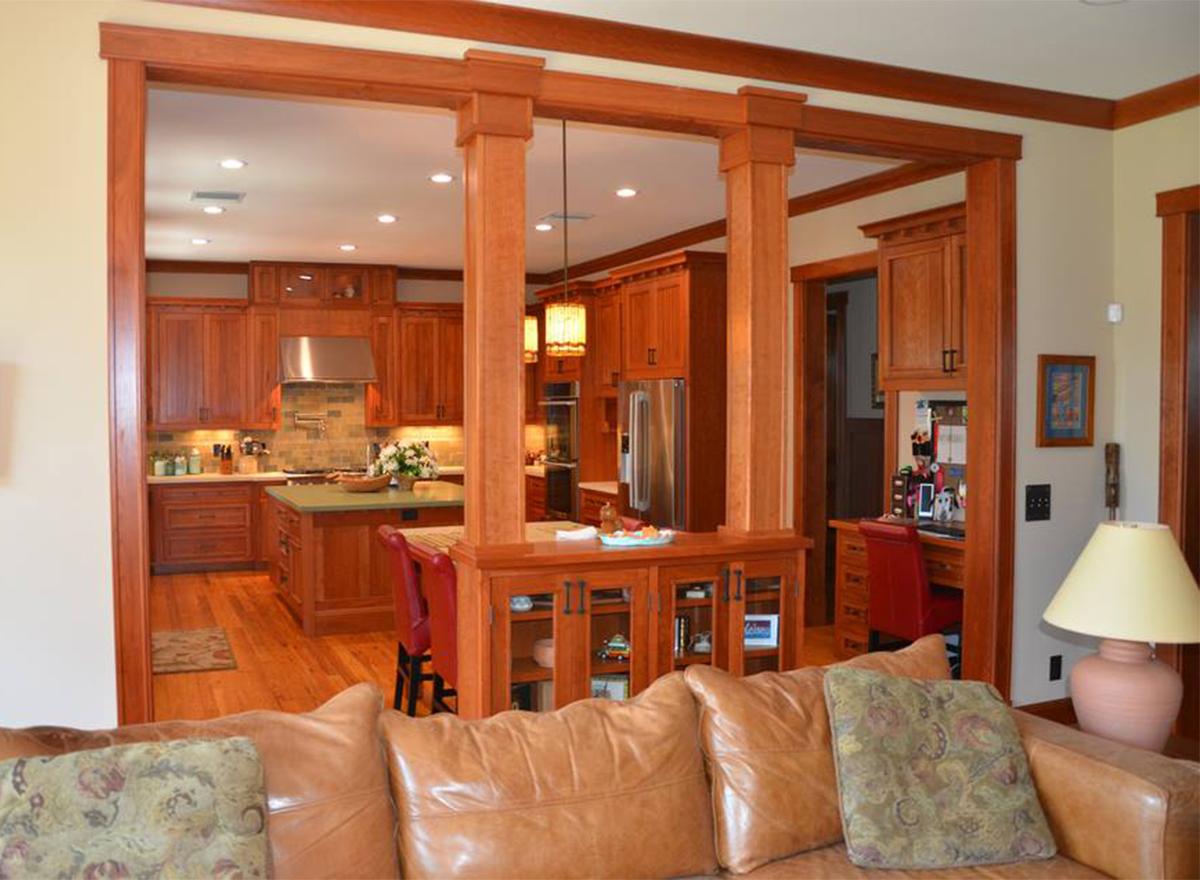

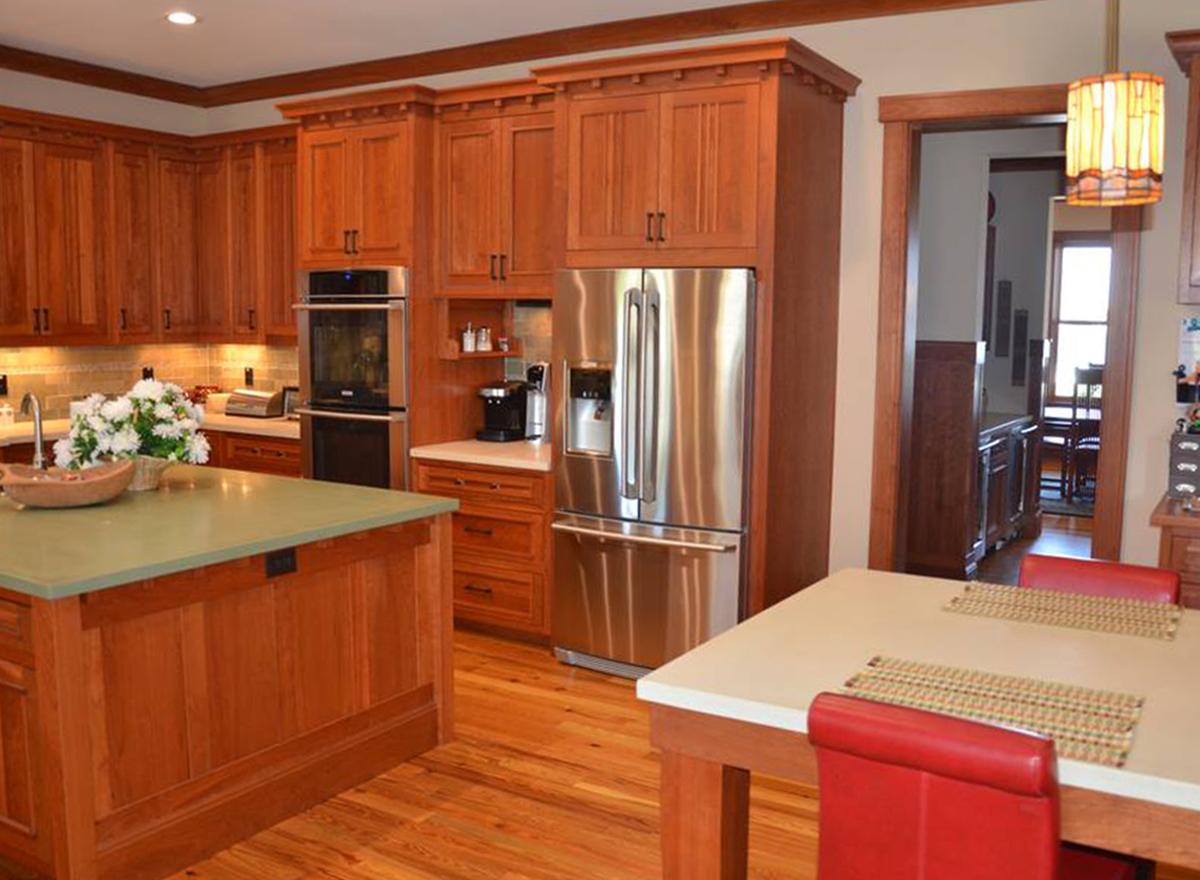

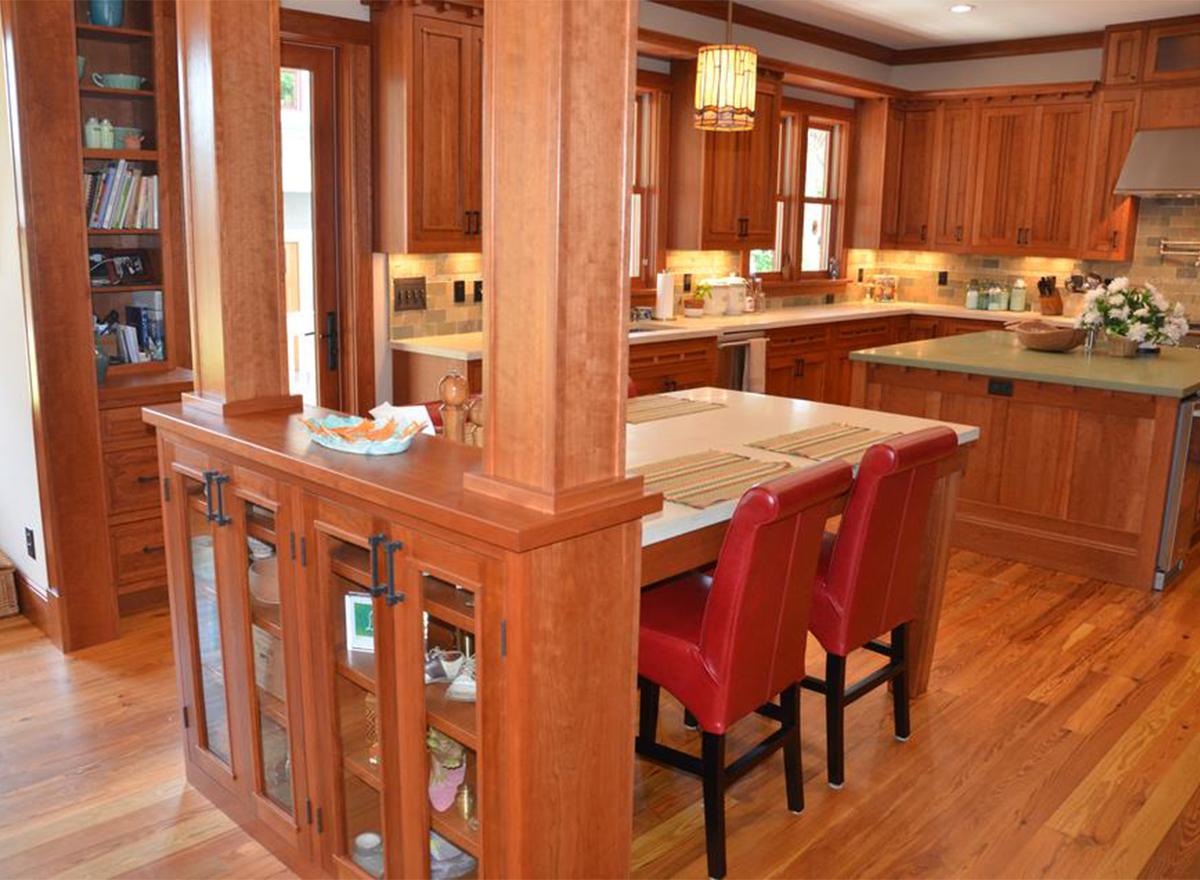

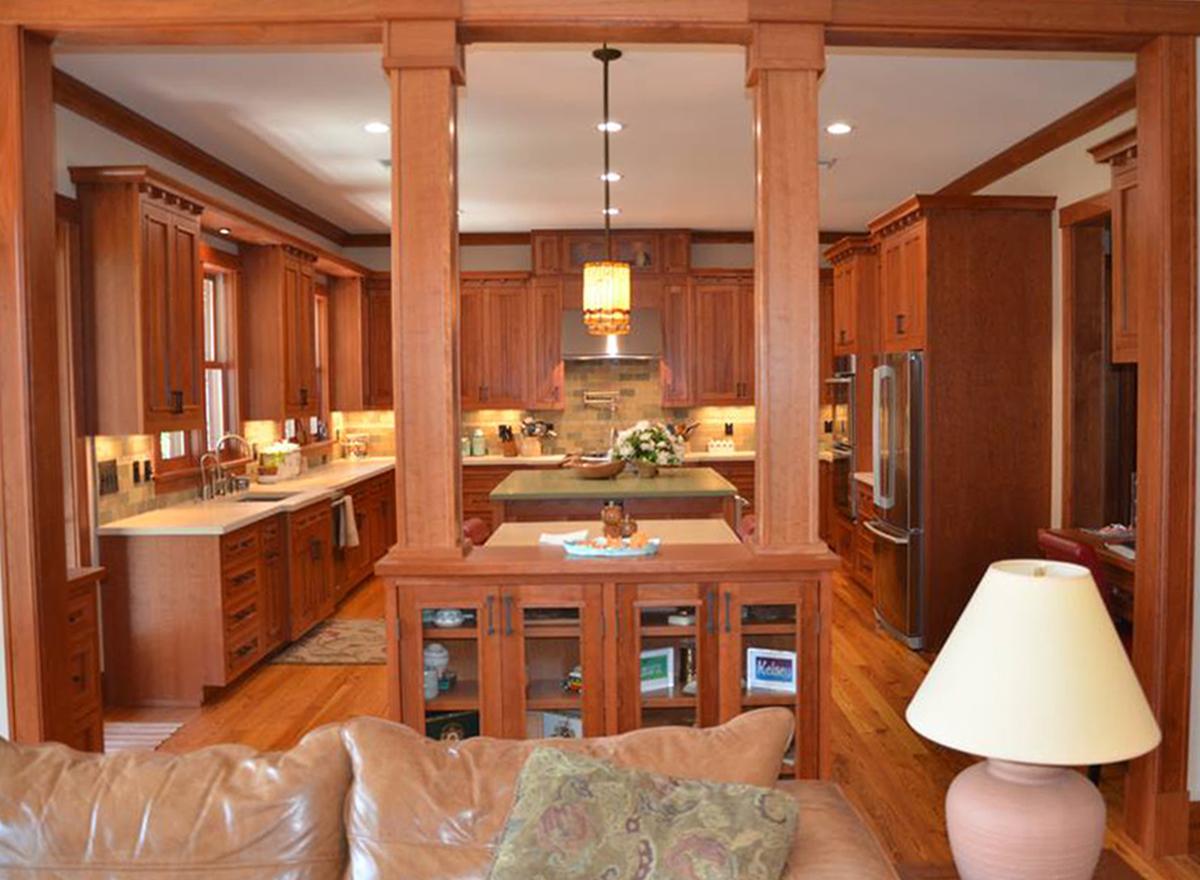

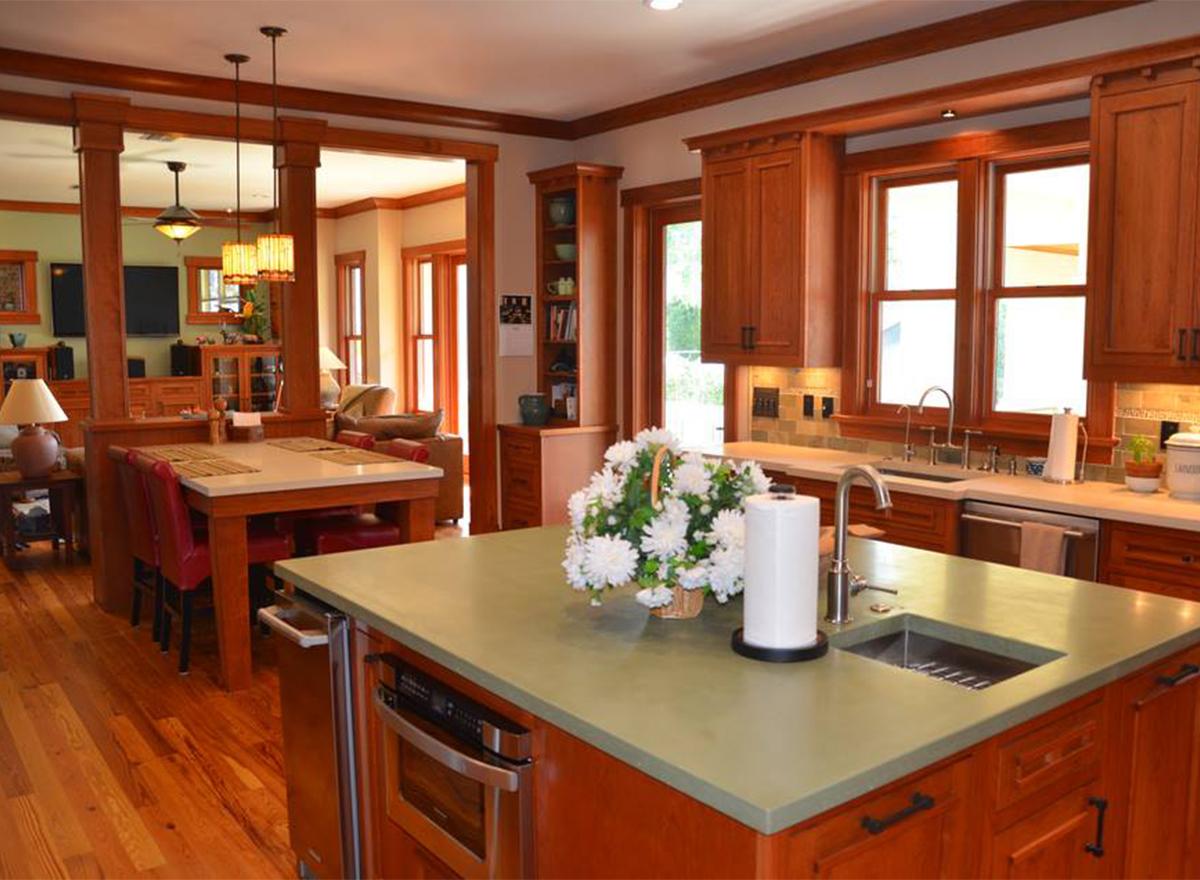

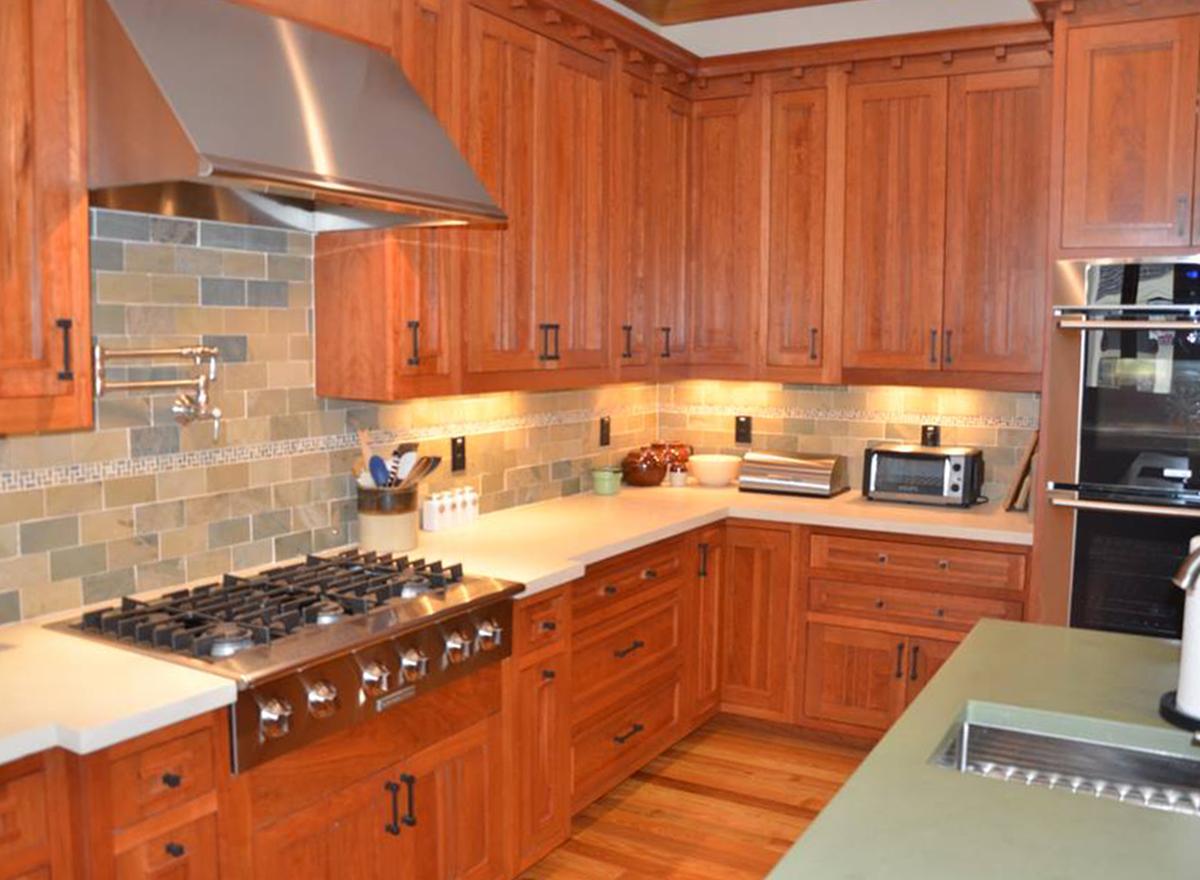

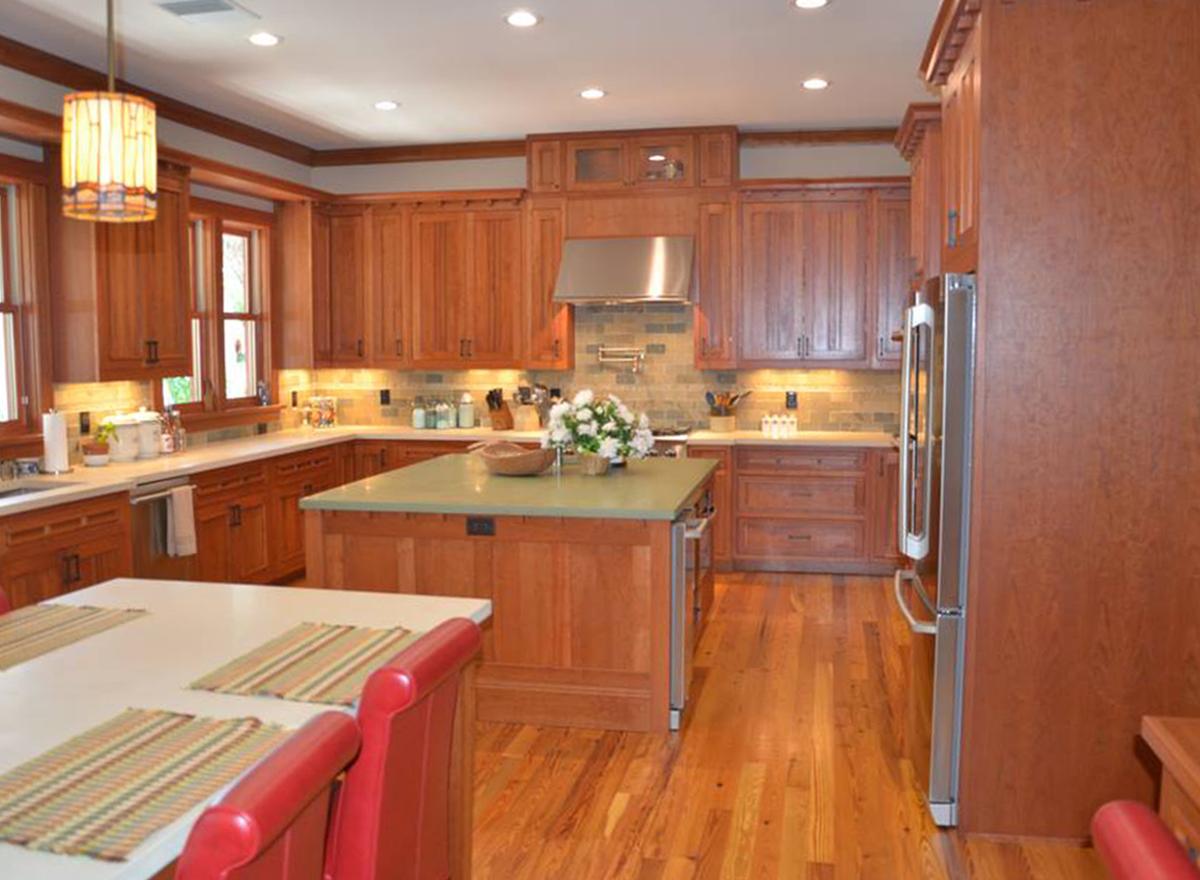

  • An abundance of counter space in the kitchen, a six burner stove and two sinks make this kitchen a pleasure to work in.

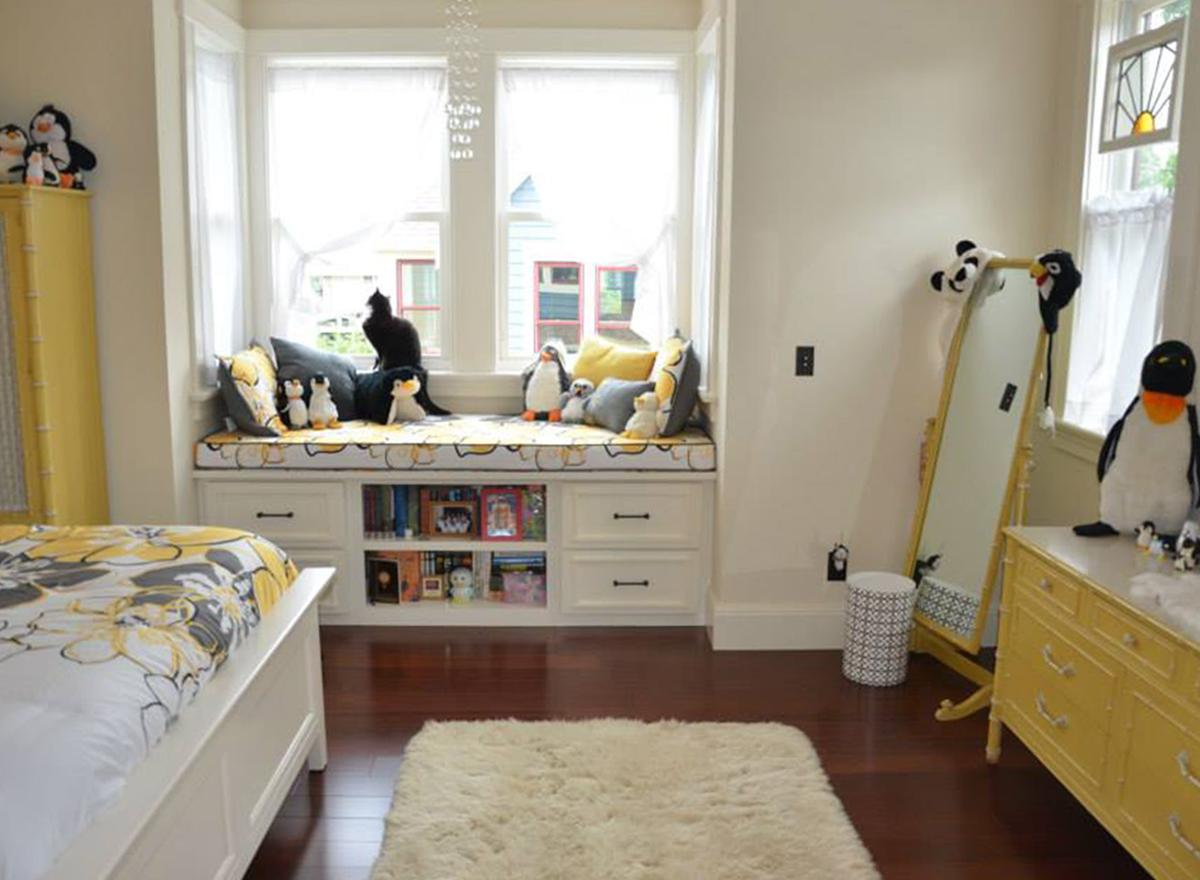

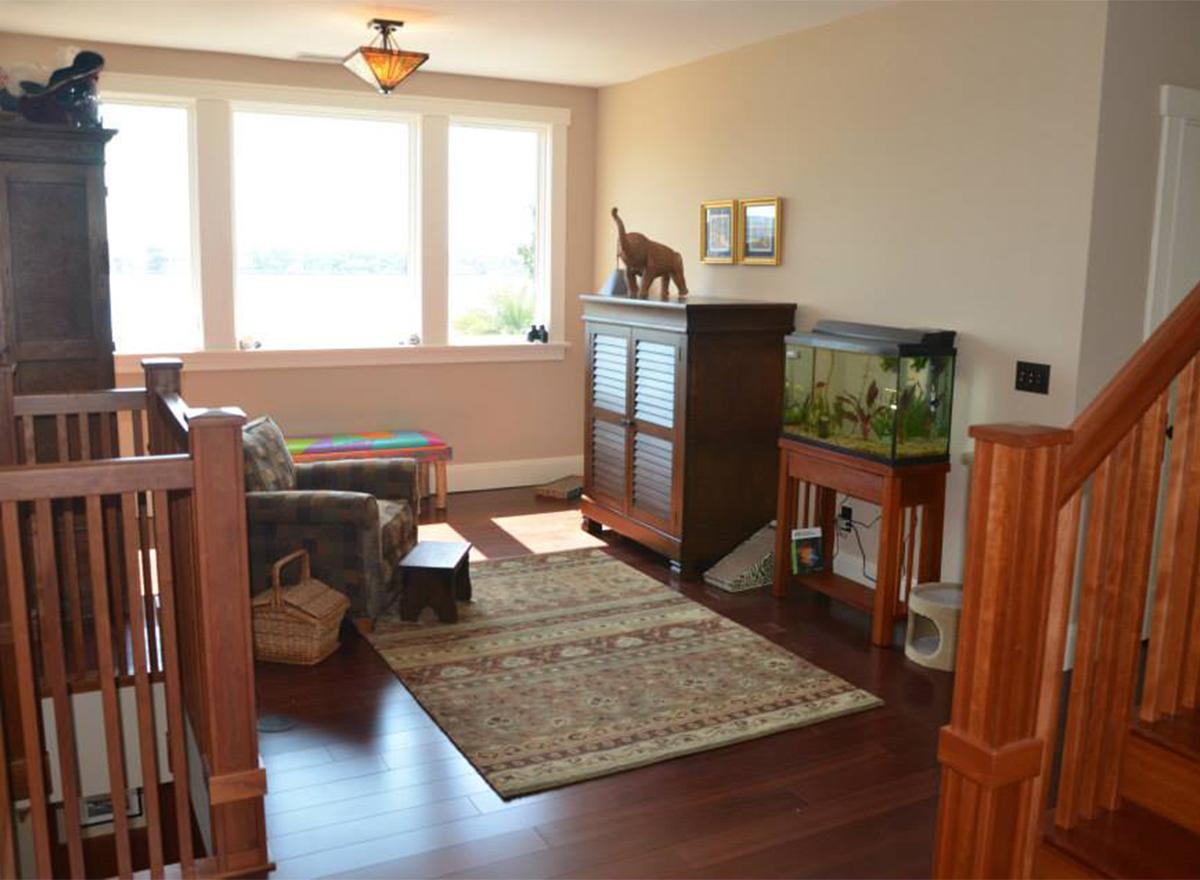

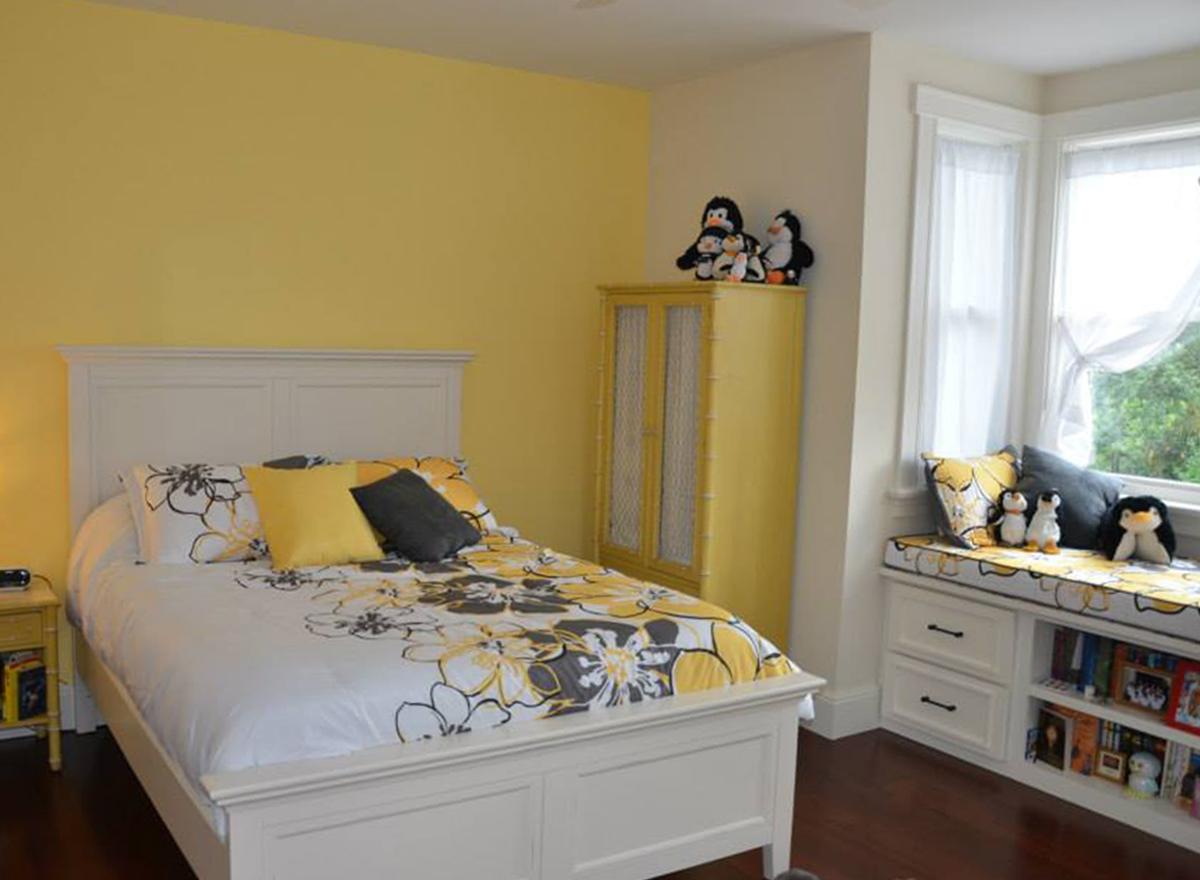

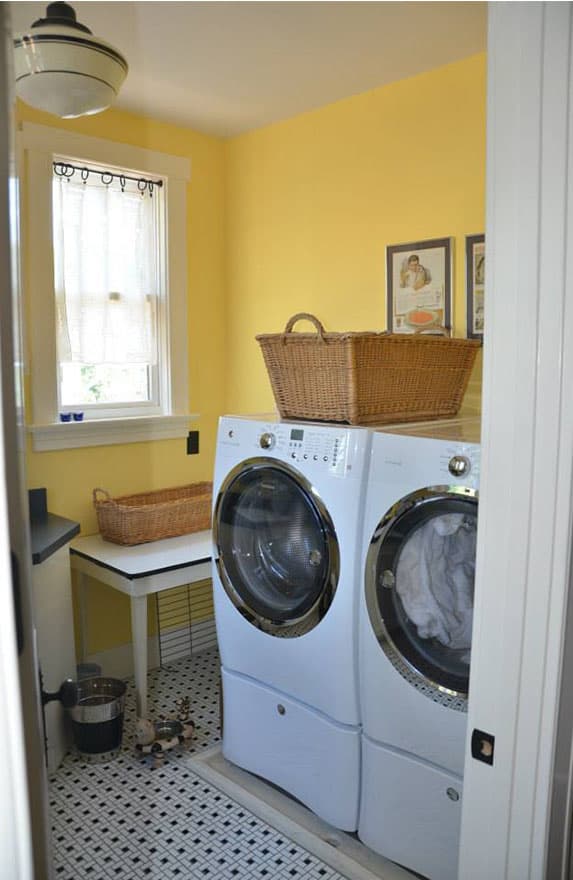

  • On the second floor, three big bedrooms are jpoined by bonus space, a second floor laundry room and gallery space that overlooks the front of your lot.

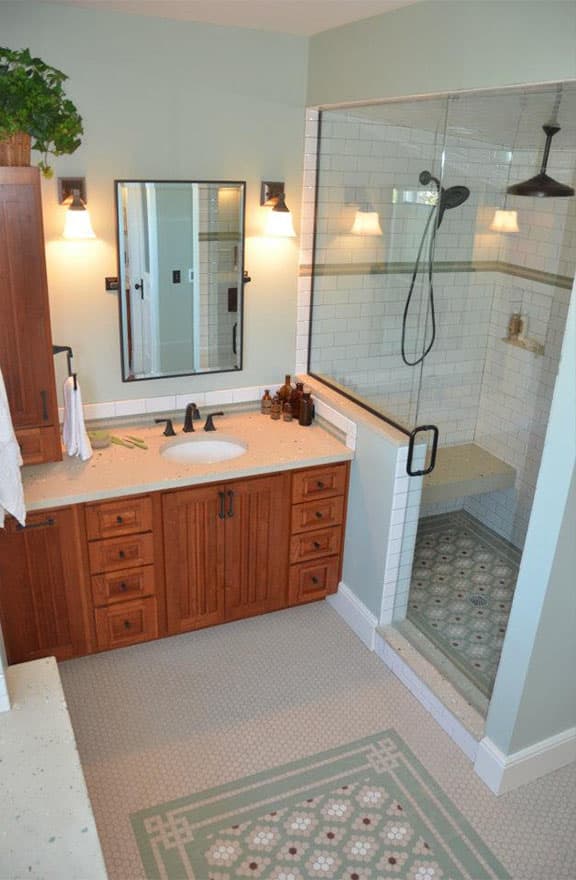

  • The master suite is a special treat with its vaulted ceiling, a sitting area and two walk-in closets.

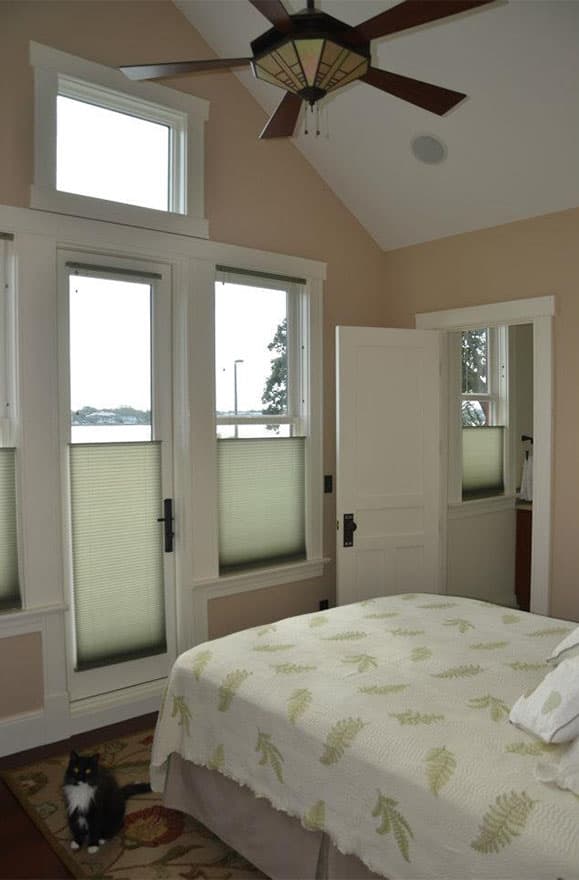

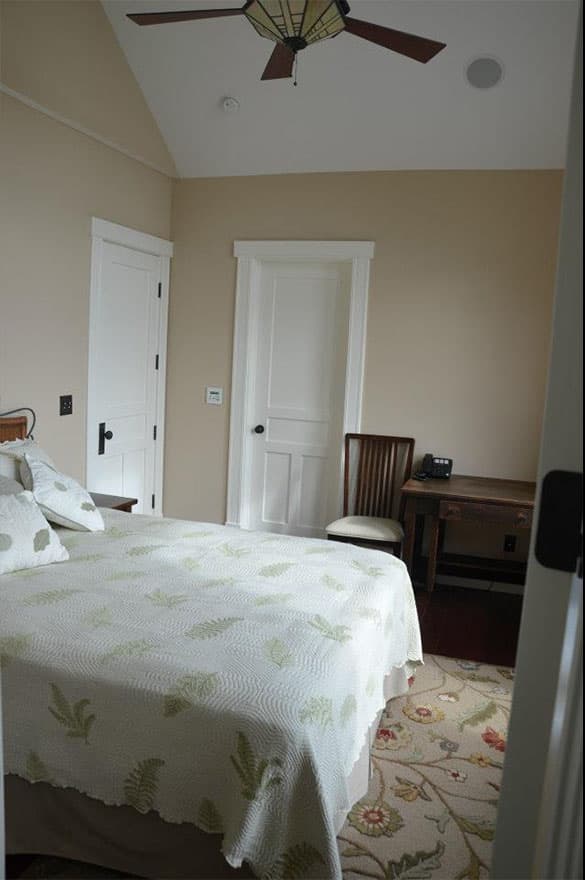

  • Both bedroom 2 and the master suite get private decks too.

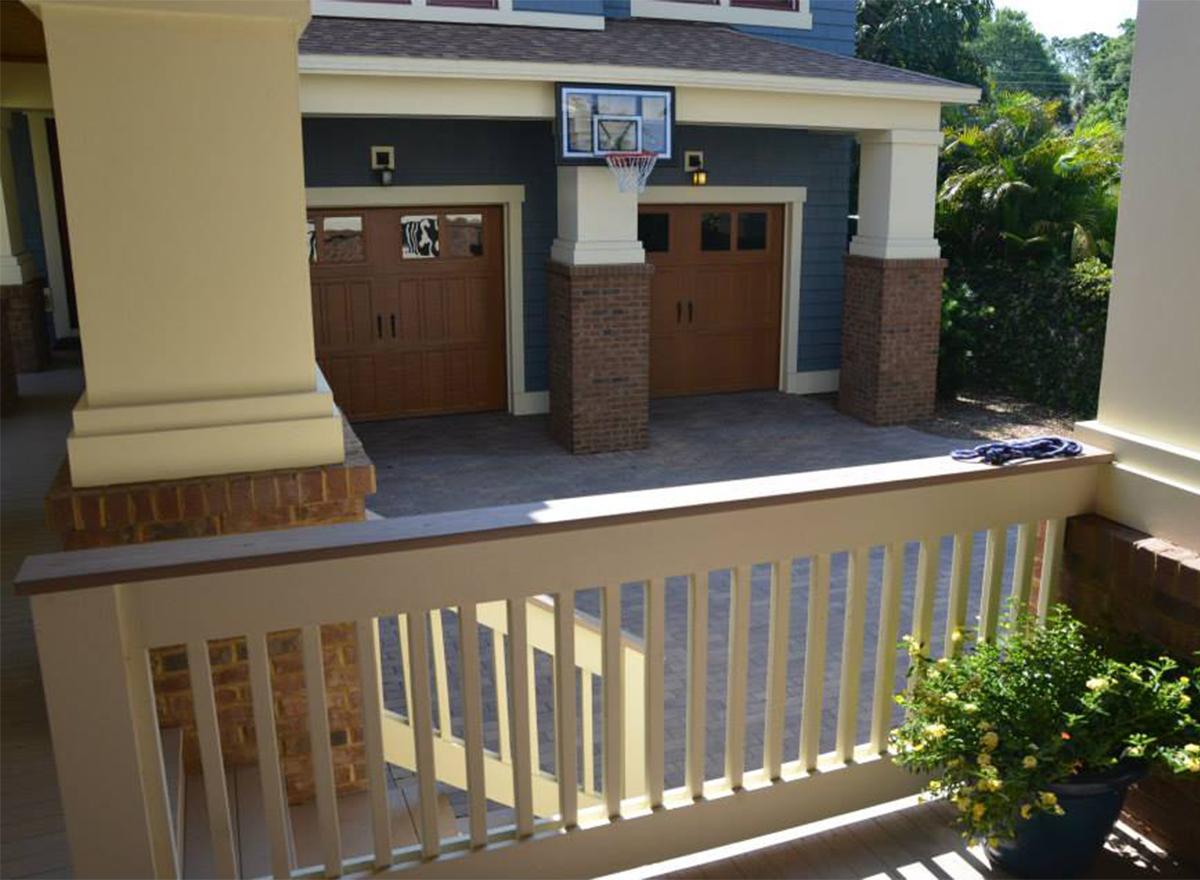

  • A lovely garage apartment lies over the two car garage and can be used as an in-law suite or for rental income.
  • NOTE:  Additional fees apply when building in the State of Washington. Contact us for more information.
What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

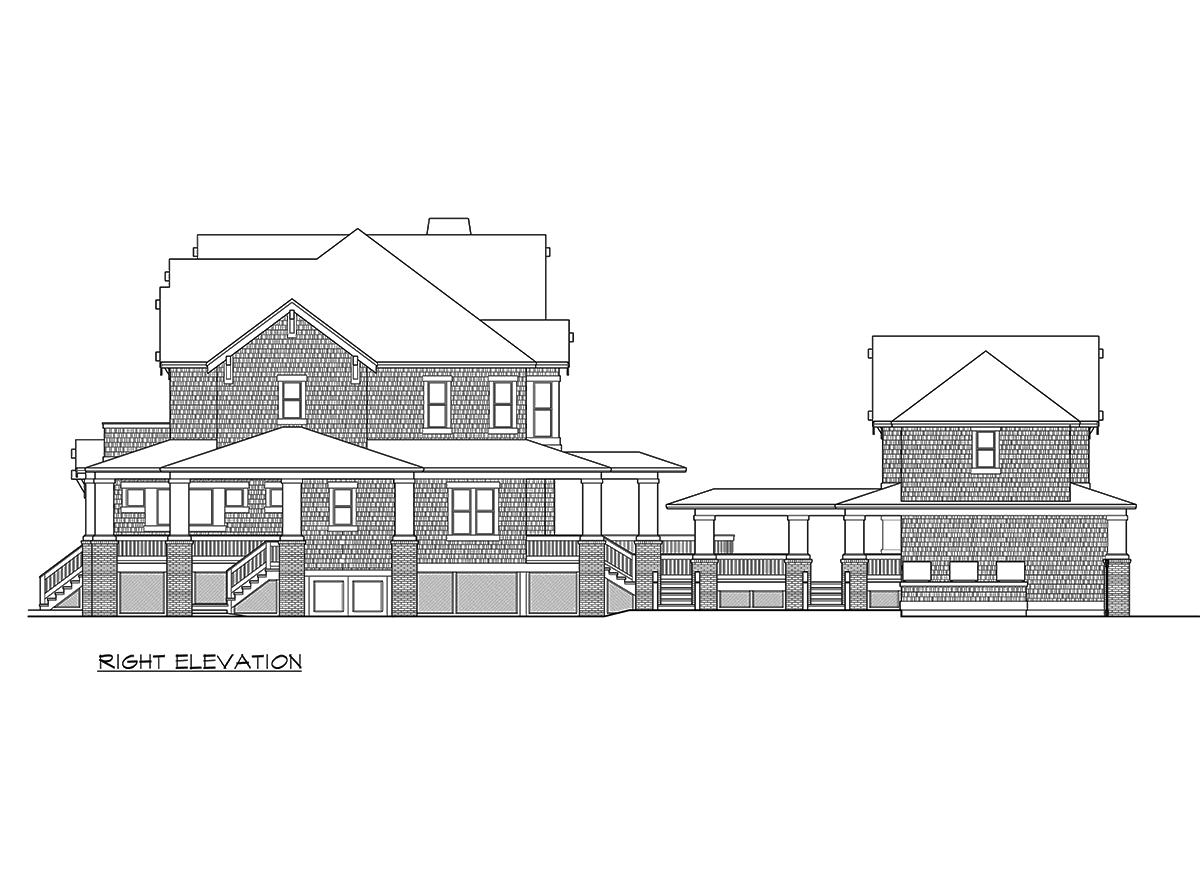

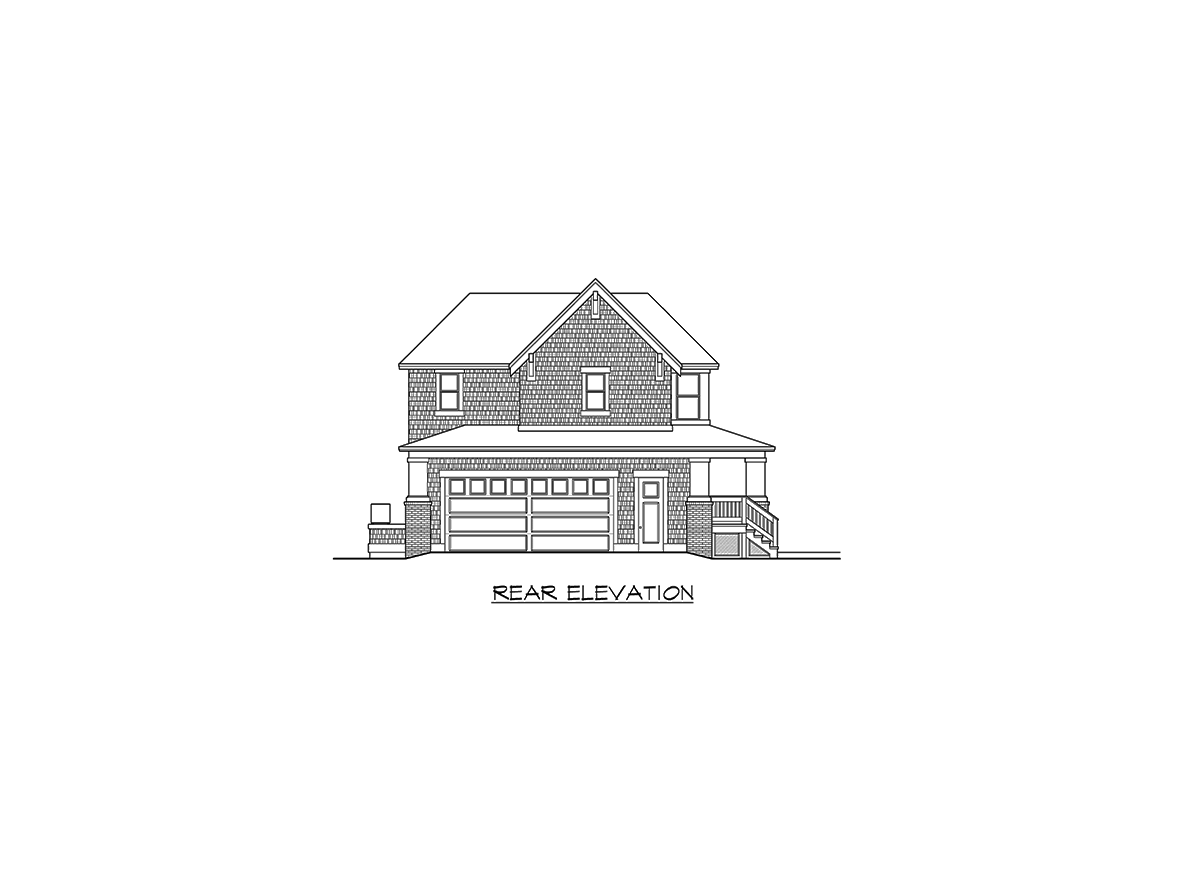

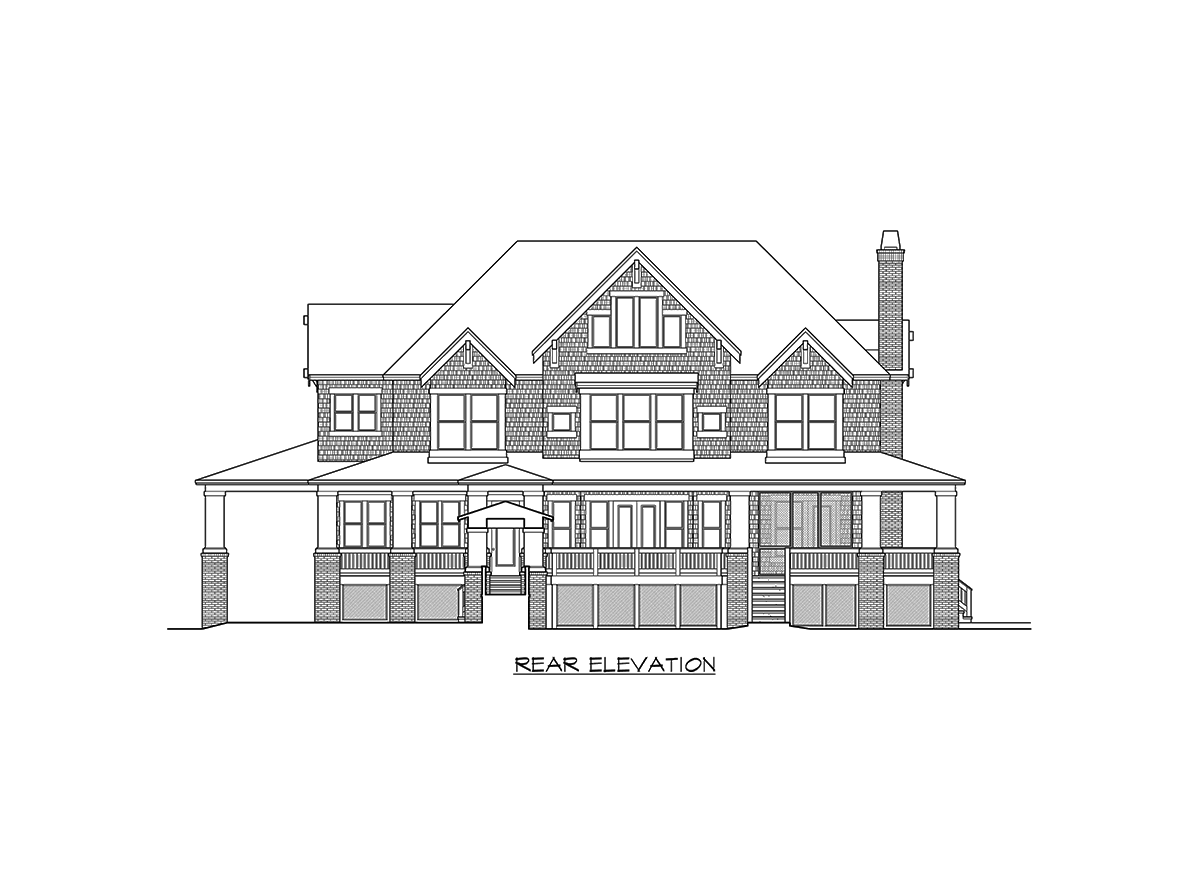

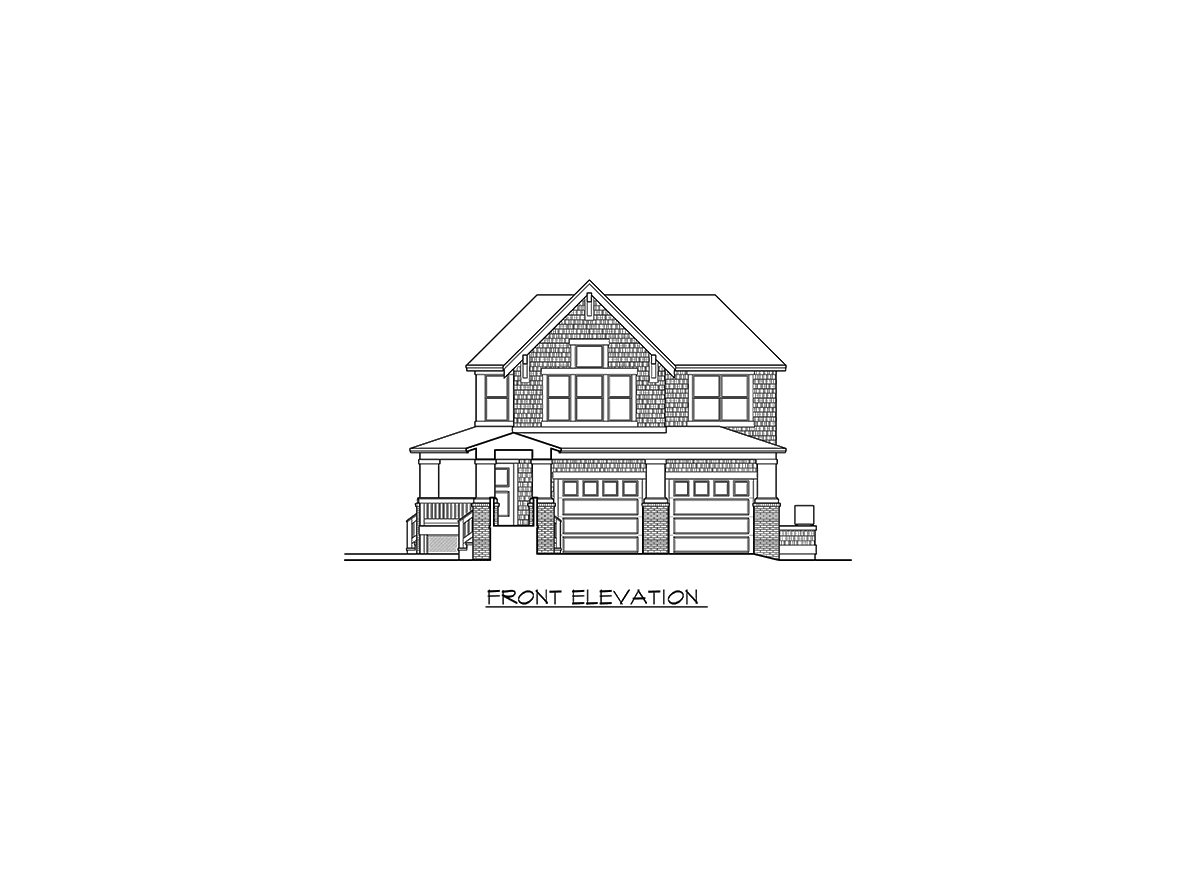

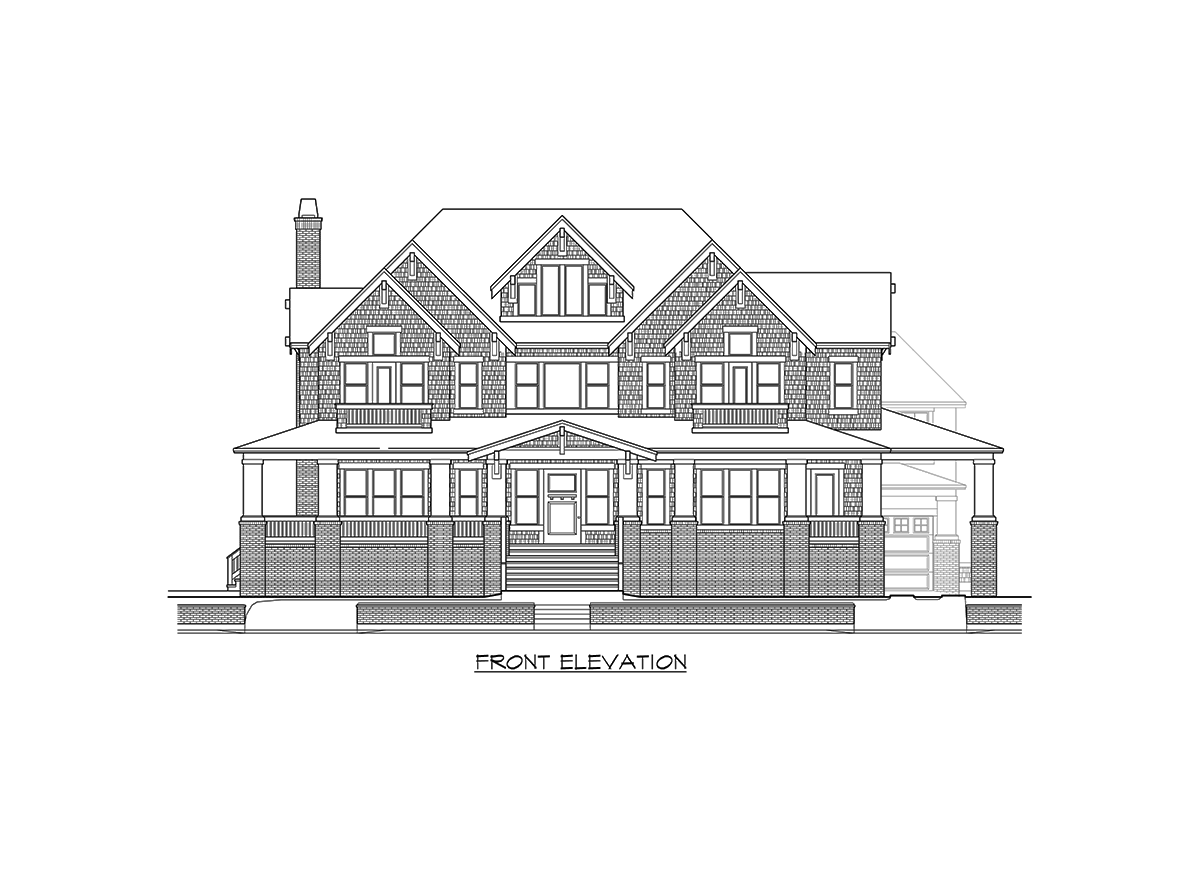

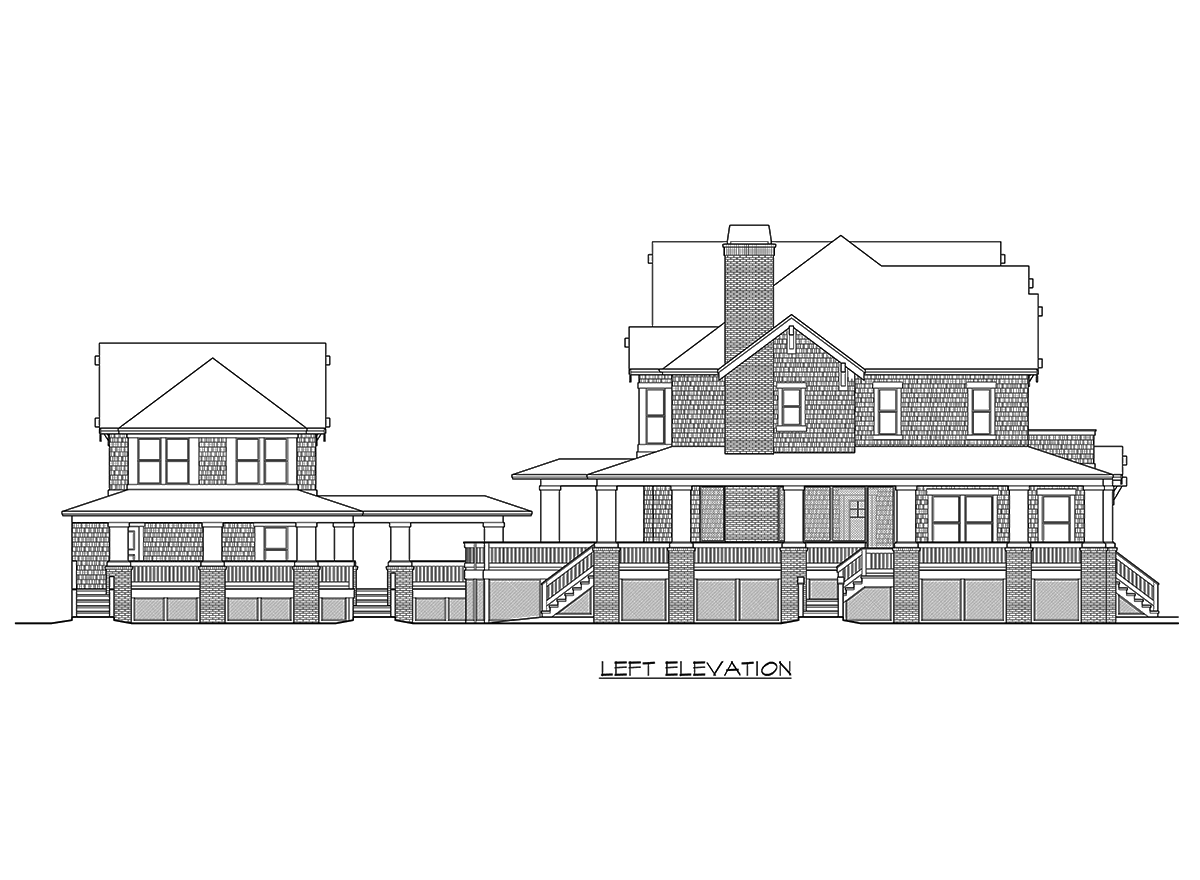

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

4,785 sq. ft.

1st Floor

2,104 sq. ft.

2nd Floor

2,681 sq. ft.

Porch, Combined

1,318 sq. ft.

Screened Porch

324 sq. ft.

Deck

380 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

80' 0"

Depth

111' 0"

Max Ridge Height

40' 0"

Garage

Type

Attached

Area

656 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

10'

Second Floor

9'

Attic

6' 0''

Room

Ceiling Type

Height

Master Bedroom

Vaulted

0' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Craftsman

New American

Northwest

Special Features

Bonus Room

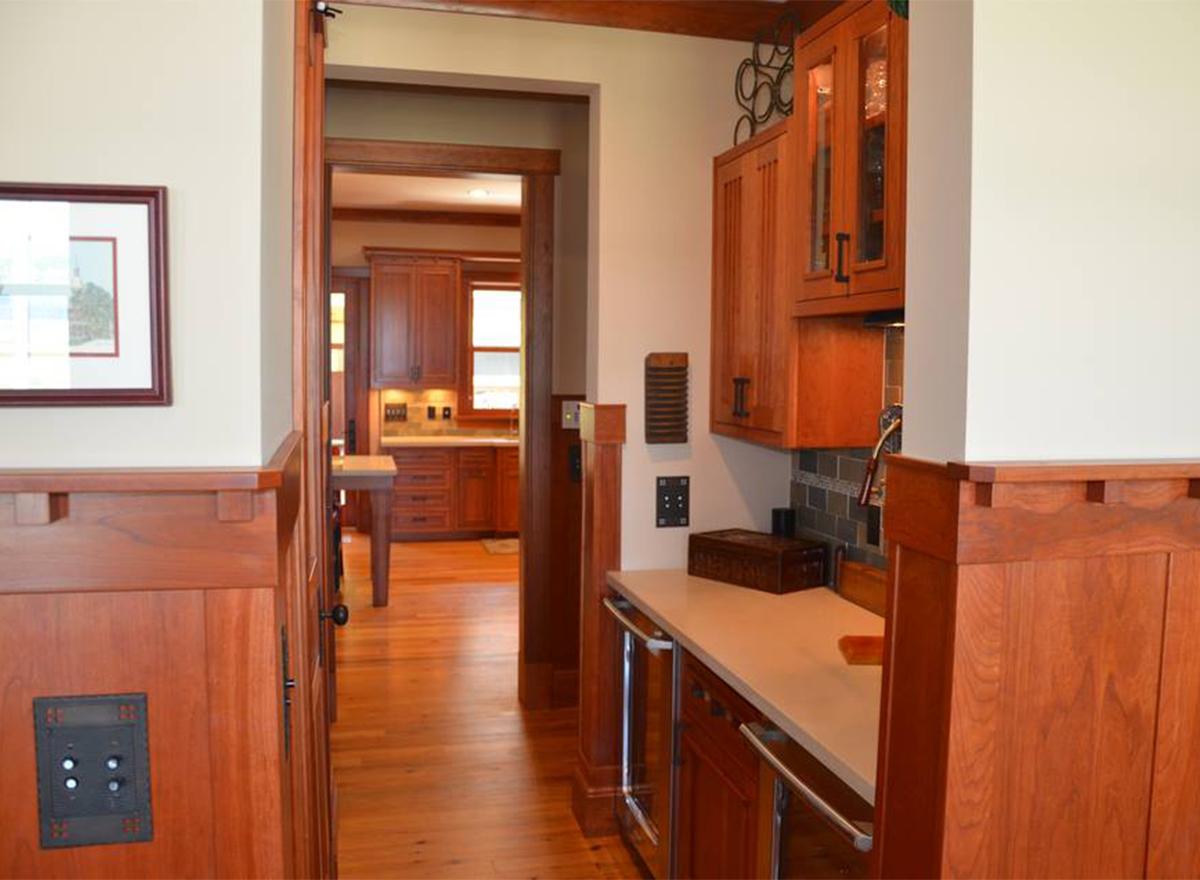

Butler Walk-in Pantry

In-Law Suite

Laundry - Main Level

Master Suite - 2nd Floor

Master Suite - Sitting Area

Wrap Around Porch

Plan Collections

Luxury

Photo Gallery
